Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

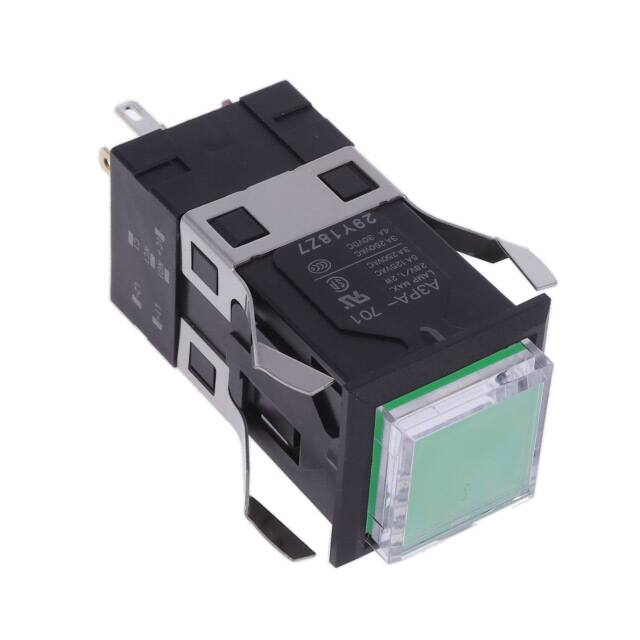

A3PA-90A11-24EGSWITCH PUSHBUTTON SPDT 5A 125V |
3 |
|
Datasheet |
A3P | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-Mom | 5A (AC), 4A (DC) | 125 V | 30 V | Square, Button | No Marking | Green | LED, Green | 24 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP40 | - | Rectangular - 23.50mm x 22.50mm | -10°C ~ 40°C |
|

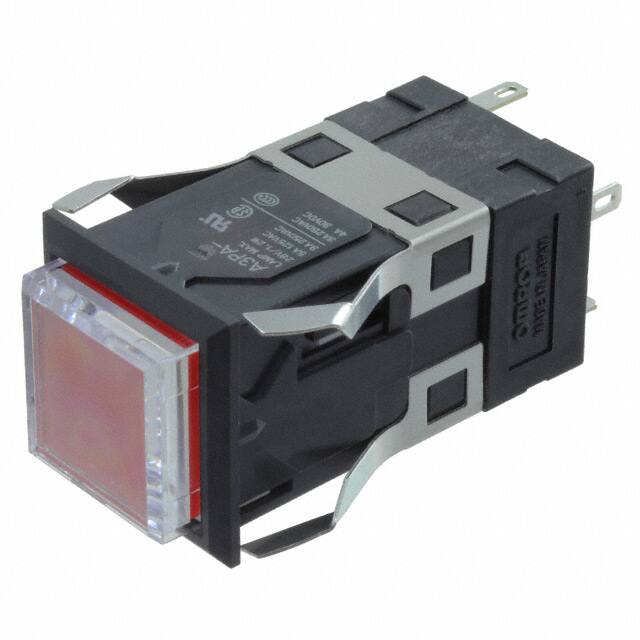

A3PA-90A11-24ERSWITCH PUSHBUTTON SPDT 5A 125V |
3 |
|
Datasheet |
A3P | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-Mom | 5A (AC), 4A (DC) | 125 V | 30 V | Square, Button | No Marking | Red | LED, Red | 24 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP40 | - | Rectangular - 23.50mm x 22.50mm | -10°C ~ 40°C |
|
A3PA-90A11-24EWSWITCH PUSHBUTTON SPDT 5A 125V |
3 |
|
Datasheet |
A3P | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-Mom | 5A (AC), 4A (DC) | 125 V | 30 V | Square, Button | No Marking | White | LED, White | 24 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP40 | - | Rectangular - 23.50mm x 22.50mm | -10°C ~ 40°C |
|
ZB5AW062COMPLETE BODY/CONTACT ASSEMBLY A |
3 |
|
Datasheet |
Harmony XB5 | Box | Active | Panel Mount, Front | Standard, Illuminated | SPST-NC | Off-On | 6A (AC), 550mA (DC) | 120 V | 125 V | Rectangular, Button (Not Included) | - | - | - | 250 VAC | Screw Terminal | - | - | - | -40°C ~ 70°C |
|
NX307005BTACTICAL PUSHBUTTON SC DOUBLE PO |
4 |
|
Datasheet |
NX | Bulk | Active | Panel Mount, Rear | Standard | DPST-NO | Off-Mom | 10A (AC/DC) | 115 V | 28 V | Round, Plunger | No Marking | Black | - | - | Solder Lug | Dust Proof | - | - | - |
|

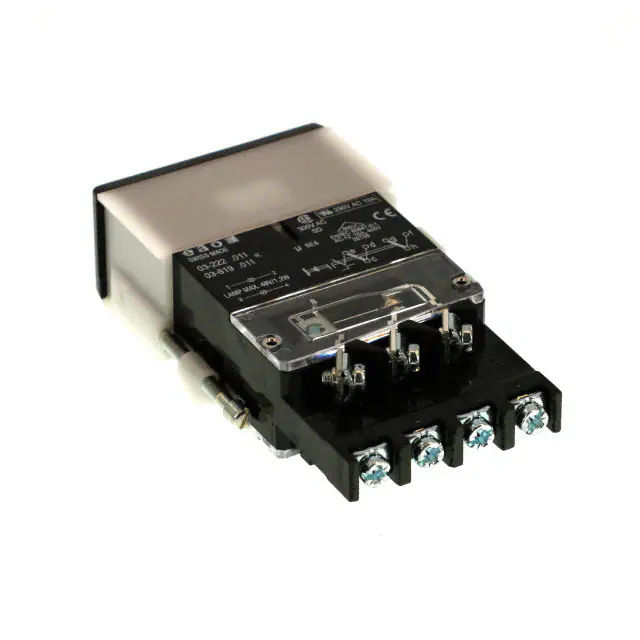

03-619.011SWITCH PB DPDT 10A 400V |
8 |
|
Datasheet |
03 | Bulk | Active | Panel Mount, Front | Standard | DPDT | On-On | 10A (AC) | 400 V | - | Rectangular, Button (Not Included) | No Marking | - | - | - | Screw Terminal | IP40 | - | Rectangular - 41.20mm x 21.20mm | -25°C ~ 55°C |
|
MPZI022/F/GN/24SWITCH PUSHBUTTON SPST-NO 1A 24V |
10 |
|
Datasheet |
MPZ | Bulk | Active | Panel Mount, Front | Piezo | SPST-NO | Off-Mom | 1A (AC/DC) | 24 V | 24 V | Round, Button, Flush | No Marking | Silver | LED, Green | 24 VAC/DC | Wire Leads | IP68/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 22.00mm Dia | -40°C ~ 85°C |
|

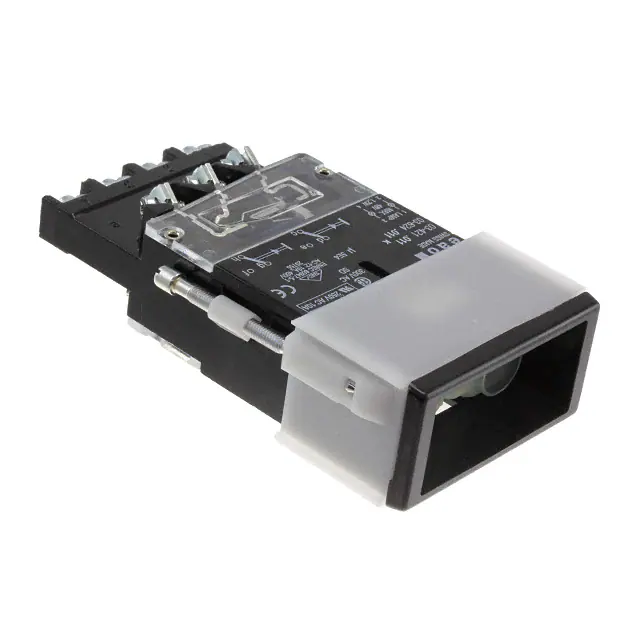

03-624.011SWITCH PB DPDT 10A 400V |
7 |
|
Datasheet |
03 | Bulk | Active | Panel Mount, Front | Standard | DPDT | On-Mom | 10A (AC) | 400 V | - | Rectangular, Button (Not Included) | No Marking | - | - | - | Screw Terminal | IP40 | - | Rectangular - 41.20mm x 21.20mm | -25°C ~ 55°C |
|
ZB5AW0B13HARMONY XB5, LIGHT BLOCK WITH BO |
2 |
|
Datasheet |
Harmony XB5 | Box | Active | Panel Mount, Front | Standard, Illuminated | DPST-NO | Off-On | 6A (AC), 550mA (DC) | 120 V | 125 V | Rectangular, Button (Not Included) | - | White | LED, White | 24 VDC | Screw Terminal | - | - | - | -40°C ~ 70°C |
|
PN1L-M2AFB002E2A30MM PIEZO RING 24VDC RED-GRE |
2 |
|
Datasheet |
PN1L | Bulk | Active | Panel Mount, Front | Piezo | SPST-NO | Off-Mom | 1A (AC/DC) | 24 V | 24 V | Round, Button, Flush | No Marking | Silver | LED, Green/Red | 24 VDC | Wire Leads | IP68/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 30.50mm Dia | -40°C ~ 75°C |
|
XB5FW35B5HARMONY XB5, ANTIMICROBIAL ILLUM |
3 |
|
Datasheet |
XB5F | Box | Active | Panel Mount, Front | Standard, Illuminated | DPST-NO/NC | On-Off, Off-On | 6A (AC), 550mA (DC) | 120 V | 125 V | Round, Button, Flush | - | Orange | Incandescent, Orange | 24 VAC/DC | Screw Terminal | IP66/IP67/IP69/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 30.50mm Dia | -40°C ~ 70°C |
|

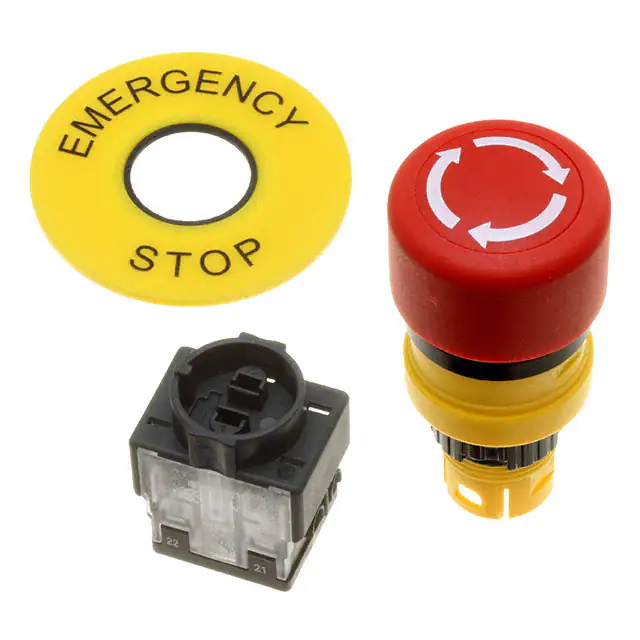

EUS-61-3440.415511LX(61-3440.415511LX) EMERGECY STOP |
24 |
|
Datasheet |
61 | - | Active | - | - | - | - | - | - | - | - | No Marking | - | - | - | - | - | - | - | - |
|

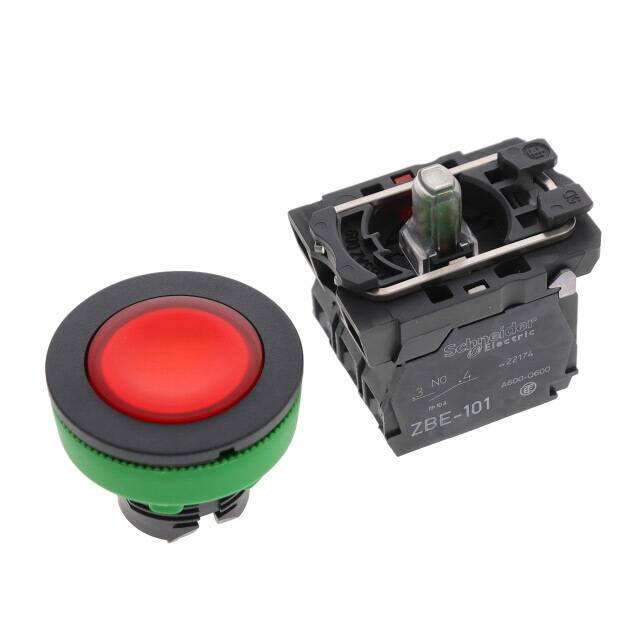

XB5FW34G5HARMONY XB5, ANTIMICROBIAL ILLUM |
5 |
|
Datasheet |
XB5F | Box | Active | Panel Mount, Front | Standard, Illuminated | DPST-NO/NC | On-Off, Off-On | 6A (AC), 550mA (DC) | 120 V | 125 V | Round, Button, Flush | - | Red | LED, Red | 110 ~ 120 VAC | Screw Terminal | IP66/IP67/IP69/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 30.50mm Dia | -40°C ~ 70°C |
|
1241.3670SWITCH PUSH BUTTON |
25 |
|
Datasheet |
PSE | Bulk | Active | Panel Mount, Front | Piezo | SPST-NO | Off-Mom | 100mA (AC/DC) | 42 V | 60 V | Round, Button, Flush | No Marking | Silver | LED, Blue/Green/Red | 5 ~ 28 VDC | Wire Leads | IP67 - Dust Tight, Waterproof | - | Circular - 30.30mm Dia | -40°C ~ 85°C |
|

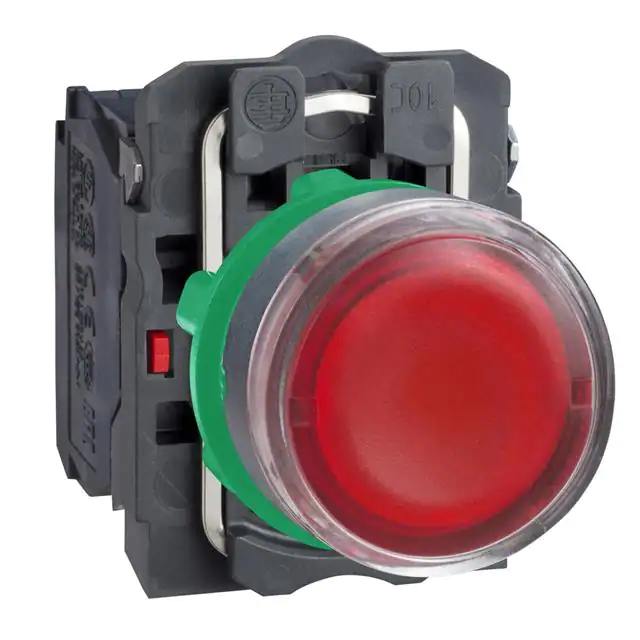

XB5AW3465HARMONY XB5, ILLUMINATED PUSH BU |
2 |
|
Datasheet |
Harmony XB5 | Box | Active | Panel Mount, Front | Standard, Illuminated | DPST-NO/NC | On-Off, Off-On | 6A (AC), 550mA (DC) | 120 V | 125 V | Round, Button, Flush | - | Red | LED, Red | 250 VAC | Screw Terminal | IP66 - Dust Tight, Water Resistant | - | Circular - 22.00mm Dia | -40°C ~ 70°C |
|
PN1L-M4AFB002D2A30MM PIEZO RING 12VDC RED-GRE |
8 |
|
Datasheet |
PN1L | Bulk | Active | Panel Mount, Front | Piezo | SPST-NO | Off-Mom | 1A (AC/DC) | 24 V | 24 V | Round, Button, Flush | No Marking | Silver | LED, Green/Red | 12 VDC | Wire Leads | IP68/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 30.50mm Dia | -40°C ~ 75°C |
|
|
PN1L-M4AFB002E2A30MM PIEZO RING 24VDC RED-GRE |
5 |
|
Datasheet |
PN1L | Bulk | Active | Panel Mount, Front | Piezo | SPST-NO | Off-Mom | 1A (AC/DC) | 24 V | 24 V | Round, Button, Flush | No Marking | Silver | LED, Green/Red | 24 VDC | Wire Leads | IP68/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 30.50mm Dia | -40°C ~ 75°C |
|

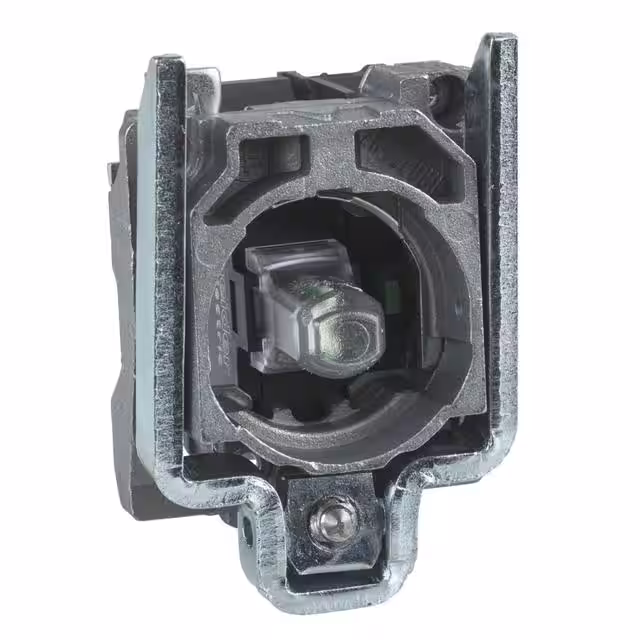

ZB4BW0B12COMPLETE BODY/CONTACT ASSEMBLY A |
2 |
|
Datasheet |
Harmony XB4 | Box | Active | Panel Mount, Front | Standard, Illuminated | SPST-NC | Off-On | 6A (AC), 550mA (DC) | 120 V | 125 V | Rectangular, Button (Not Included) | - | White | LED, White | 24 VDC | Screw Terminal | - | - | - | -40°C ~ 70°C |
|
XB5AW73731M5HARMONY XB5, ILLUMINATED DOUBLE- |
3 |
|
Datasheet |
Harmony XB5 | Box | Active | Panel Mount, Front | Standard, Illuminated | DPST-NO/NC | On-Off, Off-On | 6A (AC), 550mA (DC) | 120 V | 125 V | Rectangular, Button, Flush | - | Green | LED, Green | 230 ~ 240 VAC | Screw Terminal | IP66 - Dust Tight, Water Resistant | - | Circular - 22.00mm Dia | -40°C ~ 70°C |
|
1.22.242.242/0000SWITCH PUSHBUTTON 1NOX2 100MA |
10 |
|
Datasheet |
- | Bulk | Active | Free Hanging | Standard | SPST-NO x 2 | Off-Mom | 100mA (AC/DC) | - | - | Round, Button, Dual | No Marking | White | - | - | Connector | IP65 - Dust Tight, Water Resistant | Control Box Enclosure | - | -25°C ~ 70°C |
