Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SW-PB9-AAB00A2RE-6SEALED SUBMINIATIURE PUSHBUTTON |
65 |
|
Datasheet |
SW | Box | Active | Through Hole, Right Angle | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | No Marking | - | - | - | PC Pin | IP67 - Dust Tight, Waterproof | - | - | -30°C ~ 85°C |
|
MPB01-1B54-S-CAP-R-DSPST, THROUGH HOLE, 5.4 MM PUSH, |
93 |
|
Datasheet |
MPB01 | Bag | Active | Through Hole | Standard | SPST-NO | Off-Mom | 14mA (DC) | - | 28 V | Round, Button | No Marking | Red | - | - | PC Pin | - | - | - | -25°C ~ 80°C |
|
SW-PB8-AA22A2QE-3ALTERNATE ACTING PUSHBUTTON SWIT |
29 |
|
Datasheet |
SW | Box | Active | Panel Mount, Rear | Standard | SPDT | On-On | 6A (AC/DC) | 125 V | 28 V | Round, Button | No Marking | Black | - | - | PC Pin | - | - | - | -30°C ~ 85°C |
|
G3PB004G3 STAINLESS STEEL DOUBLE PUSH P |
50 |
|
Datasheet |
- | Bulk | Active | - | - | - | - | - | - | - | - | No Marking | - | - | - | - | - | - | - | - |
|
ESANML2GBRSWITCH PB SPST-NO 125MA 125V |
35 |
|
Datasheet |
ES | Tray | Active | Panel Mount, Front | Standard, Illuminated | SPST-NO | Off-Mom | 125mA (AC/DC) | 125 V | 50 V | Round, Button | No Marking | Black | LED, Red | 2.1 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 13.60mm Dia | -30°C ~ 85°C |
|
EP11S2D1ABESWITCH PUSH SPST-NO 0.4VA 20V |
99 |
|
Datasheet |
EP | Tray | Active | Through Hole, Right Angle | Standard | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | No Marking | Black | - | - | PC Pin | IP57 - Dust Protected, Waterproof | Epoxy Sealed Terminals | - | -30°C ~ 85°C |
|
TP12SH8ABESWITCH PUSH SPDT 0.4VA 20V |
65 |
|
Datasheet |
TP | Bulk | Active | Through Hole, Right Angle | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | No Marking | Black | - | - | PC Pin | - | Sealed | - | -30°C ~ 85°C |
|
SW-PB8-BB00B10QE-1SNAP-ACTING PUSHBUTTON SWITCH, V |
32 |
|
Datasheet |
SW | Box | Active | Through Hole | Standard | DPDT | On-Mom | 1A (AC/DC) | 120 V | 38 V | Round, Plunger | No Marking | - | - | - | PC Pin | - | - | - | -30°C ~ 85°C |
|
ELUMOATHQC22SWITCH PUSH SPDT 0.25A 50V |
34 |
|
Datasheet |
ELUM™ | Tray | Active | Through Hole, Right Angle | Standard | SPDT | On-Mom | 250mA (DC) | - | 50 V | Plunger for Cap | No Marking | Black | - | - | PC Pin | - | - | - | -40°C ~ 80°C |
|
700SP7B10M6QEHSWITCH PUSHBUTTON SPDT 3A 120V |
42 |
|
Datasheet |
700 | Bulk | Active | Panel Mount, Right Angle, Rear | Standard | SPDT | On-Mom | 3A (AC/DC) | 120 V | 28 V | Round, Plunger | No Marking | White | - | - | PC Pin | - | - | Circular - 6.35mm Dia | -30°C ~ 85°C |
|
|
700SP7B10M7QESWITCH PUSHBUTTON SPDT 3A 120V |
30 |
|
Datasheet |
700 | Bulk | Active | Panel Mount, Right Angle, Vertical, Rear | Standard | SPDT | On-Mom | 3A (AC/DC) | 120 V | 28 V | Round, Plunger | No Marking | White | - | - | PC Pin | - | - | Circular - 6.35mm Dia | -30°C ~ 85°C |
|
MPB04-2C54-S-CAP-R-DDPDT, THROUGH HOLE, 5.4 MM PUSH, |
85 |
|
Datasheet |
MPB04 | Bag | Active | Through Hole | Standard | SPDT | On-Mom | 14mA (DC) | - | 28 V | Round, Button | No Marking | Red | - | - | PC Pin | - | - | - | -25°C ~ 80°C |
|
PB7B2RS6M1CAL00SWITCH PUSH SPST-NC 125MA 125V |
69 |
|
Datasheet |
PB7 | Tray | Active | Panel Mount, Front | Standard | SPST-NC | On-Mom | 125mA (AC), 200mA (DC) | 125 V | 50 V | Round, Button, Domed | No Marking | Green | - | - | Solder Lug | IP68 - Dust Tight, Waterproof | - | Circular - 13.60mm Dia | -30°C ~ 85°C |
|
PB6B2HS7M4CAL00SWITCH PUSH SPST-NO 125MA 125V |
47 |
|
Datasheet |
PB6 | Tray | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 125mA (AC), 200mA (DC) | 125 V | 50 V | Round, Button | No Marking | Blue | - | - | PC Pin | IP68 - Dust Tight, Waterproof | - | Circular - 13.60mm Dia | -30°C ~ 85°C |
|
|
TP33P008500SWITCH PUSH SPST-NO 0.4VA 20V |
100 |
|
Datasheet |
TP | Bulk | Active | Through Hole | Standard | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | Power Symbol | Black | - | - | PC Pin | - | Sealed | - | -30°C ~ 85°C |
|
FP12SPA1B1TP00SWITCH PUSH SPDT-NO 0.4VA 28V |
99 |
|
Datasheet |
FP | Tray | Active | Through Hole, Right Angle | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Plunger for Cap | No Marking | Black | - | - | PC Pin | - | - | - | -20°C ~ 80°C |
|
|
AB15BH-FASWITCH PUSH SPDT 0.4VA 28V |
22 |
|
Datasheet |
AB | Tray | Active | Through Hole, Right Angle | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Black | - | - | PC Pin | - | Sealed - Fully | - | -30°C ~ 85°C |
|

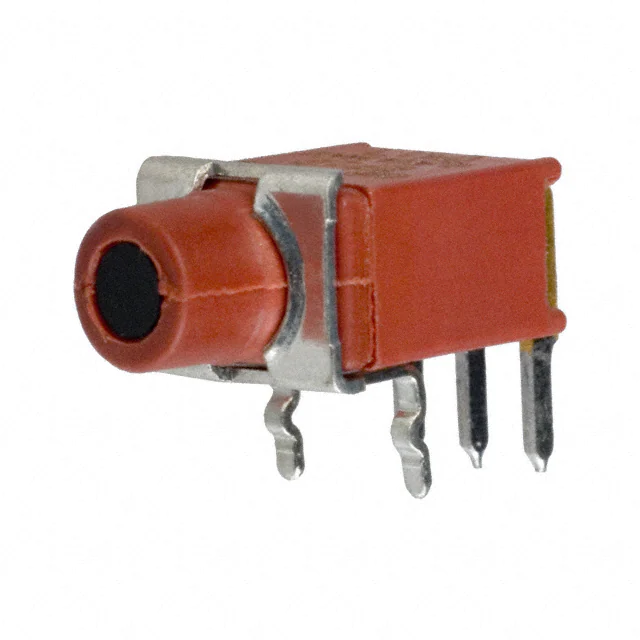

EP12FPD1APESWITCH PUSH SPDT 0.4VA 20V |
98 |
|
Datasheet |
EP | Tray | Active | Through Hole, Right Angle | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger, Flush | No Marking | Black | - | - | PC Pin | IP57 - Dust Protected, Waterproof | Epoxy Sealed Terminals | - | -30°C ~ 85°C |
|
PB6B2FM7M1CAL06SWITCH PUSH SPST-NO 125MA 125V |
75 |
|
Datasheet |
PB6 | Tray | Active | Panel Mount, Front | Standard, Illuminated | SPST-NO | Off-Mom | 125mA (AC), 200mA (DC) | 125 V | 50 V | Round, Button | No Marking | Blue | LED, Green | - | Solder Lug | IP68 - Dust Tight, Waterproof | - | Circular - 13.60mm Dia | -30°C ~ 85°C |
|
PB6B2FM7M1CAL01SWITCH PUSH SPST-NO 125MA 125V |
53 |
|
Datasheet |
PB6 | Tray | Active | Panel Mount, Front | Standard, Illuminated | SPST-NO | Off-Mom | 125mA (AC), 200mA (DC) | 125 V | 50 V | Round, Button | No Marking | Blue | LED, White | - | Solder Lug | IP68 - Dust Tight, Waterproof | - | Circular - 13.60mm Dia | -30°C ~ 85°C |
Pushbutton Switches Electronic Components
Frequently Asked Questions
Q1: What products are included in Pushbutton Switches?
This category includes related Pushbutton Switches subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Pushbutton Switches components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Pushbutton Switches and other electronic components.
