Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
XB6CW1B1BCOMPLETE ILLUMINATED PUSH BUTTON |
21 |
|
Datasheet |
Harmony XB6 | Box | Active | Panel Mount, Front | Standard, Illuminated | SPST-NO | On-Off | 3A (AC), 220mA (DC) | 120 V | 125 V | Square, Button | - | White | LED, White | 12 VDC | Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 16.00mm Dia | -25°C ~ 70°C |
|
XB6AW1B1BCOMPLETE ILLUMINATED PUSH BUTTON |
4 |
|
Datasheet |
Harmony XB6 | Box | Active | Panel Mount, Front | Standard, Illuminated | SPST-NO | On-Off | 3A (AC), 220mA (DC) | 120 V | 125 V | Round, Button, Flush | - | White | LED, White | 12 VDC | Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 16.00mm Dia | -25°C ~ 70°C |
|
XB6AE3B1BCOMPLETE ILLUMINATED PUSH BUTTON |
4 |
|
Datasheet |
Harmony XB6 | Box | Active | Panel Mount, Front | Standard, Illuminated | SPST-NO | On-Off | 3A (AC), 220mA (DC) | 120 V | 125 V | Round, Button, Flush | - | Green | LED, Green | 12 VDC | Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 16.00mm Dia | -25°C ~ 70°C |
|
XB6AF3B1BCOMPLETE ILLUMINATED PUSH BUTTON |
4 |
|
Datasheet |
Harmony XB6 | Box | Active | Panel Mount, Front | Standard, Illuminated | SPST-NO | On-Off | 3A (AC), 220mA (DC) | 120 V | 125 V | Round, Button, Flush | - | Green | LED, Green | 12 VDC | Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 16.00mm Dia | -25°C ~ 70°C |
|
46-05-08-502-03SWITCH PUSH DPDT 0.25A 115V |
11 |
|
Datasheet |
46 | Bulk | Active | Panel Mount, Front | Standard | DPDT | On-Mom | 250mA (AC) | 115 V | - | Round, Button | No Marking | Red | - | - | Solder Lug | - | - | Rectangular - 16.28mm x 14.35mm | -40°C ~ 85°C |
|

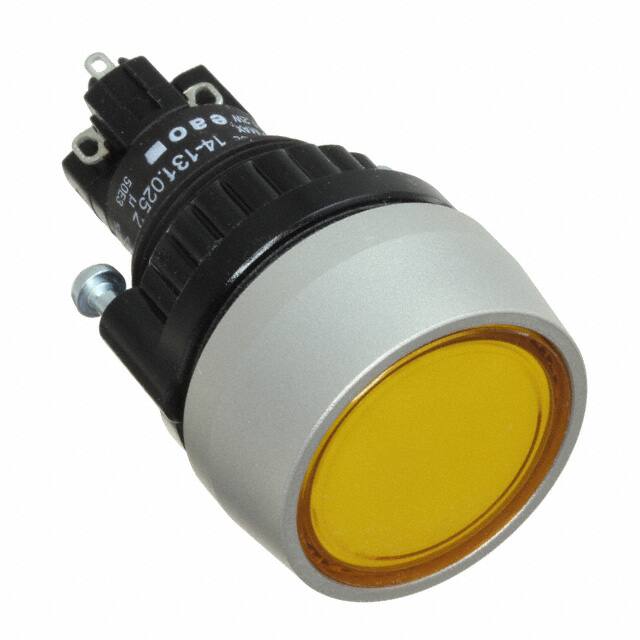

K14-131.121071SWITCH PB DPST-NO/NC 5A 250V |
6 |
|
Datasheet |
14 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPST-NO/NC | On-Mom, Off-Mom | 5A (AC/DC) | 250 V | 250 V | Round, Button, Flush | No Marking | Yellow | LED, Yellow | 24 VAC/DC | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 22.30mm Dia | -25°C ~ 55°C |
|
K14-131.121081SWITCH PB DPST-NO/NC 5A 250V |
5 |
|
Datasheet |
14 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPST-NO/NC | On-Mom, Off-Mom | 5A (AC/DC) | 250 V | 250 V | Round, Button, Flush | No Marking | Green | LED, Green | 24 VAC/DC | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 22.30mm Dia | -25°C ~ 55°C |
|

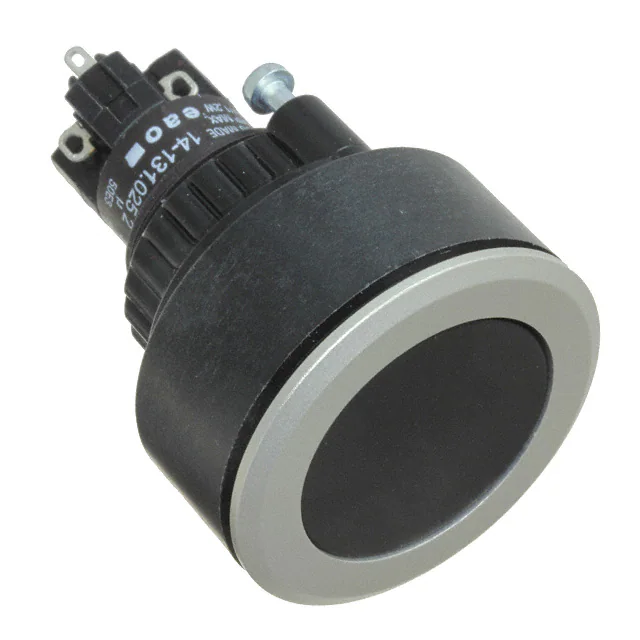

K14-131.221120SWITCH PB DPST-NO/NC 5A 250V |
12 |
|
Datasheet |
14 | Bulk | Active | Panel Mount, Front | Standard | DPST-NO/NC | On-Mom, Off-Mom | 5A (AC) | 250 V | - | Round, Button, Flush | No Marking | Black | - | - | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 30.50mm Dia | -25°C ~ 55°C |
|
XB5AL84101MANUAL OVERLOAD RESET PUSH BUTTO |
2 |
|
Datasheet |
Harmony XB5 | Box | Active | Panel Mount, Front | Standard | - | - | - | - | - | Round, Button, Flush | - | Red | - | - | - | IP66 - Dust Tight, Water Resistant | - | Circular - 22.00mm Dia | -40°C ~ 70°C |
|
01-152.025SWITCH PB 4PST-2NO/2NC 5A 250V |
25 |
|
Datasheet |
01 | Bulk | Active | Panel Mount, Front | Standard | 4PST-2NO/2NC | On-Mom, Off-Mom | 5A (AC) | 250 V | - | Square, Button (Not Included) | No Marking | - | - | - | Solder Lug | IP40 | - | Circular - 16.00mm Dia | -25°C ~ 55°C |
|
01-122.025SWITCH PB 4PST-2NO/2NC 5A 250V |
9 |
|
Datasheet |
01 | Bulk | Active | Panel Mount, Front | Standard | 4PST-2NO/2NC | On-Mom, Off-Mom | 5A (AC) | 250 V | - | Rectangular, Button (Not Included) | No Marking | - | - | - | Solder Lug | IP40 | - | Circular - 16.00mm Dia | -25°C ~ 55°C |
|
AML21CBE2ACSWITCH PUSHBUTTON DPDT 3A 125V |
25 |
|
Datasheet |
AML21 | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | DPDT | On-Mom | 3A (AC), 2A (DC) | 125 V | 24 V | Square, Button (Not Included) | No Marking | - | Incandescent | 28 VAC | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Square - 19.05mm x 19.05mm | - |
|
PW1L-R6AFB002J0W22MM PIEZO DOT 24VDC WHITE |
3 |
|
Datasheet |
PW1L | Bulk | Active | Panel Mount, Front | Piezo | SPST-NO | Off-Mom | 1A (AC/DC) | 24 V | 24 V | Round, Button, Flush | No Marking | Silver | LED, White | 24 VDC | Wire Leads | IP68/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 22.20mm Dia | -40°C ~ 75°C |
|
31-282.025SWITCH PB 4PST-2NO/2NC 5A 250V |
4 |
|
Datasheet |
31 | Bulk | Active | Panel Mount, Front | Standard | 4PST-2NO/2NC | On-Off, Off-On | 5A (AC) | 250 V | - | Square, Button (Not Included) | No Marking | - | - | - | Solder Lug | IP40 | - | Circular - 16.00mm Dia | -25°C ~ 55°C |
|
AV031003C910SWITCH PUSH SPST-NO 2A 48V |
24 |
|
Datasheet |
AV | Bulk | Active | Panel Mount, Front | Anti-Vandal | SPST-NO | Off-Mom | 2A (DC) | - | 48 V | Round, Button, Flush | No Marking | Silver | - | - | Screw Terminal | IP54 - Dust Protected, Water Resistant | - | Circular - 22.20mm Dia | -30°C ~ 70°C |
|
A165L-AAM-12D-2SWITCH PUSHBUTTON DPDT 5A 125V |
2 |
|
Datasheet |
A16 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPDT | On-Mom | 5A (AC) | 125 V | - | Square, Button | No Marking | Blue | LED, Blue | 12 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP66 - Dust Tight, Oil and Water Resistant | - | Circular - 16.00mm Dia | -10°C ~ 55°C |
|

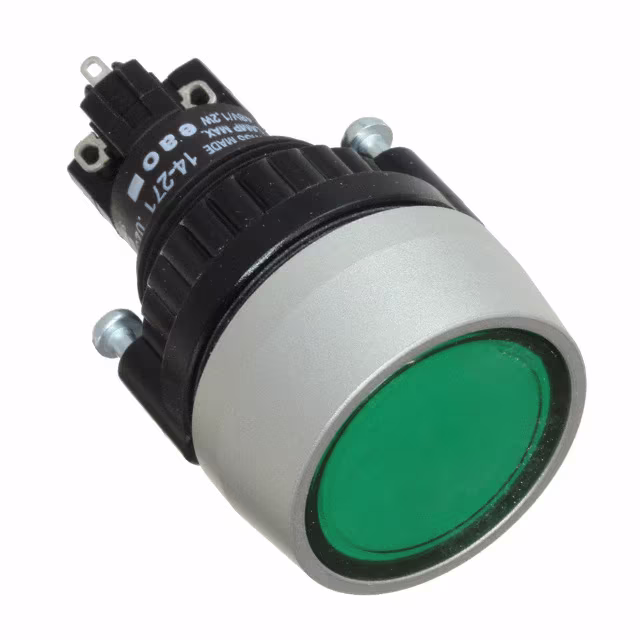

K14-271.122081SWITCH PB DPST-NO/NC 5A 250V |
3 |
|
Datasheet |
14 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPST-NO/NC | On-Off, Off-On | 5A (AC/DC) | 250 V | 250 V | Round, Button, Flush | No Marking | Green | LED, Green | 24 VAC/DC | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 22.30mm Dia | -25°C ~ 55°C |
|
|
PW1L-R6AFB002JSG22MM PIEZO DOT 24VDC RED-GREEN |
13 |
|
Datasheet |
PW1L | Bulk | Active | Panel Mount, Front | Piezo | SPST-NO | Off-Mom | 1A (AC/DC) | 24 V | 24 V | Round, Button, Flush | No Marking | Silver | LED, Green/Red | 24 VDC | Wire Leads | IP68/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 22.20mm Dia | -40°C ~ 75°C |
|
01-272.025SWITCH PB 4PST-2NO/2NC 5A 250V |
10 |
|
Datasheet |
01 | Bulk | Active | Panel Mount, Front | Standard | 4PST-2NO/2NC | On-Off, Off-On | 5A (AC) | 250 V | - | Round, Button (Not Included) | No Marking | - | - | - | Solder Lug | IP40 | - | Circular - 16.00mm Dia | -25°C ~ 55°C |
|
01-282.025SWITCH PB 4PST-2NO/2NC 5A 250V |
2 |
|
Datasheet |
01 | Bulk | Active | Panel Mount, Front | Standard | 4PST-2NO/2NC | On-Off, Off-On | 5A (AC) | 250 V | - | Square, Button (Not Included) | No Marking | - | - | - | Solder Lug | IP40 | - | Circular - 16.00mm Dia | -25°C ~ 55°C |
