Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PW1L-RYAFB002E0B22MM PIEZO THIN RING 24VDC BLU |
3 |
|
Datasheet |
PW1L | Bulk | Active | Panel Mount, Front | Piezo | SPST-NO | Off-Mom | 1A (AC/DC) | 24 V | 24 V | Round, Button, Flush | No Marking | Silver | LED, Blue | 24 VDC | Wire Leads | IP68/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 22.20mm Dia | -40°C ~ 75°C |
|
A4E-B200VAA4E-B200VA |
5 |
|
Datasheet |
A4E | Bulk | Active | Panel Mount, Front | Standard | DPST-NO | Off-On-Off | 1A (AC), 300mA (DC) | 125 V | 24 V | Rectangular, Button, Rubber Cap | No Marking | Black | - | - | Solder Lug | IP65 - Dust Tight, Water Resistant | - | Rectangular - 63.30mm x 13.50mm | -10°C ~ 55°C |
|
41-261.025SWITCH PB DPST-NO/NC 5A 250V |
7 |
|
Datasheet |
41 | Bulk | Active | Panel Mount, Front | Standard | DPST-NO/NC | On-Off, Off-On | 5A (AC) | 250 V | - | Rectangular, Button (Not Included) | No Marking | - | - | - | Solder Lug | IP40 | - | Rectangular - 21.00mm x 15.00mm | - |
|
|
PW1L-RYAFB002E0W22MM PIEZO THIN RING 24VDC WHI |
9 |
|
Datasheet |
PW1L | Bulk | Active | Panel Mount, Front | Piezo | SPST-NO | Off-Mom | 1A (AC/DC) | 24 V | 24 V | Round, Button, Flush | No Marking | Silver | LED, White | 24 VDC | Wire Leads | IP68/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 22.20mm Dia | -40°C ~ 75°C |
|
|
PW1L-RYAFB002D0B22MM PIEZO THIN RING 12VDC BLU |
3 |
|
Datasheet |
PW1L | Bulk | Active | Panel Mount, Front | Piezo | SPST-NO | Off-Mom | 1A (AC/DC) | 24 V | 24 V | Round, Button, Flush | No Marking | Silver | LED, Blue | 12 VDC | Wire Leads | IP68/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 22.20mm Dia | -40°C ~ 75°C |
|
|
PW1L-RYAFB002D0S22MM PIEZO THIN RING 12VDC RED |
9 |
|
Datasheet |
PW1L | Bulk | Active | Panel Mount, Front | Piezo | SPST-NO | Off-Mom | 1A (AC/DC) | 24 V | 24 V | Round, Button, Flush | No Marking | Silver | LED, Red | 12 VDC | Wire Leads | IP68/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 22.20mm Dia | -40°C ~ 75°C |
|
|
PW1L-RYAFB002D0W22MM PIEZO THIN RING 12VDC WHI |
4 |
|
Datasheet |
PW1L | Bulk | Active | Panel Mount, Front | Piezo | SPST-NO | Off-Mom | 1A (AC/DC) | 24 V | 24 V | Round, Button, Flush | No Marking | Silver | LED, White | 12 VDC | Wire Leads | IP68/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 22.20mm Dia | -40°C ~ 75°C |
|
|
PW1L-RYAFB002D0G22MM PIEZO THIN RING 12VDC GRE |
3 |
|
Datasheet |
PW1L | Bulk | Active | Panel Mount, Front | Piezo | SPST-NO | Off-Mom | 1A (AC/DC) | 24 V | 24 V | Round, Button, Flush | No Marking | Silver | LED, Green | 12 VDC | Wire Leads | IP68/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 22.20mm Dia | -40°C ~ 75°C |
|
|
PW1L-RYAFB002E0Y22MM PIEZO THIN RING 24VDC YEL |
2 |
|
Datasheet |
PW1L | Bulk | Active | Panel Mount, Front | Piezo | SPST-NO | Off-Mom | 1A (AC/DC) | 24 V | 24 V | Round, Button, Flush | No Marking | Silver | LED, Yellow | 24 VDC | Wire Leads | IP68/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 22.20mm Dia | -40°C ~ 75°C |
|
XB7NW34M2HARMONY XB7, MONOLITHIC ILLUMINA |
14 |
|
Datasheet |
Harmony XB7 | Box | Active | Panel Mount, Front | Standard, Illuminated | SPST-NC | Off-On | 600mA (AC), 220mA (DC) | 120 V | 125 V | Round, Button, Flush | - | Red | LED, Red | 230 VAC | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | Circular - 22.00mm Dia | -25°C ~ 70°C |
|

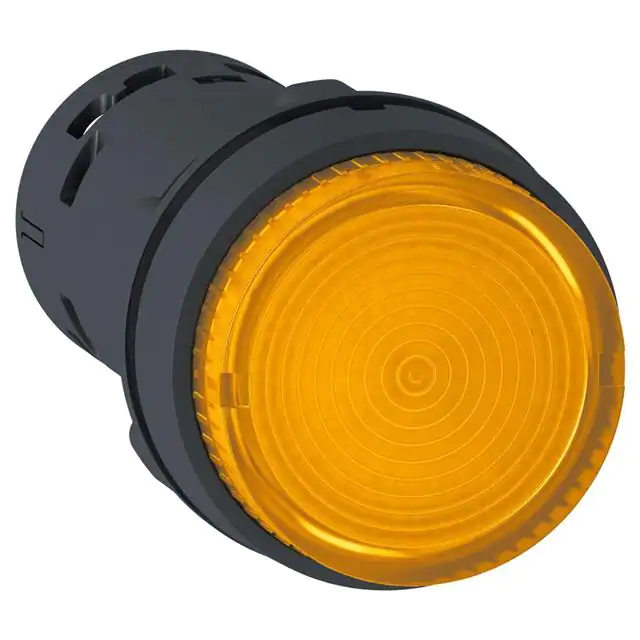

XB7NW35B1HARMONY XB7, MONOLITHIC ILLUMINA |
7 |
|
Datasheet |
Harmony XB7 | Box | Active | Panel Mount, Front | Standard, Illuminated | SPST-NO | On-Off | 600mA (AC), 220mA (DC) | 120 V | 125 V | Round, Button, Flush | - | Orange | LED, Orange | 24 VDC | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | Circular - 22.00mm Dia | -25°C ~ 70°C |
|
PBARZAF0000C3ASWITCH PUSH SPST-NO 0.2A 24V |
6 |
|
Datasheet |
PBA | Bulk | Active | Panel Mount, Front | - | SPST-NO | Off-Mom | 200mA (AC/DC) | 24 V | 24 V | Round, Button, Flush | No Marking | Natural | LED, Blue/Green/Red | 5 VDC | Wire Leads | IP68 - Dust Tight, Waterproof | Epoxy Sealed Terminals | Circular - 22.20mm Dia | -40°C ~ 75°C |
|

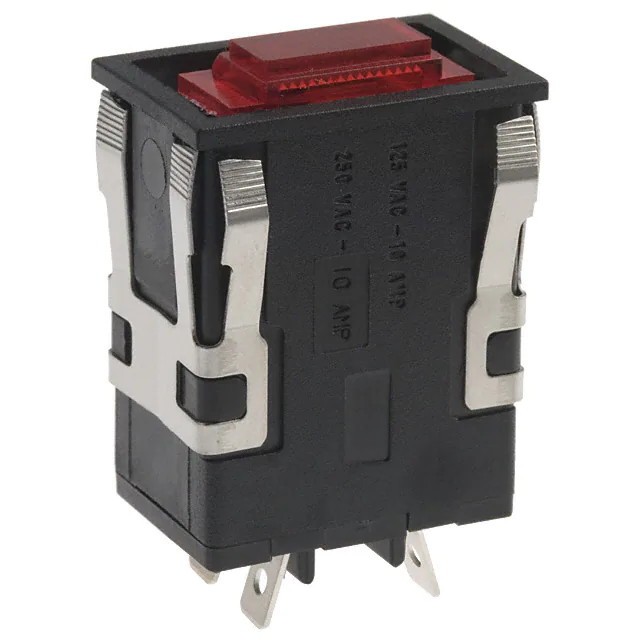

AML32FBB7ADSWITCH PUSH DPST-NO 10A 125V |
10 |
|
Datasheet |
AML32 | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | DPST-NO (DM) | Off-On | 10A (AC/DC) | 125 V | 30 V | Rectangular, Button (Not Included) | No Marking | - | Neon, Red | 125 VAC | Solder, Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 29.00mm x 19.00mm | - |
|

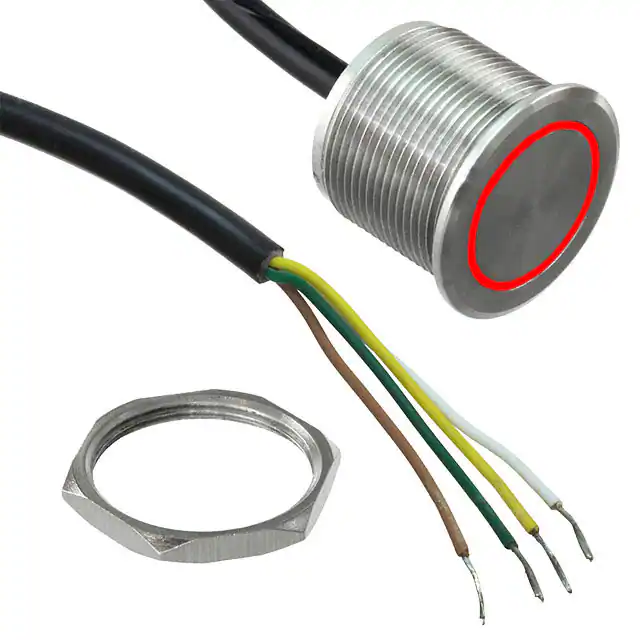

MPZI022/F/RD/24SWITCH PUSHBUTTON SPST-NO 1A 24V |
22 |
|
Datasheet |
MPZ | Bulk | Active | Panel Mount, Front | Piezo | SPST-NO | Off-Mom | 1A (AC/DC) | 24 V | 24 V | Round, Button, Flush | No Marking | Silver | LED, Red | 24 VAC/DC | Wire Leads | IP68/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 22.00mm Dia | -40°C ~ 85°C |
|
|
13445A9X768SWITCH PUSHBUTTON DPDT 4A 125V |
15 |
|
Datasheet |
13000 | Bulk | Active | Panel Mount, Rear | Standard | DPDT | On-Mom | 4A (AC/DC) | 125 V | 30 V | Round, Plunger | No Marking | Silver | - | - | Solder Lug | - | Sealed - Fully | Circular - 12.00mm Dia | -40°C ~ 85°C |
|
|
PW1L-RYAFB002E2A22MM PIEZO THIN RING 24VDC R-G |
12 |
|
Datasheet |
PW1L | Bulk | Active | Panel Mount, Front | Piezo | SPST-NO | Off-Mom | 1A (AC/DC) | 24 V | 24 V | Round, Button, Flush | No Marking | Silver | LED, Green/Red | 24 VDC | Wire Leads | IP68/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 22.20mm Dia | -40°C ~ 75°C |
|
3SU11520AB601BA0ILLUMINATED PUSHBUTTON, MOM, WHT |
9 |
|
Datasheet |
3SU1 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPST-NO | Off-Mom | 10A (AC/DC) | 500 V | 500 V | Round, Button | No Marking | White | LED, White | 24 VAC/DC | Screw Terminal | IP66/IP67/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 22.30mm Dia | -25°C ~ 70°C |
|
PN1L-M2AFB002D0G30MM PIEZO RING 12VDC GREEN |
7 |
|
Datasheet |
PN1L | Bulk | Active | Panel Mount, Front | Piezo | SPST-NO | Off-Mom | 1A (AC/DC) | 24 V | 24 V | Round, Button, Flush | No Marking | Silver | LED, Green | 12 VDC | Wire Leads | IP68/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 30.50mm Dia | -40°C ~ 75°C |
|
PN1L-M4AFB002E0Y30MM PIEZO RING 24VDC YELLOW |
6 |
|
Datasheet |
PN1L | Bulk | Active | Panel Mount, Front | Piezo | SPST-NO | Off-Mom | 1A (AC/DC) | 24 V | 24 V | Round, Button, Flush | No Marking | Silver | LED, Yellow | 24 VDC | Wire Leads | IP68/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 30.50mm Dia | -40°C ~ 75°C |
|
|
PN1L-M4AFB002E0W30MM PIEZO RING 24VDC WHITE |
2 |
|
Datasheet |
PN1L | Bulk | Active | Panel Mount, Front | Piezo | SPST-NO | Off-Mom | 1A (AC/DC) | 24 V | 24 V | Round, Button, Flush | No Marking | Silver | LED, White | 24 VDC | Wire Leads | IP68/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 30.50mm Dia | -40°C ~ 75°C |
Pushbutton Switches Electronic Components
Frequently Asked Questions
Q1: What products are included in Pushbutton Switches?
This category includes related Pushbutton Switches subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Pushbutton Switches components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Pushbutton Switches and other electronic components.
