Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

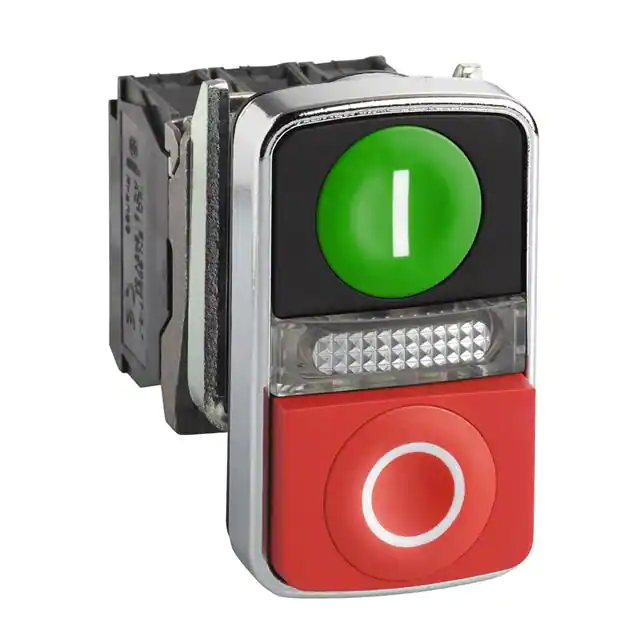

XB4BW73731M5HARMONY XB4, ILLUMINATED DOUBLE- |
2 |
|
Datasheet |
Harmony XB4 | Box | Active | Panel Mount, Front | Standard, Illuminated | DPST-NO/NC | On-Off, Off-On | 6A (AC), 550mA (DC) | 120 V | 125 V | Rectangular, Button, Flush | - | Green | LED, Green | 230 ~ 240 VAC | Screw Terminal | IP66 - Dust Tight, Water Resistant | - | Circular - 22.00mm Dia | -40°C ~ 70°C |
|
84-ADKS-B10-04AASWITCH PB 0.2A 32V CAPACITIVE |
4 |
|
Datasheet |
84 | Box | Active | Panel Mount, Front | Capacitive, Illuminated | - | - | 200mA (DC) | - | 32 V | Round, Button, Flush | - | - | LED, Green/Red | - | Connector | IP69K - Dust Tight, High Temp Water Jets, Waterproof | - | Circular - 22.50mm Dia | -30°C ~ 65°C |
|
84-ADKS-B11-04ABSWITCH PB 0.2A 32V CAPACITIVE |
4 |
|
Datasheet |
84 | Box | Active | Panel Mount, Front | Capacitive, Illuminated | - | - | 200mA (DC) | - | 32 V | Round, Button, Flush | - | - | LED, Green/Red | - | Connector | IP69K - Dust Tight, High Temp Water Jets, Waterproof | - | Circular - 22.50mm Dia | -30°C ~ 65°C |
|
XB5AA731327HARMONY XB5, TRIPLE-HEADED PUSH |
4 |
|
Datasheet |
Harmony XB5 | Box | Active | Panel Mount, Front | Standard | 3PST-2NO/1NC | On-Off, Off-On | 6A (AC), 550mA (DC) | 120 V | 125 V | Rectangular, Button, Flush | - | Red | - | - | Screw Terminal | IP67 - Dust Tight, Waterproof | - | Circular - 22.00mm Dia | -25°C ~ 70°C |
|
XB4BW3335ILLUMINATED PUSH BUTTON, HARMONY |
3 |
|
Datasheet |
Harmony XB4 | Box | Active | Panel Mount, Front | Standard, Illuminated | DPST-NO/NC | On-Off, Off-On | 3A (AC), 220mA (DC) | 120 V | 125 V | Round, Button, Flush | - | Green | LED, Green | 110 ~ 120 VAC | Screw Terminal | IP66 - Dust Tight, Water Resistant | - | Circular - 22.00mm Dia | -40°C ~ 70°C |
|
A2W-TC-WC1 US1RBSWITCH PB MUSHRM RED WIRELESS |
2 |
|
Datasheet |
A2W | Bulk | Active | Chassis Mount | Standard | - | - | - | - | - | Round, Button, Mushroom | No Marking | Red | - | - | Wireless | IP65 - Dust Tight, Water Resistant | - | - | -10°C ~ 55°C |
|
1.22.251.242/3502SWITCH PUSH 1NO 1NC 100MA |
8 |
|
Datasheet |
- | Bulk | Active | Free Hanging | Standard, Illuminated | SPST-NO + SPST-NC | On-Mom, Off-Mom | 100mA (AC/DC) | - | - | Round, Button, Dual | No Marking | Red, Green | LED, Green/Red | - | Connector | IP65 - Dust Tight, Water Resistant | Control Box Enclosure | - | -25°C ~ 70°C |
|
ZB5AW045COMPLETE BODY/CONTACT ASSEMBLY A |
6 |
|
Datasheet |
Harmony XB5 | Box | Active | Panel Mount, Front | Standard, Illuminated | DPST-NO/NC | On-Off, Off-On | 6A (AC), 550mA (DC) | 120 V | 125 V | Rectangular, Button (Not Included) | - | - | - | 110 ~ 220 VAC | Screw Terminal | - | - | - | -40°C ~ 70°C |
|

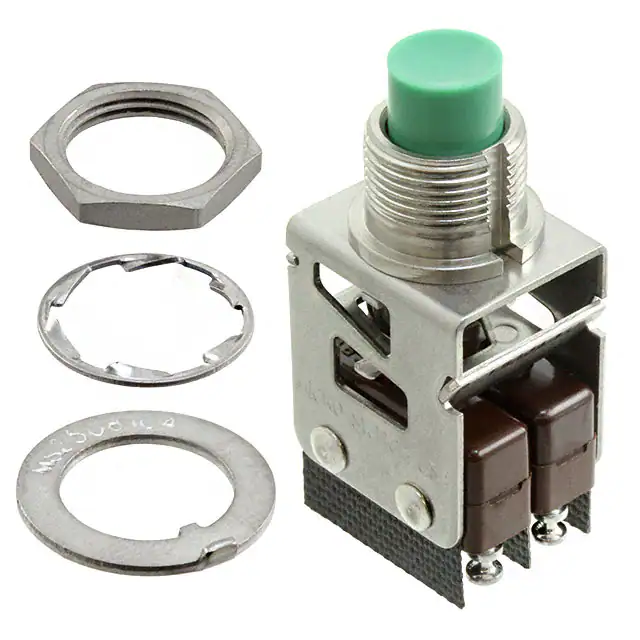

2PB273-T2SWITCH PUSH SPDTX2 5A 250V |
7 |
|
Datasheet |
PB | Bulk | Active | Panel Mount, Rear | Standard | SPDT x 2 | On-Mom | 5A (AC/DC) | 250 V | 30 V | Round, Plunger | No Marking | Green | - | - | Solder Turret | - | - | - | - |
|

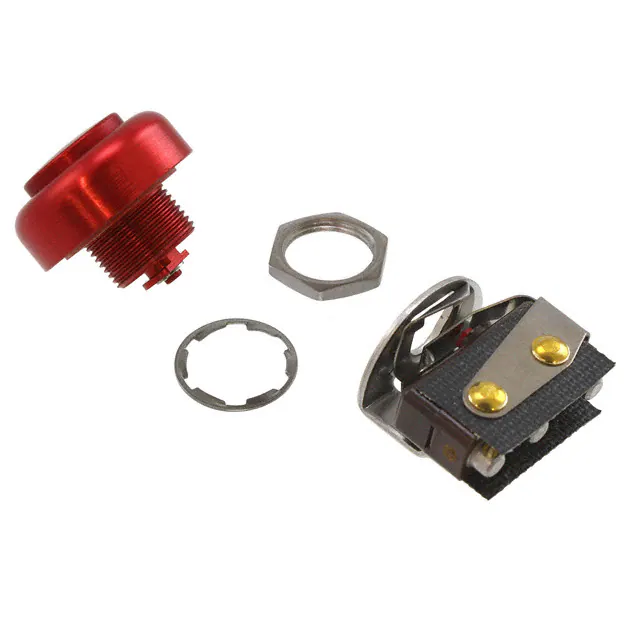

1PB43SWITCH PUSHBUTTON SPDT 5A 250V |
6 |
|
Datasheet |
PB | Bulk | Active | Panel Mount, Front | Standard | SPDT | On-Mom | 5A (AC/DC) | 250 V | 30 V | Round, Button | No Marking | Red | - | - | Solder Lug | - | - | - | - |
|
73-00001.2SWITCH PB SPST-NOX2 0.1A 30V |
2 |
|
Datasheet |
84 SmartBox | Bulk | Active | Chassis Mount | Standard, Illuminated | SPST-NO x 2 | Off-Mom | 100mA (DC) | - | 30 V | Round, Button | No Marking | Red, Green | LED, White | - | Connector | IP67 - Dust Tight, Waterproof | - | - | -25°C ~ 70°C |
|
A2W-TC-WC1 US1YBSWITCH PB MUSHRM YEL WIRELESS |
2 |
|
Datasheet |
A2W | Bulk | Active | Chassis Mount | Standard | - | - | - | - | - | Round, Button, Mushroom | No Marking | Yellow | - | - | Wireless | IP65 - Dust Tight, Water Resistant | - | - | -10°C ~ 55°C |
|
A2W-TC-WC1 US2RBSWITCH PB FULLGD RED WIRELESS |
3 |
|
Datasheet |
A2W | Bulk | Active | Chassis Mount | Standard | - | - | - | - | - | Round, Button, Full Guard | No Marking | Red | - | - | Wireless | IP65 - Dust Tight, Water Resistant | - | - | -10°C ~ 55°C |
|
A2W-TC-WC1 US2BYWIRELESS PB FULL GRD BLK YEL |
2 |
|
Datasheet |
A2W | Bulk | Active | Chassis Mount | Standard | - | - | - | - | - | Round, Button, Full Guard | No Marking | Black | - | - | Wireless | IP65 - Dust Tight, Water Resistant | - | - | -10°C ~ 55°C |
|
DX80N9Q45BL-NHSWITCH PUSHBUTTON WIRELESS |
2 |
|
Datasheet |
Q45BL | Bulk | Active | Chassis Mount | Standard | - | - | - | - | - | Round, Button | No Marking | - | - | - | Wireless | IP67 - Dust Tight, Waterproof | - | - | -40°C ~ 70°C |
|
SG-C1-21ENABLE GRIP SWITCH |
2 |
|
Datasheet |
SG-C1 | Bulk | Active | Free Hanging | - | - | Off-On | 1A (AC/DC) | 125 V | 30 V | - | No Marking | - | - | - | Solder Lug | IP66/IP67 - Dust Tight, Water Resistant, Waterproof | - | - | -25°C ~ 60°C |
|
|
50HA109659CUSTOM STATION-GE LOCOMOTIVE |
9 |
|
- |
- | Box | Active | - | Standard | DPST-NO/NC | On-Mom, Off-Mom | - | - | - | - | - | Red | - | - | - | - | - | - | - |
|
|
US2:50HA1E811RCUSTOM STATION-GE LOCOMOTIVE |
2 |
|
- |
- | Box | Active | - | Standard | DPST-NC | On-Mom | - | - | - | - | - | Red | - | - | - | - | - | - | - |
|
DX80N9Q120BL-RGSWITCH PB PENDANT NODE 900MHZ |
4 |
|
Datasheet |
Q120BL | Bulk | Active | Chassis Mount | Standard | - | - | - | - | - | Round, Button | No Marking | Black | - | - | Wireless | IP67 - Dust Tight, Waterproof | - | - | -40°C ~ 70°C |
|
C4V-811A-DSWITCH PUSHBUTTON SPST 8A 125V |
27 |
|
Datasheet |
C4V | Tray | Active | Panel Mount, Side | Standard | SPST | Off-On | 8A (AC) | 125 V | - | Square, Plunger | No Marking | - | - | - | Quick Connect - 0.187" (4.7mm) | - | - | - | -10°C ~ 55°C |
