Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A4E-B200VSA4E-B200VS |
8 |
|
Datasheet |
A4E | Bulk | Active | Panel Mount, Rear | Standard | DPST-NO | Off-On-Off | 1A (AC), 300mA (DC) | 125 V | 24 V | Rectangular, Button | No Marking | Black | - | - | Solder Lug | IP65 - Dust Tight, Water Resistant | - | Rectangular - 63.30mm x 13.50mm | -10°C ~ 55°C |
|
|
A3CJ-90A1-24ERSWITCH PUSHBUTTON DPST 1A 125V |
4 |
|
Datasheet |
A3C | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPST-NO/NC | On-Mom, Off-Mom | 1A (AC/DC) | 125 V | 30 V | Rectangular, Button | No Marking | Red | LED, Red | 24 VDC | Solder Lug | IP40 | - | Circular - 12.00mm Dia | -10°C ~ 55°C |
|
A165L-TAM-24D-2SWITCH PUSHBUTTON DPDT 5A 125V |
2 |
|
Datasheet |
A16 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPDT | On-Mom | 5A (AC) | 125 V | - | Round, Button | No Marking | Blue | LED, Blue | 24 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP66 - Dust Tight, Oil and Water Resistant | - | Circular - 16.00mm Dia | -10°C ~ 55°C |
|
1241.6456MCS30 NO 00 A12 RI RGB |
20 |
|
Datasheet |
MCS | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST-NO | Off-Mom | 125mA (DC) | - | 48 V | Round, Button, Flush | No Marking | Silver | LED, Blue/Green/Red | 5 ~ 28 VDC | Wire Leads | IP65 - Dust Tight, Water Resistant | Stainless Steel | Circular - 30.30mm Dia | -20°C ~ 60°C |
|
PN1L-M4AFB002D0S30MM PIEZO RING 12VDC RED |
6 |
|
Datasheet |
PN1L | Bulk | Active | Panel Mount, Front | Piezo | SPST-NO | Off-Mom | 1A (AC/DC) | 24 V | 24 V | Round, Button, Flush | No Marking | Silver | LED, Red | 12 VDC | Wire Leads | IP68/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 30.50mm Dia | -40°C ~ 75°C |
|
PBAR2AF0000SWITCH PUSH SPST-NO 0.2A 24V |
6 |
|
Datasheet |
PBA | Bulk | Active | Panel Mount, Front | Piezo | SPST-NO | Off-Mom | 200mA (AC/DC) | 24 V | 24 V | Round, Button, Flush | No Marking | Natural | - | - | Wire Leads | IP68 - Dust Tight, Waterproof | Low Temperature Lubricant | Circular - 22.20mm Dia | -40°C ~ 75°C |
|
07-7SWITCH PUSH SPST-NO 10A 115V |
3 |
|
Datasheet |
7 | Bulk | Active | Panel Mount, Rear | Standard | SPST-NO | Off-Mom | 10A (AC) | 115 V | - | Round, Plunger | No Marking | Black | - | - | Solder Lug | - | - | - | -40°C ~ 85°C |
|
XB6AW3B5BCOMPLETE ILLUMINATED PUSH BUTTON |
2 |
|
Datasheet |
Harmony XB6 | Box | Active | Panel Mount, Front | Standard, Illuminated | DPST-NO/NC | On-Off, Off-On | 3A (AC), 220mA (DC) | 120 V | 125 V | Round, Button, Flush | - | Green | LED, Green | 12 VDC | Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 16.00mm Dia | -25°C ~ 70°C |
|
XB6AE3B5BCOMPLETE ILLUMINATED PUSH BUTTON |
2 |
|
Datasheet |
Harmony XB6 | Box | Active | Panel Mount, Front | Standard, Illuminated | DPST-NO/NC | On-Off, Off-On | 3A (AC), 220mA (DC) | 120 V | 125 V | Round, Button, Flush | - | Green | LED, Green | 12 VDC | Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 16.00mm Dia | -25°C ~ 70°C |
|
22-213.011SWITCH PB DPST-NO 10A 400V |
8 |
|
Datasheet |
22 | Bulk | Active | Panel Mount, Front | Standard | DPST-NO | Off-Mom | 10A (AC) | 400 V | - | Rectangular, Button (Not Included) | No Marking | - | - | - | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | Rectangular - 30.00mm x 22.00mm | -25°C ~ 85°C |
|

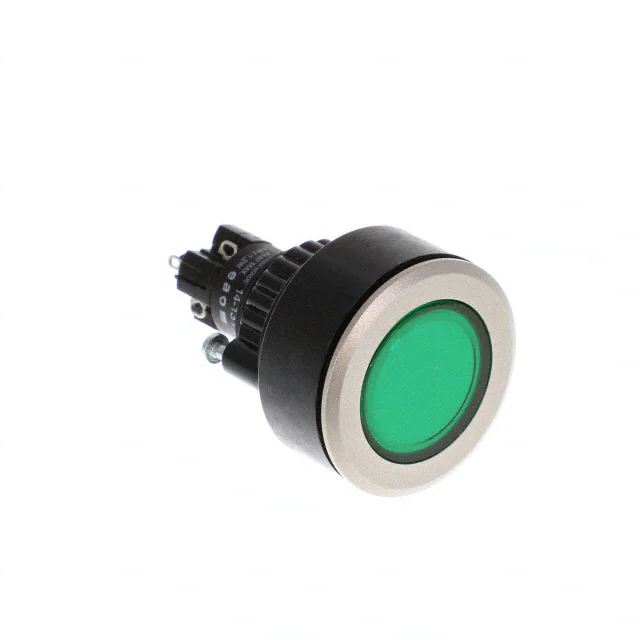

K14-131.221081SWITCH PB DPST-NO/NC 5A 250V |
6 |
|
Datasheet |
14 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPST-NO/NC | On-Mom, Off-Mom | 5A (AC) | 250 V | - | Round, Button, Flush | No Marking | Green | LED, Green | 24 VAC/DC | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 30.50mm Dia | -25°C ~ 55°C |
|
K14-131.221101SWITCH PB DPST-NO/NC 5A 250V |
2 |
|
Datasheet |
14 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPST-NO/NC | On-Mom, Off-Mom | 5A (AC) | 250 V | - | Round, Button, Flush | No Marking | Red | LED, Red | 24 VAC/DC | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 30.50mm Dia | -25°C ~ 55°C |
|
02-616.011SWITCH PB SPDT 10A 400V |
7 |
|
Datasheet |
02 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 10A (AC) | 400 V | - | Rectangular, Button (Not Included) | No Marking | - | - | - | Screw Terminal | IP40 | - | Rectangular - 29.20mm x 21.20mm | -25°C ~ 55°C |
|
82-6657.1154SWITCH PB SPDT 3A 240V |
22 |
|
Datasheet |
82 | Tray | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 3A (AC/DC) | 240 V | 240 V | Round, Button, Flush | - | Silver | LED, White | 24 VAC/DC | Connector | IP65/IP67 - Dust Tight, Water Resistant, Waterproof | - | Circular - 22.30mm Dia | -30°C ~ 70°C |
|
82-6657.1124SWITCH PB SPDT 3A 240V |
20 |
|
Datasheet |
82 | Tray | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 3A (AC/DC) | 240 V | 240 V | Round, Button, Flush | - | Silver | LED, Blue | 24 VAC/DC | Connector | IP65/IP67 - Dust Tight, Water Resistant, Waterproof | - | Circular - 22.30mm Dia | -30°C ~ 70°C |
|
|
A3CT-90A1-24EYSWITCH PUSHBUTTON DPST 1A 125V |
6 |
|
Datasheet |
A3C | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPST-NO/NC | On-Mom, Off-Mom | 1A (AC/DC) | 125 V | 30 V | Round, Button | No Marking | Yellow | LED, Yellow | 24 VDC | Solder Lug | IP40 | - | Circular - 12.00mm Dia | -10°C ~ 55°C |
|
82-6657.1000SWITCH PB SPDT 3A 240V |
13 |
|
Datasheet |
82 | Tray | Active | Panel Mount, Front | Standard | SPDT | On-Mom | 3A (AC/DC) | 240 V | 240 V | Round, Button, Flush | - | Silver | - | - | Connector | IP65/IP67 - Dust Tight, Water Resistant, Waterproof | - | Circular - 22.30mm Dia | -30°C ~ 70°C |
|
XB5FA3341HARMONY XB5, ANTIMICROBIAL PUSH |
8 |
|
Datasheet |
XB5F | Box | Active | Panel Mount, Front | Standard | SPST-NO | Off-On | 6A (AC), 550mA (DC) | 120 V | 125 V | Round, Button, Flush | - | White | - | - | Screw Terminal | IP66/IP67/IP69/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 30.50mm Dia | -40°C ~ 70°C |
|
XB5FA3351HARMONY XB5, ANTIMICROBIAL PUSH |
8 |
|
Datasheet |
XB5F | Box | Active | Panel Mount, Front | Standard | SPST-NO | Off-On | 6A (AC), 550mA (DC) | 120 V | 125 V | Round, Button, Flush | - | Black | - | - | Screw Terminal | IP66/IP67/IP69/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 30.50mm Dia | -40°C ~ 70°C |
|
K14-271.222101SWITCH PB DPST-NO/NC 5A 250V |
13 |
|
Datasheet |
14 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPST-NO/NC | On-Off, Off-On | 5A (AC) | 250 V | - | Round, Button, Flush | No Marking | Red | LED, Red | 24 VAC/DC | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 30.50mm Dia | -25°C ~ 55°C |
Pushbutton Switches Electronic Components
Frequently Asked Questions
Q1: What products are included in Pushbutton Switches?
This category includes related Pushbutton Switches subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Pushbutton Switches components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Pushbutton Switches and other electronic components.
