Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
W22PB-FG-1022MM PB FLSH CAP GRN 1NO CONTACT |
131 |
|
Datasheet |
22 | Bag | Active | Panel Mount, Rear | Standard | SPST-NO | Off-Mom | 10A (AC), 2.5A (DC) | 72 V | 28 V | Round, Button, Flush | No Marking | Green | - | - | Screw Terminal | IP66 - Dust Tight, Water Resistant | - | Circular - 22.50mm Dia | -40°C ~ 55°C |
|
W22PB-ER-0122MM PB, EXTENDED CAP RED, 1 NC |
124 |
|
Datasheet |
22 | Bag | Active | Panel Mount, Rear | Standard | SPST-NC | On-Mom | 10A (AC), 2.5A (DC) | 72 V | 28 V | Round, Button | No Marking | Red | - | - | Screw Terminal | IP66 - Dust Tight, Water Resistant | - | Circular - 22.50mm Dia | -40°C ~ 55°C |
|
|
W22PB-FR-0122MM PB, FLUSH CAP RED, 1 NC |
108 |
|
Datasheet |
22 | Bag | Active | Panel Mount, Rear | Standard | SPST-NC | On-Mom | 10A (AC), 2.5A (DC) | 72 V | 28 V | Round, Button, Flush | No Marking | Red | - | - | Screw Terminal | IP66 - Dust Tight, Water Resistant | - | Circular - 22.50mm Dia | -40°C ~ 55°C |
|
BB15AB1SWITCH PUSH SPDT 0.4VA 28V |
0 |
|
Datasheet |
BB | Bulk | Active | Through Hole | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Plunger for Cap | No Marking | White | - | - | PC Pin | - | Antistatic | - | -30°C ~ 85°C |
|
|
MB2411E1W01-FASWITCH PUSHBUTTON SPDT 3A 125V |
0 |
|
Datasheet |
MB2400 | Bulk | Obsolete | Panel Mount, Rear | Standard | SPDT | On-Mom | 3A (AC) | 125 V | - | Round, Button | No Marking | Black | - | - | Solder Lug | - | Epoxy Sealed Terminals | Circular - 6.50mm Dia | -30°C ~ 85°C |
|
ELUMOASAQ2C22SWITCH PUSH SPDT 0.25A 50V |
195 |
|
Datasheet |
ELUM™ | Tape & Reel (TR) | Active | Surface Mount, Right Angle | Standard, Illuminated | SPDT | On-Mom | 250mA (DC) | - | 50 V | Plunger for Cap | No Marking | Black | LED, Green/Red | 2 VDC | Gull Wing | - | - | - | -40°C ~ 80°C |
|
SMD-CT591PG-STISMD CAPACITIVE TOUCH LED DISPLAY |
2,262 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Surface Mount | Capacitive, Illuminated | - | - | - | - | - | Rectangular, Button | No Marking | - | LED, Green | 3.2 VDC | SMD (SMT) Tab | - | - | - | -40°C ~ 105°C |
|

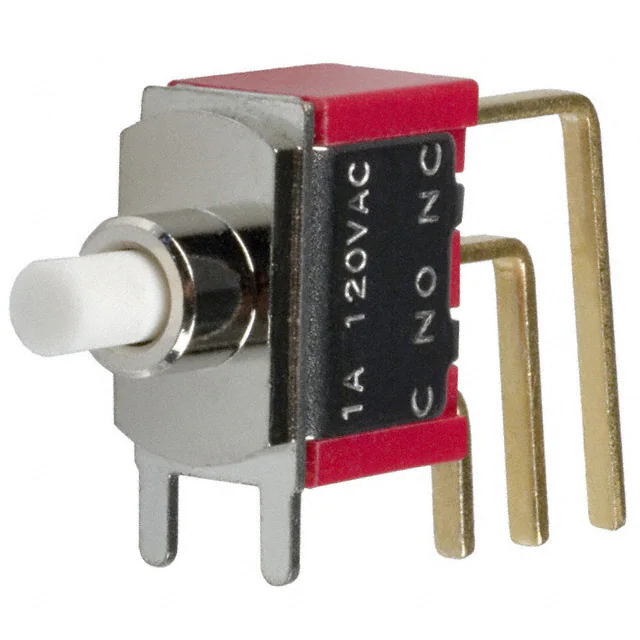

3MN-SP7-P1-B6-M7GESWITCH PUSHBUTTON SPDT 1A 120V |
170 |
|
Datasheet |
3MN | Bulk | Active | Through Hole, Right Angle, Vertical | Standard | SPDT | On-Mom | 1A (AC/DC) | 120 V | 28 V | Plunger for Cap | No Marking | White | - | - | PC Pin | - | - | - | -30°C ~ 85°C |
|
|
BB15AW-FCSWITCH PUSH SPDT 0.4VA 28V |
0 |
|
Datasheet |
BB | Bulk | Active | Through Hole | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Red | - | - | PC Pin | - | Antistatic | - | -30°C ~ 85°C |
|
|
BB15AP-FBSWITCH PUSH SPDT 0.4VA 28V |
0 |
|
Datasheet |
BB | Tray | Active | Through Hole | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | White | - | - | PC Pin | - | Antistatic | - | -30°C ~ 85°C |
|
|
DPW 1 CG-GSWITCH PUSHBUTTON ILLUM OFF-MOM |
497 |
|
Datasheet |
DPW | Bag | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 125mA (AC), 100mA (DC) | 125 V | 50 V | Round, Button, Domed | No Marking | Green | - | - | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 13.60mm Dia | -30°C ~ 85°C |
|
BB16AWSWITCH PUSH SPDT 0.4VA 28V |
0 |
|
Datasheet |
BB | Box | Active | Through Hole | Standard | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Plunger for Cap | No Marking | White | - | - | PC Pin | - | Antistatic | - | -30°C ~ 85°C |
|
NP0115HG03NN-BSWITCH PUSH SPST-NO 0.4VA 28V |
0 |
|
Datasheet |
NP01 | Bulk | Obsolete | Through Hole | Standard | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Square, Button | No Marking | White | - | - | PC Pin | - | - | - | -25°C ~ 70°C |
|
|
NP0115AG03NN-BSWITCH PUSH SPST-NO 0.4VA 28V |
363 |
|
Datasheet |
NP01 | Box | Obsolete | Through Hole | Standard | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Square, Button | No Marking | White | - | - | PC Pin | - | - | - | -25°C ~ 70°C |
|
|
1825096-7SWITCH PUSHBUTTON SPDT 0.4VA 20V |
0 |
|
Datasheet |
TP | Bulk | Active | Through Hole | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | No Marking | Black | - | - | PC Pin | - | - | - | -30°C ~ 65°C |
|
|
BB15AP-HCSWITCH PUSH SPDT 0.4VA 28V |
0 |
|
Datasheet |
BB | Bulk | Active | Through Hole | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Red | - | - | PC Pin | - | Antistatic | - | -30°C ~ 85°C |
|
|
BB15AP-HBSWITCH PUSH SPDT 0.4VA 28V |
0 |
|
Datasheet |
BB | Tray | Active | Through Hole | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | White | - | - | PC Pin | - | Antistatic | - | -30°C ~ 85°C |
|

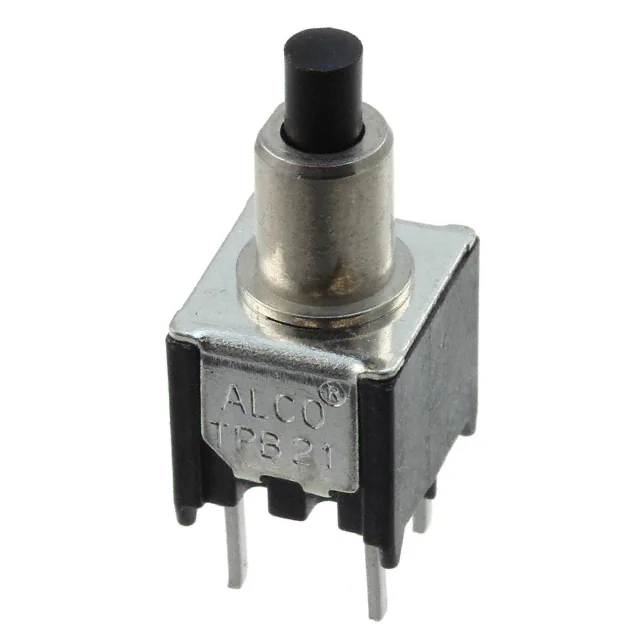

1-1825097-7SWITCH PUSH DPST-NO 0.4VA 20V |
0 |
|
Datasheet |
TP | Bulk | Active | Through Hole | Standard | DPST-NO | Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | No Marking | Black | - | - | PC Pin | - | - | - | -30°C ~ 65°C |
|

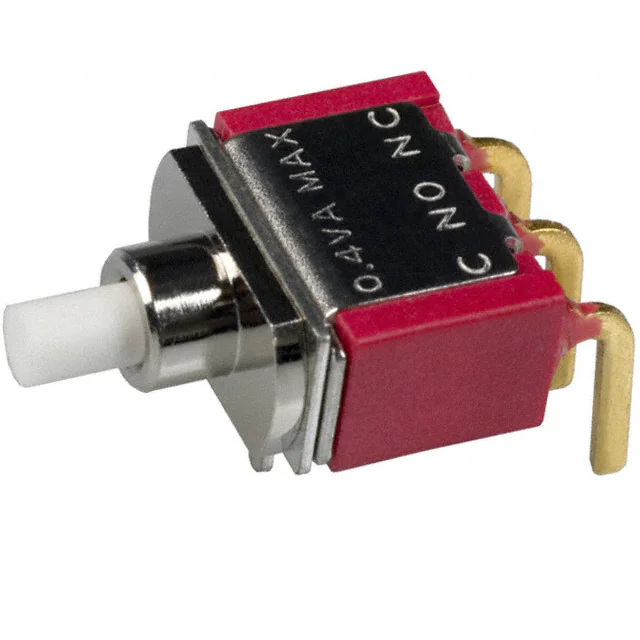

3MN-SP7-P1-B6-M6RESWITCH PUSH SPDT 0.4VA 20V |
125 |
|
Datasheet |
3MN | Bulk | Active | Through Hole, Right Angle | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Plunger for Cap | No Marking | White | - | - | PC Pin | - | - | - | -30°C ~ 85°C |
|

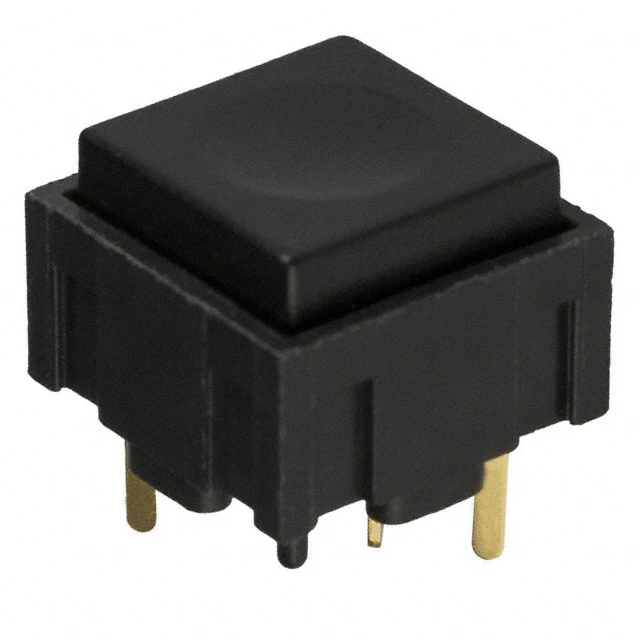

KS12R22CBESWITCH PUSH SPDT 0.4VA 20V |
24 |
|
Datasheet |
KS | Bulk | Active | Through Hole | Keyswitch | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Square, Button | No Marking | Black | - | - | PC Pin | - | Voltage Reduction Lighting | - | -30°C ~ 65°C |
