Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MX2A-H1NACLEAR STEM, FULL TRAVEL MECHANI |
426 |
|
Datasheet |
- | Bag | Active | Panel Mount, Front | Keyswitch, Illuminated | SPST-NO | Off-Mom | - | 5 V | 5 V | Plunger for Cap | - | White | LED, Blue/Green/Red | - | PC Pin | IP40 | - | - | - |
|
|
MX2A-81NWSWITCH TACTILE |
408 |
|
Datasheet |
MX | Bag | Active | Through Hole | Keyswitch | SPST-NO | Off-Mom | - | 5 V | 5 V | Plunger for Cap | - | Black | - | - | PC Pin | IP40 | - | - | - |
|
|
MX2A-71NBMX SILENT, RGB, RED STEM, FULL T |
380 |
|
Datasheet |
MX | Bag | Active | Through Hole | Keyswitch, Illuminated | SPST-NO | Off-Mom | - | 5 V | 5 V | Plunger for Cap | - | Red | LED, Blue/Green/Red | - | PC Pin | IP40 | - | - | - |
|
|
MX2A-HC1WCLEAR STEM, FULL TRAVEL MECHANI |
329 |
|
Datasheet |
MX | Bag | Active | Through Hole | Keyswitch, Illuminated | SPST-NO | Off-Mom | - | 5 V | 5 V | Plunger for Cap | - | White | LED, Blue/Green/Red | - | PC Pin | IP40 | - | - | - |
|
PN22LESA03QESWITCH PUSH DPDT 0.2A 30V |
320 |
|
Datasheet |
PN | Bulk | Obsolete | Through Hole, Right Angle | Standard | DPDT | On-On | 200mA (DC) | - | 30 V | Plunger for Cap | No Marking | Black | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -10°C ~ 60°C |
|
PMS9P1B08M6RESWITCH PUSH SPST-NO 0.4VA 20V |
399 |
|
Datasheet |
- | Bulk | Obsolete | Through Hole, Right Angle | Standard | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | No Marking | Black | - | - | PC Pin | - | Sealed | - | -30°C ~ 85°C |
|
NP0115AG03NNSWITCH PUSH SPST-NO 0.4VA 28V |
129 |
|
Datasheet |
NP01 | Bulk | Obsolete | Through Hole | Standard | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Square, Button (Not Included) | No Marking | - | - | - | PC Pin | - | - | - | -25°C ~ 70°C |
|
K12PBK23.5NSWITCH PUSH SPST-NO 0.1A 30V |
443 |
|
Datasheet |
K12 | Bulk | Active | Through Hole | Keyswitch | SPST-NO | Off-Mom | 100mA (DC) | - | 30 V | Round, Button | No Marking | Black | - | - | PC Pin | IP40 | Tactile Feedback | - | -40°C ~ 85°C |
|
PMS9P1B07M6RESWITCH PUSH SPST-NO 0.4VA 20V |
111 |
|
Datasheet |
- | Bulk | Obsolete | Through Hole, Right Angle | Standard | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | No Marking | Black | - | - | PC Pin | - | Sealed | - | -30°C ~ 85°C |
|

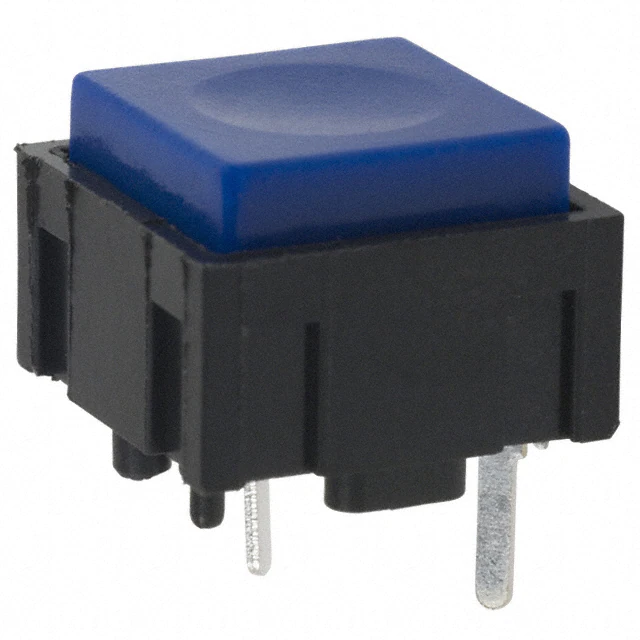

KS11R27CQDSWITCH PUSH SPST-NO 0.025A 50V |
500 |
|
Datasheet |
KS | Bulk | Active | Through Hole | Keyswitch | SPST-NO | Off-Mom | 25mA (AC/DC) | 50 V | 50 V | Square, Button | No Marking | Blue | - | - | PC Pin | - | Tactile Feedback | - | -30°C ~ 65°C |
|
|
PLC-N1TRG-CTW-ASW SILENT PB RED GRN LED 17.4*17 |
1,446 |
|
Datasheet |
PLC | Tray | Active | Through Hole | - | SPST-NO | Off-Mom | - | - | - | Square, Button | - | - | LED, Green/Red | 1.7, 1.9 VDC | PC Pin | - | - | - | -20°C ~ 70°C |
|
|
PLC-N1TGR-D1TW-ASW SILENT PB RED GRN LED 17.4*34 |
844 |
|
- |
PLC | Tray | Active | Through Hole | - | SPST-NO | Off-Mom | - | - | - | Rectangular, Button | - | - | LED, Green/Red | 1.7, 1.9 VDC | PC Pin | - | - | - | -20°C ~ 70°C |
|
FLT2UEETBSWITCH PUSH DPDT 0.5A 125V |
472 |
|
Datasheet |
F | Bulk | Active | Through Hole, Right Angle | Standard | DPDT | On-On | 500mA (AC/DC) | 125 V | 30 V | Plunger for Cap | No Marking | White | - | - | PC Pin, Solder Lug | - | RTV Adhesive Sealant on Terminals | - | -40°C ~ 70°C |
|
|
PLC-N1TFN-B3TWSW SILENT PB RGB LED 15*15MM |
2,642 |
|
Datasheet |
PLC | Tray | Active | Through Hole | - | SPST-NO | Off-Mom | - | - | - | Square, Button | - | - | LED, Blue/Green/Red | 1.7, 1.9, 3 VDC | PC Pin | - | - | - | -20°C ~ 70°C |
|
|
PLC-N1TFN-CTW-AISW SILENT PB PGM RGB LED 17*17 |
1,526 |
|
Datasheet |
PLC | Tray | Active | Through Hole | - | SPST-NO | Off-Mom | - | - | - | Square, Button | - | - | LED, Blue/Green/Red | 1.7, 1.9, 3 VDC | PC Pin | - | - | - | -20°C ~ 70°C |
|
|
PLC-N1TFN-ATW-AISW SILENT PB PGM RGB LED 12*12MM |
1,055 |
|
Datasheet |
PLC | Tray | Active | Through Hole | - | SPST-NO | Off-Mom | - | - | - | Square, Button | - | - | LED, Blue/Green/Red | 1.7, 1.9, 3 VDC | PC Pin | - | - | - | -20°C ~ 70°C |
|
F4UOASWITCH PUSH 4PDT 0.5A 125V |
729 |
|
Datasheet |
F | Bulk | Active | Through Hole, Right Angle | Standard | 4PDT | On-Mom | 500mA (AC/DC) | 125 V | 30 V | Plunger for Cap | No Marking | White | - | - | PC Pin, Solder Lug | - | - | - | -40°C ~ 70°C |
|
CTD591A-W/WCAPACITIVE TOUCH LED DISPLAY |
196 |
|
Datasheet |
- | Tube | Active | Through Hole | Capacitive, Illuminated | - | - | - | - | - | Square, Button | No Marking | - | LED, Orange | 2 VDC | PC Pin | - | - | - | -35°C ~ 85°C |
|
F2UOA TBSWITCH PUSH DPDT 0.5A 125V |
237 |
|
Datasheet |
F | Bulk | Active | Through Hole, Right Angle | Standard | DPDT | On-Mom | 500mA (AC/DC) | 125 V | 30 V | Plunger for Cap | No Marking | White | - | - | PC Pin, Solder Lug | - | RTV Adhesive Sealant on Terminals | - | -40°C ~ 70°C |
|
|
K12PL GN 1.5 5N LV306SWITCH PUSH SPST-NO 0.1A 30V |
163 |
|
Datasheet |
K12 | Bulk | Active | Through Hole | Keyswitch, Illuminated | SPST-NO | Off-Mom | 100mA (DC) | - | 30 V | Round, Button | No Marking | Black | LED, Green | - | PC Pin | IP40 | Tactile Feedback | - | -40°C ~ 85°C |
