Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TPA11CGPC004Pushbutton Switch, SPST, Off-(on |
3,356 |
|
- |
* | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
PB-1B-DC-2-B2P SPST OFF-(ON) - IP65 |
536 |
|
Datasheet |
PB | Bulk | Active | Panel Mount, Snap-In | Standard | SPST-NO | Off-Mom | 10A (AC), 20A (DC) | 125 V | 14 V | Round, Button | No Marking | Black | - | - | Quick Connect - 0.187" (4.7mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 20.20mm Dia | -25°C ~ 85°C |
|
PA421C1000-124SWITCH PUSHBUTTON SPST 16A 125V |
365 |
|
Datasheet |
PA4, LAMB | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | SPST | Off-On | 16A (AC) | 125 V | - | Rectangular, Button | No Marking | Amber | Incandescent, Amber | 12 VAC/DC | Solder Lug | - | - | Rectangular - 19.00mm x 13.00mm | -20°C ~ 65°C |
|
MSP103BSWITCH PUSH SPST-NC 3A 125V |
0 |
|
Datasheet |
MSP3 | Bulk | Obsolete | Panel Mount, Rear | Standard | SPST-NC | On-Mom | 3A (AC) | 125 V | - | Plunger for Cap | No Marking | Black | - | - | Solder Lug | - | - | Circular - 6.35mm Dia | -20°C ~ 80°C |
|
|
50-0101-00SWITCH PUSH SPST 0.5A 12V |
4,991 |
|
Datasheet |
- | Bulk | Obsolete | Through Hole | Standard | SPST | On-Off | 500mA (DC) | - | 12 V | Round, Button, Flush | - | Black | - | - | PC Pin | - | - | - | - |
|
B3J-3100SWITCH PUSH SPST-NO 0.05A 24V |
211 |
|
Datasheet |
B3J | Bulk | Active | Through Hole | Keyswitch, Illuminated | SPST-NO | Off-Mom | 50mA (DC) | - | 24 V | Square, Button | No Marking | Black | LED, Yellow | 2 VDC | PC Pin | - | - | - | -25°C ~ 70°C |
|
PB-1A-DC-2-B2P SPST OFF-ON - IP65 |
2,983 |
|
Datasheet |
PB | Bulk | Active | Panel Mount, Snap-In | Standard | SPST | On-Off | 10A (AC), 20A (DC) | 125 V | 14 V | Round, Button | No Marking | Black | - | - | Quick Connect - 0.187" (4.7mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 20.20mm Dia | -25°C ~ 85°C |
|
K12SCLOR01.56NOLFTXSWITCH PUSH SPST-NO 0.1A 30V |
2,669 |
|
Datasheet |
K12S | Tape & Reel (TR) | Active | Surface Mount | Keyswitch, Illuminated | SPST-NO | Off-Mom | 100mA (DC) | - | 30 V | Round, Button | No Marking | - | LED, Orange | - | SMD (SMT) Tab | IP40 | - | - | -40°C ~ 85°C |
|
GPB554B05BBSWITCH PUSHBUTTON SPST 6A 14V |
621 |
|
Datasheet |
GPB | Bulk | Obsolete | Panel Mount, Snap-In | Standard | SPST | Off-On | 6A (DC) | - | 14 V | Square, Button | No Marking | Black | - | - | Solder Lug | - | - | Circular - 12.10mm Dia | 0°C ~ 55°C |
|
LP2S2WHTYEL-NSWITCH PUSH SPST-NO 1MA 20V |
150 |
|
Datasheet |
LP2 | Bulk | Active | Through Hole | Standard, Illuminated | SPST-NO | Off-Mom | 1mA (DC) | - | 20 V | Square, Button | No Marking | White | LED, Yellow | 1.7 VDC | PC Pin | - | - | - | -20°C ~ 70°C |
|
PBS8MTRESSWITCH PUSHBUTTON SPDT 0.4VA 20V |
102 |
|
Datasheet |
- | Tape & Reel (TR) | Obsolete | Surface Mount, Right Angle | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | No Marking | White | - | - | SMD (SMT) Tab | IP67 - Dust Tight, Waterproof | Process Sealed | - | -30°C ~ 85°C |
|
|
38FSP8B8M6QTSWITCH PUSHBUTTON SPDT 1A 125V |
0 |
|
Datasheet |
38F | Bulk | Active | Panel Mount, Right Angle, Rear | Standard | SPDT | On-Mom | 1A (AC/DC) | 125 V | 28 V | Round, Plunger | No Marking | Black | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -30°C ~ 85°C |
|

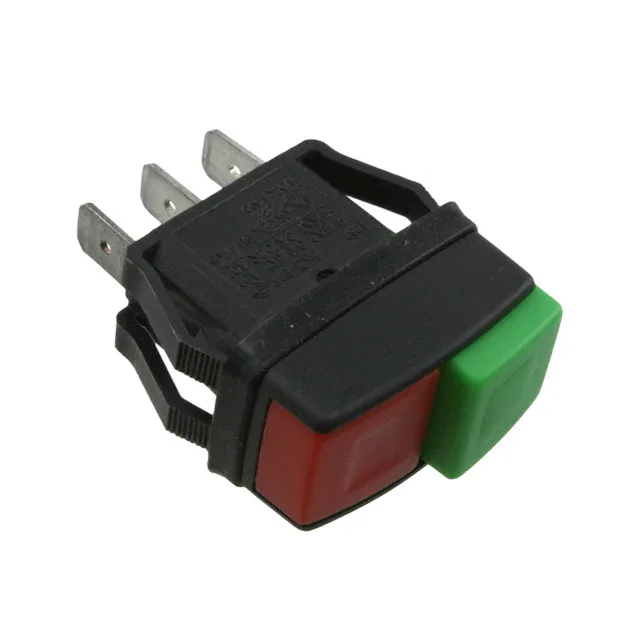

GPB526C01BGRSWITCH PUSH SPDT 16A 125V |
118 |
|
Datasheet |
GPB | Bulk | Active | Panel Mount, Snap-In | Standard | SPDT | On-On | 16A (AC) | 125 V | - | Square, Button, Dual | No Marking | Red, Green | - | - | Quick Connect - 0.250" (6.3mm) | IP56 - Dust Protected, Water Resistant | - | Rectangular - 27.60mm x 13.80mm | - |
|
LP4OA1PBCTYSWITCH PUSH DPDT 0.1A 30V |
974 |
|
Datasheet |
LP4 | Tray | Active | Through Hole | Standard, Illuminated | DPDT | On-Mom | 100mA (DC) | - | 30 V | Round, Button | No Marking | Clear | LED, Yellow | 2.2 VDC | PC Pin | - | - | - | -20°C ~ 70°C |
|
|
K12SC S 1.5 5N O LFTXSWITCH PUSH SPST-NO 0.1A 30V |
8,481 |
|
Datasheet |
K12S | Tape & Reel (TR) | Active | Surface Mount | Keyswitch | SPST-NO | Off-Mom | 100mA (DC) | - | 30 V | Round, Button | No Marking | - | - | - | SMD (SMT) Tab | IP40 | - | - | -40°C ~ 85°C |
|
PB-2B-DC-2-B4P DPST OFF-(ON) - IP65 |
2,069 |
|
Datasheet |
PB | Bulk | Active | Panel Mount, Snap-In | Standard | DPST-NO | Off-Mom | 10A (AC), 20A (DC) | 125 V | 14 V | Round, Button | No Marking | Black | - | - | Quick Connect - 0.187" (4.7mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 20.20mm Dia | -25°C ~ 85°C |
|
|
K8301ABBBSPST PUSH BUTTON SWITCH |
0 |
|
Datasheet |
8300 | Bulk | Active | Panel Mount, Snap-In | Standard | SPST-NO | Off-Mom | 13A (AC) | 250 V | - | Rectangular, Button | No Marking | Black | - | - | Quick Connect - 0.110" (2.8mm) | IP40 | - | Rectangular - 19.30mm x 12.90mm | - |
|
|
K12SCD1.56/12NOOLFTXSWITCH PUSH DPST-NO 0.1A 30V |
3,328 |
|
Datasheet |
K12S | Tape & Reel (TR) | Active | Surface Mount | Keyswitch | DPST-NO | Off-Mom | 100mA (DC) | - | 30 V | Round, Button | No Marking | - | - | - | SMD (SMT) Tab | IP40 | - | - | -40°C ~ 85°C |
|
PB-2A-DC-2-B4P DPST OFF-ON - IP65 |
2,039 |
|
Datasheet |
PB | Bulk | Active | Panel Mount, Snap-In | Standard | DPST | On-Off | 10A (AC), 20A (DC) | 125 V | 14 V | Round, Button | No Marking | Black | - | - | Quick Connect - 0.187" (4.7mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 20.20mm Dia | -25°C ~ 85°C |
|
PBS8MZRESSWITCH PUSHBUTTON SPDT 0.4VA 20V |
353 |
|
Datasheet |
- | Tape & Reel (TR) | Obsolete | Surface Mount, Right Angle | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | No Marking | White | - | - | SMD (SMT) Tab | IP67 - Dust Tight, Waterproof | Process Sealed | - | -30°C ~ 85°C |
