Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CTD-IC591PG-W/WCAPACITIVE TOUCH LED IC DISPLAY |
1,499 |
|
Datasheet |
- | Tube | Active | Through Hole | Capacitive, Illuminated | - | - | - | - | - | Square, Button | No Marking | - | LED, Green | 3.2 VDC | PC Pin | - | - | - | -35°C ~ 85°C |
|
FB15ANEP2/U-FC.5 AMP MOMENTARY PUSHBUTTON |
0 |
|
Datasheet |
FB | Bulk | Active | Panel Mount, Rear | Standard | SPST-NO | Off-Mom | 500mA (AC) | 125 V | - | Round, Button | - | Red | - | - | Solder Turret | - | - | Circular - 5.30mm Dia | -10°C ~ 70°C |
|
|
CTD-IC591E-W/WCAPACITIVE TOUCH LED IC DISPLAY |
147 |
|
Datasheet |
- | Tube | Active | Through Hole | Capacitive, Illuminated | - | - | - | - | - | Square, Button | No Marking | - | LED, Red | 2 VDC | PC Pin | - | - | - | -35°C ~ 85°C |
|
|
CTD-IC591LE-W/WCAPACITIVE TOUCH LED IC DISPLAY |
145 |
|
Datasheet |
- | Tube | Active | Through Hole | Capacitive, Illuminated | - | - | - | - | - | Square, Button | No Marking | - | LED, Red | 2 VDC | PC Pin | - | - | - | -35°C ~ 85°C |
|
|
810KMZQSWITCH PUSHBUTTON SPDT 6A 125V |
0 |
|
- |
800 | Bulk | Obsolete | Panel Mount, Rear | Standard | SPDT | On-Mom | 6A (AC), 7A (DC) | 125 V | 30 V | Plunger for Cap | No Marking | White | - | - | Solder Lug | - | - | Circular - 6.35mm Dia | -30°C ~ 85°C |
|
PNP3N0D2C03QE3N, DOME BEZEL, SPST, SOLDER LUG |
380 |
|
Datasheet |
PNP | Tray | Active | Panel Mount, Front | Standard | SPDT | On-Mom | 5A (DC) | - | 32 V | Plunger for Cap | No Marking | - | - | - | Solder Lug | IP68 - Dust Tight, Waterproof | Epoxy Sealed Terminals | Circular - 12.30mm Dia | -40°C ~ 85°C |
|
SSWFS-S01-AE05-HWHSWITCH PUSHBUTTON SPST 3A 125V |
413 |
|
Datasheet |
S01 | Strip | Active | Panel Mount, Rear | Standard (Footswitch) | SPST-NO | Off-Mom | 6A (AC) | 125 V | - | Round, Button | - | Silver | - | - | Solder Lug | - | - | Circular - 12.20mm Dia | -20°C ~ 65°C |
|
SSWFS-S01-AC05-HWHSWITCH PUSHBUTTON SPST 3A 125V |
198 |
|
Datasheet |
S01 | Bulk | Active | Panel Mount, Rear | Standard (Footswitch) | SPST-NO | Off-Mom | 6A (AC) | 125 V | - | Round, Button | - | Silver | - | - | Solder Lug | - | - | Circular - 12.20mm Dia | -20°C ~ 65°C |
|
BB15AWSWITCH PUSH SPDT 0.4VA 28V |
0 |
|
Datasheet |
BB | Box | Active | Through Hole | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Plunger for Cap | No Marking | White | - | - | PC Pin | - | Antistatic | - | -30°C ~ 85°C |
|
40-4953-00SWITCH PUSHBUTTON SPST-NC |
805 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
SB-1B-DC-3-BHIGH AMPS STARTER-NO BLACK BOOT |
1,024 |
|
Datasheet |
SB | Bulk | Active | Panel Mount, Rear | Standard | SPST-NO | Off-Mom | 60A (DC) | - | 12 V | Round, Button, Rubber Cap | No Marking | Black | - | - | Screw Terminal | - | - | Circular - 16.00mm Dia | -25°C ~ 85°C |
|
SB-1B-DC-3-RHIGH AMPS STARTER-NO RED BOOT |
201 |
|
Datasheet |
SB | Bulk | Active | Panel Mount, Rear | Standard | SPST-NO | Off-Mom | 60A (DC) | - | 12 V | Round, Button, Rubber Cap | No Marking | Red | - | - | Screw Terminal | - | - | Circular - 16.00mm Dia | -25°C ~ 85°C |
|

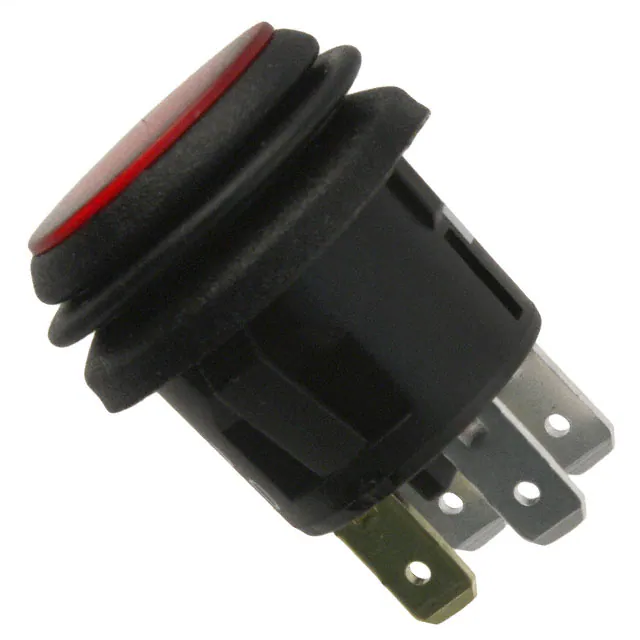

GPB527D2L02BR1SWITCH PUSHBUTTON SPST 10A 125V |
549 |
|
Datasheet |
GPB | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | SPST | Off-On | 10A (AC/DC) | 125 V | 28 V | Round, Button | No Marking | Red | LED, Red | 12 VDC | Quick Connect - 0.187" (4.7mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 20.20mm Dia | -25°C ~ 85°C |
|
MB2411E1W01SWITCH PUSHBUTTON SPDT 3A 125V |
0 |
|
Datasheet |
MB2400 | Bulk | Obsolete | Panel Mount, Rear | Standard | SPDT | On-Mom | 3A (AC) | 125 V | - | Plunger for Cap | No Marking | - | - | - | Solder Lug | - | Epoxy Sealed Terminals | Circular - 6.50mm Dia | -30°C ~ 85°C |
|
MB2411S1W03-HASWITCH PUSHBUTTON SPDT 3A 125V |
0 |
|
Datasheet |
MB2400 | Bulk | Obsolete | Panel Mount, Rear | Standard | SPDT | On-Mom | 3A (AC) | 125 V | - | Round, Button | No Marking | Black | - | - | PC Pin | - | Epoxy Sealed Terminals | Circular - 6.50mm Dia | -30°C ~ 85°C |
|
PC-1B-DC-1-RLSCRW MOUNT SPST OFF-(ON) IP65 |
154 |
|
Datasheet |
PC | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPST-NO | Off-Mom | 10A (DC) | - | 14 V | Round, Button | No Marking | Red | LED, Red | 12 VDC | Quick Connect - 0.250" (6.3mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 22.00mm Dia | -25°C ~ 85°C |
|

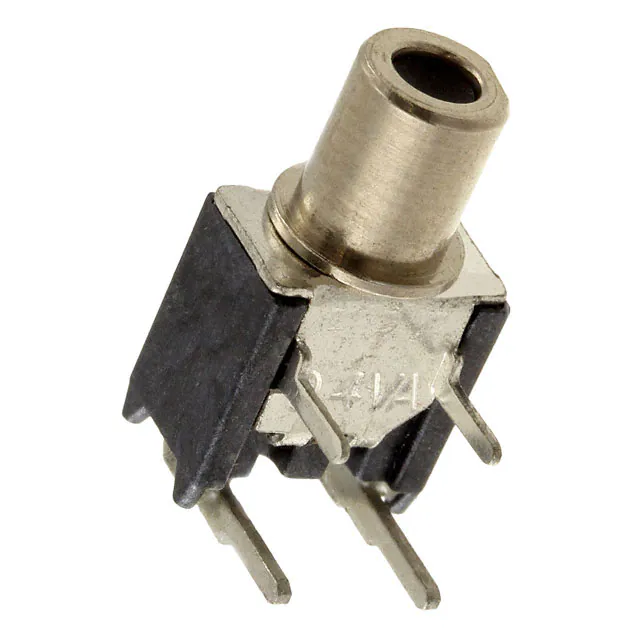

2-1825097-1SWITCH PUSH SPST-NO 0.4VA 20V |
1,390 |
|
Datasheet |
TP | Bulk | Obsolete | Through Hole, Right Angle | Standard | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger, Flush | No Marking | Black | - | - | PC Pin | - | - | - | -30°C ~ 65°C |
|
SMD-CT591LY-STISMD CAPACITIVE TOUCH LED DISPLAY |
2,247 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Surface Mount | Capacitive, Illuminated | - | - | - | - | - | Rectangular, Button | No Marking | - | LED, Yellow | 2 VDC | SMD (SMT) Tab | - | - | - | -35°C ~ 85°C |
|
|
SMD-CT591LR-STISMD CAPACITIVE TOUCH LED DISPLAY |
2,205 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Surface Mount | Capacitive, Illuminated | - | - | - | - | - | Rectangular, Button | No Marking | - | LED, Red | 2 VDC | SMD (SMT) Tab | - | - | - | -35°C ~ 85°C |
|
NP0115HG03LCSWITCH PUSH SPST-NO 0.4VA 28V |
0 |
|
Datasheet |
NP01 | Bulk | Obsolete | Through Hole | Standard, Illuminated | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Square, Button (Not Included) | No Marking | - | LED, Red | 2 VDC | PC Pin | - | - | - | -25°C ~ 50°C |
Pushbutton Switches Electronic Components
Explore Pushbutton Switches electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
