Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PC-1A-DC-1-RLSCRW MOUNT SPST OFF-ON IP65 |
445 |
|
Datasheet |
PC | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPST | On-Off | 10A (DC) | - | 14 V | Round, Button | No Marking | Red | LED, Red | 12 VDC | Quick Connect - 0.250" (6.3mm) | - | - | Circular - 22.00mm Dia | -25°C ~ 85°C |
|
K12SB L RD0 1.5 9N O LFTXHIGH PERFORMANCE SMT KEY SW |
7,578 |
|
Datasheet |
K12S | Tape & Reel (TR) | Active | Surface Mount | Keyswitch, Illuminated | SPST-NO | Off-Mom | 100mA (DC) | - | 30 V | Round, Button | No Marking | - | LED, Red | - | SMD (SMT) Tab | IP67 - Dust Tight, Waterproof | - | - | -40°C ~ 85°C |
|
|
K12SB L YE0 1.5 9N O LFTXHIGH PERFORMANCE SMT KEY SW |
7,533 |
|
Datasheet |
K12S | Tape & Reel (TR) | Active | Surface Mount | Keyswitch, Illuminated | SPST-NO | Off-Mom | 100mA (DC) | - | 30 V | Round, Button | No Marking | - | LED, Yellow | - | SMD (SMT) Tab | IP67 - Dust Tight, Waterproof | - | - | -40°C ~ 85°C |
|
|
K12SB L GN0 1.5 9N O LFTXHIGH PERFORMANCE SMT KEY SW |
6,425 |
|
Datasheet |
K12S | Tape & Reel (TR) | Active | Surface Mount | Keyswitch, Illuminated | SPST-NO | Off-Mom | 100mA (DC) | - | 30 V | Round, Button | No Marking | - | LED, Green | - | SMD (SMT) Tab | IP67 - Dust Tight, Waterproof | - | - | -40°C ~ 85°C |
|
|
SB4011NCH-2GSWITCH PUSH SPST-NC 3A 125V |
0 |
|
Datasheet |
SB40 | Bulk | Active | Panel Mount, Rear | Standard | SPST-NC | On-Mom | 3A (AC), 2A (DC) | 125 V | 30 V | Round, Button | No Marking | Blue | - | - | Solder Lug | - | Epoxy Sealed Terminals | Circular - 12.50mm Dia | -10°C ~ 70°C |
|
|
C7001SABRSPST PUSHBUTTON SWITCH |
0 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount, Snap-In | Standard | SPST-NO | Off-Mom | 16A (AC) | 250 V | - | Rectangular, Button | No Marking | Red | - | - | Quick Connect - 0.250" (6.3mm) | IP40 | - | Rectangular - 27.30mm x 22.40mm | - |
|
SSWFS-S01-AE11-HWH-C25SWITCH PUSHBUTTON SPST 3A 125V |
4,987 |
|
Datasheet |
S01 | Bulk | Active | Panel Mount, Rear | Standard (Footswitch) | SPST-NO | Off-Mom | 6A (AC) | 125 V | - | Round, Button | - | Silver | - | - | Wire Leads with Connector | - | - | Circular - 12.20mm Dia | -20°C ~ 65°C |
|
PA1-1B-DC-3HEAVY DUTY-NO LARGE ACTUATOR |
685 |
|
Datasheet |
PA1 | Bulk | Active | Panel Mount, Rear | Standard | SPST-NO | Off-Mom | 15A (DC) | - | 12 V | Round, Button, Rubber Cap | No Marking | Black | - | - | Screw Terminal | - | - | Circular - 16.00mm Dia | - |
|
FB15ANEP4-HBSWITCH PUSH SPST-NO 0.4VA 28V |
0 |
|
Datasheet |
FB | Tray | Active | Panel Mount, Rear | Standard | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | White | - | - | Solder Turret | - | Epoxy Sealed Terminals | Circular - 5.30mm Dia | -10°C ~ 70°C |
|
AB11BWSWITCH PUSH SPST-NO 0.4VA 28V |
0 |
|
Datasheet |
AB | Tube | Active | Through Hole | Standard | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Plunger for Cap | No Marking | White | - | - | Wire Wrap | - | Sealed - Fully | - | -30°C ~ 85°C |
|
|
H8303ABBR7PUSH BUTTON SWITCH LIT 12V RED |
0 |
|
Datasheet |
8300 | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | SPST | On-Off | 12A (AC) | 250 V | - | Rectangular, Button | No Marking | Red | Incandescent, Red | 12 VDC | Quick Connect - 0.187" (4.7mm) | IP40 | - | Rectangular - 19.30mm x 12.90mm | - |
|
AB15AWSWITCH PUSH SPDT 0.4VA 28V |
0 |
|
Datasheet |
AB | Tube | Active | Through Hole | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Plunger for Cap | No Marking | White | - | - | Wire Wrap | - | Sealed - Fully | - | -30°C ~ 85°C |
|

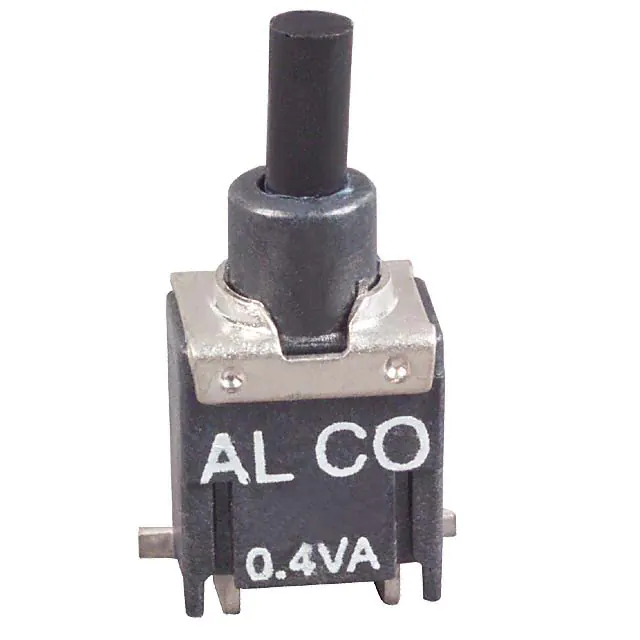

TSPD11CGSRA0SWITCH PUSH SPST-NO 0.4VA 20V |
0 |
|
Datasheet |
TSP | Bulk | Obsolete | Surface Mount, Right Angle | Standard | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | No Marking | Black | - | - | Gull Wing | - | Process Sealed | - | -30°C ~ 85°C |
|
|
BB15AB-FASWITCH PUSH SPDT 0.4VA 28V |
0 |
|
Datasheet |
BB | Tray | Active | Through Hole | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Black | - | - | PC Pin | - | Antistatic | - | -30°C ~ 85°C |
|

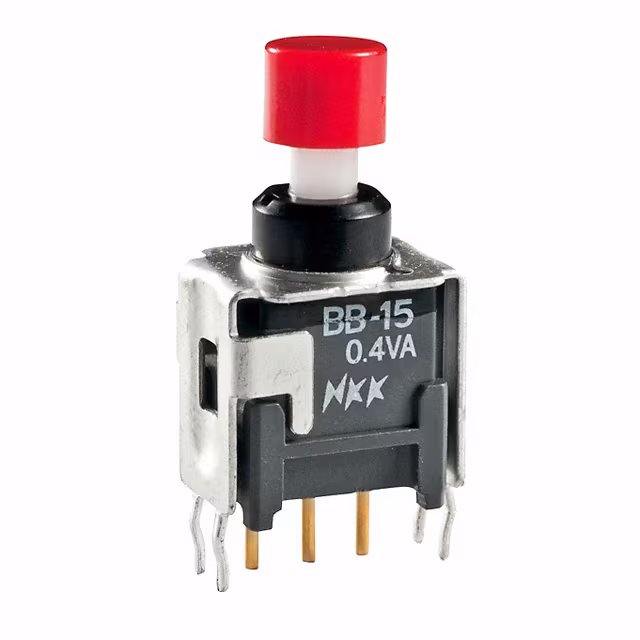

BB15AB-FCSWITCH PUSH SPDT 0.4VA 28V |
0 |
|
Datasheet |
BB | Tray | Active | Through Hole | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Red | - | - | PC Pin | - | Antistatic | - | -30°C ~ 85°C |
|
|
BB15AB-FBSWITCH PUSH SPDT 0.4VA 28V |
0 |
|
Datasheet |
BB | Bulk | Active | Through Hole | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | White | - | - | PC Pin | - | Antistatic | - | -30°C ~ 85°C |
|
|
BB16AB1SWITCH PUSH SPDT 0.4VA 28V |
0 |
|
Datasheet |
BB | Bulk | Active | Through Hole | Standard | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Plunger for Cap | No Marking | White | - | - | PC Pin | - | Antistatic | - | -30°C ~ 85°C |
|
|
GPB548DL05BRSWITCH PUSH |
562 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
SB4011NCHC-2B3 AMP MOMENTARY PUSHBUTTON |
0 |
|
Datasheet |
SB40 | Bulk | Active | Panel Mount, Rear | Standard | SPST-NC | On-Mom | 3A (AC), 2A (DC) | 125 V | 30 V | Round, Button | - | White | - | - | Solder Lug | - | - | Circular - 12.50mm Dia | -10°C ~ 70°C |
|
NE18 2A EE SN L 6AMPSWITCH PUSHBUTTON DPST 6A 250V |
105 |
|
Datasheet |
NE18 | Tray | Active | Through Hole, Right Angle | Standard | DPST | Off-On | 6A (AC/DC) | 250 V | 100 V | Plunger for Cap | No Marking | - | - | - | PC Pin | Dust Proof | - | - | - |
