Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MDG LFSSWITCH PUSH SPST-NO 0.05A 100V |
0 |
|
Datasheet |
MD | Bulk | Active | Through Hole | Keyswitch | SPST-NO | Off-Mom | 50mA (AC/DC) | 100 V | 100 V | Round, Button, Rubber | No Marking | Black | - | - | PC Pin | - | Tactile Feedback | - | -25°C ~ 70°C |
|
PA2-1B-DC-5COMPACT PUSH BUTTON-NO SOLDER |
416 |
|
Datasheet |
PA2 | Bulk | Active | Panel Mount, Rear | Standard (Footswitch) | SPST-NO | Off-Mom | 10A (DC) | - | 12 V | Round, Plunger, Metal | No Marking | Silver | - | - | Solder Lug | - | - | Circular - 12.20mm Dia | -20°C ~ 65°C |
|
|
B3J 7100HKEY SWITCH |
292 |
|
- |
B3J | Box | Active | Through Hole | Keyswitch, Illuminated | SPST-NO | Off-Mom | 50mA (DC) | - | 24 V | Square, Button | No Marking | Black | LED, Green/Yellow | 2.0, 2.1 VDC | PC Pin | - | - | - | -25°C ~ 70°C |
.jpg)
|
GPB554CL05BRSWITCH PUSH SPST-NO 6A 14V |
373 |
|
Datasheet |
GPB | Bulk | Obsolete | Panel Mount, Snap-In | Standard, Illuminated | SPST-NO | Off-Mom | 6A (DC) | - | 14 V | Square, Button | No Marking | Red | LED, Red | - | Solder Lug | - | - | Circular - 12.10mm Dia | 0°C ~ 55°C |
|
|
MDP G SG LFSSWITCH PUSH SPST-NO 0.05A 100V |
121 |
|
Datasheet |
MDP | Tray | Active | Through Hole | Keyswitch | SPST-NO | Off-Mom | 50mA (AC/DC) | 100 V | 100 V | Plunger for Cap | No Marking | Black | - | - | PC Pin | - | Tactile Feedback | - | -25°C ~ 70°C |
|
TPB11CGPC0SWITCH PUSH SPST-NO 0.4VA 20V |
0 |
|
Datasheet |
TP | Bulk | Obsolete | Through Hole | Standard | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | No Marking | Black | - | - | PC Pin | - | - | - | -30°C ~ 65°C |
|
3MN-DP7-AP2/22-M1RESWITCH PUSH DPDT 0.4VA 20V |
234 |
|
Datasheet |
3MN | Bulk | Active | Panel Mount, Snap-In | Standard | DPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Square, Button | No Marking | Black | - | - | Solder Lug | - | - | Rectangular - 15.24mm x 12.70mm | -30°C ~ 85°C |
|
PB-1B-DC-2-RIL4P SPST OFF-(ON) LED - IP65 DC |
253 |
|
Datasheet |
PB | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | SPST-NO | Off-Mom | 20A (DC) | - | 14 V | Round, Button | No Marking | Red | LED, Red | 12 VDC | Quick Connect - 0.187" (4.7mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 20.20mm Dia | -25°C ~ 85°C |
|
PB-1A-DC-2-RIL4P SPST OFF-ON LED - IP65 DC |
849 |
|
Datasheet |
PB | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | SPST | On-Off | 20A (DC) | - | 14 V | Round, Button | No Marking | Red | LED, Red | 12 VDC | Quick Connect - 0.187" (4.7mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 20.20mm Dia | -25°C ~ 85°C |
|
PG1-1B-DCHORN BUTTON SWITCH - OFF-(ON) |
748 |
|
Datasheet |
- | Bulk | Active | Chassis Mount | Standard | SPST-NO | Off-Mom | 5A (DC) | - | 12 V | Round, Button | No Marking | Black | - | - | - | - | - | - | - |
|
PB-1A-DC-2-RDL3P SPST OFF-ON LED - IP65 DC |
1,727 |
|
Datasheet |
PB | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | SPST | On-Off | 20A (DC) | - | 14 V | Round, Button | No Marking | Red | LED, Red | 12 VDC | Quick Connect - 0.187" (4.7mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 20.20mm Dia | -25°C ~ 85°C |
|
B3J-7400SWITCH PUSH SPST-NO 0.05A 24V |
5 |
|
Datasheet |
B3J | Bulk | Active | Through Hole | Keyswitch, Illuminated | SPST-NO | Off-Mom | 50mA (DC) | - | 24 V | Square, Button | No Marking | Blue | LED, Green/Yellow | 2.0, 2.1 VDC | PC Pin | - | - | - | -25°C ~ 70°C |
|
SSWFS-S01-AA05-HWHSWITCH PUSHBUTTON SPST 3A 125V |
456 |
|
Datasheet |
S01 | Bulk | Active | Panel Mount, Rear | Standard (Footswitch) | SPST-NO | Off-Mom | 6A (AC) | 125 V | - | Round, Button | - | Silver | - | - | Solder Lug | - | - | Circular - 12.20mm Dia | -20°C ~ 65°C |
|
PB2L42D1100SWITCH PUSHBUTTON DPST 20A 125V |
573 |
|
Datasheet |
PB2, LAMB | Bulk | Active | Panel Mount, Snap-In | Standard | DPST | Off-On | 20A (AC) | 125 V | - | Square, Button, Dual | No Marking | Black | - | - | Quick Connect - 0.250" (6.3mm) | IP54 - Dust Protected, Water Resistant | Safety Lock | Rectangular - 30.00mm x 22.00mm | -20°C ~ 85°C |
|

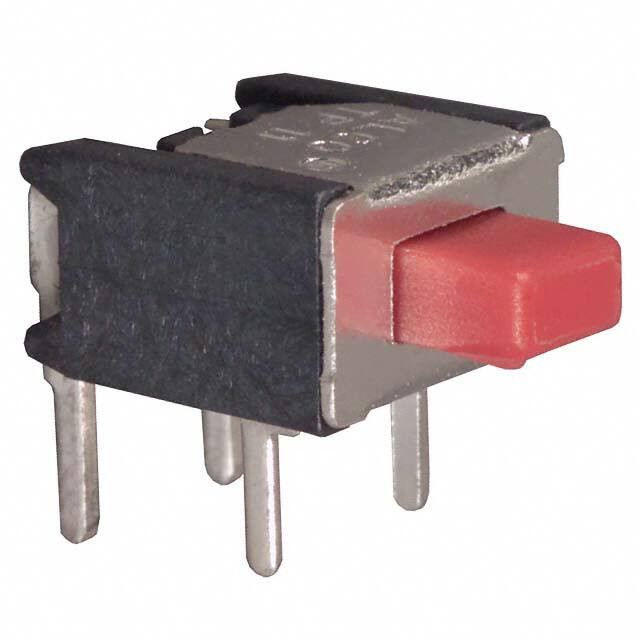

TP11CGRA2SWITCH PUSH SPST-NO 0.4VA 20V |
0 |
|
Datasheet |
TP | Bulk | Active | Through Hole, Right Angle | Standard | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Rectangular, Plunger | No Marking | Red | - | - | PC Pin | - | - | - | -30°C ~ 65°C |
|
|
K12SC L WH0 1.5 5N O LFTXSWITCH PUSH SPST-NO 0.1A 30V |
3,219 |
|
Datasheet |
K12S | Tape & Reel (TR) | Active | Surface Mount | Keyswitch, Illuminated | SPST-NO | Off-Mom | 100mA (DC) | - | 30 V | Round, Button | No Marking | - | LED, White | - | SMD (SMT) Tab | IP40 | - | - | -40°C ~ 85°C |
|
|
TPB11CGPC004Pushbutton Switch, SPST, Off-(on |
267 |
|
- |
* | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
F2UOA01AAUSWITCH PUSH DPDT 0.04A 50V |
6,072 |
|
Datasheet |
F | Bulk | Active | Through Hole, Right Angle | Standard | DPDT | On-Mom | 40mA (AC), 10mA (DC) | 50 V | 30 V | Plunger for Cap | No Marking | White | - | - | PC Pin | - | - | - | -40°C ~ 70°C |
|
|
SCB15P10A-4AASWITCH PUSH SPDT 10A 125V |
185 |
|
Datasheet |
SCB | Bulk | Obsolete | Panel Mount, Rear | Standard | SPDT | On-Mom | 10A (AC) | 125 V | - | Round, Button | No Marking | Black | - | - | Quick Connect - 0.187" (4.7mm) | - | With Shroud | Circular - 12.50mm Dia | -40°C ~ 85°C |
|
CTD-IC591LY-W/WCAPACITIVE TOUCH LED IC DISPLAY |
1,543 |
|
Datasheet |
- | Tube | Active | Through Hole | Capacitive, Illuminated | - | - | - | - | - | Square, Button | No Marking | - | LED, Yellow | 2.1 VDC | PC Pin | - | - | - | -35°C ~ 85°C |
Pushbutton Switches Electronic Components
Explore Pushbutton Switches electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
