Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AVP22MS04FE0DT5A04SWITCH PUSHBUTTON SPST-NO 1A 24V |
2 |
|
Datasheet |
AVP | Bulk | Active | Panel Mount, Front | Piezo, Anti-Vandal, Illuminated | SPST-NO | Off-Mom | 1A (AC/DC) | 24 V | 24 V | Round, Button, Flush | No Marking | Silver | LED, Blue/Green/Red | - | Wire Leads with Connector | IP68 - Dust Tight, Waterproof | - | Circular - 22.20mm Dia | -20°C ~ 65°C |
|
AML22CBF2AASWITCH PUSHBUTTON SPDT 3A 125V |
109 |
|
Datasheet |
AML22 | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-Mom | 3A (AC), 2A (DC) | 125 V | 24 V | Square, Button (Not Included) | No Marking | - | LED, Red | 24 VDC | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Square - 19.05mm x 19.05mm | - |
|
MPZ022/FSWITCH PUSHBUTTON SPST-NO 1A 24V |
54 |
|
Datasheet |
MPZ | Bulk | Active | Panel Mount, Front | Piezo | SPST-NO | Off-Mom | 1A (AC/DC) | 24 V | 24 V | Round, Button, Flush | No Marking | Silver | - | - | Wire Leads | IP68/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 22.00mm Dia | -40°C ~ 85°C |
|
1241.3312SWITCH PUSHBUTTON |
100 |
|
Datasheet |
- | - | Active | - | - | - | - | - | - | - | - | No Marking | - | - | - | - | - | - | - | - |
|
1241.3260SWITCH PUSH SPST-NO 100MA 42V |
53 |
|
Datasheet |
PSE | Bulk | Active | Panel Mount, Front | Piezo | SPST-NO | Off-Mom | 100mA (AC/DC) | 42 V | 60 V | Round, Button, Flush | No Marking | Silver | LED, Green | 24 VDC | Connector | IP67 - Dust Tight, Waterproof | - | Circular - 22.10mm Dia | -40°C ~ 85°C |
|
PN1L-M2AFB002E0W30MM PIEZO RING 24VDC WHITE |
38 |
|
Datasheet |
PN1L | Bulk | Active | Panel Mount, Front | Piezo | SPST-NO | Off-Mom | 1A (AC/DC) | 24 V | 24 V | Round, Button, Flush | No Marking | Silver | LED, White | 24 VDC | Wire Leads | IP68/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 30.50mm Dia | -40°C ~ 75°C |
|
A165L-AWM-T1-2SWITCH PUSHBUTTON DPDT 5A 125V |
60 |
|
Datasheet |
A16 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPDT | On-Mom | 5A (AC) | 125 V | - | Square, Button | No Marking | White | LED, White | 110 VAC | Solder, Quick Connect - 0.110" (2.8mm) | IP66 - Dust Tight, Oil and Water Resistant | Voltage Reduction Lighting | Circular - 16.00mm Dia | -10°C ~ 55°C |
|
|
50070974-002-01OPERATOR CONTROLS-VEHICLE SWITCH |
64 |
|
Datasheet |
87940 | Bulk | Active | Panel Mount, Rear | Standard | DPST-NO/NC | On-Off, Off-On | 10A (DC) | - | 24 V | Round, Button, Mushroom | - | Black | - | - | Screw Terminal | - | - | - | -40°C ~ 40°C |
|
AML22CBX2ACSWITCH PUSHBUTTON DPDT 3A 125V |
64 |
|
Datasheet |
AML22 | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | DPDT | On-Mom | 3A (AC), 2A (DC) | 125 V | 24 V | Square, Button (Not Included) | No Marking | - | LED, Green | 24 VDC | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Square - 19.05mm x 19.05mm | - |
|

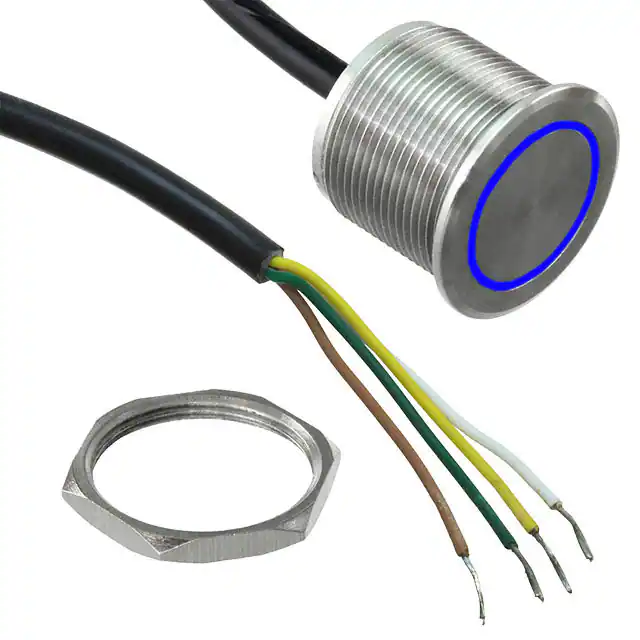

MPZI019/F/BL/24SWITCH PUSHBUTTON SPST-NO 1A 24V |
44 |
|
Datasheet |
MPZ | Bulk | Active | Panel Mount, Front | Piezo | SPST-NO | Off-Mom | 1A (AC/DC) | 24 V | 24 V | Round, Button, Flush | No Marking | Silver | LED, Blue | 24 VAC/DC | Wire Leads | IP68/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 19.00mm Dia | -40°C ~ 85°C |
|
AML22CBM2ACSWITCH PUSHBUTTON DPDT 3A 125V |
100 |
|
Datasheet |
AML22 | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | DPDT | On-Mom | 3A (AC), 2A (DC) | 125 V | 24 V | Square, Button (Not Included) | No Marking | - | LED, Yellow | 24 VDC | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Square - 19.05mm x 19.05mm | - |
|
|
AV22PNA44SWITCH PUSHBUTTON SPDT 5A 250V |
28 |
|
Datasheet |
AV | Bulk | Active | Panel Mount, Front | Anti-Vandal | SPDT | On-Mom | 5A (AC) | 250 V | - | Round, Button, Mushroom | No Marking | Gray | - | - | Quick Connect - 0.110" (2.8mm) | IP67 - Dust Tight, Waterproof | Sealed - Fully | Circular - 22.20mm Dia | -20°C ~ 55°C |
|
|
1241.2446SWITCH PSE 30SNAE-RIRTRT24-IV-L |
100 |
|
- |
- | - | Active | - | - | - | - | - | - | - | - | No Marking | - | - | - | - | - | - | - | - |
|
|
13440AD2G25X1156SWITCH PUSHBUTTON DPDT 4A 125V |
49 |
|
Datasheet |
13000 | Bulk | Active | Panel Mount, Rear | Standard | DPDT | On-Mom | 4A (AC/DC) | 125 V | 30 V | - | No Marking | - | - | - | Solder Lug | - | - | Circular - 6.50mm Dia | -40°C ~ 85°C |
|
|
PS-22I05SWITCH PUSHBUTTON |
4,964 |
|
Datasheet |
PS, COMAX | Bulk | Active | Through Hole, Right Angle | Standard | DPDT | On-On | 300mA (DC) | - | 30 V | Plunger for Cap | No Marking | Black | - | - | Solder Lug | - | - | - | -20°C ~ 70°C |
|
|
MPBS-22H01-F14SWITCH PUSHBUTTON 2-POLE MOM-ON |
523 |
|
Datasheet |
MPB | Box | Active | Through Hole, Right Angle | Standard | DPDT | On-Mom | 500mA (AC), 1A (DC) | 100 V | 25 V | Plunger for Cap | No Marking | White | - | - | PC Pin | - | - | - | -10°C ~ 60°C |
|
|
MPBS22H01L-F14SWITCH PUSHBUTTON 2-POLE ON - ON |
517 |
|
Datasheet |
MPB | Box | Active | Through Hole, Right Angle | Standard | DPDT | On-On | 500mA (AC), 1A (DC) | 100 V | 25 V | Plunger for Cap | No Marking | White | - | - | PC Pin | - | - | - | -10°C ~ 60°C |
|
|
50-0120-00J977-8 MINI FLAT PAK SWITCH W/ S |
4,994 |
|
Datasheet |
- | Box | Active | Through Hole, Right Angle | Standard | SPDT | On-On-Off | 1A (DC) | - | 30 V | Round, Plunger | - | Blue | - | - | PC Pin | - | - | - | - |
|
|
50-0119-00J977-8 MINI FLAT PAK SWITCH W/ B |
4,991 |
|
Datasheet |
- | Box | Active | Through Hole | Standard | SPDT | On-On-Off | 1A (DC) | - | 30 V | Round, Plunger | - | Blue | - | - | PC Pin | - | - | - | - |
|
|
MPBS-42H01-F14SWITCH PUSHBUTTON 4-POLE MOM-ON |
687 |
|
Datasheet |
MPB | Box | Active | Through Hole, Right Angle | Standard | 4PDT | On-Mom | 500mA (AC), 1A (DC) | 100 V | 25 V | Plunger for Cap | No Marking | White | - | - | PC Pin | - | - | - | -10°C ~ 60°C |
Pushbutton Switches Electronic Components
Explore Pushbutton Switches electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
