Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

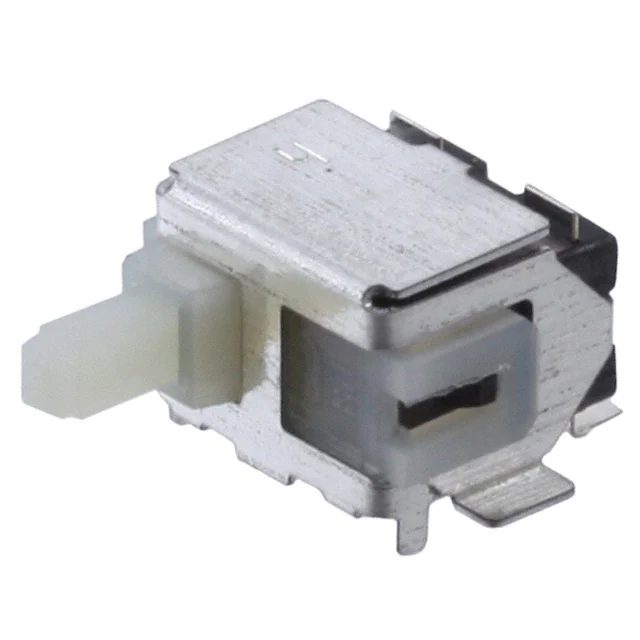

ESE-11MH2TSWITCH DETECTOR SPST-NO 0.01A 5V |
4,869 |
|
Datasheet |
ESE11 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 10mA (DC) | - | 5 V | Overtravel Plunger | Surface Mount, Right Angle | Gull Wing | - | - | 35gf | - | 0.132" (3.35mm) | - | - | - | -10°C ~ 70°C |
|
ESE-22MH24SWITCH DETECTOR SPST-NO 0.01A 5V |
12,446 |
|
Datasheet |
ESE22 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 10mA (DC) | - | 5 V | Angled Toggle (Detector) | Surface Mount, Right Angle | SMD (SMT) Tab | - | Board Guide | 30gf | - | 0.091" (2.3mm) | - | - | - | -10°C ~ 70°C |
|
|
ESE-22MH54SWITCH DETECTOR SPST-NO 0.01A 5V |
28,289 |
|
Datasheet |
ESE22 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 10mA (DC) | - | 5 V | Angled Toggle (Detector) | Surface Mount, Right Angle | SMD (SMT) Tab | - | - | 30gf | - | 0.055" (1.4mm) | - | - | - | -10°C ~ 70°C |
|
ESE-22MV21SWITCH DETECTOR SPST-NO 0.01A 5V |
4,753 |
|
Datasheet |
ESE22 | Bulk | Active | SPST-NO | Off-Mom | 10mA (DC) | - | 5 V | Angled Toggle (Detector) | Surface Mount | SMD (SMT) Tab | - | Board Guide | 30gf | - | 0.232" (5.9mm) | - | - | - | -10°C ~ 70°C |
|
ESE-11MH3TSWITCH DETECTOR SPST-NO 0.01A 5V |
119,116 |
|
Datasheet |
ESE11 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 10mA (DC) | - | 5 V | Overtravel Plunger | Surface Mount, Right Angle | Gull Wing | - | - | 35gf | - | 0.146" (3.7mm) | - | - | - | -10°C ~ 70°C |
|
ESE-18L11DSWITCH DETECTOR SPST-NO 0.01A 5V |
4,421 |
|
Datasheet |
ESE18 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 10mA (DC) | - | 5 V | Angled Toggle (Detector) | Surface Mount, Right Angle | SMD (SMT) Tab | - | Board Guide | 30gf | - | 0.102" (2.6mm) | - | - | - | -10°C ~ 60°C |
|
D2FC-7SWITCH SNP ACT SPST-NO 0.001A 6V |
3,263 |
|
Datasheet |
D2FC | Bag | Active | SPST-NO | Off-Mom | 1mA (DC) | - | 6 V | Round (Pin Plunger) | Through Hole | PC Pin | IP40 | - | 102gf | 20gf | 0.272" (6.9mm) | - | 0.006" (0.15mm) | 0.008" (0.2mm) | -25°C ~ 65°C |
|

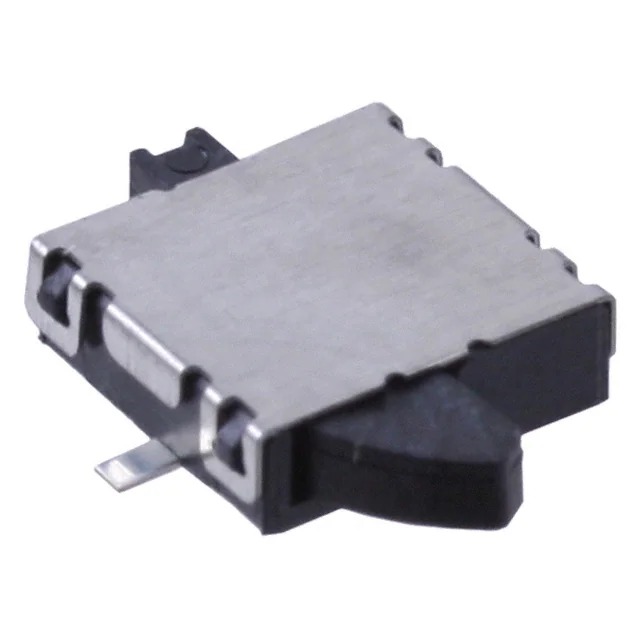

ESE-31R11TSWITCH DETECTOR SPST-NO 0.01A 5V |
7,845 |
|
Datasheet |
ESE31 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 10mA (DC) | 20 V | 5 V | Angled Toggle (Detector) | Surface Mount, Right Angle | SMD (SMT) Tab | - | Board Guide | 40gf | - | 0.091" (2.3mm) | - | - | - | -10°C ~ 70°C |
|
ESE-13V01BSWITCH DETECTOR SPST-NO 0.01A 5V |
22,298 |
|
Datasheet |
ESE13 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 10mA (DC) | - | 5 V | Angled Toggle (Detector) | Surface Mount, Right Angle | J Lead | - | Board Guide | 30gf | - | 15° | 15° | - | 60° | -10°C ~ 60°C |
|

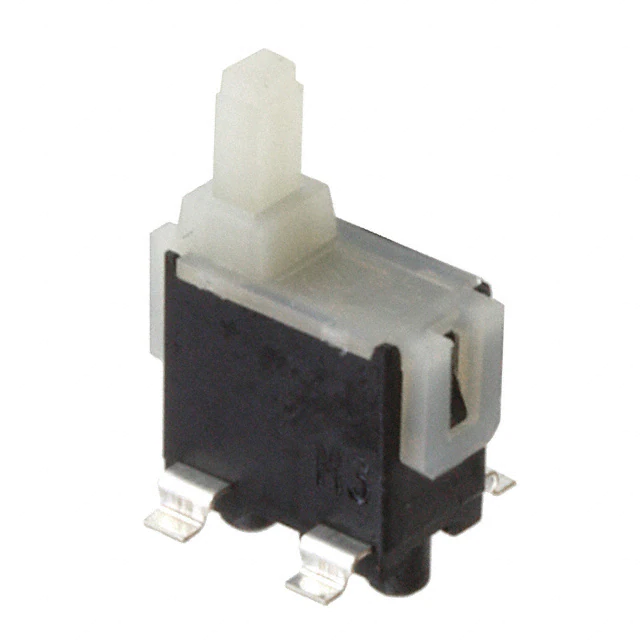

ESE-11MV13SWITCH DETECTOR SPST-NO 0.01A 5V |
1,977 |
|
Datasheet |
ESE11 | Bulk | Active | SPST-NO | Off-Mom | 10mA (DC) | - | 5 V | Overtravel Plunger | Surface Mount | Gull Wing | - | - | 35gf | - | 0.305" (7.75mm) | - | - | - | -10°C ~ 70°C |
|

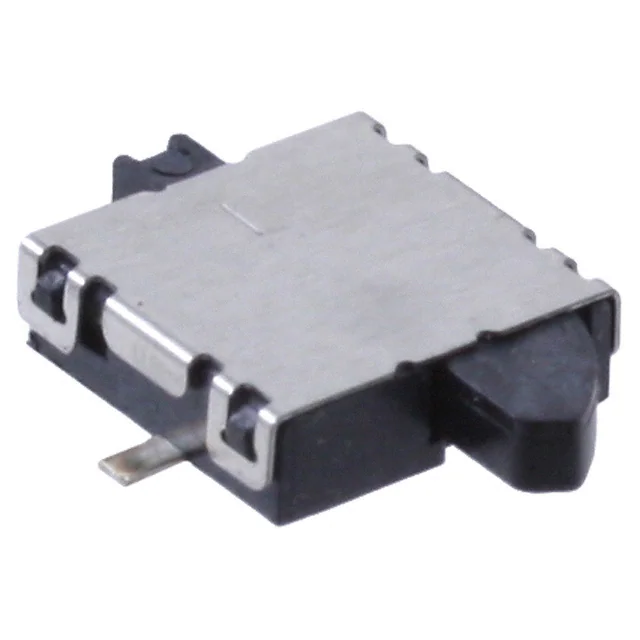

ESE-31L11TSWITCH DETECTOR SPST-NO 0.01A 5V |
2,696 |
|
Datasheet |
ESE31 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 10mA (DC) | 20 V | 5 V | Angled Toggle (Detector) | Surface Mount, Right Angle | SMD (SMT) Tab | - | Board Guide | 40gf | - | 0.091" (2.3mm) | - | - | - | -10°C ~ 70°C |
|

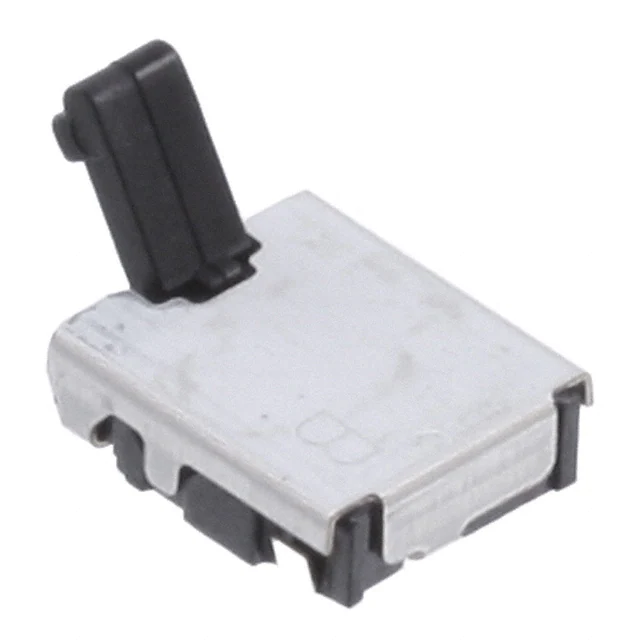

ESE-13V01ASWITCH DETECTOR SPST-NO 0.01A 5V |
46,074 |
|
Datasheet |
ESE13 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 10mA (DC) | - | 5 V | Angled Toggle (Detector) | Surface Mount, Right Angle | J Lead | - | - | 30gf | - | 15° | 15° | - | 60° | -10°C ~ 60°C |
|

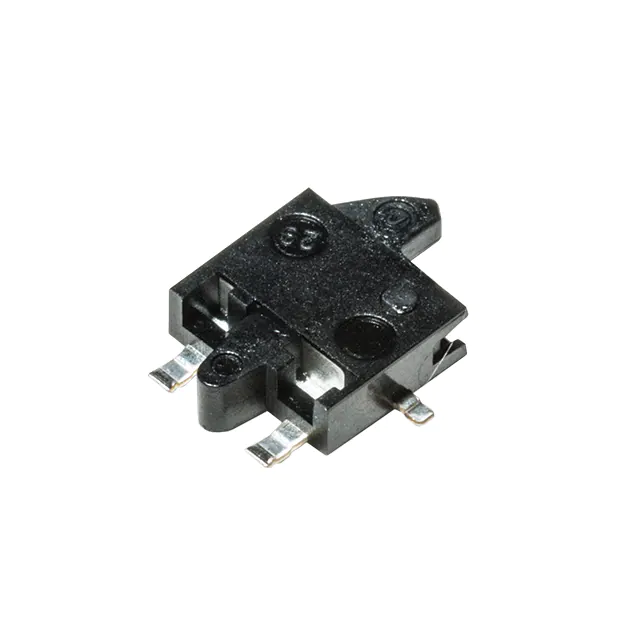

HDP001RSWITCH DETECTOR SPST-NO 1MA 5V |
5,005 |
|
Datasheet |
HDP | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 1mA (DC) | - | 5 V | Angled Toggle (Detector) | Surface Mount, Right Angle | Gull Wing | - | Board Guide | - | - | 0.117" (2.96mm) | 0.006" (0.15mm) | - | - | -20°C ~ 70°C |
|

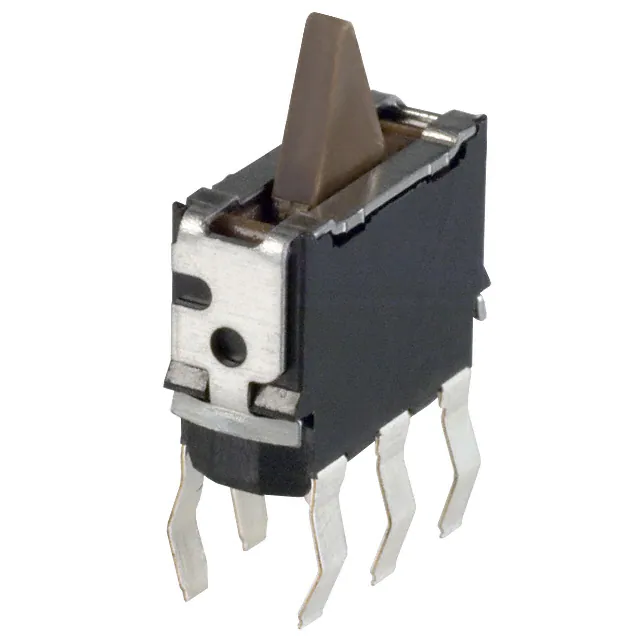

ESE-24SV3SWITCH DETECTOR SPDT 0.01A 5V |
2,649 |
|
Datasheet |
ESE24 | Bulk | Active | SPDT | Mom-Off-Mom | 10mA (DC) | - | 5 V | Angled Toggle (Detector) | Through Hole | PC Pin | - | - | 35gf | - | 0.317" (8.05mm) | - | - | - | -10°C ~ 70°C |
|
ESE-13H01DSWITCH DETECTOR SPST-NO 0.01A 5V |
5,829 |
|
Datasheet |
ESE13 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 10mA (DC) | - | 5 V | Angled Toggle (Detector) | Surface Mount, Right Angle | SMD (SMT) Tab | - | Board Guide | 30gf | - | 15° | 15° | - | 60° | -10°C ~ 60°C |
|
ESE-24SH1SWITCH DETECTOR SPDT 0.01A 5V |
3,823 |
|
Datasheet |
ESE24 | Bulk | Active | SPDT | Mom-Off-Mom | 10mA (DC) | - | 5 V | Angled Toggle (Detector) | Through Hole, Right Angle | PC Pin | - | - | 35gf | - | 0.179" (4.55mm) | - | - | - | -10°C ~ 70°C |
|
|
D2FC-F-7N(60M)SWITCH SNP ACT SPST-NO 0.001A 6V |
2,512 |
|
Datasheet |
D2F | Bag | Active | SPST-NO | Off-Mom | 1mA (DC) | - | 6 V | Round (Pin Plunger) | Through Hole | PC Pin | IP40 | - | 60gf | 24gf | 0.272" (6.9mm) | - | 0.005" (0.13mm) | 0.008" (0.2mm) | -25°C ~ 65°C |
|

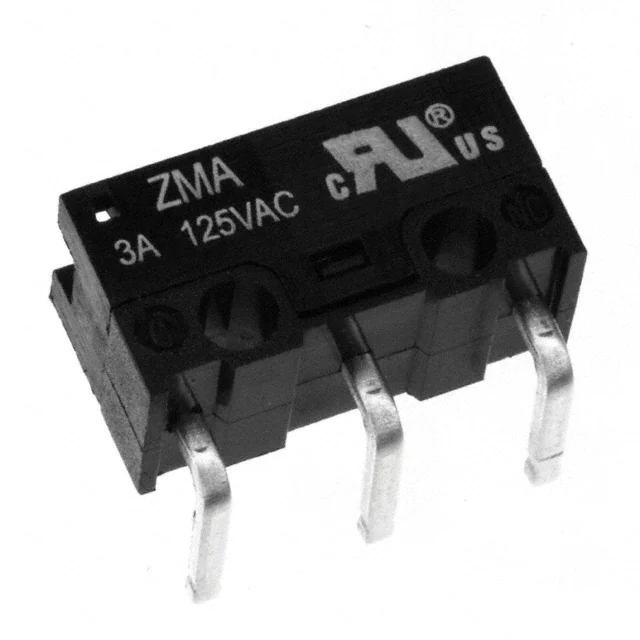

ZMA03A150L04PCSWITCH SNAP ACTION SPDT 3A 125V |
18,755 |
|
Datasheet |
ZMA | Tray | Active | SPDT | On-Mom | 3A (AC/DC) | 125 V | 24 V | Lever, Straight | Through Hole | PC Pin | - | - | 50gf | 8.000gf | 0.312" (7.9mm) | 0.120" (3.0mm) | - | 0.025" (0.6mm) | -40°C ~ 85°C |
|

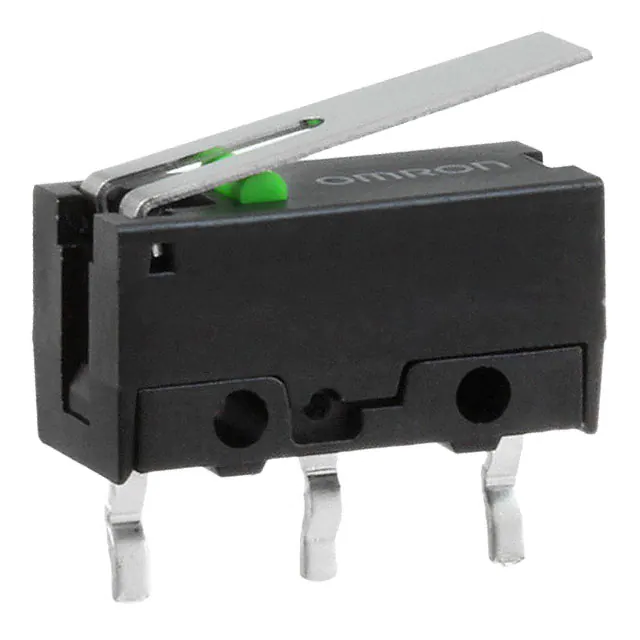

D2FS-FL-N-TSWITCH SNAP ACT SPST-NO 0.1A 6V |
3,631 |
|
Datasheet |
D2FS | Bulk | Active | SPST-NO | Off-Mom | 100mA (DC) | - | 6 V | Lever, Straight | Through Hole | PC Pin | IP40 | - | 25gf | 2.039gf | 0.328" (8.3mm) | - | 0.020" (0.5mm) | 0.022" (0.55mm) | -20°C ~ 70°C |
|
ESE-13V05BSWITCH DETECTOR SPST-NO 0.01A 5V |
1,406 |
|
Datasheet |
ESE13 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 10mA (DC) | - | 5 V | Angled Toggle (Detector) | Surface Mount, Right Angle | J Lead | - | Board Guide | 30gf | - | 15° | 15° | - | 60° | -10°C ~ 60°C |
