Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

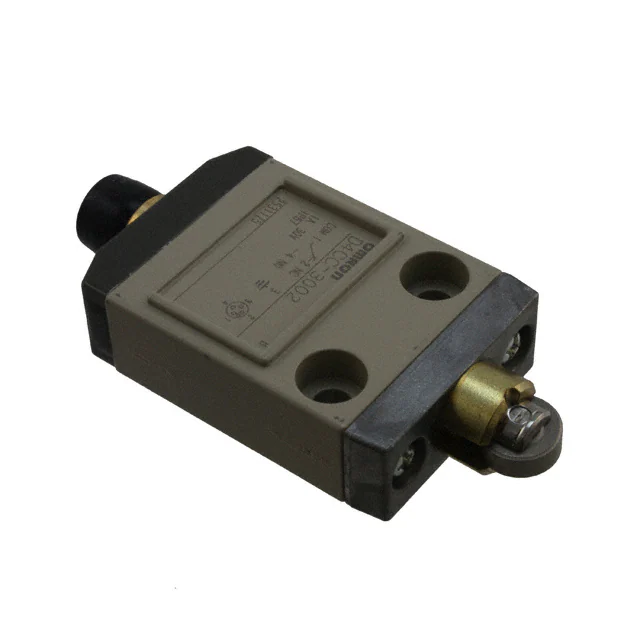

D4CC-3002SWITCH SNAP ACTION SPDT 1A 30V |
30 |
|
Datasheet |
D4CC | Bulk | Active | SPDT | On-Mom | 1A (DC) | - | 30 V | Roller Plunger | Chassis Mount | Connector | IP67 - Dust Tight, Waterproof | - | 1200gf | 450gf | 1.122" (28.5mm) | 0.071" (1.8mm) | 0.008" (0.2mm) | 0.118" (3.0mm) | -10°C ~ 70°C |
|

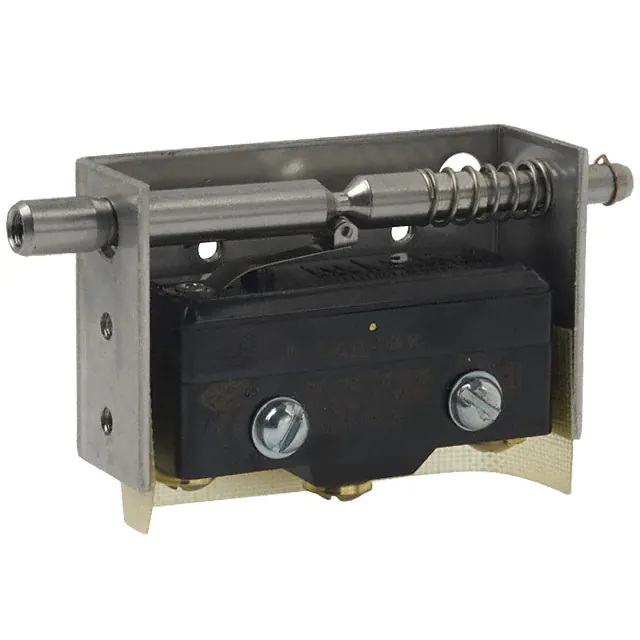

1AC2SWITCH SNAP ACTION SPDT 15A 125V |
270 |
|
Datasheet |
AC | Bulk | Active | SPDT | On-Mom | 15A (AC), 500mA (DC) | 125 V | 125 V | Push-Pull Plunger | Chassis Mount | Screw Terminal | - | - | 1588gf | - | 0.250" (6.4mm) | - | - | 0.125" (3.2mm) | -55°C ~ 125°C |
|
914CE2-3SWITCH SNAP ACTION SPDT 5A 240V |
55 |
|
Datasheet |
914CE | Bulk | Active | SPDT | On-Mom | 5A (AC), 3A (DC) | 240 V | 28 V | Roller Plunger | Chassis Mount | Cable Leads | IP66 - Dust Tight, Water Resistant | Cable Length 3' | 1200gf | 450gf | 1.122" (28.5mm) | 0.071" (1.8mm) | 0.004" (0.1mm) | 0.118" (3.0mm) | 0°C ~ 105°C |
|

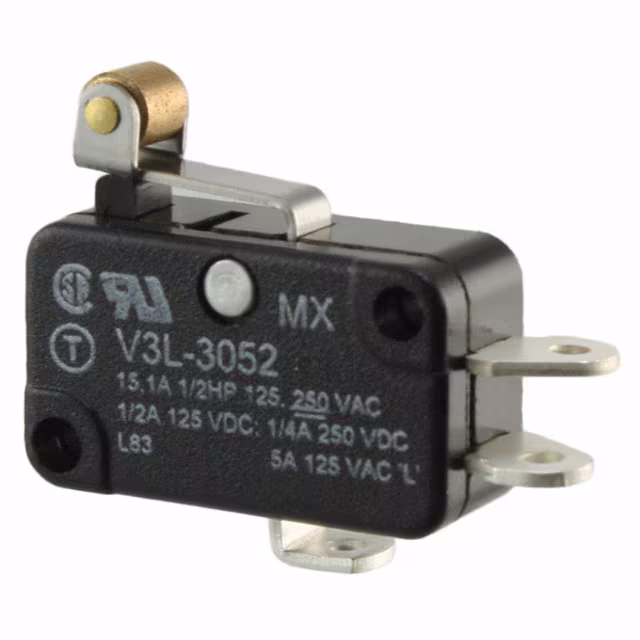

V3L-3052SWITCH SNAP ACTION SPDT 15A 125V |
104 |
|
Datasheet |
V3L | Bulk | Active | SPDT | On-Mom | 15A (AC), 500mA (DC) | 125 V | 125 V | Lever, Roller | Chassis Mount | Solder Lug | - | - | 180gf | 15gf | 0.812" (20.6mm) | 0.052" (1.32mm) | 0.012" (0.3mm) | 0.032" (0.81mm) | - |
|
|
914CE2-6SWITCH SNAP ACTION SPDT 5A 240V |
33 |
|
Datasheet |
914CE | Bulk | Active | SPDT | On-Mom | 5A (AC), 3A (DC) | 240 V | 28 V | Roller Plunger | Chassis Mount | Cable Leads | IP66 - Dust Tight, Water Resistant | Cable Length 6' | 1200gf | 450gf | 1.122" (28.5mm) | 0.071" (1.8mm) | 0.004" (0.1mm) | 0.118" (3.0mm) | 0°C ~ 105°C |
|

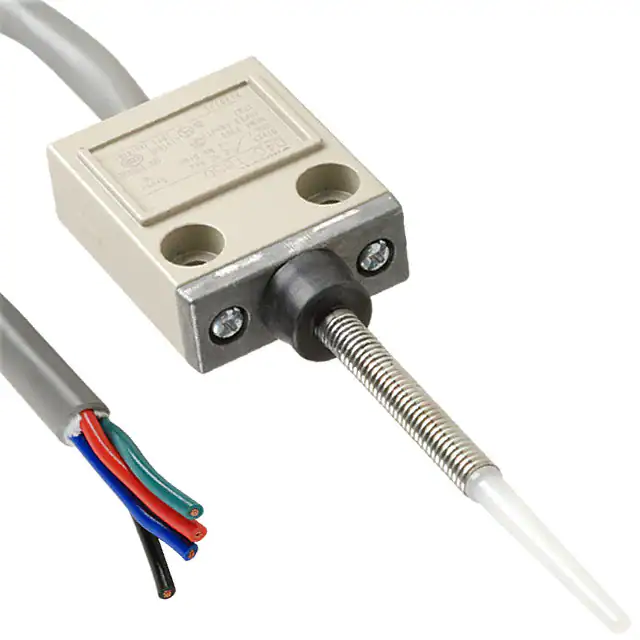

D4C-1650SWITCH SNAP ACTION SPDT 5A 250V |
96 |
|
Datasheet |
D4C | Bulk | Active | SPDT | On-Mom | 5A (AC), 4A (DC) | 250 V | 30 V | Spring, Rod | Chassis Mount | Cable Leads | IP67 - Dust Tight, Waterproof | Cable Length 3m | 150gf | - | - | 15° | - | - | -10°C ~ 70°C |
|
1SE1-3SWITCH SNAP ACTION SPDT 5A 250V |
392 |
|
Datasheet |
SE | Bulk | Active | SPDT | On-Mom | 5A (AC/DC) | 250 V | 30 V | Round (Pin Plunger) | Chassis Mount | Wire Leads | Waterproof | - | 141 ~ 482gf | 113gf | 0.425" (10.8mm) | 0.050" (1.27mm) | 0.004" (0.1mm) | 0.003" (0.076mm) | -54°C ~ 105°C |
|
D4C-1620SWITCH SNAP ACTION SPDT 5A 250V |
520 |
|
Datasheet |
D4C | Bulk | Active | SPDT | On-Mom | 5A (AC), 4A (DC) | 250 V | 30 V | Side Rotary, Roller | Chassis Mount | Cable Leads | IP67 - Dust Tight, Waterproof | Cable Length 3m | 580gf | 150gf | - | 25° | - | 40° | -10°C ~ 70°C |
|

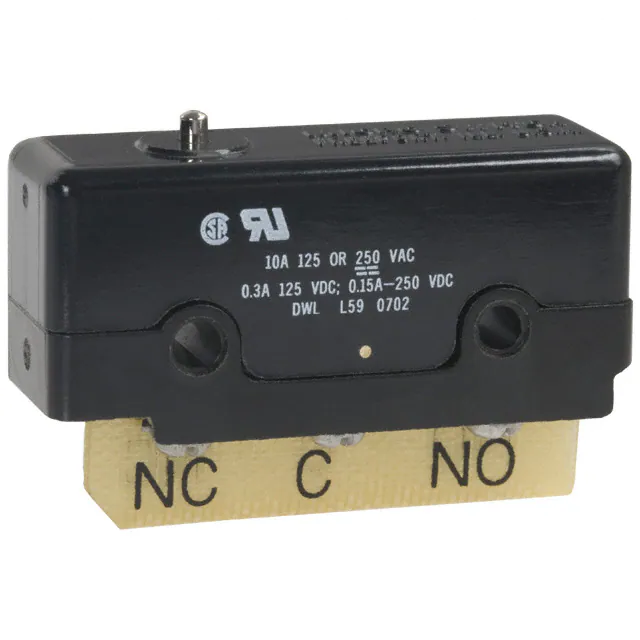

DT-2R-A7SWITCH SNAP ACTION DPDT 10A 125V |
576 |
|
Datasheet |
DT | Bulk | Active | DPDT | On-Mom | 10A (AC), 300mA (DC) | 125 V | 125 V | Round (Pin Plunger) | Chassis Mount | Screw Terminal | - | - | 340 ~ 567gf | 57gf | 0.615" (15.6mm) | 0.075" (1.9mm) | 0.060" (1.5mm) | 0.005" (0.13mm) | -55°C ~ 85°C |
|
DTE6-2RN2SWITCH SNAP ACTION DPDT 10A 125V |
367 |
|
Datasheet |
E6 | Bulk | Active | DPDT | On-Mom | 10A (AC), 300mA (DC) | 125 V | 125 V | Lever, Roller | Chassis Mount | Screw Terminal | IP54 - Dust Protected, Water Resistant | Actuator Seal Boot | - | 170gf | - | 0.266" (6.75mm) | 0.165" (4.2mm) | 0.219" (5.6mm) | -32°C ~ 71°C |
|
2AC6SWITCH SNAP ACTION SPDT 15A 125V |
109 |
|
Datasheet |
AC | Bulk | Active | SPDT | On-Mom | 15A (AC), 500mA (DC) | 125 V | 125 V | Push-Pull Plunger | Chassis Mount | Screw Terminal | - | - | 1814gf | - | 0.203" (5.2mm) | - | - | 0.125" (3.2mm) | -18°C ~ 149°C |
|

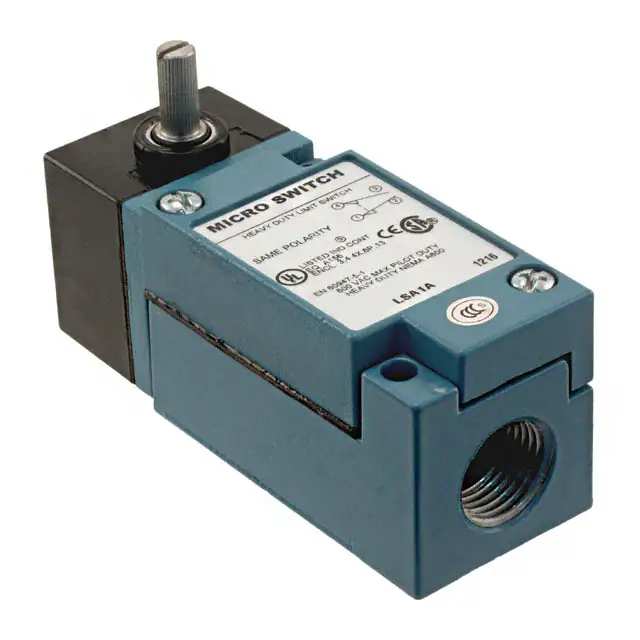

LSA1ASWITCH SNAP ACTION SPDT 10A 120V |
69 |
|
Datasheet |
HDLS | Bulk | Active | SPDT (DB/DM) | On-Mom | 10A (AC), 800mA (DC) | 120 V | 115 V | Side Rotary - No Lever | Chassis Mount | Plug In | - | - | 46gfm | - | - | 15° | 5° | 60° | -12°C ~ 121°C |
|
DT-2RV23-A7SWITCH SNAP ACTION DPDT 10A 125V |
167 |
|
Datasheet |
DT | Bulk | Active | DPDT | On-Mom | 10A (AC), 300mA (DC) | 125 V | 125 V | Lever, Roller | Chassis Mount | Screw Terminal | - | - | 156 ~ 269gf | 21gf | 1.156" (29.4mm) | 0.195" (4.95mm) | 0.135" (3.4mm) | 0.010" (0.25mm) | -55°C ~ 85°C |
|
914CE2-AGQSWITCH SNAP ACTION SPDT 1A 125V |
27 |
|
Datasheet |
914CE | Bulk | Active | SPDT | On-Mom | 1A (AC/DC) | 125 V | 30 V | Roller Plunger | Chassis Mount | Connector | IP66 - Dust Tight, Water Resistant | - | 1200gf | 450gf | 1.122" (28.5mm) | 0.071" (1.8mm) | 0.004" (0.1mm) | 0.118" (3.0mm) | 0°C ~ 105°C |
|
SZL-WL-K-NSWITCH SNAP ACTION SPDT 10A 125V |
28 |
|
Datasheet |
SZL-WL | Bulk | Active | SPDT (DB/DM) | On-Mom | 10A (AC), 6A (DC) | 125 V | 30 V | Spring, Coil | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | 150gf | - | 0.787" (20.0mm) | 0.787" (20.0mm) | - | - | -10°C ~ 80°C |
|

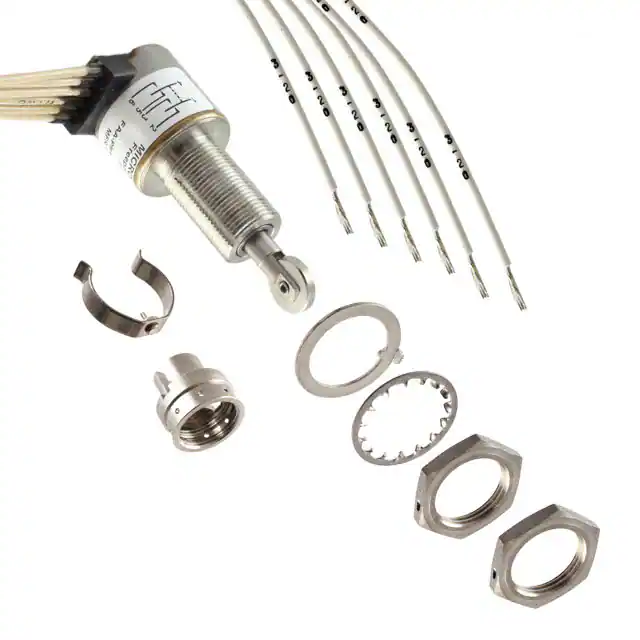

21EN9-6SWITCH SNAP ACTION SPDTX2 4A 28V |
41 |
|
Datasheet |
EN | Bulk | Active | SPDT x 2 | On-Mom | 4A (DC) | - | 28 V | Roller Plunger | Panel Mount | Wire Leads | - | Cable Length 6', Sealed | 2722 ~ 5443gf | 1814gf | - | 0.040" (1.0mm) | 0.020" (0.5mm) | 0.250" (6.35mm) | -54°C ~ 85°C |
|
ESE-11SH2CSWITCH DETECTOR SPST-NO 0.01A 5V |
14,657 |
|
Datasheet |
ESE11 | Bulk | Active | SPST-NO | Off-Mom | 10mA (DC) | - | 5 V | Overtravel Plunger | Through Hole, Right Angle | PC Pin | - | - | 35gf | - | 0.183" (4.65mm) | - | - | - | -10°C ~ 70°C |
|
ESE-18R11DSWITCH DETECTOR SPST-NO 0.01A 5V |
8,884 |
|
Datasheet |
ESE18 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 10mA (DC) | - | 5 V | Angled Toggle (Detector) | Surface Mount, Right Angle | SMD (SMT) Tab | - | Board Guide | 30gf | - | 0.102" (2.6mm) | - | - | - | -10°C ~ 60°C |
|

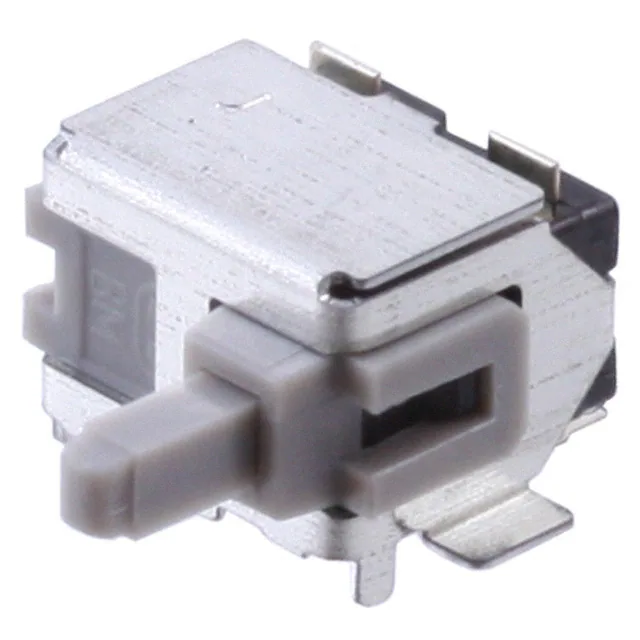

ESE-11MH1TSWITCH DETECTOR SPST-NO 0.01A 5V |
13,886 |
|
Datasheet |
ESE11 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 10mA (DC) | - | 5 V | Overtravel Plunger | Surface Mount, Right Angle | Gull Wing | - | - | 35gf | - | 0.146" (3.7mm) | - | - | - | -10°C ~ 70°C |
|
ESE-22MH22SWITCH DETECTOR SPST-NO 0.01A 5V |
7,092 |
|
Datasheet |
ESE22 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 10mA (DC) | - | 5 V | Angled Toggle (Detector) | Surface Mount, Right Angle | SMD (SMT) Tab | - | Board Guide | 30gf | - | 0.091" (2.3mm) | - | - | - | -10°C ~ 70°C |
Limit Switches Electronic Components
Explore Limit Switches electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
