Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
D2VW-5L3-1HSSWITCH SNAP ACTION SPDT 5A 125V |
1,154 |
|
Datasheet |
D2VW | Tray | Active | SPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Lever, Simulated Roller | Chassis Mount | Solder, Quick Connect - 0.187" (4.7mm) | IP67 - Dust Tight, Waterproof | - | 120gf | 15gf | 0.738" (18.7mm) | 0.157" (4.0mm) | 0.031" (0.8mm) | 0.062" (1.6mm) | -40°C ~ 85°C |
|
1DM1SWITCH SNAP ACTION SPDT 10A 125V |
1,426 |
|
Datasheet |
DM | Bulk | Active | SPDT | On-Mom | 10A (AC) | 125 V | - | Round (Pin Plunger) | Panel Mount, Snap-In | Quick Connect - 0.187" (4.7mm) | - | - | 425gf | 85gf | 0.750" (19.1mm) | - | 0.045" (1.1mm) | 0.375" (9.5mm) | -37°C ~ 82°C |
|
E68-30ASWITCH SNAP ACT SPDT 0.1A 125V |
1,399 |
|
Datasheet |
E | Bulk | Active | SPDT | On-Mom | 100mA (AC) | 125 V | - | Push-Pull Plunger | Panel Mount, Snap-In | Quick Connect - 0.187" (4.7mm) | - | Pull On Lock | 425gf | - | 0.610" (15.5mm) | 0.125" (3.2mm) | 0.045" (1.1mm) | 0.100" (2.54mm) | -40°C ~ 85°C |
|
D2VW-01L2-1HSSWITCH SNAP ACT SPDT 0.1A 125V |
1,615 |
|
Datasheet |
D2VW | Tray | Active | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Lever, Roller | Chassis Mount | Solder, Quick Connect - 0.187" (4.7mm) | IP67 - Dust Tight, Waterproof | - | 120gf | 15gf | 0.815" (20.7mm) | 0.157" (4.0mm) | 0.031" (0.8mm) | 0.062" (1.6mm) | -40°C ~ 85°C |
|
D2D-1000SWITCH SNAP ACTION SPDT 16A 250V |
1,532 |
|
Datasheet |
D2D | Tray | Active | SPDT (DB/DM) | On-Mom | 16A (AC) | 250 V | - | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.250" (6.3mm) | IP40 | - | 300gf | - | 0.625" (15.9mm) | - | - | 0.090" (2.3mm) | -25°C ~ 85°C |
|
V7-5F17D8-336SWITCH SNAP ACTION SPDT 3A 125V |
1,857 |
|
Datasheet |
V7 | Bulk | Active | SPDT | On-Mom | 3A (AC) | 125 V | - | Lever, Straight | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 2.000gf | - | 0.600" (15.2mm) | 0.470" (11.9mm) | 0.100" (2.54mm) | 0.300" (7.6mm) | -40°C ~ 85°C |
|
311SM2-TSWITCH SNAP ACTION SPDT 5A 250V |
9,043 |
|
Datasheet |
SM | Tray | Active | SPDT | On-Mom | 5A (AC/DC) | 250 V | 30 V | Lever, Straight | Chassis Mount | Solder Turret | - | - | 30gf | 5.099gf | 0.335" (8.5mm) | 0.120" (3.0mm) | 0.027" (0.7mm) | 0.026" (0.7mm) | -55°C ~ 125°C |
|
E79-00ASWITCH SNAP ACTION DPDT 10A 125V |
18,343 |
|
Datasheet |
E | Bulk | Active | DPDT | On-Mom | 10A (AC) | 125 V | - | Round (Pin Plunger) | Panel Mount, Snap-In | Quick Connect - 0.187" (4.7mm) | - | - | 680gf | - | 0.720" (18.3mm) | 0.125" (3.2mm) | 0.075" (1.9mm) | 0.375" (9.5mm) | -40°C ~ 85°C |
|

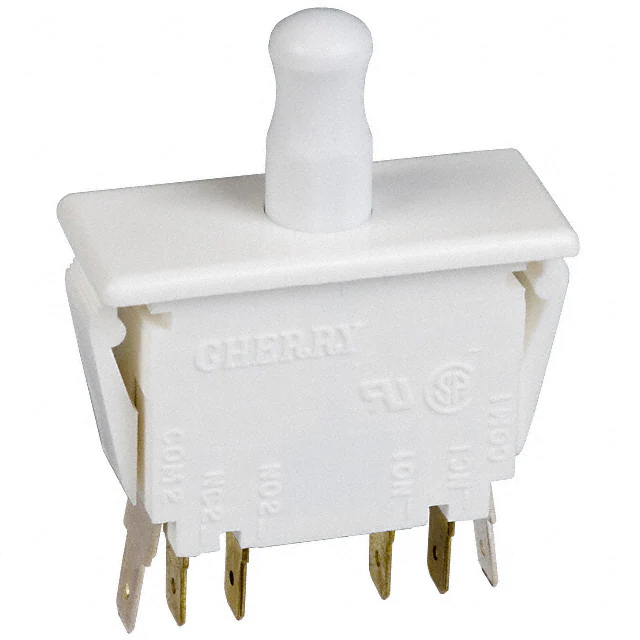

E79-30ASWITCH SNAP ACTION DPDT 10A 125V |
14,672 |
|
Datasheet |
E | Bulk | Active | DPDT | On-Mom | 10A (AC) | 125 V | - | Push-Pull Plunger | Panel Mount, Snap-In | Quick Connect - 0.187" (4.7mm) | - | Pull On Lock | 757gf | - | 0.610" (15.5mm) | 0.125" (3.2mm) | 0.075" (1.9mm) | 0.100" (2.54mm) | -40°C ~ 85°C |
|

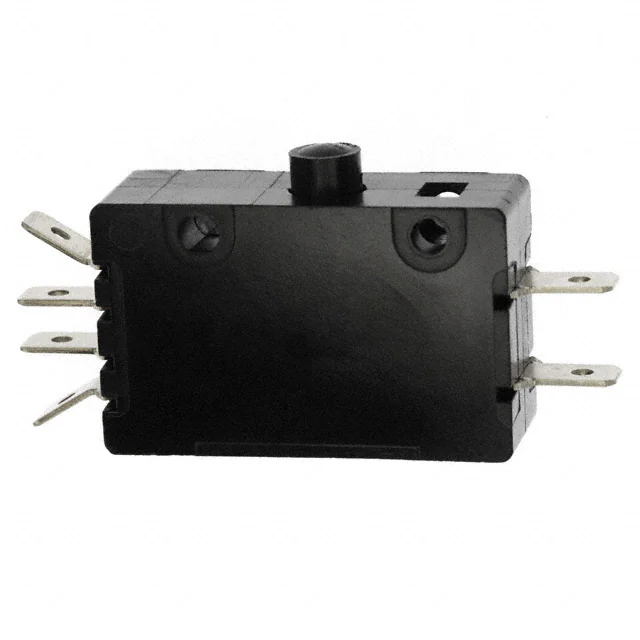

E19-00ASWITCH SNAP ACTION DPDT 15A 125V |
382 |
|
Datasheet |
E | Bulk | Active | DPDT | On-Mom | 15A (AC) | 125 V | - | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 850gf | - | 0.285" (7.24mm) | 0.050" (1.27mm) | 0.015" (0.38mm) | 0.079" (2.0mm) | -40°C ~ 105°C |
|

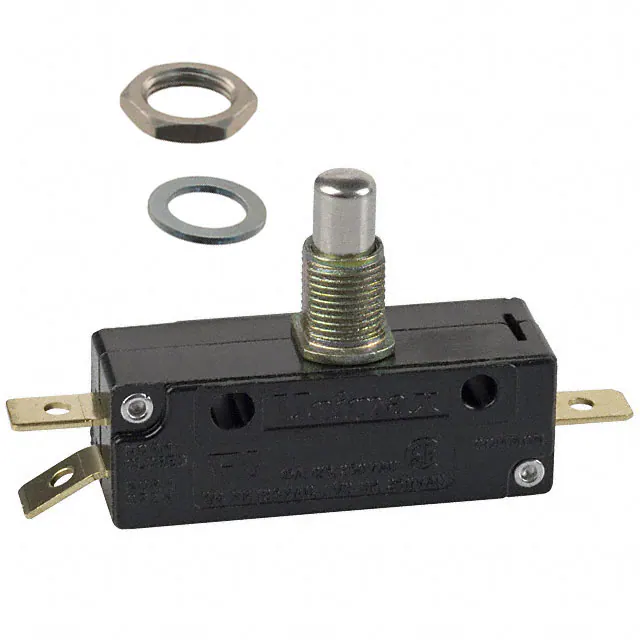

ASKHC2J04ACSWITCH SNAP ACTION SPDT 15A 125V |
498 |
|
Datasheet |
A | Bulk | Active | SPDT | On-Mom | 15A (AC) | 125 V | - | Overtravel Plunger | Panel Mount | Quick Connect - 0.250" (6.3mm) | - | - | 567gf | 85gf | - | 0.050" (1.27mm) | - | 0.187" (4.75mm) | -55°C ~ 85°C |
L1-1MS.jpg)
|
D2VW-5L1-1MSSWITCH SNAP ACTION SPDT 5A 125V |
3,474 |
|
Datasheet |
D2VW | Bag | Active | SPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Lever, Straight | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | - | 120gf | 15gf | 0.600" (15.2mm) | 0.157" (4.0mm) | 0.031" (0.8mm) | 0.062" (1.6mm) | -40°C ~ 85°C |
|

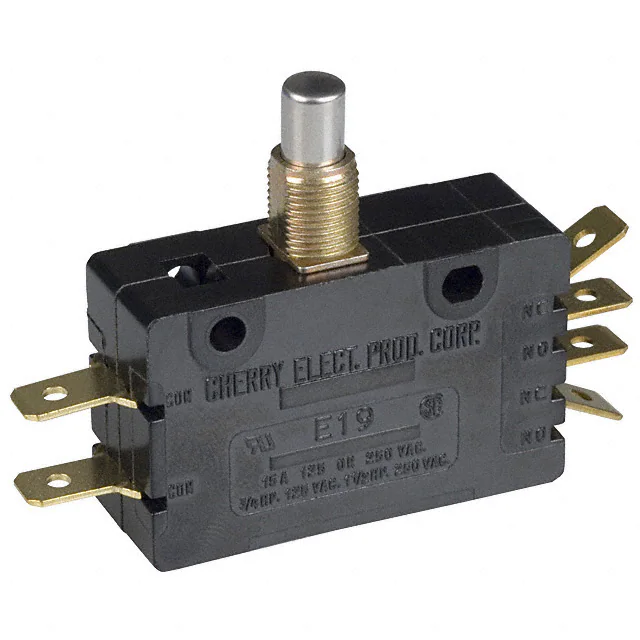

E19-00MSWITCH SNAP ACTION DPDT 15A 125V |
814 |
|
Datasheet |
E | Bulk | Active | DPDT | On-Mom | 15A (AC) | 125 V | - | Overtravel Plunger | Panel Mount | Quick Connect - 0.250" (6.3mm) | - | - | 850gf | - | 0.812" (20.6mm) | 0.050" (1.27mm) | 0.015" (0.38mm) | 0.219" (5.6mm) | -40°C ~ 105°C |
|

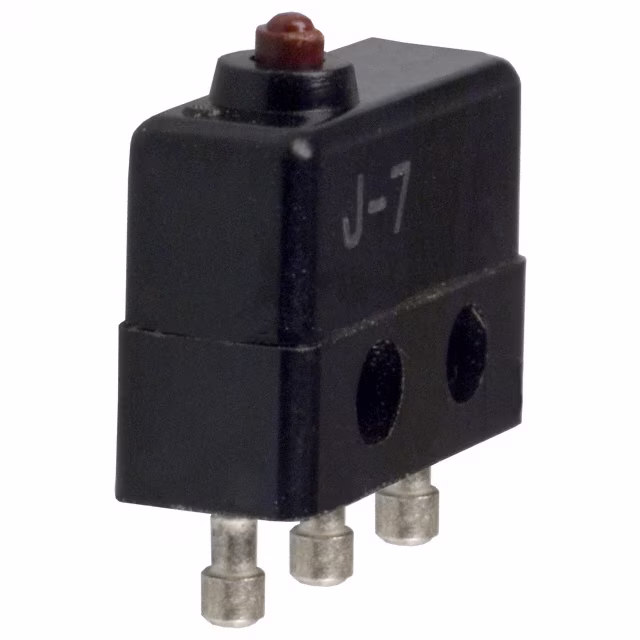

J-7SWITCH SNAP ACTION SPDT 7A 250V |
335 |
|
Datasheet |
J | Bulk | Active | SPDT | On-Mom | 7A (AC) | 250 V | - | Round (Pin Plunger) | Chassis Mount | Solder Turret | IP40 | - | 140gf | 28gf | 0.319" (8.1mm) | 0.024" (0.6mm) | 0.006" (0.15mm) | 0.004" (0.1mm) | -10°C ~ 80°C |
|
311SM4-TSWITCH SNAP ACTION SPDT 5A 250V |
1,604 |
|
Datasheet |
SM | Tray | Active | SPDT | On-Mom | 5A (AC/DC) | 250 V | 30 V | Lever, Simulated Roller | Chassis Mount | Solder Turret | - | - | 40gf | 7.138gf | 0.460" (11.7mm) | 0.085" (2.16mm) | 0.020" (0.5mm) | 0.018" (0.45mm) | -55°C ~ 125°C |
|

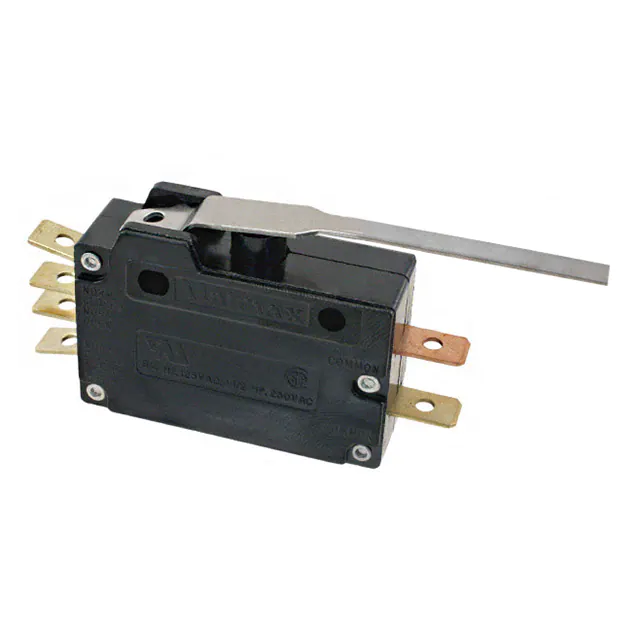

ADPDC2T04ACSWITCH SNAP ACTION DPDT 15A 125V |
175 |
|
Datasheet |
A | Bulk | Active | DPDT | On-Mom | 15A (AC) | 125 V | - | Lever, Straight | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 170gf | 28gf | 0.312" (7.9mm) | 0.312" (7.9mm) | - | 0.187" (4.75mm) | -55°C ~ 85°C |
|
111SM1-TSWITCH SNAP ACTION SPDT 5A 250V |
368 |
|
Datasheet |
SM | Tray | Active | SPDT | On-Mom | 5A (AC/DC) | 250 V | 30 V | Lever, Straight | Chassis Mount | Solder Turret | - | - | 198gf | 57gf | 0.350" (8.9mm) | 0.218" (5.5mm) | 0.030" (0.76mm) | 0.030" (0.76mm) | -55°C ~ 125°C |
|
21SX39-TSWITCH SNAP ACTION SPDT 7A 115V |
235 |
|
Datasheet |
SX | Tray | Active | SPDT | On-Mom | 7A (AC/DC) | 115 V | 28 V | Round (Pin Plunger) | Chassis Mount | Solder Turret | - | - | 141gf | 28gf | 0.320" (8.13mm) | 0.020" (0.5mm) | 0.005" (0.13mm) | 0.004" (0.1mm) | -53°C ~ 85°C |
|

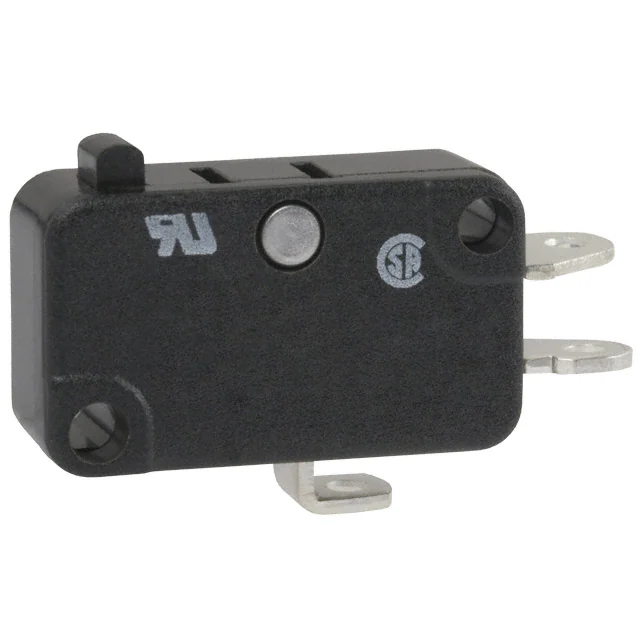

V3-119SWITCH SNAP ACTION SPDT 11A 125V |
603 |
|
Datasheet |
V3 | Bulk | Active | SPDT | On-Mom | 11A (AC), 500mA (DC) | 125 V | 125 V | Round (Pin Plunger) | Chassis Mount | Solder Lug | - | - | 227gf | 57gf | 0.579" (14.7mm) | 0.047" (1.2mm) | 0.016" (0.4mm) | 0.040" (1.0mm) | - |
-1MS SERIES.jpg)
|
D2VW-5-1MSSWITCH SNAP ACTION SPDT 5A 125V |
2,717 |
|
Datasheet |
D2VW | Bulk | Active | SPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Round (Pin Plunger) | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | - | 200gf | 30gf | 0.579" (14.7mm) | 0.047" (1.2mm) | 0.016" (0.4mm) | 0.040" (1.0mm) | -40°C ~ 85°C |
Limit Switches Electronic Components
Explore Limit Switches electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
