Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
JJEV0UG380NOHNMRTRSWITCH DETECTOR SPST-NO 0.01A 5V |
5,125 |
|
Datasheet |
JJE | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 10mA (DC) | - | 5 V | Angled Toggle (Detector) | Surface Mount | Gull Wing | - | - | 36gf | - | 0.138" (3.5mm) | 0.012" (0.3mm) | - | - | -40°C ~ 85°C |
|
TS0101F020V1SWITCH SNAP ACTION SPDT 0.3A 6V |
1,889 |
|
Datasheet |
TS | Bulk | Active | SPDT | On-Mom | 300mA (DC) | - | 6 V | Lever, Straight | Through Hole, Right Angle | PC Pin | - | - | 20gf | - | 0.264" (6.7mm) | 0.071" (1.8mm) | - | - | -25°C ~ 85°C |
|
ZMA00A150L04PCSWITCH SNAP ACT SPDT 100MA 125V |
10,941 |
|
Datasheet |
ZMA | Tray | Active | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 60 V | Lever, Straight | Through Hole | PC Pin | - | - | 50gf | 8.000gf | 0.312" (7.9mm) | 0.120" (3.0mm) | - | 0.025" (0.6mm) | -40°C ~ 85°C |
|

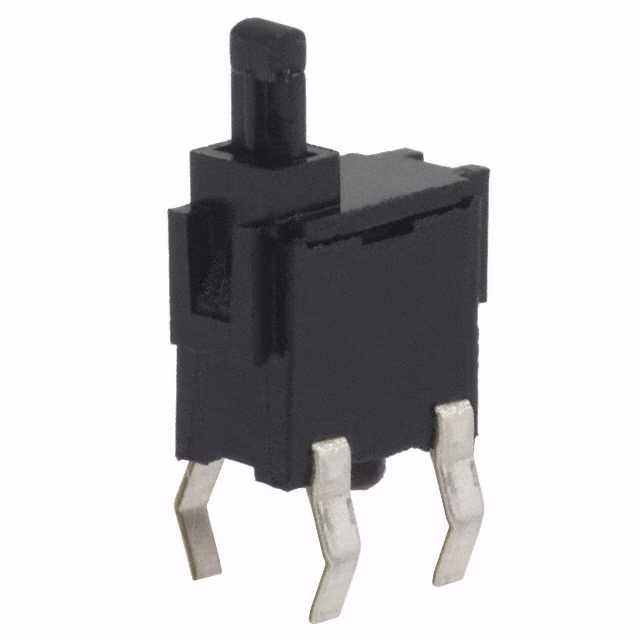

DDS001SWITCH SNAP SPST-NO 100MA 30V |
449 |
|
Datasheet |
DDS | Tray | Active | SPST-NO | Off-Mom | 100mA (DC) | - | 30 V | Overtravel Plunger | Through Hole | PC Pin | - | - | 40gf | - | 0.317" (8.05mm) | - | - | 0.079" (2.0mm) | -20°C ~ 70°C |
|
SPVM110100SWITCH DETECT SPST-NO 0.001A 5V |
5,322 |
|
Datasheet |
SPVM | Tape & Reel (TR) | Active | SPST-NO | Off-On | 1mA (DC) | - | 5 V | Angled Toggle (Detector) | Surface Mount | J Lead | - | - | 41gf | - | 0.087" (2.2mm) | 0.013" (0.33mm) | - | 0.026" (0.7mm) | -40°C ~ 85°C |
|
|
SPVM110200SWITCH DETECT SPST-NO 0.001A 5V |
4,720 |
|
Datasheet |
SPVM | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 1mA (DC) | - | 5 V | Angled Toggle (Detector) | Surface Mount | J Lead | - | - | 41gf | - | 0.087" (2.2mm) | 0.013" (0.33mm) | - | 0.026" (0.7mm) | -40°C ~ 85°C |
|

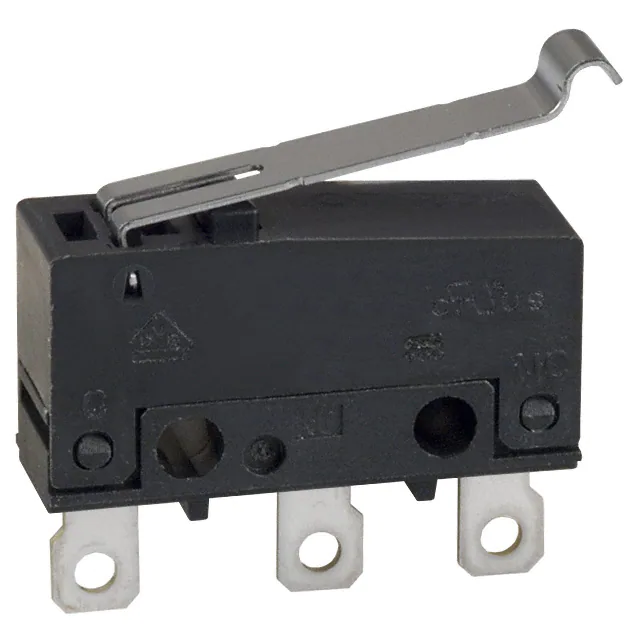

SS-01GL13PSWITCH SNAP ACT SPDT 0.1A 125V |
1,226 |
|
Datasheet |
SS-P | Tray | Active | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Lever, Simulated Roller | Chassis Mount | Solder Lug | IP40 | - | 51gf | 5.099gf | 0.420" (10.7mm) | - | 0.031" (0.8mm) | 0.039" (1.0mm) | -25°C ~ 85°C |
|

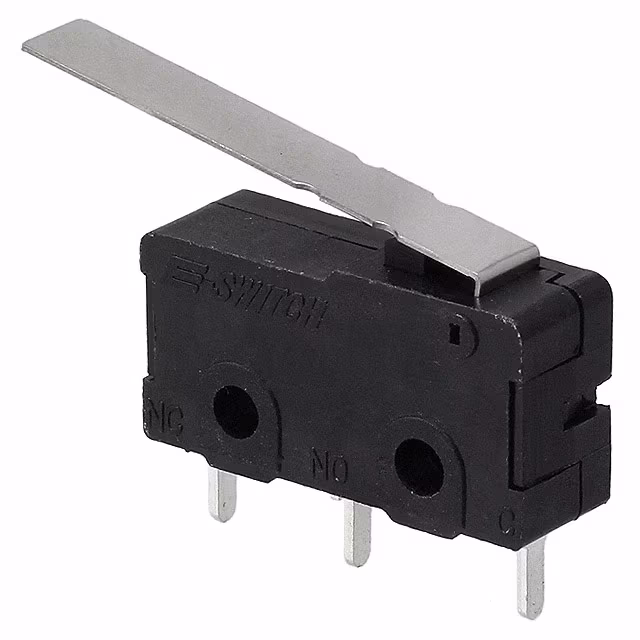

MS0850503F055P1ASWITCH SNAP ACTION SPDT 5A 125V |
4,546 |
|
Datasheet |
MS | Bulk | Active | SPDT | On-Mom | 5A (AC) | 125 V | - | Lever, Straight | Through Hole | PC Pin | - | - | 55gf | 25gf | 0.374" (9.5mm) | 0.172" (4.4mm) | - | - | -25°C ~ 85°C |
|
SAJ101XBL0N74SNOPTQSWITCH SNAP ACT SPST-NO 0.1A 30V |
732 |
|
Datasheet |
SAJ1 | Bulk | Active | SPST-NO | Off-Mom | 100mA (DC) | - | 30 V | Lever, Straight | Through Hole | PC Pin | - | - | 26gf | 2.000gf | 0.378" (9.6mm) | 0.087" (2.2mm) | 0.020" (0.5mm) | 0.022" (0.55mm) | -25°C ~ 75°C |
|
TS0101F020V2SWITCH SNAP ACTION SPDT 0.3A 6V |
186 |
|
Datasheet |
TS | Bulk | Active | SPDT | On-Mom | 300mA (DC) | - | 6 V | Lever, Straight | Through Hole, Right Angle | PC Pin | - | - | 20gf | - | 0.264" (6.7mm) | 0.071" (1.8mm) | - | - | -25°C ~ 85°C |
|
D3C-1210SWITCH DETECTOR SPDT 0.1A 30V |
1,542 |
|
Datasheet |
D3C | Bulk | Active | SPDT | On-Mom | 100mA (DC) | - | 30 V | Angled Toggle (Detector) | Through Hole | PC Pin | IP00 | - | 130gf | 10gf | 0.138" (3.5mm) | - | - | - | -20°C ~ 80°C |
|
TS0101F020V4SWITCH SNAP ACTION SPDT 0.3A 6V |
829 |
|
Datasheet |
TS | Bulk | Active | SPDT | On-Mom | 300mA (DC) | - | 6 V | Lever, Straight | Through Hole, Right Angle | PC Pin | - | - | 20gf | - | 0.264" (6.7mm) | 0.071" (1.8mm) | - | - | -25°C ~ 85°C |
|
SS0750300F070P1ASWITCH SNAP ACTION SPDT 3A 125V |
459 |
|
Datasheet |
SS | Bulk | Active | SPDT | On-Mom | 3A (AC) | 125 V | - | Round (Pin Plunger) | Through Hole | PC Pin | - | - | 70gf | 25gf | 0.276" (7.0mm) | 0.014" (0.35mm) | - | - | -25°C ~ 75°C |
|
SS-3GLPTSWITCH SNAP ACTION SPDT 3A 125V |
7,890 |
|
Datasheet |
SS-P | Tray | Active | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Lever, Straight | Chassis Mount | Quick Connect - 0.110" (2.8mm) | IP40 | - | 51gf | 5.099gf | 0.345" (8.8mm) | - | 0.031" (0.8mm) | 0.040" (1.0mm) | -25°C ~ 85°C |
|

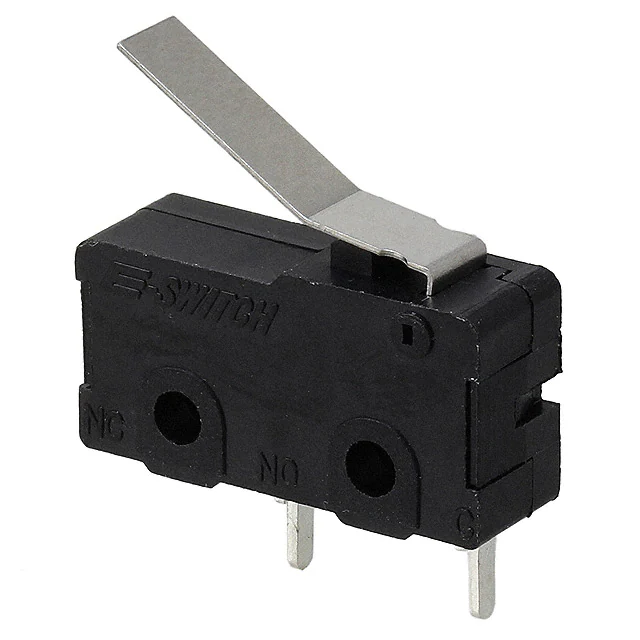

MS0850506F020P1CSWITCH SNAP ACT SPST-NO 5A 125V |
8,669 |
|
Datasheet |
MS | Bulk | Active | SPST-NO | Off-Mom | 5A (AC) | 125 V | - | Lever, Leaf | Through Hole | PC Pin | - | - | 20gf | 8.000gf | 0.547" (13.9mm) | 0.161" (4.1mm) | - | - | -25°C ~ 85°C |
|
AVL34053SWITCH SNAP ACTION SPDT 5A 125V |
105 |
|
Datasheet |
AVL3 | Bulk | Active | SPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Round (Pin Plunger) | Through Hole | PC Pin | - | - | 150gf | 20gf | 0.330" (8.4mm) | 0.024" (0.6mm) | 0.004" (0.1mm) | 0.015" (0.4mm) | -25°C ~ 85°C |
|
D2F-01FL3-D3SWITCH SNAP ACTION SPDT 0.1A 30V |
5,627 |
|
Datasheet |
D2F | Bulk | Active | SPDT | On-Mom | 100mA (DC) | - | 30 V | Lever, Simulated Roller | Chassis Mount | Solder Lug | IP40 | - | 40gf | 2.039gf | 0.335" (8.5mm) | - | 0.018" (0.45mm) | 0.020" (0.5mm) | -40°C ~ 85°C |
|

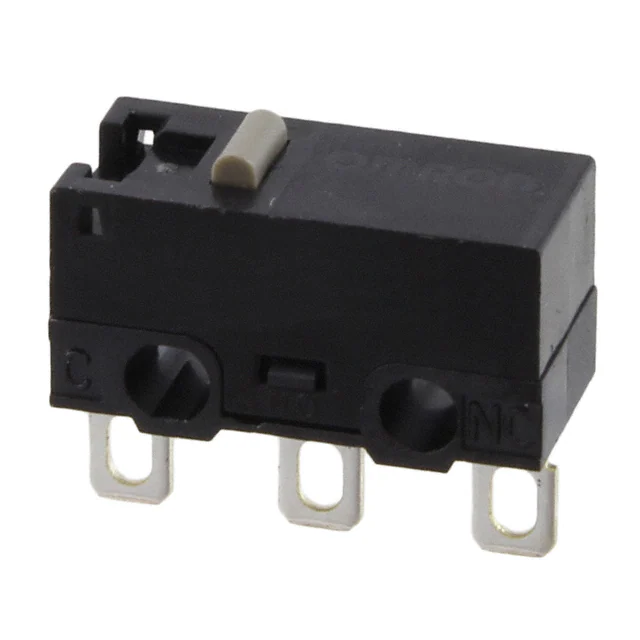

D2F-D3SWITCH SNAP ACTION SPDT 3A 125V |
28,907 |
|
Datasheet |
D2F | Bulk | Active | SPDT | On-Mom | 3A (AC), 2A (DC) | 125 V | 30 V | Round (Pin Plunger) | Chassis Mount | Solder Lug | IP40 | - | 150gf | 20gf | 0.217" (5.5mm) | 0.020" (0.5mm) | 0.005" (0.13mm) | 0.010" (0.25mm) | -40°C ~ 85°C |
|
SS0750303F050P1ASWITCH SNAP ACTION SPDT 3A 125V |
9,382 |
|
Datasheet |
SS | Bulk | Active | SPDT | On-Mom | 3A (AC) | 125 V | - | Lever, Simulated Roller | Through Hole | PC Pin | - | - | 50gf | 15gf | 0.380" (9.7mm) | 0.053" (1.35mm) | - | - | -25°C ~ 75°C |
|
VM3AQF1801L03SWITCH LIMIT SPST-NO 16A 125V |
136 |
|
Datasheet |
VM3 | Tray | Active | SPST-NO | Off-Mom | 16A (AC) | 125 V | - | Lever, Straight | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 70gf | 50gf | 0.551" (14.0mm) | 0.131" (3.3mm) | 0.025" (0.6mm) | 0.090" (2.3mm) | -40°C ~ 120°C |
Limit Switches Electronic Components
Explore Limit Switches electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
