Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SS0750301F020P1ASWITCH SNAP ACTION SPDT 3A 125V |
7,382 |
|
Datasheet |
SS | Bulk | Active | SPDT | On-Mom | 3A (AC) | 125 V | - | Lever, Straight | Through Hole | PC Pin | - | - | 20gf | 5.000gf | 0.345" (8.8mm) | 0.063" (1.6mm) | - | - | -25°C ~ 75°C |
|
JJFV0UG530NONPRTRSWITCH DETECT SPST-NO 0.001A 5V |
1,451 |
|
Datasheet |
JJF | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 1mA (DC) | - | 5 V | Angled Toggle (Detector) | Surface Mount | Gull Wing | - | - | 40gf | - | 0.197" (5.0mm) | 0.012" (0.3mm) | - | - | -10°C ~ 60°C |
|
D3SH-A1RSWITCH DETECT SPST-NO 0.001A 5V |
18,669 |
|
Datasheet |
D3SH | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 1mA (DC) | - | 5 V | Angled Toggle (Detector) | Surface Mount, Right Angle | SMD (SMT) Tab | - | Board Guide, Right Operating Lever | 31gf | - | 0.197" (5.0mm) | - | - | - | -25°C ~ 85°C |
|
SPVR110102SWITCH DETECT SPST-NO 0.001A 5V |
9,955 |
|
Datasheet |
SPVR | Tape & Reel (TR) | Active | SPST-NO | Off-On | 1mA (DC) | - | 5 V | Angled Toggle (Detector) | Surface Mount, Right Angle | SMD (SMT) Tab | - | - | 306gf | - | - | - | - | 0.075" (1.90mm) | -40°C ~ 85°C |
|
SS-01GL13PTSWITCH SNAP ACT SPDT 0.1A 125V |
2,847 |
|
Datasheet |
SS-P | Tray | Active | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Lever, Simulated Roller | Chassis Mount | Quick Connect - 0.110" (2.8mm) | IP40 | - | 51gf | 5.099gf | 0.420" (10.7mm) | - | 0.031" (0.8mm) | 0.039" (1.0mm) | -25°C ~ 85°C |
|

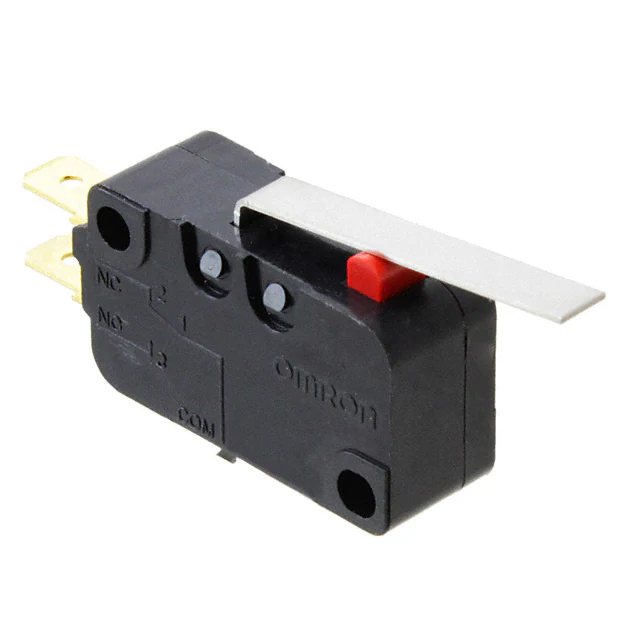

D3V-162-1A4SWITCH SNAP ACTION SPDT 16A 250V |
3,961 |
|
Datasheet |
D3V | Bulk | Active | SPDT | On-Mom | 16A (AC), 600mA (DC) | 250 V | 125 V | Lever, Straight | Chassis Mount | Solder, Quick Connect - 0.187" (4.7mm) | IP40 | - | 60gf | 6.118gf | 0.600" (15.2mm) | 0.157" (4.0mm) | 0.060" (1.5mm) | 0.062" (1.6mm) | -25°C ~ 105°C |
|
SDS001SWITCH DETECT SPST-NO 100MA 12V |
1,459 |
|
Datasheet |
SDS | Bulk | Active | SPST-NO | Off-Mom | 100mA (DC) | - | 12 V | Overtravel Plunger | Surface Mount, Right Angle | SMD (SMT) Tab | - | - | 75gf | - | - | - | - | 0.079" (2.0mm) | -40°C ~ 85°C |
|
JJEV0UG380NONMRTRSWITCH DETECT SPST-NO 0.001A 5V |
18,757 |
|
Datasheet |
JJE | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 1mA (DC) | - | 5 V | Angled Toggle (Detector) | Surface Mount | Gull Wing | - | - | 60gf | - | 0.138" (3.5mm) | 0.012" (0.3mm) | - | - | -40°C ~ 85°C |
|
JJGH0UG200NCHPMRTRSWITCH DETECTOR SPST-NC 0.1A 12V |
15,975 |
|
Datasheet |
JJG | Tape & Reel (TR) | Active | SPST-NC | On-Mom | 100mA (DC) | - | 12 V | Angled Toggle (Detector) | Surface Mount | Gull Wing | - | Board Guide | 100gf | - | 0.136" (3.45mm) | 0.012" (0.3mm) | - | - | -40°C ~ 85°C |
|

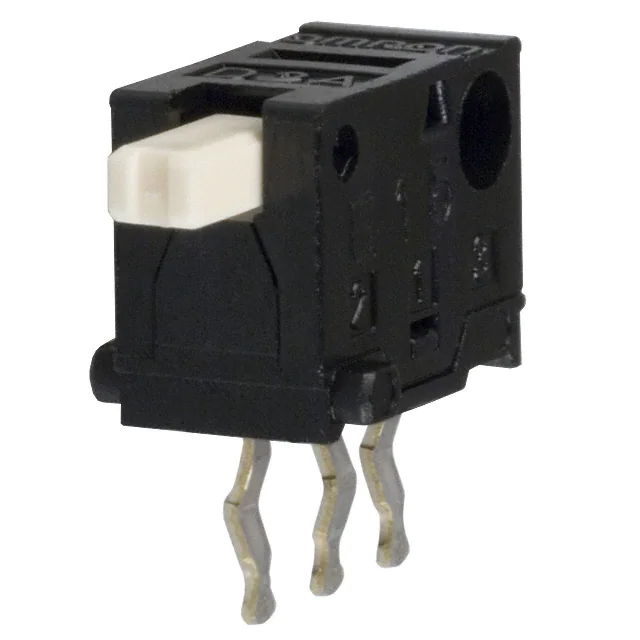

D2A-2110SWITCH SNAP ACTION SPDT 0.1A 30V |
5,384 |
|
Datasheet |
D2A | Tray | Active | SPDT | On-Mom | 100mA (DC) | - | 30 V | Overtravel Plunger | Through Hole, Right Angle | PC Pin | IP00 | - | 100gf | 15gf | 0.295" (7.5mm) | - | - | - | -10°C ~ 80°C |
|
SS-3FL111P-3SWITCH SNAP ACT SPST-NO 3A 125V |
430 |
|
Datasheet |
SS-P | Bulk | Active | SPST-NO | Off-Mom | 3A (AC/DC) | 125 V | 30 V | Lever, Straight | Chassis Mount | Solder Lug | IP40 | - | 56gf | 1.020gf | 0.345" (8.8mm) | - | 0.118" (3.0mm) | 0.040" (1.0mm) | -25°C ~ 85°C |
|

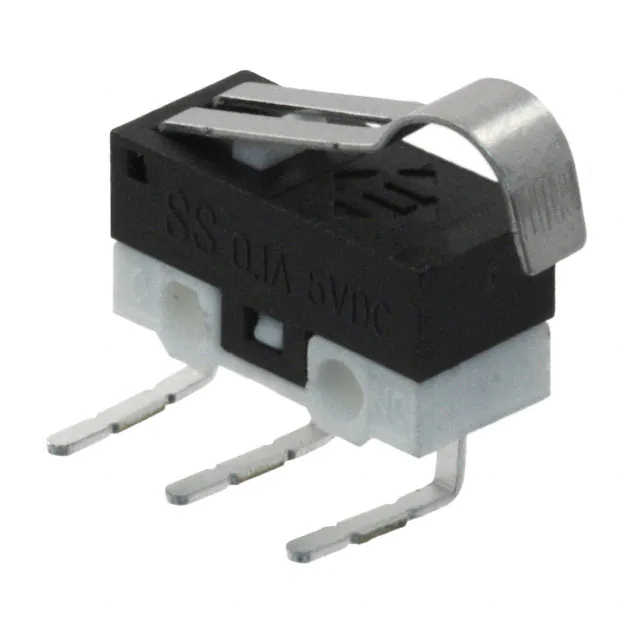

SS075Q103F020V1ASWITCH SNAP ACT SPDT 0.1A 125V |
120 |
|
Datasheet |
SS | Bulk | Active | SPDT | On-Mom | 100mA (AC) | 125 V | - | Lever, Simulated Roller | Through Hole, Right Angle | PC Pin | - | - | 20gf | 5.000gf | 0.380" (9.7mm) | 0.053" (1.35mm) | - | - | -25°C ~ 75°C |
|
MS0850502F030P1ASWITCH SNAP ACTION SPDT 5A 125V |
4,964 |
|
Datasheet |
MS | Bulk | Active | SPDT | On-Mom | 5A (AC) | 125 V | - | Lever, Straight | Through Hole | PC Pin | - | - | 30gf | 12gf | 0.358" (9.1mm) | 0.150" (3.8mm) | - | - | -25°C ~ 85°C |
|
MS0850503F010S1ASWITCH SNAP ACTION SPDT 5A 125V |
2,151 |
|
Datasheet |
MS | Bulk | Active | SPDT | On-Mom | 5A (AC) | 125 V | - | Lever, Straight | Chassis Mount | Solder Lug | - | - | 10gf | 5.000gf | 0.374" (9.5mm) | 0.172" (4.4mm) | - | - | -25°C ~ 85°C |
|
JJDVDUJ314NCPMRTRSWITCH DETECT SPST-NC 0.001A 5V |
2,203 |
|
Datasheet |
JJD | Tape & Reel (TR) | Active | SPST-NC | On-Mom | 1mA (DC) | - | 5 V | Angled Toggle (Detector) | Surface Mount | J Lead | - | Board Guide | 35gf | - | 0.059" (1.5mm) | 0.065" (1.65mm) | - | - | -40°C ~ 85°C |
|

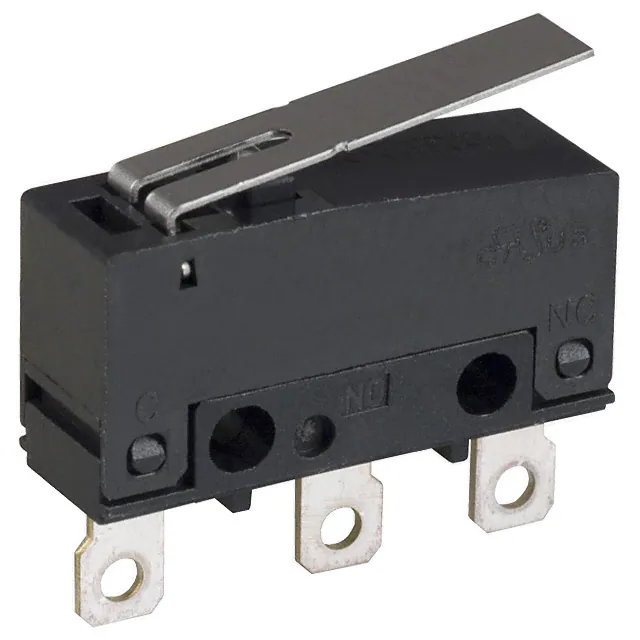

SS-3GLPSWITCH SNAP ACTION SPDT 3A 125V |
1,188 |
|
Datasheet |
SS-P | Tray | Active | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Lever, Straight | Chassis Mount | Solder Lug | IP40 | - | 51gf | 5.099gf | 0.345" (8.8mm) | - | 0.031" (0.8mm) | 0.040" (1.0mm) | -25°C ~ 85°C |
|

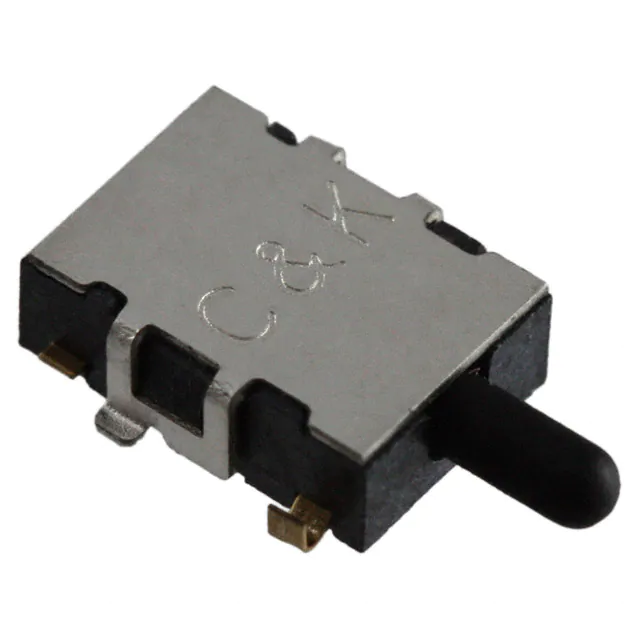

SDS004SWITCH DETECT SPST-NO 100MA 12V |
1,560 |
|
Datasheet |
SDS | Tray | Active | SPST-NO | Off-Mom | 100mA (DC) | - | 12 V | Overtravel Plunger | Surface Mount, Right Angle | SMD (SMT) Tab | - | - | 75gf | - | - | - | - | 0.079" (2.0mm) | -40°C ~ 85°C |
|

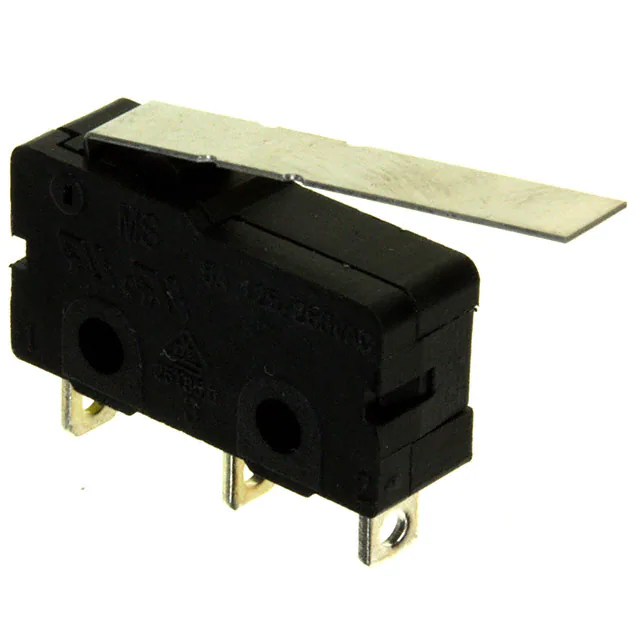

MS0850503F025S1ASWITCH SNAP ACTION SPDT 5A 125V |
790 |
|
Datasheet |
MS | Bulk | Active | SPDT | On-Mom | 5A (AC) | 125 V | - | Lever, Straight | Chassis Mount | Solder Lug | - | - | 25gf | 12gf | 0.374" (9.5mm) | 0.172" (4.4mm) | - | - | -25°C ~ 85°C |
|

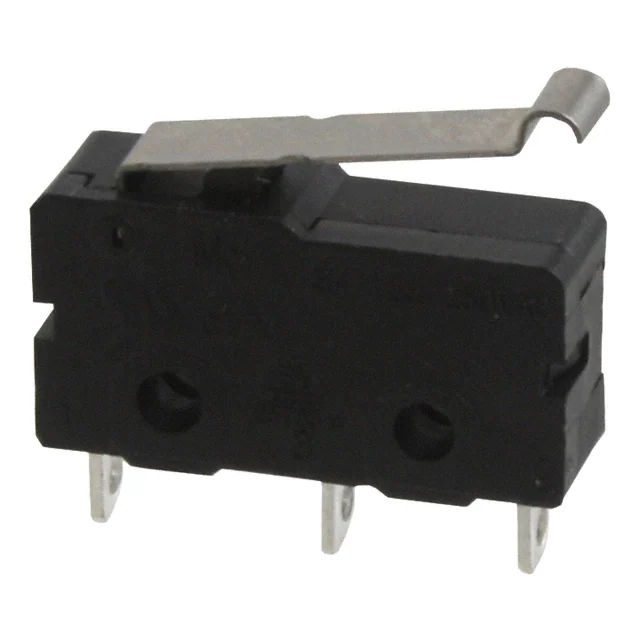

MS0850504F020S1ASWITCH SNAP ACTION SPDT 5A 125V |
341 |
|
Datasheet |
MS | Bulk | Active | SPDT | On-Mom | 5A (AC) | 125 V | - | Lever, Simulated Roller | Chassis Mount | Solder Lug | - | - | 20gf | 8.000gf | 0.429" (10.9mm) | 0.125" (3.2mm) | - | - | -25°C ~ 85°C |
|

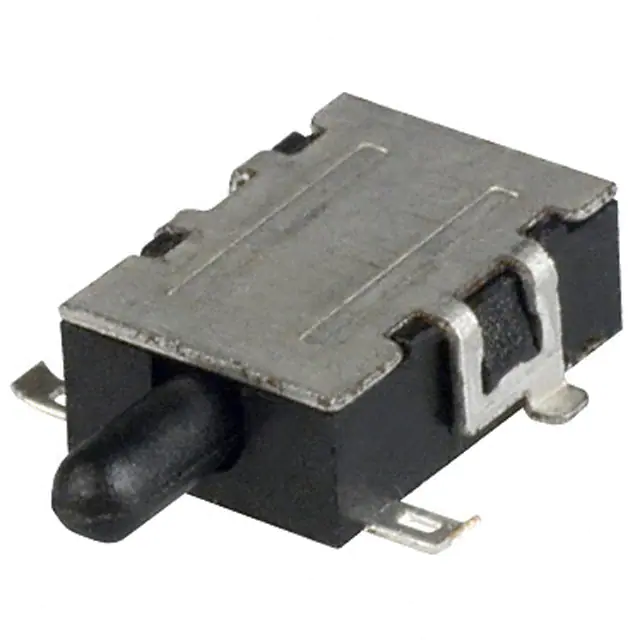

900BGQSWITCH DETECTOR SPST-NO 0.1A 50V |
8,249 |
|
Datasheet |
900 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 100mA (DC) | - | 50 V | Overtravel Plunger | Surface Mount | Gull Wing | - | - | 50gf | - | - | 0.014" (0.35mm) | - | - | -25°C ~ 85°C |
