Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ESE-23F001SWITCH DETECTOR SPDT 0.01A 5V |
3,959 |
|
Datasheet |
ESE23 | Tape & Reel (TR) | Active | SPDT | Mom-Off-Mom | 10mA (DC) | - | 5 V | Angled Toggle (Detector) | Surface Mount, Right Angle | SMD (SMT) Tab | - | - | 30gf | - | 0.087" (2.2mm) | - | - | - | -10°C ~ 60°C |
|
TS20100F070SSWITCH SNP ACT SPST-NO 0.1A 125V |
8,437 |
|
Datasheet |
TS2 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 100mA (AC/DC) | 125 V | 48 V | Round (Pin Plunger) | Surface Mount | SMD (SMT) Tab | - | - | 70gf | - | 0.130" (3.3mm) | 0.008" (0.2mm) | - | - | -25°C ~ 85°C |
|
SS075Q102F035V2ASWITCH SNAP ACT SPDT 0.1A 125V |
2,084 |
|
Datasheet |
SS | Bulk | Active | SPDT | On-Mom | 100mA (AC) | 125 V | - | Lever, Simulated Roller | Through Hole, Right Angle | PC Pin | - | - | 35gf | 10gf | 0.425" (10.8mm) | 0.080" (2.0mm) | - | - | -25°C ~ 75°C |
|
ESE-58R61BSWITCH DETECTOR SPST-NC 0.01A 5V |
16,036 |
|
Datasheet |
ESE58 | Tape & Reel (TR) | Active | SPST-NC | On-Mom | 10mA (DC) | - | 5 V | Angled Toggle (Detector) | Surface Mount | J Lead | - | Board Guide | 30gf | - | 0.079" (2.0mm) | - | - | - | -10°C ~ 60°C |
|
JJJHLGG200NOPMRTRSWITCH DETECT SPST-NO 0.05A 20V |
1,713 |
|
Datasheet |
JJJ | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 50mA (DC) | - | 20 V | Angled Toggle (Detector) | Surface Mount | Gull Wing | - | Board Guide | 50gf | - | 0.117" (2.96mm) | 0.010" (0.25mm) | - | - | -10°C ~ 60°C |
|
JJJHRGG200NOPMRTRSWITCH DETECT SPST-NO 0.05A 20V |
1,190 |
|
Datasheet |
JJJ | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 50mA (DC) | - | 20 V | Angled Toggle (Detector) | Surface Mount | Gull Wing | - | Board Guide | 50gf | - | 0.117" (2.96mm) | 0.010" (0.25mm) | - | - | -10°C ~ 60°C |
|
SS0750302F035P1ASWITCH SNAP ACTION SPDT 3A 125V |
1,582 |
|
Datasheet |
SS | Bulk | Active | SPDT | On-Mom | 3A (AC) | 125 V | - | Lever, Simulated Roller | Through Hole | PC Pin | - | - | 35gf | 20gf | 0.425" (10.8mm) | 0.080" (2.0mm) | - | - | -25°C ~ 75°C |
|
SS-3FL111P-3TSWITCH SNAP ACT SPST-NO 3A 125V |
1,779 |
|
Datasheet |
SS-P | Bulk | Active | SPST-NO | Off-Mom | 3A (AC/DC) | 125 V | 30 V | Lever, Straight | Chassis Mount | Quick Connect - 0.110" (2.8mm) | IP40 | - | 56gf | 1.020gf | 0.345" (8.8mm) | - | 0.118" (3.0mm) | 0.040" (1.0mm) | -25°C ~ 85°C |
|
JJEV0UG380NOHPMRTRSWITCH DETECTOR SPST-NO 0.01A 5V |
3,382 |
|
Datasheet |
JJE | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 10mA (DC) | - | 5 V | Angled Toggle (Detector) | Surface Mount | Gull Wing | - | Board Guide | 36gf | - | 0.138" (3.5mm) | 0.012" (0.3mm) | - | - | -40°C ~ 85°C |
|

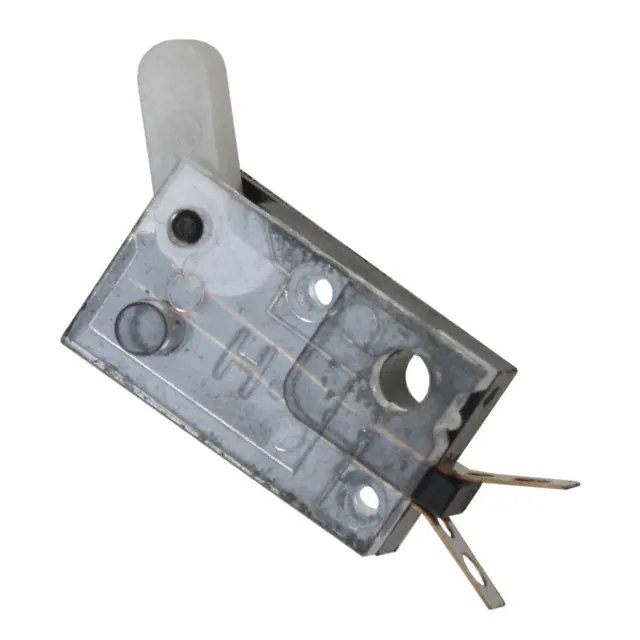

DS-040-02SWITCH DETECT SPST-NO 100MA 16V |
862 |
|
Datasheet |
DS, COMAX | Bulk | Active | SPST-NO | Off-Mom | 100mA (DC) | - | 16 V | Angled Toggle (Detector) | Chassis Mount | Solder Lug | - | - | 30gf | - | 0.150" (3.8mm) | - | - | - | -20°C ~ 70°C |
|
DM3CQF1002L03SWITCH LIMIT SPDT 3A 125V |
962 |
|
Datasheet |
DM3 | Bag | Active | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Lever, Roller | Chassis Mount | Solder Lug | - | - | 40gf | 15gf | 0.508" (12.9mm) | 0.071" (1.8mm) | 0.025" (0.6mm) | 0.031" (0.8mm) | -40°C ~ 85°C |
|
DM3CQF1003L03SWITCH LIMIT SPDT 3A 125V |
744 |
|
Datasheet |
DM3 | Bag | Active | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Lever, Roller | Through Hole | PC Pin | - | - | 40gf | 15gf | 0.508" (12.9mm) | 0.071" (1.8mm) | 0.025" (0.6mm) | 0.031" (0.8mm) | -40°C ~ 85°C |
|
TS0101F020PSWITCH SNAP ACTION SPDT 0.3A 6V |
27,181 |
|
Datasheet |
TS | Bulk | Active | SPDT | On-Mom | 300mA (DC) | - | 6 V | Lever, Straight | Through Hole | PC Pin | - | - | 20gf | - | 0.264" (6.7mm) | 0.071" (1.8mm) | - | - | -25°C ~ 85°C |
|
DS-09005-02 RPSWITCH DETECTOR SPST-NO 1MA 5V |
5,083 |
|
Datasheet |
DS, COMAX | Bulk | Active | SPST-NO | Off-Mom | 1mA (DC) | - | 5 V | Angled Toggle (Detector) | Through Hole | PC Pin | - | - | 50gf | - | - | 0.224" (5.7mm) | - | - | -20°C ~ 70°C |
|
ZX40E10E01SWITCH SNAP ACTION SPDT 3A 125V |
3,679 |
|
Datasheet |
ZX | Bulk | Active | SPDT | On-Mom | 3A (AC) | 125 V | - | Lever, Simulated Roller | Chassis Mount | Solder Lug | - | - | 55gf | 8.000gf | 0.437" (11.1mm) | 0.150" (3.8mm) | 0.050" (1.3mm) | 0.025" (0.6mm) | -40°C ~ 85°C |
|

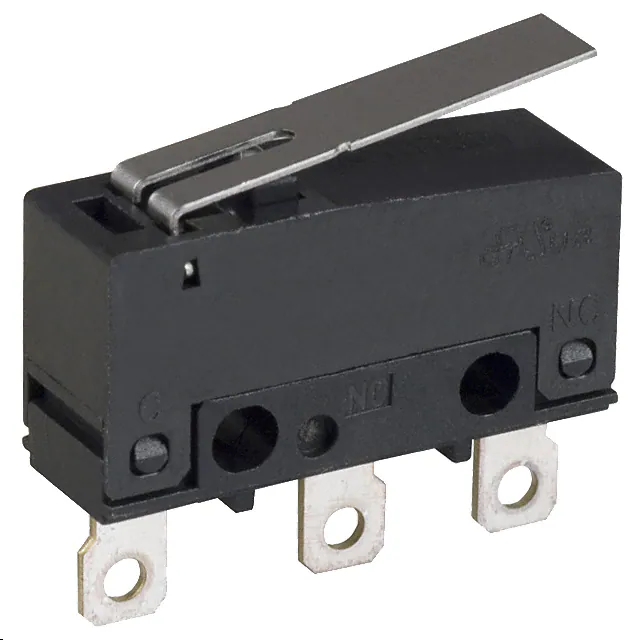

SS-01GLPSWITCH SNAP ACT SPDT 0.1A 125V |
3,645 |
|
Datasheet |
SS-P | Bulk | Active | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Lever, Straight | Chassis Mount | Solder Lug | IP40 | - | 51gf | 5.099gf | 0.345" (8.8mm) | - | 0.031" (0.8mm) | 0.039" (1.0mm) | -25°C ~ 85°C |
|
SS0750302F035S1ASWITCH SNAP ACTION SPDT 3A 125V |
12,116 |
|
Datasheet |
SS | Bulk | Active | SPDT | On-Mom | 3A (AC) | 125 V | - | Lever, Simulated Roller | Chassis Mount | Solder Lug | - | - | 35gf | 10gf | 0.425" (10.8mm) | 0.080" (2.0mm) | - | - | -25°C ~ 75°C |
|

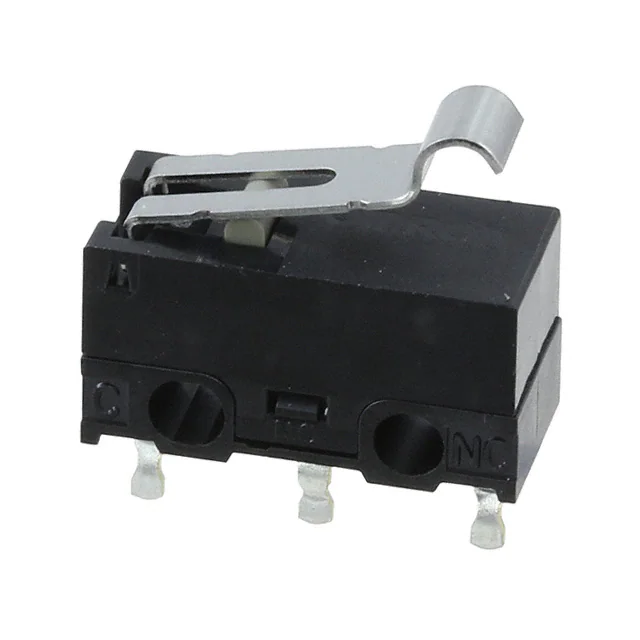

D2F-01L3-T(N)SWITCH SNAP ACTION SPDT 0.1A 30V |
8,114 |
|
Datasheet |
D2F | Bulk | Active | SPDT | On-Mom | 100mA (DC) | - | 30 V | Lever, Simulated Roller | Through Hole | PC Pin | IP40 | - | 80gf | 5.099gf | 0.335" (8.5mm) | - | 0.018" (0.45mm) | 0.020" (0.5mm) | -40°C ~ 85°C |
|
D2FS-FL-N-ASWITCH SNAP ACT SPST-NO 0.1A 6V |
7,646 |
|
Datasheet |
D2FS | Bulk | Active | SPST-NO | Off-Mom | 100mA (DC) | - | 6 V | Lever, Straight | Through Hole, Right Angle | PC Pin | IP40 | Actuator Mounted Right Side | 25gf | 2.039gf | 0.328" (8.3mm) | - | 0.020" (0.5mm) | 0.022" (0.55mm) | -20°C ~ 70°C |
|
SS0750303F050S1ASWITCH SNAP ACTION SPDT 3A 125V |
9,584 |
|
Datasheet |
SS | Bulk | Active | SPDT | On-Mom | 3A (AC) | 125 V | - | Lever, Simulated Roller | Chassis Mount | Solder Lug | - | - | 50gf | 15gf | 0.380" (9.7mm) | 0.053" (1.35mm) | - | - | -25°C ~ 75°C |
Limit Switches Electronic Components
Explore Limit Switches electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
