Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

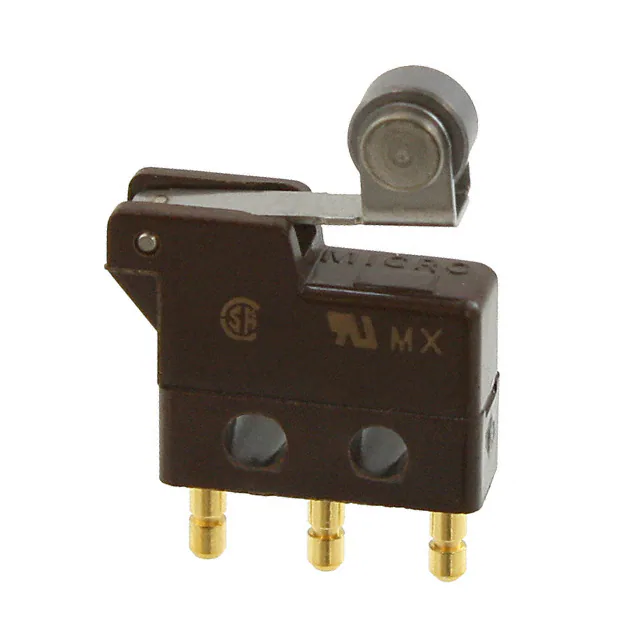

311SX64-H58SWITCH SNAP ACTION SPDT 5A 125V |
181 |
|
Datasheet |
SX | Bulk | Active | SPDT | On-Mom | 5A (AC/DC) | 125 V | 28 V | Lever, Roller | Chassis Mount | Quick Connect - 0.058" (Round) | - | - | 67gf | 11gf | 0.557" (14.15mm) | 0.050" (1.27mm) | 0.015" (0.38mm) | 0.010" (0.25mm) | -55°C ~ 125°C |
|
23SX39-TSWITCH SNAP ACTION SPDT 1A 125V |
285 |
|
Datasheet |
SX | Bulk | Active | SPDT | On-Mom | 1A (AC/DC) | 125 V | 30 V | Round (Pin Plunger) | Chassis Mount | Solder Turret | - | - | 141gf | 28gf | 0.320" (8.13mm) | 0.020" (0.5mm) | 0.005" (0.13mm) | 0.004" (0.1mm) | -53°C ~ 85°C |
|
12SX3-TSWITCH SNAP ACTION SPDT 1A 125V |
708 |
|
Datasheet |
SX | Bulk | Active | SPDT | On-Mom | 1A (AC/DC) | 125 V | 28 V | Round (Pin Plunger) | Chassis Mount | Solder Turret | - | - | 71 ~ 141gf | 28gf | 0.320" (8.13mm) | 0.020" (0.5mm) | 0.001" (0.025mm) | 0.004" (0.1mm) | -55°C ~ 125°C |
|
SZL-VL-S-C-N-MSWITCH SNAP ACT SPDT 0.5A 380V |
374 |
|
Datasheet |
SZL-VL-S | Bulk | Active | SPDT (DB/DM) | On-Mom | 500mA (AC), 50mA (DC) | 380 V | 220 V | Side Rotary, Adjustable Rod | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | 18gfm | - | - | 25° | 15° | 70° | -20°C ~ 70°C |
|
SZL-VL-S-H-N-MSWITCH SNAP ACT SPDT 0.5A 380V |
122 |
|
Datasheet |
SZL-VL-S | Bulk | Active | SPDT (DB/DM) | On-Mom | 500mA (AC), 50mA (DC) | 380 V | 220 V | Roller Plunger | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | 918gf | - | - | 0.080" (2.0mm) | 0.060" (1.5mm) | 0.138" (3.5mm) | -20°C ~ 70°C |
|

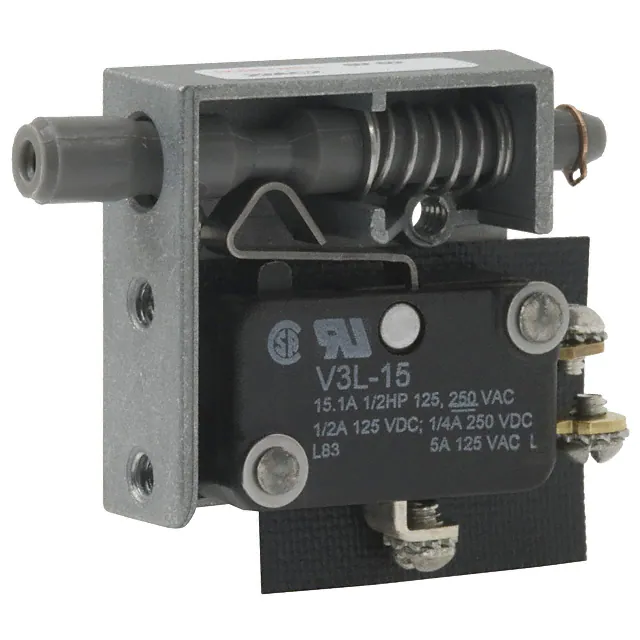

22AC2SWITCH SNAP ACT SPDT 0.16A 125V |
825 |
|
Datasheet |
AC | Bulk | Active | SPDT | On-Mom | 160mA (AC/DC) | 125 V | 125 V | Push-Pull Plunger | Chassis Mount | Screw Terminal | - | - | 1814gf | - | 0.203" (5.2mm) | - | - | 0.125" (3.2mm) | -18°C ~ 82°C |
|
3MN1SWITCH SNAP ACTION SPDT 15A 120V |
354 |
|
Datasheet |
MN | Bulk | Active | SPDT (DB/DM) | On-Mom | 15A (AC), 800mA (DC) | 120 V | 115 V | Round (Pin Plunger) | Chassis Mount | Screw Terminal | - | - | 340 ~ 567gf | 170gf | 0.085" (2.16mm) | 0.060" (1.5mm) | 0.025" (0.6mm) | 0.080" (2.03mm) | -55°C ~ 85°C |
|
HBS2KCB4SJ055CSWITCH SNAP ACTION SPDT 20A 125V |
244 |
|
Datasheet |
HB | Bulk | Active | SPDT | On-Mom | 20A (AC), 500mA (DC) | 125 V | 125 V | Overtravel Plunger | Panel Mount | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | 368gf | 113gf | 0.860" (21.84mm) | 0.020" (0.5mm) | - | 0.219" (5.6mm) | -55°C ~ 150°C |
|

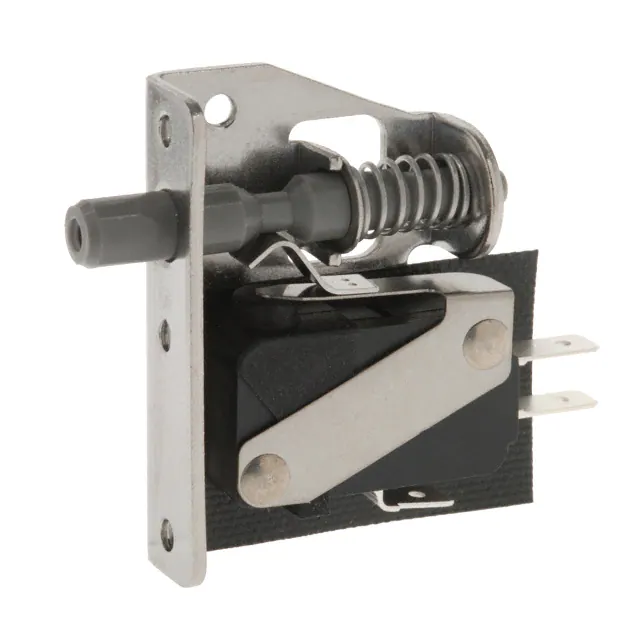

23AC81SWITCH SNAP ACTION SPDT 5A 125V |
743 |
|
Datasheet |
AC | Bulk | Active | SPDT | On-Mom | 5A (AC) | 125 V | - | Push-Pull Plunger | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 1814gf | - | 0.203" (5.2mm) | - | - | 0.125" (3.2mm) | -18°C ~ 82°C |
|
83123018SWITCH SNAP ACTION SPDT 5A 250V |
380 |
|
Datasheet |
83123 | Bulk | Active | SPDT | On-Mom | 5A (AC) | 250 V | - | Round (Pin Plunger) | Chassis Mount | Cable Leads | IP66 - Dust Tight, Water Resistant | Cable Length 0.5m | 540gf | 153gf | 0.449" (11.4mm) | - | 0.008" (0.2mm) | 0.008" (0.2mm) | 0°C ~ 85°C |
|

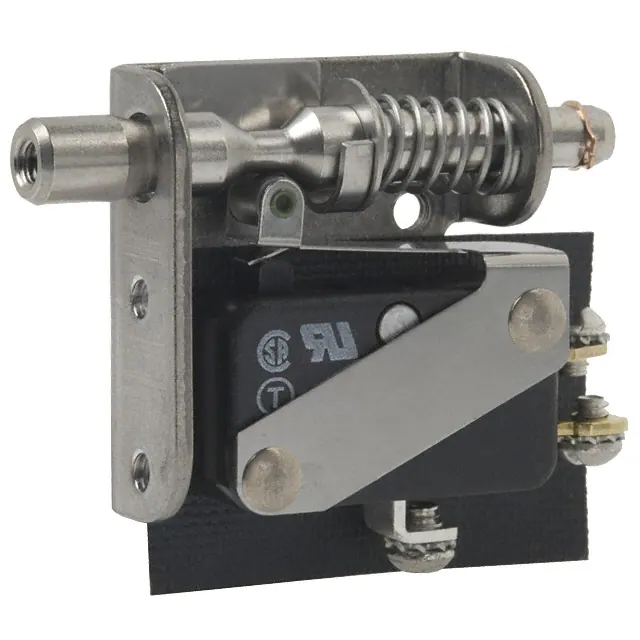

3AC6SWITCH SNAP ACTION SPDT 15A 125V |
369 |
|
Datasheet |
AC | Bulk | Active | SPDT | On-Mom | 15A (AC), 500mA (DC) | 125 V | 125 V | Push-Pull Plunger | Chassis Mount | Screw Terminal | - | - | 1814gf | - | 0.203" (5.2mm) | - | - | 0.125" (3.2mm) | -18°C ~ 149°C |
|

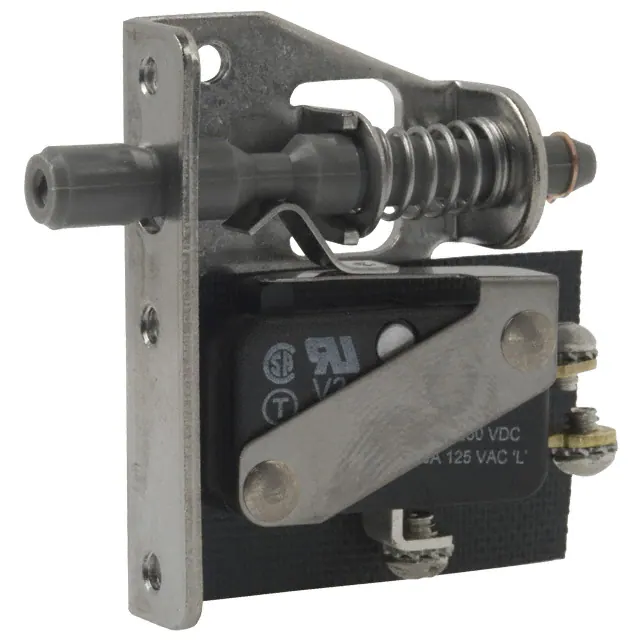

23AC2SWITCH SNAP ACTION SPDT 15A 125V |
508 |
|
Datasheet |
AC | Bulk | Active | SPDT | On-Mom | 15A (AC), 500mA (DC) | 125 V | 125 V | Push-Pull Plunger | Chassis Mount | Screw Terminal | - | - | 1814gf | - | 0.203" (5.2mm) | - | - | 0.125" (3.2mm) | -18°C ~ 82°C |
|

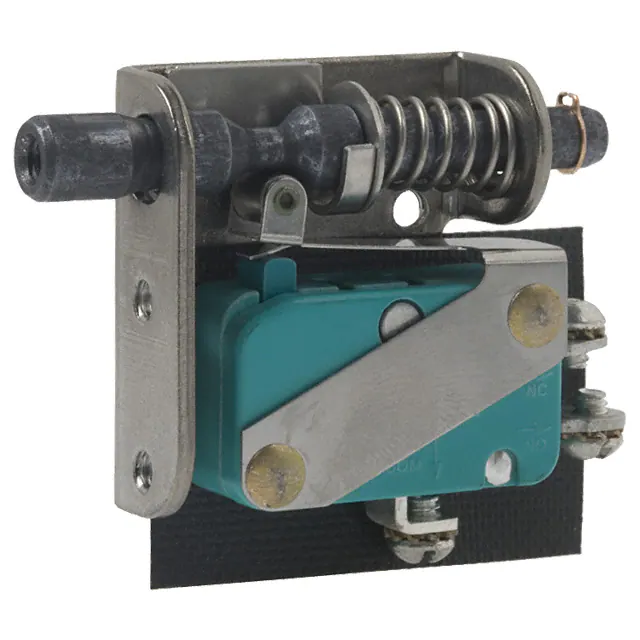

2AC59SWITCH SNAP ACTION SPDT 10A 250V |
2,758 |
|
Datasheet |
AC | Bulk | Active | SPDT | On-Mom | 10A (AC) | 250 V | - | Push-Pull Plunger | Chassis Mount | Screw Terminal | - | - | - | - | 0.203" (5.2mm) | - | - | 0.125" (3.2mm) | -18°C ~ 82°C |
|

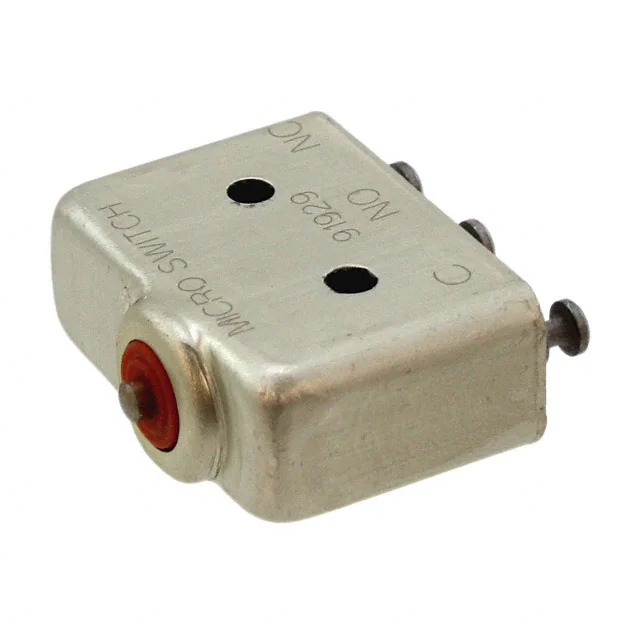

1SE1-TSWITCH SNAP ACTION SPDT 5A 250V |
338 |
|
Datasheet |
SE | Bulk | Active | SPDT | On-Mom | 5A (AC/DC) | 250 V | 30 V | Round (Pin Plunger) | Chassis Mount | Solder Turret | Waterproof | - | 141 ~ 482gf | 113gf | 0.425" (10.8mm) | 0.050" (1.27mm) | 0.004" (0.1mm) | 0.003" (0.076mm) | -54°C ~ 105°C |
|
BZE6-2RNSWITCH SNAP ACTION SPDT 15A 125V |
605 |
|
Datasheet |
E6 | Bulk | Active | SPDT | On-Mom | 15A (AC), 500mA (DC) | 125 V | 125 V | Round (Pin Plunger) | Chassis Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant | Actuator Seal Boot | 255 ~ 680gf | 113gf | 1.720" (43.7mm) | 0.078" (2.0mm) | 0.002" (0.05mm) | 0.219" (5.6mm) | -32°C ~ 71°C |
|

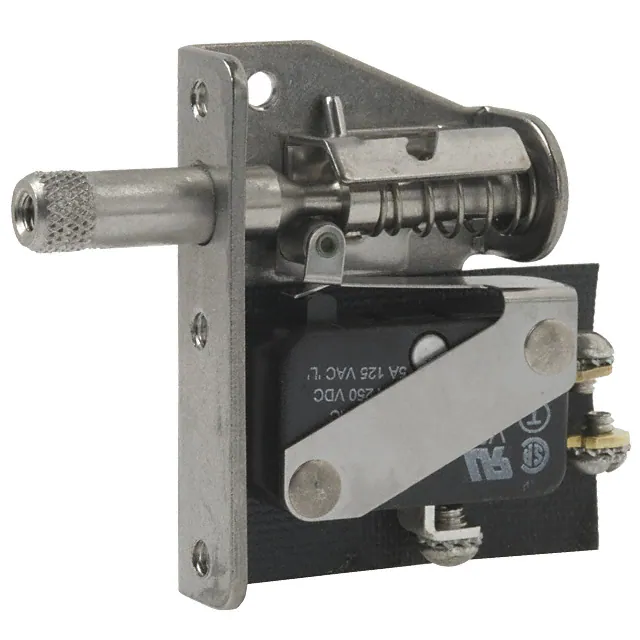

13AC1SWITCH SNAP ACTION SPDT 15A 125V |
118 |
|
Datasheet |
AC | Bulk | Active | SPDT | On-Mom | 15A (AC), 500mA (DC) | 125 V | 125 V | Push-Pull Plunger | Chassis Mount | Screw Terminal | - | - | 1814gf | - | 0.485" (12.3mm) | - | - | 0.263" (6.7mm) | -18°C ~ 149°C |
|

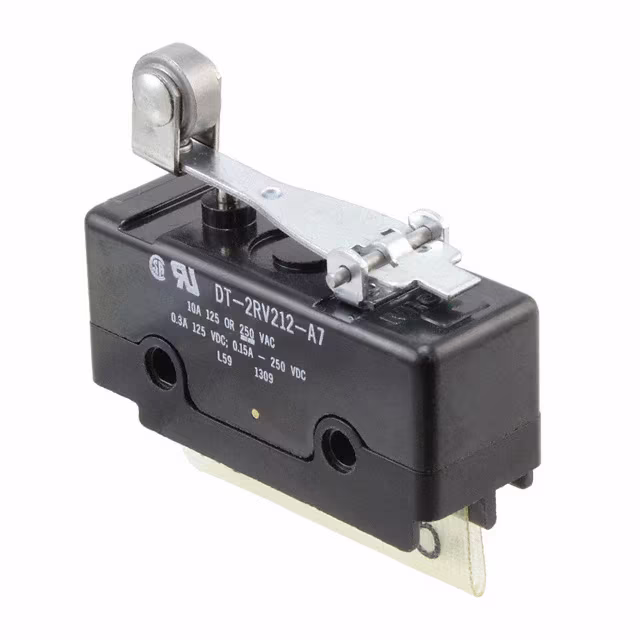

DT-2RV212-A7SWITCH SNAP ACTION DPDT 10A 125V |
467 |
|
Datasheet |
DT | Bulk | Active | DPDT | On-Mom | 10A (AC), 300mA (DC) | 125 V | 125 V | Lever, Roller | Chassis Mount | Screw Terminal | - | - | 255 ~ 425gf | 43gf | 1.156" (29.4mm) | 0.131" (3.3mm) | 0.085" (2.16mm) | 0.005" (0.13mm) | -55°C ~ 85°C |
|
D5B-5011SWITCH SNP ACT SPST-NC 0.03A 30V |
53 |
|
Datasheet |
D5B | Bulk | Active | SPST-NC | On-Mom | 30mA (DC) | - | 30 V | Domed | Panel Mount | Cable Leads | IP67 - Dust Tight, Waterproof | Cable Length 1m | 50gf | - | - | 0.024" (0.6mm) | - | - | -10°C ~ 70°C |
|
DT-2RV22-A7SWITCH SNAP ACTION DPDT 10A 125V |
360 |
|
Datasheet |
DT | Bulk | Active | DPDT | On-Mom | 10A (AC), 300mA (DC) | 125 V | 125 V | Lever, Roller | Chassis Mount | Screw Terminal | - | - | 255 ~ 397gf | 85gf | 1.188" (30.2mm) | - | 0.305" (7.75mm) | 0.030" (0.76mm) | -55°C ~ 85°C |
|
ZC-N2255SWITCH SNAP ACTION SPDT 10A 125V |
144 |
|
Datasheet |
ZC | Bulk | Active | SPDT | On-Mom | 10A (AC), 6A (DC) | 125 V | 30 V | Roller Plunger | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | 700gf | 170gf | 1.866" (47.4mm) | 0.060" (1.5mm) | 0.008" (0.2mm) | 0.098" (2.5mm) | -10°C ~ 80°C |
