Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
V7-1A17D8-048SWITCH SNAP ACTION SPDT 5A 125V |
169 |
|
Datasheet |
V7 | Bulk | Active | SPDT | On-Mom | 5A (AC) | 125 V | - | Lever, Straight | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 46gf | 4.000gf | 0.602" (15.3mm) | 0.250" (6.35mm) | 0.055" (1.4mm) | 0.125" (3.2mm) | -40°C ~ 85°C |
|
SS-01GL111DSWITCH SNAP ACT SPDT 0.1A 125V |
429 |
|
Datasheet |
SS | Bulk | Active | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Lever, Straight | Through Hole | PC Pin | IP40 | - | 40gf | 3.059gf | 0.345" (8.8mm) | - | 0.047" (1.2mm) | 0.047" (1.2mm) | -25°C ~ 85°C |
|
D2SW-01L2HSSWITCH SNAP ACT SPDT 0.1A 125V |
6,011 |
|
Datasheet |
D2SW | Bulk | Active | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Lever, Roller | Chassis Mount | Solder Lug | IP67 - Dust Tight, Waterproof | - | 60gf | 6.118gf | 0.571" (14.5mm) | - | 0.031" (0.8mm) | 0.040" (1.0mm) | -40°C ~ 85°C |
|

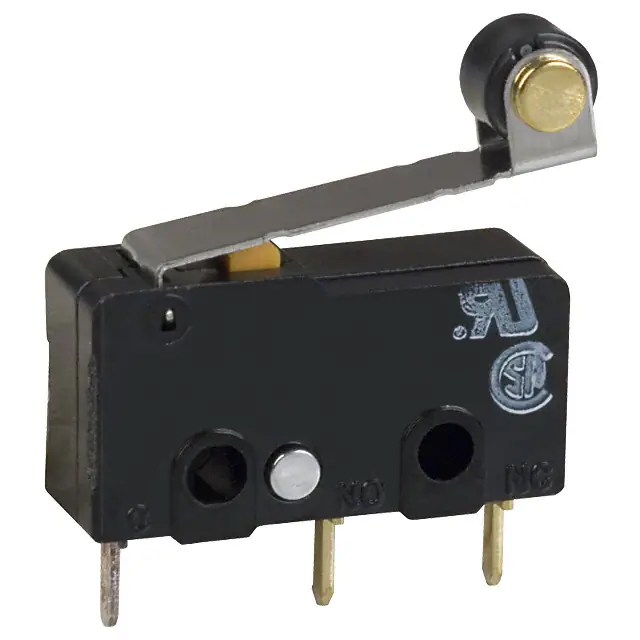

SS-01GL2DSWITCH SNAP ACT SPDT 0.1A 125V |
414 |
|
Datasheet |
SS | Tray | Active | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Lever, Roller | Through Hole | PC Pin | IP40 | - | 50gf | 6.118gf | 0.571" (14.5mm) | - | 0.031" (0.8mm) | 0.047" (1.2mm) | -25°C ~ 85°C |
|
V7-7B17D8-201SWITCH SNAP ACTION SPDT 11A 125V |
738 |
|
Datasheet |
V7 | Bulk | Active | SPDT | On-Mom | 11A (AC), 500mA (DC) | 125 V | 125 V | Lever, Roller | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 283gf | 28gf | 0.806" (20.5mm) | 0.055" (1.4mm) | 0.013" (0.33mm) | 0.035" (0.9mm) | -40°C ~ 85°C |
|

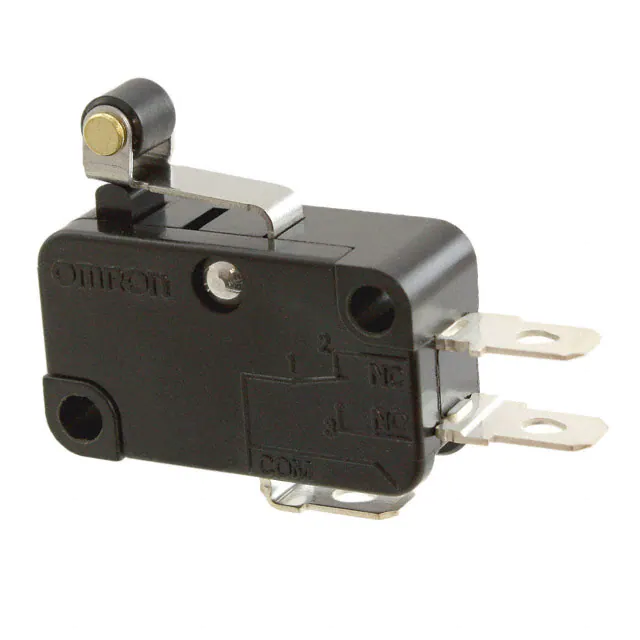

V-155-1A5SWITCH SNAP ACTION SPDT 15A 250V |
178 |
|
Datasheet |
V | Bulk | Active | SPDT | On-Mom | 15A (AC), 600mA (DC) | 250 V | 125 V | Lever, Roller | Chassis Mount | Solder, Quick Connect - 0.187" (4.7mm) | IP40 | - | 240gf | 50gf | 0.815" (20.7mm) | 0.063" (1.6mm) | 0.025" (0.6mm) | 0.030" (0.76mm) | -25°C ~ 80°C |
|
V7-1D10D8SWITCH SNAP ACTION SPDT 1A 125V |
3,997 |
|
Datasheet |
V7 | Bulk | Active | SPDT | On-Mom | 1A (AC) | 125 V | - | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 150gf | 25gf | 0.579" (14.7mm) | 0.047" (1.2mm) | 0.010" (0.25mm) | 0.050" (1.27mm) | -40°C ~ 85°C |
|

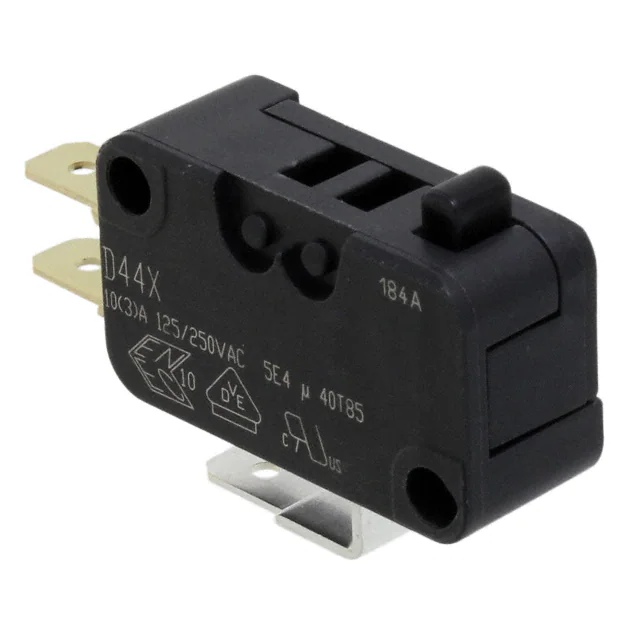

D449-R1AASWITCH SNAP ACTION SPDT 10A 250V |
1,446 |
|
- |
D4 | Bulk | Active | SPDT | On-Mom | 10A (AC) | 250 V | - | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | Explosion Proof | 76gf | 22gf | 0.579" (14.7mm) | 0.047" (1.2mm) | 0.012" (0.3mm) | 0.051" (1.3mm) | -40°C ~ 85°C |
|

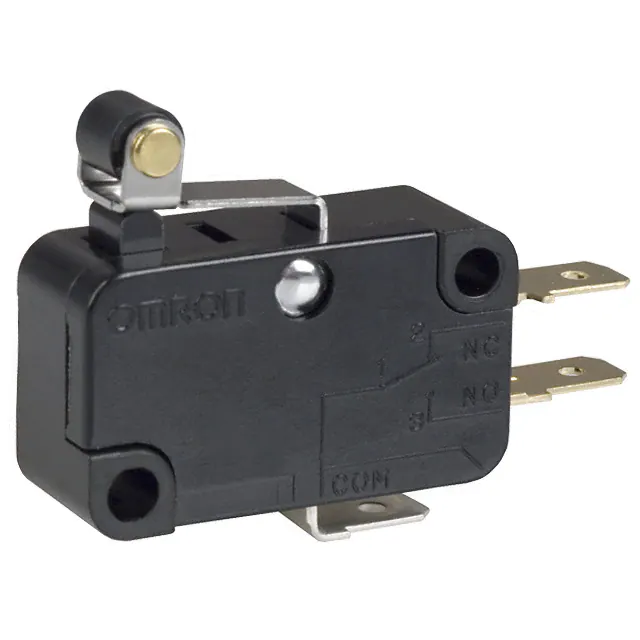

V-15G5-1C26-KSWITCH SNAP ACTION SPDT 15A 250V |
505 |
|
Datasheet |
V | Tray | Active | SPDT | On-Mom | 15A (AC), 100mA (DC) | 250 V | 125 V | Lever, Roller | Chassis Mount | Quick Connect - 0.187" (4.7mm) | IP40 | - | 480gf | 50gf | 0.815" (20.7mm) | 0.063" (1.6mm) | 0.025" (0.6mm) | 0.030" (0.76mm) | -25°C ~ 80°C |
|
D2F-L2-A1SWITCH SNAP ACTION SPDT 3A 125V |
401 |
|
Datasheet |
D2F | Bulk | Active | SPDT | On-Mom | 3A (AC), 2A (DC) | 125 V | 30 V | Lever, Roller | Through Hole, Right Angle | PC Pin | IP40 | Actuator Mounted Left Side | 80gf | 5.099gf | 0.512" (13.0mm) | - | 0.020" (0.5mm) | 0.022" (0.55mm) | -40°C ~ 85°C |
|
V-15G6-1C25-KSWITCH SNAP ACTION SPDT 15A 250V |
3,059 |
|
Datasheet |
V | Tray | Active | SPDT | On-Mom | 15A (AC), 100mA (DC) | 250 V | 125 V | Lever, Roller | Chassis Mount | Quick Connect - 0.187" (4.7mm) | IP40 | - | 125gf | 14gf | 0.815" (20.7mm) | 0.157" (4.0mm) | 0.060" (1.5mm) | 0.062" (1.6mm) | -25°C ~ 80°C |
|
D2SW-3L2HSSWITCH SNAP ACTION SPDT 3A 125V |
704 |
|
Datasheet |
D2SW | Tray | Active | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Lever, Roller | Chassis Mount | Solder Lug | IP67 - Dust Tight, Waterproof | - | 60gf | 6.118gf | 0.571" (14.5mm) | - | 0.031" (0.8mm) | 0.040" (1.0mm) | -40°C ~ 85°C |
|
V-152-1C25SWITCH SNAP ACTION SPDT 15A 250V |
413 |
|
Datasheet |
V | Bulk | Active | SPDT | On-Mom | 15A (AC), 600mA (DC) | 250 V | 125 V | Lever, Straight | Chassis Mount | Quick Connect - 0.187" (4.7mm) | IP40 | - | 125gf | 14gf | 0.600" (15.2mm) | 0.157" (4.0mm) | 0.060" (1.5mm) | 0.062" (1.6mm) | -25°C ~ 80°C |
|
V15T16-CZ300A05-KSWITCH SNAP ACTION SPDT 16A 250V |
385 |
|
Datasheet |
V15 | Tray | Active | SPDT | On-Mom | 16A (AC) | 250 V | - | Lever, Roller | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 350gf | 60gf | 0.812" (20.6mm) | 0.063" (1.6mm) | 0.016" (0.4mm) | 0.030" (0.76mm) | -25°C ~ 125°C |
|
D2VW-5L1-1HSSWITCH SNAP ACTION SPDT 5A 125V |
1,462 |
|
Datasheet |
D2VW | Bulk | Active | SPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Lever, Straight | Chassis Mount | Solder, Quick Connect - 0.187" (4.7mm) | IP67 - Dust Tight, Waterproof | - | 120gf | 15gf | 0.600" (15.2mm) | 0.157" (4.0mm) | 0.031" (0.8mm) | 0.062" (1.6mm) | -40°C ~ 85°C |
|
831615C60SP4136SWITCH SNAP ACTION SPDT 4A 250V |
436 |
|
Datasheet |
83161 | Bulk | Active | SPDT | On-Mom | 4A (AC) | 250 V | - | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 15gf | 4.000gf | 0.579" (14.7mm) | - | 0.014" (0.35mm) | 0.047" (1.2mm) | -20°C ~ 125°C |
|
V7-1Z29E9SWITCH SNAP ACT SPST-NO 25A 277V |
731 |
|
Datasheet |
V7 | Bulk | Active | SPST-NO | Off-Mom | 25A (AC) | 277 V | - | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 125 ~ 225gf | 55gf | 0.579" (14.7mm) | 0.047" (1.2mm) | 0.010" (0.25mm) | 0.050" (1.27mm) | -40°C ~ 85°C |
|
HY15-6E7-091-0000SWITCH SNAP ACT DPST-NO 18A 125V |
258 |
|
Datasheet |
HY | Bulk | Active | DPST-NO | Off-Mom | 18A (AC) | 125 V | - | Trigger | Panel Mount | Screw Terminal | - | - | 3000gf | - | - | - | - | - | - |
|
D2SW-3HSSWITCH SNAP ACTION SPDT 3A 125V |
250 |
|
Datasheet |
D2SW | Tray | Active | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Round (Pin Plunger) | Chassis Mount | Solder Lug | IP67 - Dust Tight, Waterproof | - | 180gf | 30gf | 0.330" (8.4mm) | 0.024" (0.6mm) | 0.004" (0.1mm) | 0.020" (0.5mm) | -40°C ~ 85°C |
|
V-15-1C5SWITCH SNAP ACTION SPDT 15A 250V |
103 |
|
Datasheet |
V | Bulk | Active | SPDT | On-Mom | 15A (AC), 600mA (DC) | 250 V | 125 V | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.250" (6.3mm) | IP40 | - | 200gf | 50gf | 0.579" (14.7mm) | 0.047" (1.2mm) | 0.016" (0.4mm) | 0.040" (1.0mm) | -25°C ~ 80°C |
Limit Switches Electronic Components
Explore Limit Switches electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
