Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MN-5310-PTSWITCH SNAP ACTION SPDT 10A 250V |
1,000 |
|
Datasheet |
MN | Retail Package | Active | SPDT | On-Mom | 10A (AC), 500mA (DC) | 250 V | 125 V | Round (Pin Plunger) | Chassis Mount | Screw Terminal | IP65 - Dust Tight, Water Resistant | Actuator Seal Boot | 600gf | 100gf | - | 0.079" (2.00mm) | 0.031" (0.8mm) | 0.235" (6.0mm) | -10°C ~ 80°C |
|
MEA-9111 GSWITCH LIMIT SPDT 6A 250V |
1,200 |
|
Datasheet |
MEA | Bulk | Active | SPDT (DB/DM) | On-Mom | 6A (AC), 400mA (DC) | 250 V | 125 V | Round (Pin Plunger) | Chassis Mount | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | 500gf | 150gf | - | 0.080" (2.0mm) | 0.039" (1.0mm) | 0.157" (4.0mm) | -15°C ~ 70°C |
|
BA-1RV543510-A2SWITCH SNAP ACTION SPDT 15A 125V |
0 |
|
Datasheet |
BA | Bulk | Active | SPDT | On-Mom | 15A (AC) | 125 V | - | Lever, Formed | Chassis Mount | Screw Terminal | - | - | 141gf | 43gf | 0.953" (24.2mm) | 0.110" (2.8mm) | 0.012" (0.3mm) | 0.020" (0.5mm) | -55°C ~ 85°C |
|
YA-2RB-A64SWITCH SNAP ACT SPST-NO 20A 125V |
0 |
|
Datasheet |
YA | Bulk | Obsolete | SPST-NO | Off-Mom | 20A (AC), 500mA (DC) | 125 V | 125 V | Round (Pin Plunger) | Chassis Mount | Screw Terminal | - | - | 397 ~ 624gf | 283gf | 1.030" (26.2mm) | 0.050" (1.27mm) | 0.007" (0.18mm) | 0.094" (2.4mm) | -55°C ~ 85°C |
|
MEA-9169 GSWITCH LIMIT SPDT 6A 250V |
1,200 |
|
Datasheet |
MEA | Bulk | Active | SPDT (DB/DM) | On-Mom | 6A (AC), 400mA (DC) | 250 V | 125 V | Spring, Wire | Chassis Mount | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | 60gf | - | - | 25° | - | 50° | -15°C ~ 70°C |
|
MEA-9112 GSWITCH LIMIT SPDT 6A 250V |
1,200 |
|
Datasheet |
MEA | Bulk | Active | SPDT (DB/DM) | On-Mom | 6A (AC), 400mA (DC) | 250 V | 125 V | Roller Plunger | Chassis Mount | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | 500gf | 150gf | - | 0.080" (2.0mm) | 0.039" (1.0mm) | 0.157" (4.0mm) | -15°C ~ 70°C |
|
MEA-9161SWITCH LIMIT SPDT 6A 250V |
1,200 |
|
Datasheet |
MEA | Bulk | Active | SPDT (DB/DM) | On-Mom | 6A (AC), 400mA (DC) | 250 V | 125 V | Spring, Coil | Chassis Mount | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | 60gf | - | - | 25° | - | 50° | -15°C ~ 70°C |
|
BZ-2RW80231-A2SWITCH SNAP ACTION SPDT 15A 125V |
0 |
|
Datasheet |
BZ | Bulk | Obsolete | SPDT | On-Mom | 15A (AC), 500mA (DC) | 125 V | 125 V | Lever, Straight | Chassis Mount | Screw Terminal | - | - | 60gf | 7.087gf | 0.710" (18.0mm) | - | 0.035" (0.9mm) | 0.156" (3.96mm) | -55°C ~ 85°C |
|
GPTCRH11SWITCH SNAP ACTION SPDT 15A 125V |
0 |
|
- |
GP | Bulk | Active | SPDT | On-Mom | 15A (AC) | 125 V | - | Roller Plunger | Panel Mount | Screw Terminal | - | - | 348gf | 113gf | 1.266" (32.2mm) | 0.015" (0.4mm) | 0.016" (0.4mm) | 0.141" (3.6mm) | 0°C ~ 55°C |
|
|
4SX38-TSWITCH SUBMINI BASIC |
0 |
|
- |
SX | Bulk | Obsolete | SPDT | On-Mom | - | - | - | Round (Pin Plunger) | Chassis Mount | Solder Turret | - | - | - | - | - | - | - | - | -55°C ~ 125°C |
|
|
GPTBRH11SWITCH SNAP ACTION SPDT 20A 125V |
0 |
|
- |
GP | Bulk | Active | SPDT | On-Mom | 20A (AC) | 125 V | - | Roller Plunger | Panel Mount | Screw Terminal | - | - | 649gf | 201gf | 1.266" (32.2mm) | 0.028" (0.7mm) | 0.008" (0.2mm) | 0.141" (3.6mm) | 0°C ~ 55°C |
|
|
21SX64SWITCH SNAP ACTION SPDT 7A 250V |
0 |
|
Datasheet |
SX | Bulk | Active | SPDT | On-Mom | 7A (AC/DC) | 250 V | 28 V | Round (Pin Plunger) | Through Hole | PC Pin | - | - | 141gf | 28gf | 0.320" (8.13mm) | 0.020" (0.5mm) | 0.005" (0.13mm) | 0.004" (0.1mm) | -53°C ~ 85°C |
|
BZ-7RWT822SWITCH SNAP ACTION SPDT 15A 125V |
144 |
|
Datasheet |
BZ | Bulk | Active | SPDT | On-Mom | 15A (AC), 500mA (DC) | 125 V | 125 V | Lever, Roller | Chassis Mount | Screw Terminal | - | - | 198gf | 43gf | 1.188" (30.2mm) | - | 0.050" (1.3mm) | 0.094" (2.4mm) | -55°C ~ 85°C |
|

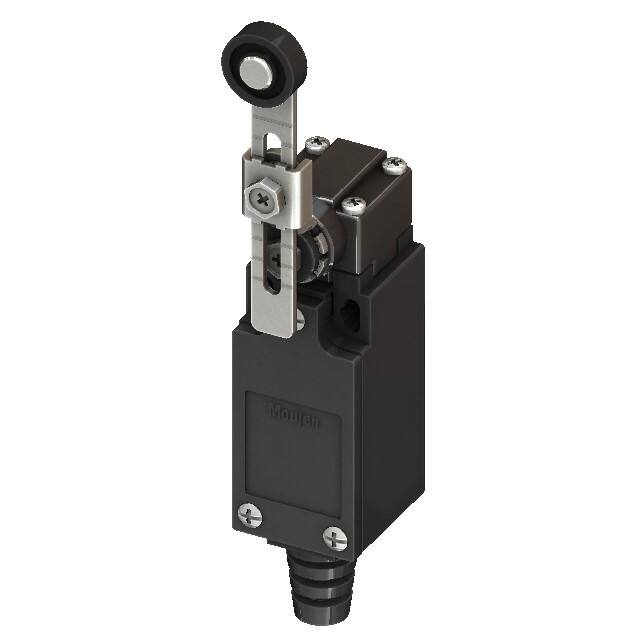

MEA-9108SWITCH LIMIT SPDT 6A 250V |
1,200 |
|
Datasheet |
MEA | Bulk | Active | SPDT (DB/DM) | On-Mom | 6A (AC), 400mA (DC) | 250 V | 125 V | Side Rotary, Adjustable Roller | Chassis Mount | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | 100gf | 40gf | - | 20° | 12° | 50° | -15°C ~ 70°C |
|
|
KH-8005-SSWITCH SNAP ACTION DPST 5A 125V |
1,990 |
|
Datasheet |
KL | Bulk | Active | DPST-NO/NC | On-Mom, Off-Mom | 5A (AC), 400mA (DC) | 125 V | 125 V | Side Rotary, Adjustable Roller | Chassis Mount | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | 600gf | 50gf | - | 150° | - | 75° | -25°C ~ 50°C |
|
311SX2-H33SWITCH SNAP ACTION SPDT 5A 125V |
190 |
|
Datasheet |
SX | Bulk | Active | SPDT | On-Mom | 5A (AC/DC) | 125 V | 28 V | Lever, Straight | Through Hole | PC Pin | - | - | 30gf | 5.099gf | 0.325" (8.25mm) | 0.114" (2.9mm) | 0.035" (0.9mm) | 0.025" (0.6mm) | -55°C ~ 125°C |
|
BZ-2RW8055516TSWITCH SNAP ACTION SPDT 15A 125V |
2 |
|
Datasheet |
BZ | Bulk | Active | SPDT | On-Mom | 15A (AC), 500mA (DC) | 125 V | 125 V | Lever, Simulated Roller | Chassis Mount | Screw Terminal | IP64 - Dust Tight, Water Resistant | - | 170gf | 43gf | 1.188" (30.2mm) | - | 0.020" (0.5mm) | 0.094" (2.4mm) | -55°C ~ 85°C |
|
V3L-2436SWITCH SNAP ACTION SPDT 5A 125V |
139 |
|
Datasheet |
V3L | Bulk | Active | SPDT | On-Mom | 5A (AC) | 125 V | - | Lever, Straight | Chassis Mount | Solder Lug | - | - | 198gf | - | 0.600" (15.2mm) | 0.200" (5.1mm) | 0.055" (1.4mm) | 0.160" (4.06mm) | - |
|
|
BZ-2RQ1-D682SWITCH SNAP ACTION SPDT 15A 125V |
0 |
|
Datasheet |
BZ | Bulk | Obsolete | SPDT | On-Mom | 15A (AC), 500mA (DC) | 125 V | 125 V | Overtravel Plunger | Panel Mount | Quick Connect - 0.250" (6.3mm) | - | Steel Plunger | 255 ~ 368gf | 113gf | 0.859" (21.8mm) | 0.015" (0.4mm) | 0.002" (0.05mm) | 0.219" (5.6mm) | -55°C ~ 85°C |
|
|
BZ-7RW82127T-SSWITCH SNAP ACTION SPDT 15A 125V |
0 |
|
Datasheet |
BZ | Bulk | Active | SPDT | On-Mom | 15A (AC), 500mA (DC) | 125 V | 125 V | Lever, Roller | Chassis Mount | Screw Terminal | - | - | 141gf | 21gf | 1.188" (30.2mm) | - | 0.150" (3.8mm) | 0.156" (3.96mm) | -55°C ~ 85°C |
