Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

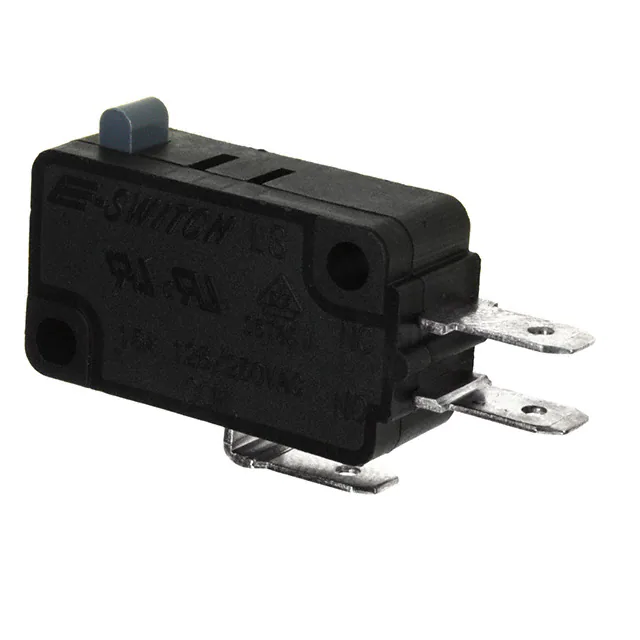

LS0851500F160C1ASWITCH SNAP ACTION SPDT 15A 125V |
104 |
|
Datasheet |
LS | Bulk | Active | SPDT | On-Mom | 15A (AC) | 125 V | - | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 160gf | 40gf | 0.579" (14.7mm) | 0.080" (2.0mm) | - | - | -25°C ~ 85°C |
|
HDT0204SWITCH DETECTOR SPST-NO 1MA 5V |
30,487 |
|
Datasheet |
HDT | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 1mA (DC) | - | 5 V | Angled Toggle (Detector) | Surface Mount | SMD (SMT) Tab | - | Board Guide | 35gf | - | 0.197" (5.0mm) | 0.012" (0.3mm) | - | 0.045" (1.1mm) | -40°C ~ 85°C |
|
HDT0104SWITCH DETECTOR SPST-NO 1MA 5V |
4,797 |
|
Datasheet |
HDT | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 1mA (DC) | - | 5 V | Angled Toggle (Detector) | Surface Mount | SMD (SMT) Tab | - | - | 35gf | - | 0.197" (5.0mm) | 0.012" (0.3mm) | - | 0.045" (1.1mm) | -40°C ~ 85°C |
|
461011220101SWITCH DETECT SPST-NO 0.001A 5V |
3,116 |
|
Datasheet |
WS-DESV | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 1mA (DC) | - | 5 V | Angled Toggle (Detector) | Surface Mount | SMD (SMT) Tab | - | - | 60gf | - | 0.126" (3.2mm) | 0.024" (0.6mm) | - | - | -40°C ~ 85°C |
|
D2F-01F-TSWITCH SNAP ACTION SPDT 0.1A 30V |
877 |
|
Datasheet |
D2F | Bulk | Active | SPDT | On-Mom | 100mA (DC) | - | 30 V | Round (Pin Plunger) | Through Hole | PC Pin | IP40 | - | 75gf | 5.099gf | 0.217" (5.5mm) | 0.020" (0.5mm) | 0.005" (0.13mm) | 0.010" (0.25mm) | -40°C ~ 85°C |
|
SDS004RSWITCH DETECT SPST-NO 100MA 12V |
23,283 |
|
Datasheet |
SDS | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 100mA (DC) | - | 12 V | Overtravel Plunger | Surface Mount, Right Angle | SMD (SMT) Tab | - | - | 75gf | - | - | - | - | 0.079" (2.0mm) | -40°C ~ 85°C |
|

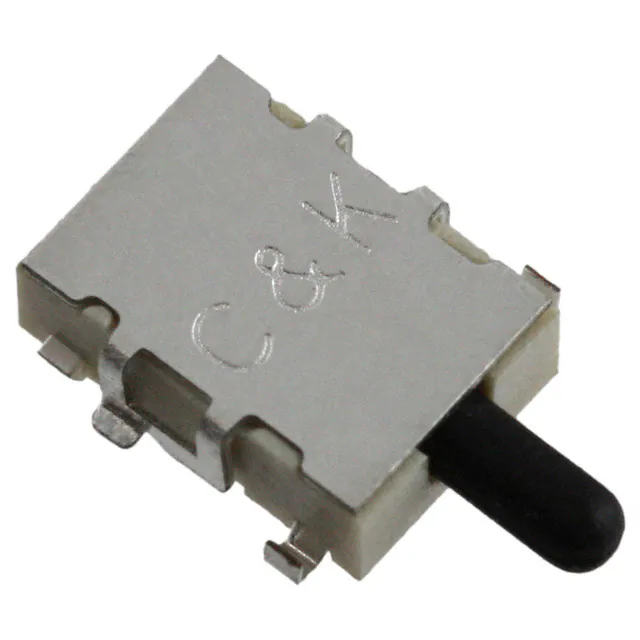

SDS002RSWITCH DETECT SPST-NC 100MA 12V |
5,681 |
|
Datasheet |
SDS | Tape & Reel (TR) | Active | SPST-NC | On-Mom | 100mA (DC) | - | 12 V | Overtravel Plunger | Surface Mount, Right Angle | SMD (SMT) Tab | - | - | 75gf | - | - | - | - | 0.079" (2.0mm) | -40°C ~ 85°C |
|
D2F-L-DSWITCH SNAP ACTION SPDT 3A 125V |
4,443 |
|
Datasheet |
D2F | Bulk | Active | SPDT | On-Mom | 3A (AC), 2A (DC) | 125 V | 30 V | Lever, Straight | Chassis Mount | Solder Lug | IP40 | - | 80gf | 5.099gf | 0.268" (6.8mm) | - | 0.020" (0.5mm) | 0.022" (0.55mm) | -40°C ~ 85°C |
|
D2F-01FL-D3SWITCH SNAP ACTION SPDT 0.1A 30V |
3,450 |
|
Datasheet |
D2F | Bulk | Active | SPDT | On-Mom | 100mA (DC) | - | 30 V | Lever, Straight | Chassis Mount | Solder Lug | IP40 | - | 25gf | 2.039gf | 0.268" (6.8mm) | - | 0.020" (0.5mm) | 0.022" (0.55mm) | -40°C ~ 85°C |
|
SS-5GL-2TSWITCH SNAP ACT SPST-NC 5A 125V |
24,375 |
|
Datasheet |
SS | Tray | Active | SPST-NC | On-Mom | 5A (AC) | 125 V | - | Lever, Straight | Chassis Mount | Quick Connect - 0.110" (2.8mm) | IP40 | - | - | 6.000gf | 0.345" (8.8mm) | - | 0.031" (0.8mm) | 0.047" (1.2mm) | -25°C ~ 85°C |
|
D2F-L-D3SWITCH SNAP ACTION SPDT 3A 125V |
8,007 |
|
Datasheet |
D2F | Bulk | Active | SPDT | On-Mom | 3A (AC), 2A (DC) | 125 V | 30 V | Lever, Straight | Chassis Mount | Solder Lug | IP40 | - | 80gf | 5.099gf | 0.268" (6.8mm) | - | 0.020" (0.5mm) | 0.022" (0.55mm) | -40°C ~ 85°C |
|
MS0850505F045S1ASWITCH SNAP ACTION SPDT 5A 125V |
2,159 |
|
Datasheet |
MS | Bulk | Active | SPDT | On-Mom | 5A (AC) | 125 V | - | Lever, Roller | Chassis Mount | Solder Lug | - | - | 45gf | 20gf | 0.587" (14.9mm) | 0.157" (4.0mm) | - | - | -25°C ~ 85°C |
|

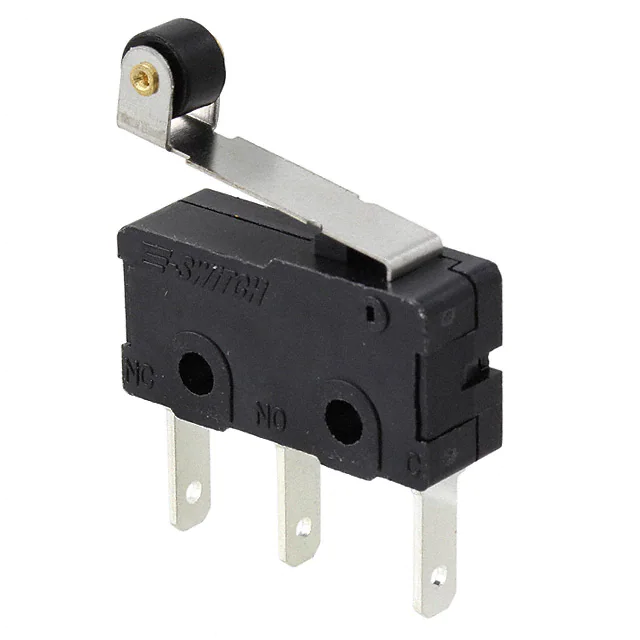

MS0850505F065C1ASWITCH SNAP ACTION SPDT 5A 125V |
1,035 |
|
Datasheet |
MS | Bulk | Active | SPDT | On-Mom | 5A (AC) | 125 V | - | Lever, Roller | Chassis Mount | Quick Connect - 0.110" (2.8mm) | - | - | 65gf | 25gf | 0.587" (14.9mm) | 0.157" (4.0mm) | - | - | -25°C ~ 85°C |
|

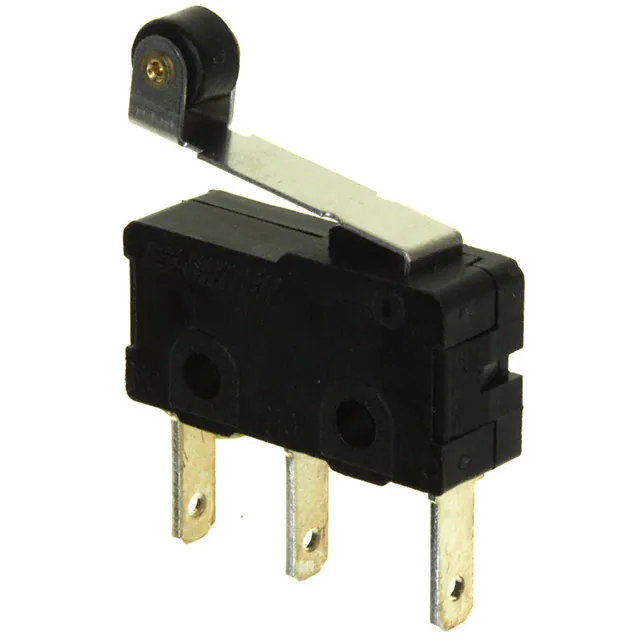

MS0850505F035C1ASWITCH SNAP ACTION SPDT 5A 125V |
362 |
|
Datasheet |
MS | Bulk | Active | SPDT | On-Mom | 5A (AC) | 125 V | - | Lever, Roller | Chassis Mount | Quick Connect - 0.110" (2.8mm) | - | - | 35gf | 20gf | 0.587" (14.9mm) | 0.157" (4.0mm) | - | - | -25°C ~ 85°C |
|
SAJ25YXWHL147SDTSEQSWITCH SNAP ACTION SPDT 5A 125V |
188 |
|
Datasheet |
SAJ2 | Bulk | Active | SPDT | On-Mom | 5A (AC), 3A (DC) | 125 V | 30 V | Lever, Roller | Chassis Mount | Solder Lug | - | - | 50gf | 60gf | 0.571" (14.5mm) | 0.188" (4.8mm) | 0.031" (0.8mm) | 0.047" (1.2mm) | -40°C ~ 75°C |
|
D2EW-B02HSWITCH PLUNGER SPST-NC 0.1A 12V |
964 |
|
Datasheet |
D2EW | Tray | Active | SPST-NC | On-Mom | 100mA (DC) | - | 12 V | Round (Pin Plunger) | Chassis Mount | Solder Lug | IP67 - Dust Tight, Waterproof | - | 122gf | 10gf | 0.280" (7.1mm) | - | 0.010" (0.25mm) | 0.065" (1.7mm) | -40°C ~ 85°C |
|
AH1764619-ASWITCH SNAP ACT SPDT 0.1A 125V |
498 |
|
Datasheet |
AH1 | Tube | Active | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Lever, Simulated Roller | Through Hole, Right Angle | PC Pin | - | Actuator Mounted Right Side | 55gf | 4.079gf | 0.374" (9.5mm) | 0.083" (2.1mm) | 0.020" (0.5mm) | 0.020" (0.5mm) | -25°C ~ 85°C |
|
D3SK-B1LSWITCH DETECT SPST-NC 0.001A 5V |
1,700 |
|
Datasheet |
D3SK | Tape & Reel (TR) | Active | SPST-NC | On-Mom | 1mA (DC) | - | 5 V | Angled Toggle (Detector) | Surface Mount, Right Angle | Gull Wing | - | Board Guide, Left Operating Lever | 41gf | - | 0.185" (4.7mm) | - | - | - | -25°C ~ 85°C |
|
|
D2FP-FN2SWITCH OPTICAL W/ HIGH DURABIL |
624 |
|
- |
D2FP | Bag | Active | SPST-NO | Off-Mom | - | - | - | Round (Pin Plunger) | Through Hole | PC Pin | - | - | 60gf | 24gf | 0.289" (7.35mm) | 0.012" (0.3mm) | - | - | 5°C ~ 40°C |
|
SS-5GL2-F-3TSWITCH SNAP ACT SPST-NO 5A 125V |
190 |
|
Datasheet |
SS | Bulk | Active | SPST-NO | Off-Mom | 5A (AC) | 125 V | - | Lever, Roller | Chassis Mount | Quick Connect - 0.110"/0.187" | IP40 | - | 16gf | 2.039gf | 0.571" (14.5mm) | - | 0.031" (0.8mm) | 0.047" (1.2mm) | -25°C ~ 85°C |
Limit Switches Electronic Components
Explore Limit Switches electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
