IGBT Modules
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | IGBT Type | Configuration | Voltage - Collector Emitter Breakdown (Max) | Current - Collector (Ic) (Max) | Power - Max | Vce(on) (Max) @ Vge, Ic | Current - Collector Cutoff (Max) | Input Capacitance (Cies) @ Vce | Input | NTC Thermistor | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FF450R17ME4B11BPSA1MEDIUM POWER ECONO AG-ECONOD-311 |
6,504 |
|
- |
EconoDUAL™ 3 | Module | Tray | Active | Trench Field Stop | 2 Independent | 1700 V | 600 A | 2500 W | 2.3V @ 15V, 450A | 3 mA | 36 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | AG-ECONOD |
|
|
IFT150B12N3E4BOSA1MOD IGBT LOW PWR ECONO |
9,407 |
|
- |
MIPAQ™ | - | Tray | Not For New Designs | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
MG12400D-BN2MMIGBT MODULE 1200V 580A 1925W D3 |
9,523 |
|
- |
- | Module | Bulk | Obsolete | Trench Field Stop | Half Bridge | 1200 V | 580 A | 1925 W | 1.7V @ 15V, 400A (Typ) | 2 mA | 28 nF @ 25 V | Standard | No | -40°C ~ 125°C (TJ) | Chassis Mount | D3 |
|
CM150RX-24SIGBT MOD 1200V 150A 1150W |
9,396 |
|
- |
IGBTMOD™ | Module | Bulk | Discontinued at Digi-Key | - | Three Phase Inverter with Brake | 1200 V | 150 A | 1150 W | 2.15V @ 15V, 150A | 1 mA | 15 nF @ 10 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
|
CM600HA-12HIGBT MOD 600V 600A 2100W |
8,409 |
|
- |
IGBTMOD™ | Module | Bulk | Obsolete | - | Single | 600 V | 600 A | 2100 W | 2.8V @ 15V, 600A | 1 mA | 60 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
APTGT100DU170TGIGBT MODULE 1700V 150A 560W SP4 |
3,859 |
|
- |
- | SP4 | Bulk | Active | Trench Field Stop | Dual, Common Source | 1700 V | 150 A | 560 W | 2.4V @ 15V, 100A | 250 µA | 9 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | SP4 |
|

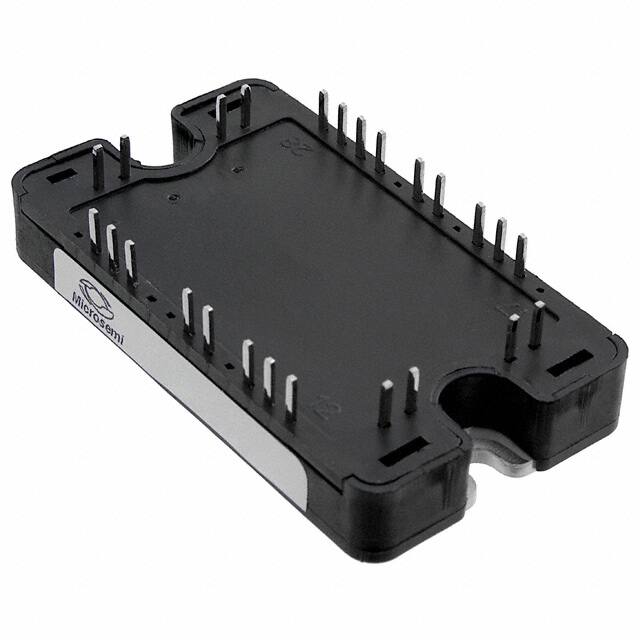

APTGT100A170TGIGBT MODULE 1700V 150A 560W SP4 |
8,069 |
|
- |
- | SP4 | Bulk | Active | Trench Field Stop | Half Bridge | 1700 V | 150 A | 560 W | 2.4V @ 15V, 100A | 250 µA | 9 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | SP4 |
|
MG12600WB-BR2MMIGBT MODULE 1200V 750A 2500W WB |
1 |
|
- |
- | Module | Bulk | Obsolete | Trench Field Stop | Half Bridge | 1200 V | 750 A | 2500 W | 2.5V @ 15V, 600A | 100 µA | 60.5 nF @ 25 V | Standard | Yes | -40°C ~ 150°C | Chassis Mount | WB |
|
|
CM30TF-24HIGBT MOD 1200V 30A 310W |
2,768 |
|
- |
IGBTMOD™ | Module | Bulk | Obsolete | - | Three Phase Inverter | 1200 V | 30 A | 310 W | 3.4V @ 15V, 30A | 1 mA | 6 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|

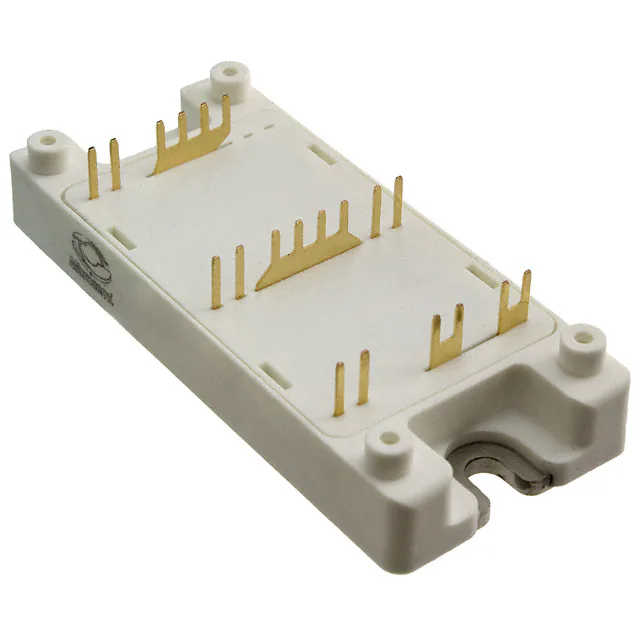

APTGT300A60TGIGBT MODULE 600V 430A 935W SP4 |
3,633 |
|
- |
- | SP4 | Bulk | Active | Trench Field Stop | Half Bridge | 600 V | 430 A | 935 W | 1.9V @ 15V, 300A | 350 µA | 18.4 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | SP4 |
|
|
NXH600B100H4Q2F2PGMASS MARKET GEN3 Q2BOOST WITH PR |
7,860 |
|
- |
- | Module | Tray | Active | Trench Field Stop | Three Phase Inverter | 1 kV | 192 A | 511 W | 2.3V @ 15V, 200A | 10 µA | 13256 pF @ 20 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | 44-PIM (93x47) |
|
|
APTGT450DU60GIGBT MODULE 600V 550A 1750W SP6 |
2,402 |
|
- |
- | SP6 | Bulk | Obsolete | Trench Field Stop | Dual, Common Source | 600 V | 550 A | 1750 W | 1.8V @ 15V, 450A | 500 µA | 37 nF @ 25 V | Standard | No | -40°C ~ 175°C (TJ) | Chassis Mount | SP6 |
|
APTGT150DU120TGIGBT MODULE 1200V 220A 690W SP4 |
2,432 |
|
- |
- | SP4 | Bulk | Active | Trench Field Stop | Dual, Common Source | 1200 V | 220 A | 690 W | 2.1V @ 15V, 150A | 250 µA | 10.7 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | SP4 |
|
|
APTGT150A120TGIGBT MODULE 1200V 220A 690W SP4 |
2,954 |
|
- |
- | SP4 | Bulk | Active | Trench Field Stop | Half Bridge | 1200 V | 220 A | 690 W | 2.1V @ 15V, 150A | 250 µA | 10.7 nF @ 25 V | Standard | Yes | - | Chassis Mount | SP4 |
|
|
CM600HA-5FIGBT MOD 250V 600A 960W |
5,475 |
|
- |
IGBTMOD™ | Module | Bulk | Discontinued at Digi-Key | Trench | Single | 250 V | 600 A | 960 W | 1.7V @ 10V, 600A | 1 mA | 165 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
|
MDI550-12A4IGBT MOD 1200V 670A 2750W Y3DCB |
8,514 |
|
- |
- | Y3-DCB | Box | Obsolete | NPT | Single | 1200 V | 670 A | 2750 W | 2.8V @ 15V, 400A | 21 mA | 26 nF @ 25 V | Standard | No | 150°C (TJ) | Chassis Mount | Y3-DCB |
|
|
MID550-12A4IGBT MOD 1200V 670A 2750W Y3DCB |
8,145 |
|
- |
- | Y3-DCB | Box | Obsolete | NPT | Single | 1200 V | 670 A | 2750 W | 2.8V @ 15V, 400A | 21 mA | 26 nF @ 25 V | Standard | No | 150°C (TJ) | Chassis Mount | Y3-DCB |
|
|
MG150J7KS61IGBT MOD 600V 150A 750W |
5,185 |
|
- |
IGBTMOD™ | Module | Bulk | Obsolete | - | Three Phase Inverter with Brake | 600 V | 150 A | 750 W | 2.3V @ 15V, 150A | 1 mA | 30 nF @ 10 V | Standard | Yes | -20°C ~ 150°C (TJ) | Chassis Mount | Module |
|

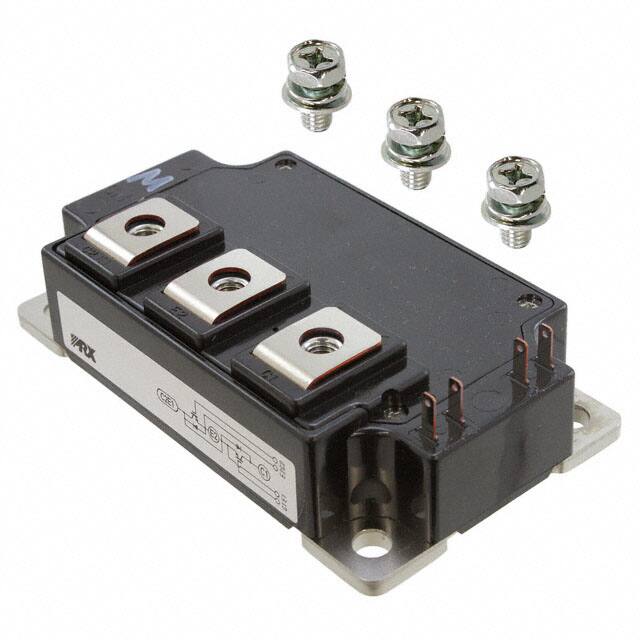

CM400DU-12NFHIGBT MOD 600V 400A 960W |
7,489 |
|
- |
IGBTMOD™ | Module | Bulk | Discontinued at Digi-Key | - | Half Bridge | 600 V | 400 A | 960 W | 2.7V @ 15V, 400A | 1 mA | 110 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
|
MII300-12A4IGBT MOD 1200V 330A 1380W Y3DCB |
3,889 |
|
- |
- | Y3-DCB | Box | Obsolete | NPT | Half Bridge | 1200 V | 330 A | 1380 W | 2.7V @ 15V, 200A | 13 mA | 13 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Y3-DCB |
IGBT Modules Electronic Components
Explore IGBT Modules electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
