IGBT Modules
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | IGBT Type | Configuration | Voltage - Collector Emitter Breakdown (Max) | Current - Collector (Ic) (Max) | Power - Max | Vce(on) (Max) @ Vge, Ic | Current - Collector Cutoff (Max) | Input Capacitance (Cies) @ Vce | Input | NTC Thermistor | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

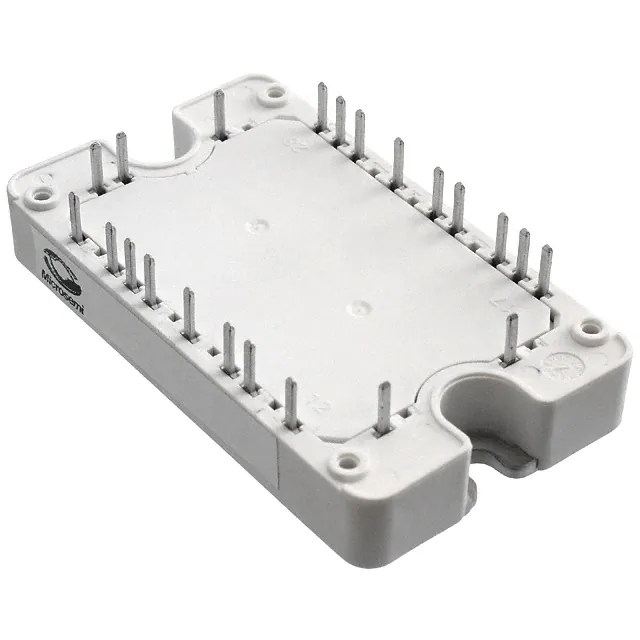

APTCV60HM45BC20T3GIGBT MODULE 600V 50A 250W SP3 |
3,688 |
|
- |
- | SP3 | Bulk | Active | Trench Field Stop | Boost Chopper, Full Bridge | 600 V | 50 A | 250 W | 1.9V @ 15V, 50A | 250 µA | 3.15 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | SP3 |
|
CM300DU-12FIGBT MOD 600V 300A 830W |
3,173 |
|
- |
IGBTMOD™ | Module | Bulk | Discontinued at Digi-Key | Trench | Half Bridge | 600 V | 300 A | 830 W | 2.2V @ 15V, 300A | 1 mA | 81 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|

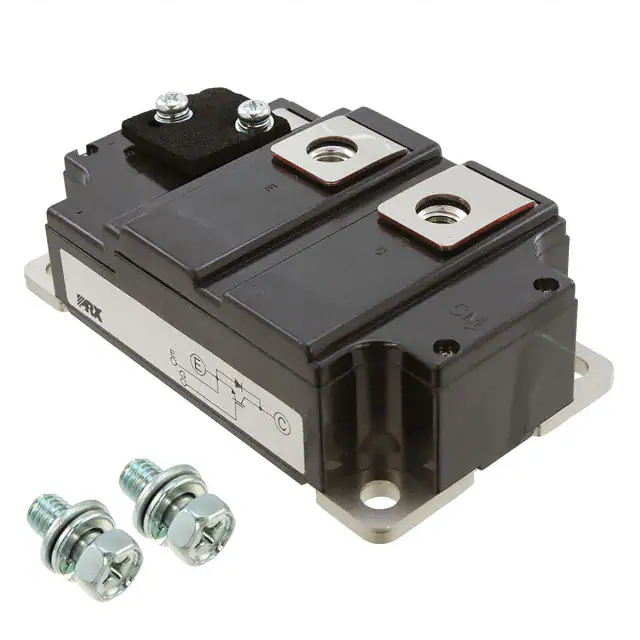

CM600HU-12FIGBT MOD 600V 600A 1420W |
2,800 |
|
- |
IGBTMOD™ | Module | Bulk | Discontinued at Digi-Key | Trench | Single | 600 V | 600 A | 1420 W | 2.2V @ 15V, 600A | 1 mA | 160 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
|
MKI100-12F8IGBT MODULE 1200V 125A 640W E3 |
2,483 |
|
- |
- | E3 | Box | Obsolete | NPT | Full Bridge Inverter | 1200 V | 125 A | 640 W | 3.9V @ 15V, 100A | 1.3 mA | 6.5 nF @ 25 V | Standard | No | -40°C ~ 125°C (TJ) | Chassis Mount | E3 |
|
|
FF600R12KE7PHPSA1MEDIUM POWER 62MM |
2,013 |
|
- |
C, TRENCHSTOP™ | Module | Tray | Active | Trench Field Stop | Half Bridge Inverter | 1200 V | 600 A | - | 1.75V @ 15V, 600A | 100 µA | 92300 pF @ 25 V | Standard | No | -40°C ~ 175°C (TJ) | Chassis Mount | AG-62MMHB |
|
|
FF600R12KE7PEHPSA1MEDIUM POWER 62MM |
8,619 |
|
- |
C, TRENCHSTOP™ | Module | Tray | Active | Trench Field Stop | Half Bridge Inverter | 1200 V | 600 A | - | 1.75V @ 15V, 600A | 100 µA | 92300 pF @ 25 V | Standard | No | -40°C ~ 175°C (TJ) | Chassis Mount | AG-62MMHB |
|
CM300DY-24SIGBT MOD 1200V 300A 2270W |
3,055 |
|
- |
- | Module | Bulk | Discontinued at Digi-Key | - | Half Bridge | 1200 V | 300 A | 2270 W | 2.25V @ 15V, 300A | 1 mA | 30 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
MG06400D-BN4MMIGBT MODULE 600V 400A 1250W D3 |
3,418 |
|
- |
- | D-3 Module | Bulk | Obsolete | - | Half Bridge | 600 V | 500 A | 1250 W | 1.45V @ 15V, 400A (Typ) | 1 mA | 26 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | D3 |
|
CM100RX-24SIGBT MOD 1200V 100A 750W |
5,926 |
|
- |
IGBTMOD™ | Module | Bulk | Discontinued at Digi-Key | - | Three Phase Inverter with Brake | 1200 V | 100 A | 750 W | 2.15V @ 15V, 100A | 1 mA | 10 nF @ 10 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
CM400DX-12AIGBT MOD 600V 400A 1340W |
9,377 |
|
- |
IGBTMOD™ | Module | Bulk | Obsolete | - | Half Bridge | 600 V | 400 A | 1340 W | 2.1V @ 15V, 400A | 1 mA | 50 nF @ 10 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
|
CM20TF-24HIGBT MOD 1200V 20A 250W |
3,109 |
|
- |
IGBTMOD™ | Module | Bulk | Obsolete | - | Three Phase Inverter | 1200 V | 20 A | 250 W | 3.4V @ 15V, 20A | 1 mA | 4 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
|
IFS200B12N3E4B31BPSA1IGBT MOD 1200V 400A 940W |
9,413 |
|
- |
MIPAQ™ | Module | Tray | Active | Trench Field Stop | Full Bridge | 1200 V | 400 A | 940 W | 2.1V @ 15V, 200A | 1 mA | 14 nF @ 25 V | Standard | Yes | -40°C ~ 150°C | Chassis Mount | Module |
|
|
MUBW50-17T8IGBT MODULE 1700V 74A 290W E3 |
3,740 |
|
- |
- | E3 | Box | Active | Trench | Three Phase Inverter with Brake | 1700 V | 74 A | 290 W | 2.4V @ 15V, 50A | 400 µA | 4.4 nF @ 25 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 125°C (TJ) | Chassis Mount | E3 |
|

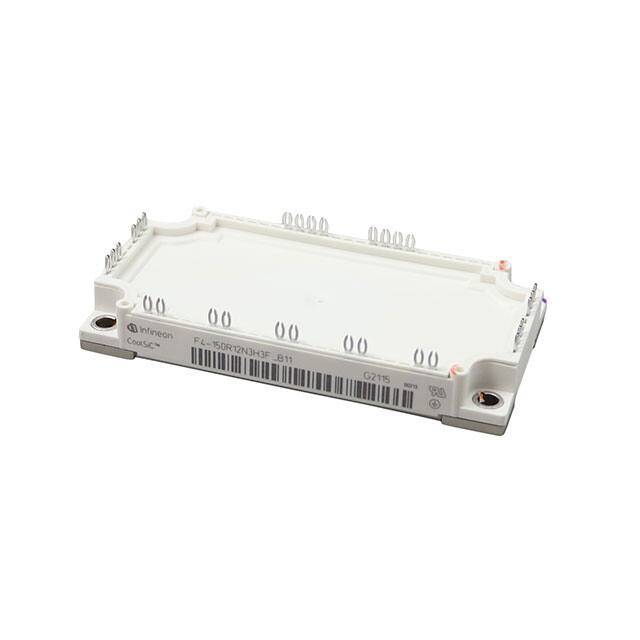

F4150R12N3H3FB11BPSA1LOW POWER ECONO AG-ECONO3B-411 |
1 |
|
- |
* | - | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
APTGT50DH170TGIGBT MODULE 1700V 75A 312W SP4 |
4,460 |
|
- |
- | SP4 | Bulk | Active | Trench Field Stop | Asymmetrical Bridge | 1700 V | 75 A | 312 W | 2.4V @ 15V, 50A | 250 µA | 4.4 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | SP4 |
|
APTGL180A120T3AGIGBT MODULE 1200V 230A 940W SP3 |
9,081 |
|
- |
- | SP3 | Bulk | Active | Trench Field Stop | Half Bridge | 1200 V | 230 A | 940 W | 2.2V @ 15V, 150A | 300 µA | 9.3 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | SP3 |
|
MG12100W-XN2MMIGBT MOD 1200V 140A 450W |
6,026 |
|
- |
- | Module | Bulk | Obsolete | Trench Field Stop | Three Phase Inverter | 1200 V | 140 A | 450 W | 1.7V @ 15V, 100A (Typ) | 1 mA | 7.1 nF @ 25 V | Standard | Yes | -40°C ~ 125°C (TJ) | Chassis Mount | Module |
|

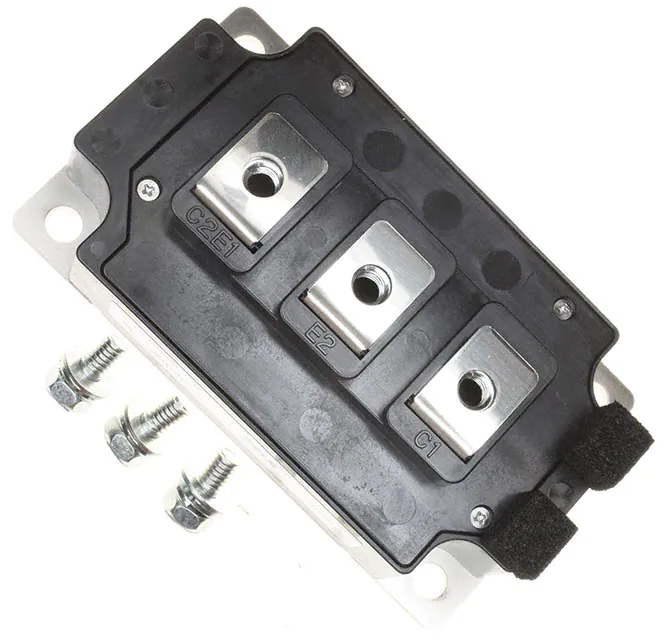

CM300DY-24AIGBT MOD 1200V 300A 1890W |
8,887 |
|
- |
IGBTMOD™ | Module | Bulk | Discontinued at Digi-Key | - | Half Bridge | 1200 V | 300 A | 1890 W | 3V @ 15V, 300A | 1 mA | 47 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
FP150R12KT4B11BPSA1IGBT MODULE 1200V 150A |
8,358 |
|
- |
EconoPIM™ 3 | Module | Tray | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 150 A | - | 2.1V @ 15V, 150A | 1 mA | 9.35 nF @ 25 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
|
APTGT100H60TGIGBT MODULE 600V 150A 340W SP4 |
5,128 |
|
- |
- | SP4 | Bulk | Active | Trench Field Stop | Full Bridge Inverter | 600 V | 150 A | 340 W | 1.9V @ 15V, 100A | 250 µA | 6.1 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | SP4 |
IGBT Modules Electronic Components
Explore IGBT Modules electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
