IGBT Modules
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | IGBT Type | Configuration | Voltage - Collector Emitter Breakdown (Max) | Current - Collector (Ic) (Max) | Power - Max | Vce(on) (Max) @ Vge, Ic | Current - Collector Cutoff (Max) | Input Capacitance (Cies) @ Vce | Input | NTC Thermistor | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
APTGLQ75H120TGIGBT MODULE 1200V 130A 385W SP4 |
5,530 |
|
- |
- | Module | Bulk | Active | Trench Field Stop | Full Bridge | 1200 V | 130 A | 385 W | 2.4V @ 15V, 75A | 50 µA | 4.4 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | SP4 |
|

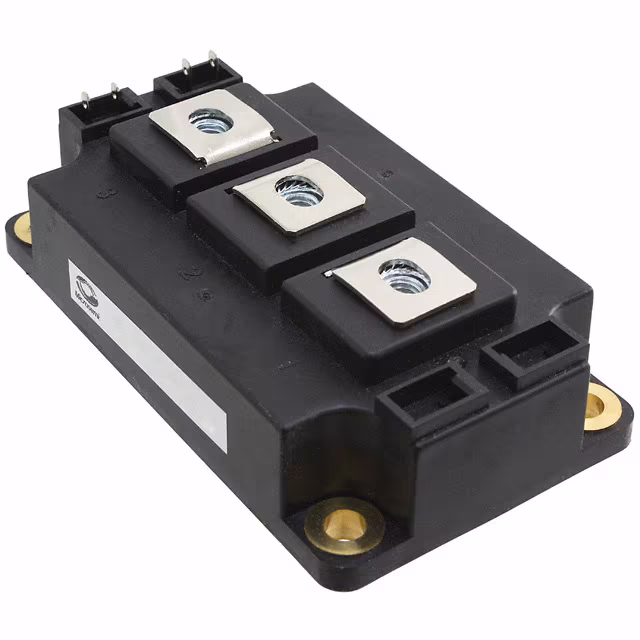

APTGF300A120D3GIGBT MODULE 1200V 420A 2100W D3 |
9,097 |
|
- |
- | D-3 Module | Bulk | Obsolete | NPT | Half Bridge | 1200 V | 420 A | 2100 W | 3.7V @ 15V, 300A | 5 mA | 19 nF @ 25 V | Standard | No | - | Chassis Mount | D3 |
|

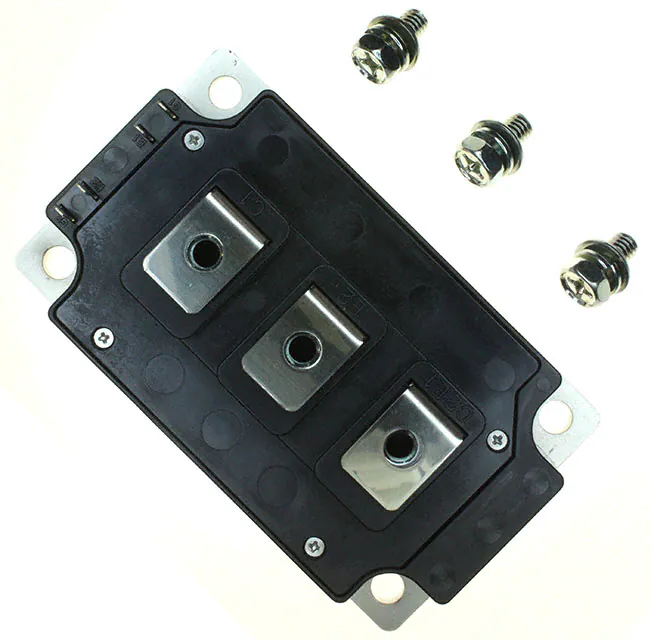

CM400DY-12NFIGBT MOD 600V 400A 1130W |
2,897 |
|
- |
IGBTMOD™ | Module | Bulk | Discontinued at Digi-Key | - | Half Bridge | 600 V | 400 A | 1130 W | 2.2V @ 15V, 400A | 1 mA | 60 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
|
MIXG180W1200PTEHIGBT MODULE - SIXPACK E3-PACK-PF |
9,194 |
|
- |
- | - | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MIXG180W1200TEHIGBT MODULE - SIXPACK E3-PACK-PF |
3,279 |
|
- |
- | Module | Box | Active | - | Three Phase Inverter | 1200 V | 280 A | 935 W | 2V @ 15V, 150A | 500 µA | 8.5 nF @ 100 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | E3 |
|
APTGT150A120T3AGIGBT MODULE 1200V 220A 833W SP3 |
2,813 |
|
- |
- | SP3 | Bulk | Active | Trench Field Stop | Half Bridge | 1200 V | 220 A | 833 W | 2.1V @ 15V, 150A | 250 µA | 10.7 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | SP3 |
|
|
FF600R12ME4B73BPSA2MEDIUM POWER ECONO AG-ECONOD-411 |
2,231 |
|
- |
EconoDUAL™ 3 | Module | Tray | Active | Trench Field Stop | 2 Independent | 1200 V | 600 A | - | 2.1V @ 15V, 600A | 3 mA | 37 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | AG-ECONOD |
|
CM400HU-24FIGBT MOD 1200V 400A 1600W |
8,713 |
|
- |
IGBTMOD™ | Module | Bulk | Discontinued at Digi-Key | Trench | Single | 1200 V | 400 A | 1600 W | 2.4V @ 15V, 400A | 2 mA | 160 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
|
MIXG490PF1200TSFIGBT MODULE - PHASELEG SIMBUS F- |
2,875 |
|
- |
- | - | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MIXG180W1200PT-PCIGBT MODULE MIXG180W1200PTEH-PC |
2,236 |
|
- |
- | - | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MG200Q2YS60AIGBT MOD 1200V 200A 2000W |
8,555 |
|
- |
IGBTMOD™ | Module | Bulk | Obsolete | - | Half Bridge | 1200 V | 200 A | 2000 W | 2.8V @ 15V, 200A | 1 mA | 15 nF @ 10 V | Standard | No | -20°C ~ 150°C (TJ) | Chassis Mount | Module |
|
APTGT150DA120GIGBT MODULE 1200V 220A 690W SP6 |
2,069 |
|
- |
- | SP6 | Bulk | Active | Trench Field Stop | Single | 1200 V | 220 A | 690 W | 2.1V @ 15V, 150A | 350 µA | 10.7 nF @ 25 V | Standard | No | - | Chassis Mount | SP6 |
|
APTGT150SK120GIGBT MODULE 1200V 220A 690W SP6 |
6,679 |
|
- |
- | SP6 | Bulk | Active | Trench Field Stop | Single | 1200 V | 220 A | 690 W | 2.1V @ 15V, 150A | 350 µA | 10.7 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | SP6 |
|
|
CM150RL-12NFIGBT MOD 600V 150A 730W |
9,189 |
|
- |
IGBTMOD™ | Module | Bulk | Obsolete | - | Three Phase Inverter with Brake | 600 V | 150 A | 730 W | 2.2V @ 15V, 150A | 1 mA | 23 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
|
BSM25GD120DN2BOSA1IGBT MOD 1200V 35A 200W |
7,909 |
|
- |
- | Module | Tray | Obsolete | - | Full Bridge | 1200 V | 35 A | 200 W | 3V @ 15V, 25A | 800 µA | 1.65 nF @ 25 V | Standard | No | 150°C (TJ) | Chassis Mount | Module |
|
|
MIXG300PF1700TSFIGBT MODULE - PHASELEG SIMBUS F- |
9,976 |
|
- |
- | SimBus F | Box | Active | PT | Single | - | - | - | - | - | - | Standard | No | - | Chassis Mount | SimBus F |
|
|
CM150RX-12AIGBT MOD 600V 150A 520W |
8,156 |
|
- |
IGBTMOD™ | Module | Bulk | Discontinued at Digi-Key | - | Three Phase Inverter with Brake | 600 V | 150 A | 520 W | 2.1V @ 15V, 150A | 1 mA | 18 nF @ 10 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
|
APTGT300DA60D3GIGBT MODULE 600V 400A 940W D3 |
8,850 |
|
- |
- | D-3 Module | Bulk | Active | Trench Field Stop | Single | 600 V | 400 A | 940 W | 1.9V @ 15V, 300A | 500 µA | 18.5 nF @ 25 V | Standard | No | -40°C ~ 175°C (TJ) | Chassis Mount | D3 |
|
APTGT300SK60D3GIGBT MODULE 600V 400A 940W D3 |
9,784 |
|
- |
- | D-3 Module | Bulk | Active | Trench Field Stop | Single | 600 V | 400 A | 940 W | 1.9V @ 15V, 300A | 500 µA | 18.5 nF @ 25 V | Standard | No | - | Chassis Mount | D3 |
|
|
MIF600R12E3TL-BPIGBT MODULES,E3 |
4,371 |
|
- |
- | Module | Bulk | Active | - | Half Bridge | 1200 V | 600 A | 3.26 kW | 1.5V @ 15V, 600A | 1 mA | 44000 pF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | E3 |
IGBT Modules Electronic Components
Explore IGBT Modules electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
