IGBT Modules
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | IGBT Type | Configuration | Voltage - Collector Emitter Breakdown (Max) | Current - Collector (Ic) (Max) | Power - Max | Vce(on) (Max) @ Vge, Ic | Current - Collector Cutoff (Max) | Input Capacitance (Cies) @ Vce | Input | NTC Thermistor | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MIEB101W1200EHIGBT MODULE 1200V 183A 630W E3 |
6,566 |
|
- |
- | E3 | Box | Obsolete | - | Three Phase Inverter | 1200 V | 183 A | 630 W | 2.2V @ 15V, 100A | 300 µA | 7.43 nF @ 25 V | Standard | No | -40°C ~ 125°C (TJ) | Chassis Mount | E3 |
|
|
MIF450R12C2TL-BPGBT MODULES |
7,449 |
|
- |
- | Module | Tape & Reel (TR) | Active | - | Half Bridge Inverter | 1200 V | 450 A | 2307 W | 2.35V @ 15V, 450A | 1 mA | 25000 pF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | - |
|
CM150RX-24S1IGBT MOD 1200V 150A 935W |
7,547 |
|
- |
- | Module | Bulk | Discontinued at Digi-Key | - | Three Phase Inverter with Brake | 1200 V | 150 A | 935 W | 2.25V @ 15V, 150A | 1 mA | 15 nF @ 10 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
|
MII200-12A4IGBT MOD 1200V 270A 1130W Y3DCB |
5,390 |
|
- |
- | Y3-DCB | Box | Obsolete | NPT | Half Bridge | 1200 V | 270 A | 1130 W | 2.7V @ 15V, 150A | 10 mA | 11 nF @ 25 V | Standard | No | 150°C (TJ) | Chassis Mount | Y3-DCB |
|

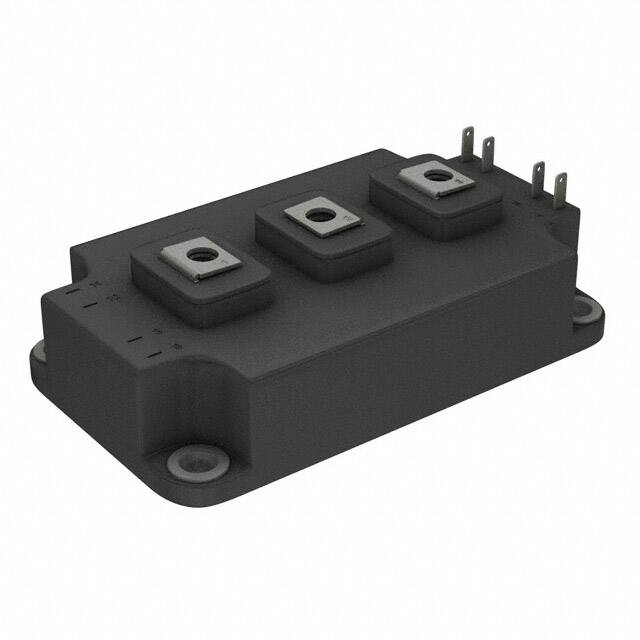

GA400TD25SIGBT MOD 250V 400A INT-A-PAK |
2,308 |
|
- |
- | Dual INT-A-PAK (3 + 8) | Tube | Obsolete | - | Half Bridge | 250 V | 400 A | 1350 W | 1.6V @ 15V, 400A | 500 µA | 36 nF @ 30 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Dual INT-A-PAK |
|
|
CM100TL-12NFIGBT MOD 600V 100A 540W |
9,370 |
|
- |
IGBTMOD™ | Module | Bulk | Discontinued at Digi-Key | - | Three Phase Inverter | 600 V | 100 A | 540 W | 2.2V @ 15V, 100A | 1 mA | 15 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
FP100R12N2T7BPSA1LOW POWER ECONO AG-ECONO2-4 |
5,925 |
|
- |
EconoPIM™ 2 | Module | Tray | Discontinued at Digi-Key | Trench Field Stop | Three Phase Inverter | 1200 V | 100 A | - | 1.5V @ 15V, 100A | 10 µA | 21.7 nF @ 25 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | AG-ECONO2B |
|
FP150R12KT4PB11BPSA1IGBT MODULE 1200V 150A |
7,519 |
|
- |
EconoPIM™ 3 | Module | Tray | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 150 A | - | 2.1V @ 15V, 150A | 1 mA | 9.35 nF @ 25 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
|
CM300DU-12HIGBT MOD 600V 300A 890W |
9,817 |
|
- |
IGBTMOD™ | Module | Bulk | Obsolete | - | Half Bridge | 600 V | 300 A | 890 W | 3V @ 15V, 300A | 1 mA | 26.4 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
|
CM100TU-12HIGBT MOD 600V 100A 400W |
8,531 |
|
- |
IGBTMOD™ | Module | Bulk | Obsolete | - | Three Phase Inverter | 600 V | 100 A | 400 W | 3V @ 15V, 100A | 1 mA | 8.8 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
|
MIXA150W1200TEHIGBT MODULE 1200V 220A 695W E3 |
3,204 |
|
- |
- | E3 | Box | Active | PT | Three Phase Inverter | 1200 V | 220 A | 695 W | 2.1V @ 15V, 150A | 500 µA | - | Standard | Yes | -40°C ~ 125°C (TJ) | Chassis Mount | E3 |
|
|
APTGF400U120D4GIGBT MODULE 1200V 510A 2500W D4 |
4,428 |
|
- |
- | D4 | Bulk | Obsolete | NPT | Single | 1200 V | 510 A | 2500 W | 3.7V @ 15V, 400A | 5 mA | 26 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | D4 |
|
CM300DX-24AIGBT MOD 1200V 300A 1890W |
2,530 |
|
- |
IGBTMOD™ | Module | Bulk | Obsolete | - | Half Bridge | 1200 V | 300 A | 1890 W | 2.6V @ 15V, 300A | 1 mA | 47 nF @ 10 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
|
CM100RL-24NFIGBT MOD 1200V 100A 620W |
5,365 |
|
- |
IGBTMOD™ | Module | Bulk | Obsolete | - | Three Phase Inverter with Brake | 1200 V | 100 A | 620 W | 3V @ 15V, 100A | 1 mA | 17.5 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
FF450R06ME3BOSA1IGBT MOD 600V 550A 1250W |
9,237 |
|
- |
EconoDUAL™ 3 | Module | Tray | Not For New Designs | Trench Field Stop | 2 Independent | 600 V | 550 A | 1250 W | 1.9V @ 15V, 450A | 5 mA | 28 nF @ 25 V | Standard | Yes | -40°C ~ 150°C | Chassis Mount | Module |
|
MG06600WB-BN4MMIGBT MOD 600V 600A 1500W |
4,087 |
|
- |
- | Module | Bulk | Obsolete | - | Half Bridge | 600 V | 700 A | 1500 W | 1.45V @ 15V, 600A (Typ) | 1 mA | 39 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
|
APTGLQ200A120T3AGIGBT MOD 1200V 400A 1250W SP3F |
6,728 |
|
- |
- | Module | Bulk | Active | Trench Field Stop | 2 Independent | 1200 V | 400 A | 1250 W | 2.4V @ 15V, 160A | 100 µA | 9.3 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | SP3F |
|
|
CM75TL-12NFIGBT MODULE 600V 75A 430W |
3,379 |
|
- |
IGBTMOD™ | Module | Bulk | Discontinued at Digi-Key | - | Three Phase Inverter | 600 V | 75 A | 430 W | 2.2V @ 15V, 75A | 1 mA | 11.3 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
|
CM75TL-24NFIGBT MOD 1200V 75A 520W |
2,713 |
|
- |
IGBTMOD™ | Module | Bulk | Discontinued at Digi-Key | - | Three Phase Inverter | 1200 V | 75 A | 520 W | 3V @ 15V, 75A | 1 mA | 11.5 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
F423MR12W1M1B11BOMA1LOW POWER EASY |
1 |
|
- |
EasyPACK™ | Module | Tray | Obsolete | Trench | Full Bridge | 1200 V | 50 A | - | - | - | 3.68 nF @ 800 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | AG-EASY1BM-2 |
IGBT Modules Electronic Components
Explore IGBT Modules electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
