| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | IGBT Type | Configuration | Voltage - Collector Emitter Breakdown (Max) | Current - Collector (Ic) (Max) | Power - Max | Vce(on) (Max) @ Vge, Ic | Current - Collector Cutoff (Max) | Input Capacitance (Cies) @ Vce | Input | NTC Thermistor | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FF450R12ME7PB11BPSA1MEDIUM POWER ECONO |
9,427 |
|
- |
- | - | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MIP100R12E2TN-BPGBT MODULES |
4,996 |
|
- |
- | Module | Tape & Reel (TR) | Active | - | Three Phase Inverter | 1200 V | 100 A | 555 W | 2.25V @ 15V, 100A | 1 mA | 6800 pF @ 25 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | - |
|
APTGF150H120GIGBT MODULE 1200V 200A 961W SP6 |
2,698 |
|
- |
- | SP6 | Bulk | Obsolete | NPT | Full Bridge Inverter | 1200 V | 200 A | 961 W | 3.7V @ 15V, 150A | 350 µA | 10.2 nF @ 25 V | Standard | No | - | Chassis Mount | SP6 |
|
|
FP150R12N3T4PB81BPSA1LOW POWER ECONO |
4,504 |
|
- |
- | - | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
MG12300WB-BN2MMIGBT MODULE 1200V 500A 1400W WB |
4,424 |
|
- |
- | Module | Bulk | Obsolete | Trench Field Stop | Half Bridge | 1200 V | 500 A | 1400 W | 1.7V @ 15V, 300A (Typ) | 1 mA | 21 nF @ 25 V | Standard | Yes | -40°C ~ 125°C (TJ) | Chassis Mount | WB |
|

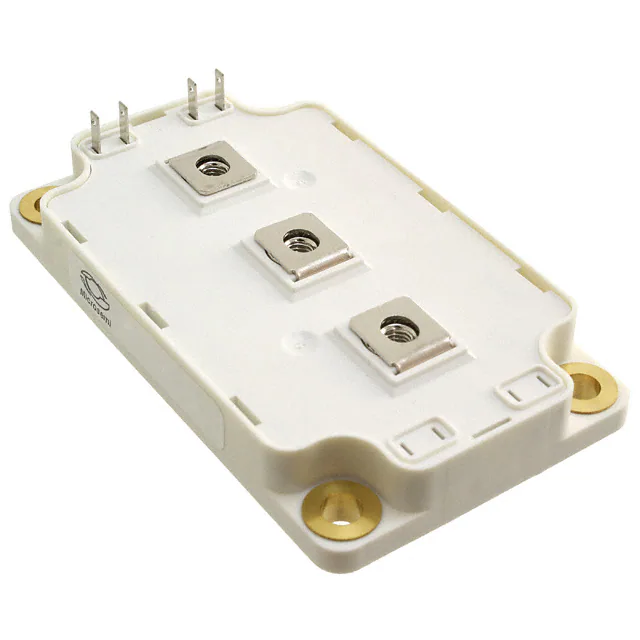

APTGF300A120GIGBT MODULE 1200V 400A 1780W SP6 |
6,612 |
|
- |
- | SP6 | Bulk | Obsolete | NPT | Half Bridge | 1200 V | 400 A | 1780 W | 3.9V @ 15V, 300A | 500 µA | 21 nF @ 25 V | Standard | No | - | Chassis Mount | SP6 |
|
|
FP150R12N3T7PB11BPSA1LOW POWER ECONO |
9,786 |
|
- |
EconoPIM™3 | Module | Tray | Active | Trench Field Stop | Three Phase Inverter with Brake | 1200 V | 150 A | - | 1.8V @ 15V, 150A | 12 µA | 30.1 nF @ 25 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | AG-ECONO3 |
|
MG12300D-BN3MMIGBT MODULE 1200V 450A 1450W D3 |
3,097 |
|
- |
- | D-3 Module | Bulk | Obsolete | - | Half Bridge | 1200 V | 450 A | 1450 W | 3.2V @ 15V, 300A | 2 mA | 22 nF @ 25 V | Standard | No | -40°C ~ 125°C (TJ) | Chassis Mount | D3 |
|
|
CM100RX-24AIGBT MOD 1200V 100A 625W |
8,127 |
|
- |
IGBTMOD™ | Module | Bulk | Obsolete | - | Three Phase Inverter with Brake | 1200 V | 100 A | 625 W | 2.6V @ 15V, 100A | 1 mA | 17.5 nF @ 10 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
|
APTGT100DH120TGIGBT MODULE 1200V 140A 480W SP4 |
5,346 |
|
- |
- | SP4 | Bulk | Active | Trench Field Stop | Asymmetrical Bridge | 1200 V | 140 A | 480 W | 2.1V @ 15V, 100A | 250 µA | 7.2 nF @ 25 V | Standard | Yes | - | Chassis Mount | SP4 |
|
|
APTCV60TLM24T3GIGBT MODULE 600V 100A 250W SP3 |
8,346 |
|
- |
- | Module | Bulk | Active | Trench Field Stop | Three Level Inverter | 600 V | 100 A | 250 W | 1.9V @ 15V, 75A | 250 µA | 4.62 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | SP3 |
|
|
VS-GT300YH120NIGBT MOD 1200V 341A INT-A-PAK |
7,695 |
|
- |
- | Double INT-A-PAK (3 + 8) | Bulk | Active | Trench | Half Bridge | 1200 V | 341 A | 1042 W | 2.17V @ 15V, 300A (Typ) | 300 µA | 36 nF @ 30 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Double INT-A-PAK |
|

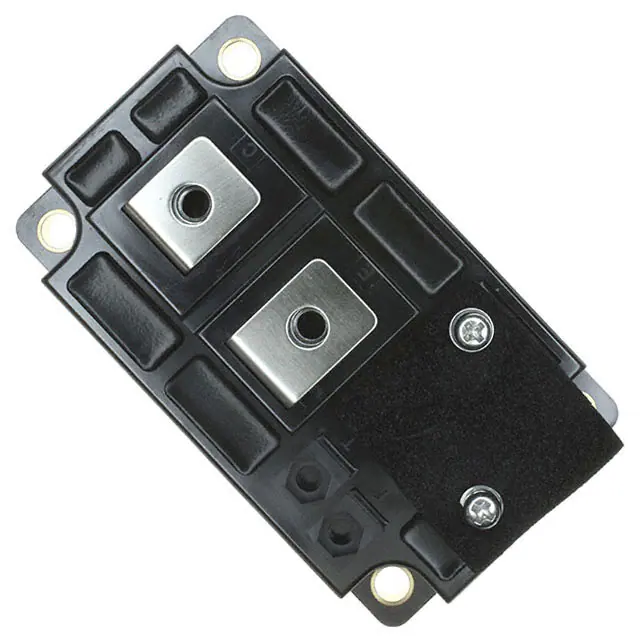

CM600HA-24AIGBT MOD 1200V 600A 3670W |
3,436 |
|
- |
IGBTMOD™ | Module | Bulk | Discontinued at Digi-Key | - | Single | 1200 V | 600 A | 3670 W | 3V @ 15V, 600A | 1 mA | 105 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
|
APTGT50TA60PGIGBT MODULE 600V 80A 176W SP6P |
8,095 |
|
- |
- | SP6 | Bulk | Active | Trench Field Stop | Three Phase | 600 V | 80 A | 176 W | 1.9V @ 15V, 50A | 250 µA | 3.15 nF @ 25 V | Standard | No | -40°C ~ 175°C (TJ) | Chassis Mount | SP6-P |
|
|
APTGT50TDU60PGIGBT MODULE 600V 80A 176W SP6P |
4,168 |
|
- |
- | SP6 | Bulk | Active | Trench Field Stop | Triple, Dual - Common Source | 600 V | 80 A | 176 W | 1.9V @ 15V, 50A | 250 µA | 3.15 nF @ 25 V | Standard | No | -40°C ~ 175°C (TJ) | Chassis Mount | SP6-P |
|
VS-GT300TD60SIGBT MOD 600V 580A INT-A-PAK |
2,554 |
|
- |
FRED Pt® | Module | Tube | Active | Trench Field Stop | Half Bridge | 600 V | 466 A | 882 W | 1.47V @ 15V, 300A | 200 µA | 24.2 nF @ 25 V | Standard | No | -40°C ~ 175°C (TJ) | Chassis Mount | INT-A-PAK |
|
|
FF800R12KE7PEHPSA1MEDIUM POWER 62MM |
6,267 |
|
- |
- | Module | Tray | Active | Trench Field Stop | Half Bridge | - | - | - | - | - | - | Standard | No | - | Chassis Mount | AG-62MMHB |
|
|
FF800R12KE7PHPSA1MEDIUM POWER 62MM |
5,675 |
|
- |
- | Module | Tray | Active | Trench Field Stop | Half Bridge | - | - | - | - | - | - | Standard | No | - | Chassis Mount | AG-62MMHB |
|
|
APTGLQ150A120TGIGBT MODULE 1200V 250A 750W SP4 |
7,575 |
|
- |
- | Module | Bulk | Active | Trench Field Stop | Half Bridge | 1200 V | 250 A | 750 W | 2.4V @ 15V, 150A | 100 µA | 8.8 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | SP4 |
|
IFF450B12ME4S8PB11BPSA1IGBT MOD 1200V 450A 20MW ECONO |
2,851 |
|
- |
EconoDUAL™ 3 | Module | Tray | Active | Trench Field Stop | Half Bridge | 1200 V | 450 A | - | 2.1V @ 15V, 450A | 3 mA | - | Standard | Yes | -40°C ~ 150°C | Chassis Mount | AG-ECONOD-6 |
IGBT Modules Electronic Components
Explore IGBT Modules electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
