IGBT Modules
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | IGBT Type | Configuration | Voltage - Collector Emitter Breakdown (Max) | Current - Collector (Ic) (Max) | Power - Max | Vce(on) (Max) @ Vge, Ic | Current - Collector Cutoff (Max) | Input Capacitance (Cies) @ Vce | Input | NTC Thermistor | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
NXH600N100L4F5PG15709 F5 INVENTER WITH BASEPLATE |
3,035 |
|
- |
- | - | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
CM400DU-12FIGBT MOD 600V 400A 960W |
5,110 |
|
- |
IGBTMOD™ | Module | Bulk | Discontinued at Digi-Key | Trench | Half Bridge | 600 V | 400 A | 960 W | 2.2V @ 15V, 400A | 1 mA | 110 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
|
F4100R17ME4B11BPSA2MEDIUM POWER ECONO AG-ECONOD-311 |
6,442 |
|
- |
EconoDUAL™ 3 | Module | Tray | Discontinued at Digi-Key | Trench Field Stop | Full Bridge Inverter | 1700 V | 155 A | - | 2.3V @ 15V, 100A | 3 mA | 9 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | AG-ECONOD-6 |
|
|
MIXG450PF1700TSFIGBT MODULE - PHASELEG SIMBUS F- |
6,884 |
|
- |
- | SimBus F | Box | Active | PT | Single | - | - | - | - | - | - | Standard | No | - | Chassis Mount | SimBus F |
|

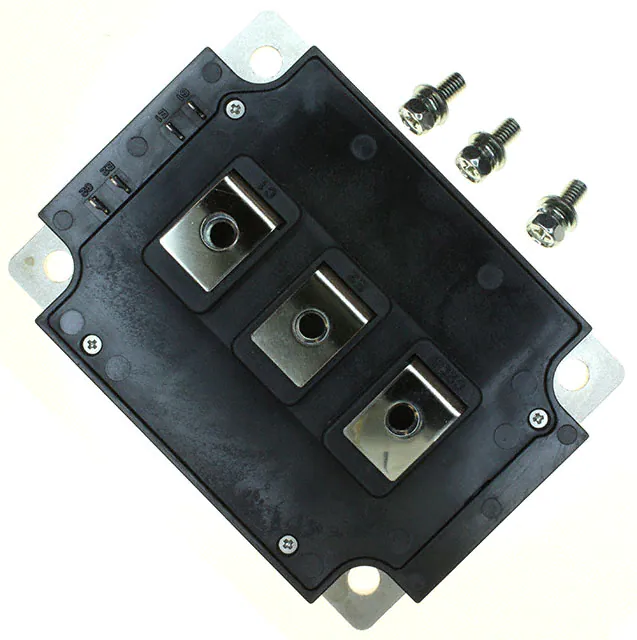

CM300DY-24NFIGBT MOD 1200V 300A 1130W |
5,093 |
|
- |
IGBTMOD™ | Module | Bulk | Discontinued at Digi-Key | - | Half Bridge | 1200 V | 300 A | 1130 W | 2.5V @ 15V, 300A | 1 mA | 70 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|

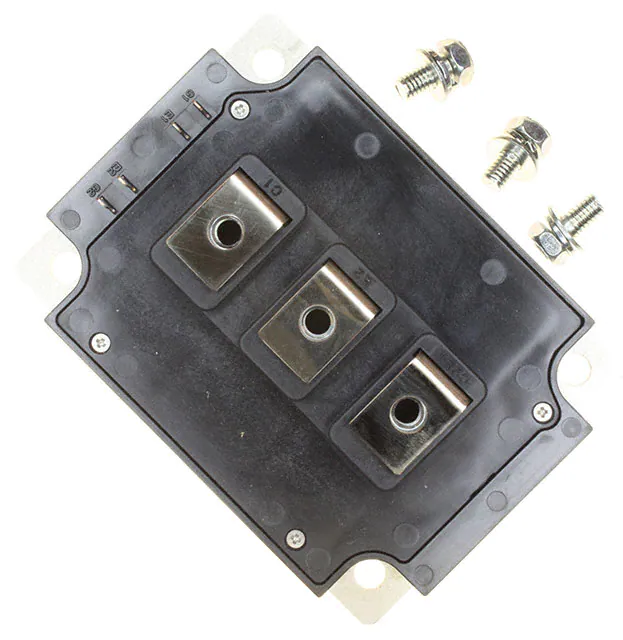

CM400DY-24AIGBT MOD 1200V 400A 2710W |
2,812 |
|
- |
IGBTMOD™ | Module | Bulk | Discontinued at Digi-Key | - | Half Bridge | 1200 V | 400 A | 2710 W | 3V @ 15V, 400A | 1 mA | 70 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
|
IFF600B12ME4B11BPSA1MEDIUM POWER ECONO AG-ECONOD-411 |
4,782 |
|
- |
EconoDUAL™ 3 | Module | Tray | Active | Trench Field Stop | Half Bridge Inverter | 1200 V | 600 A | - | 2.1V @ 15V, 600A | 3 mA | 37 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | AG-ECONOD-5 |
|
|
MWI100-12A8IGBT MODULE 1200V 160A 640W E3 |
5,476 |
|
- |
- | E3 | Box | Obsolete | NPT | Three Phase Inverter | 1200 V | 160 A | 640 W | 2.6V @ 15V, 100A | 6.3 mA | 6.5 nF @ 25 V | Standard | No | -40°C ~ 125°C (TJ) | Chassis Mount | E3 |
|
|
MIXG240W1200PTEHIGBT MODULE - SIXPACK E3-PACK-PF |
3,032 |
|
- |
- | Module | Box | Active | - | Three Phase Inverter | 1200 V | 312 A | 938 W | 2V @ 15V, 200A | 150 µA | 10.6 nF @ 100 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | E3 |
|
|
MIXG240W1200TEHIGBT MODULE - SIXPACK E3-PACK-PF |
4,735 |
|
- |
- | Module | Box | Active | - | Three Phase Inverter | 1200 V | 370 A | 1250 W | 2V @ 15V, 200A | 200 µA | 10.6 nF @ 100 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | E3 |
|
MG12150W-XN2MMIGBT MOD 1200V 200A 625W |
4,578 |
|
- |
- | Module | Bulk | Obsolete | Trench Field Stop | Three Phase Inverter | 1200 V | 200 A | 625 W | 1.7V @ 15V, 150A (Typ) | 1 mA | 10.5 nF @ 25 V | Standard | Yes | -40°C ~ 125°C (TJ) | Chassis Mount | Module |
|
|
IFF600B12ME4S8PB11BOSA1IGBT MOD 1200V 600A 20MW ECONO |
6,685 |
|
- |
EconoDUAL™ 3 | Module | Tray | Active | Trench Field Stop | Half Bridge | 1200 V | 600 A | - | 2.1V @ 15V, 600A | 3 mA | - | Standard | Yes | -40°C ~ 150°C | Chassis Mount | AG-ECONOD-5 |
|
|
APTGT200DH60GIGBT MODULE 600V 290A 625W SP6 |
9,691 |
|
- |
- | SP6 | Bulk | Active | Trench Field Stop | Asymmetrical Bridge | 600 V | 290 A | 625 W | 1.9V @ 15V, 200A | 250 µA | 12.3 nF @ 25 V | Standard | No | -40°C ~ 175°C (TJ) | Chassis Mount | SP6 |
|
|
APTGT200DA120D3GIGBT MODULE 1200V 300A 1050W D3 |
2,401 |
|
- |
- | D-3 Module | Bulk | Active | Trench Field Stop | Single | 1200 V | 300 A | 1050 W | 2.1V @ 15V, 200A | 6 mA | 14 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | D3 |
|
|
MIXG240W1200PT-PCIGBT MODULE MIXG240W1200PTEH-PC |
4,932 |
|
- |
- | - | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

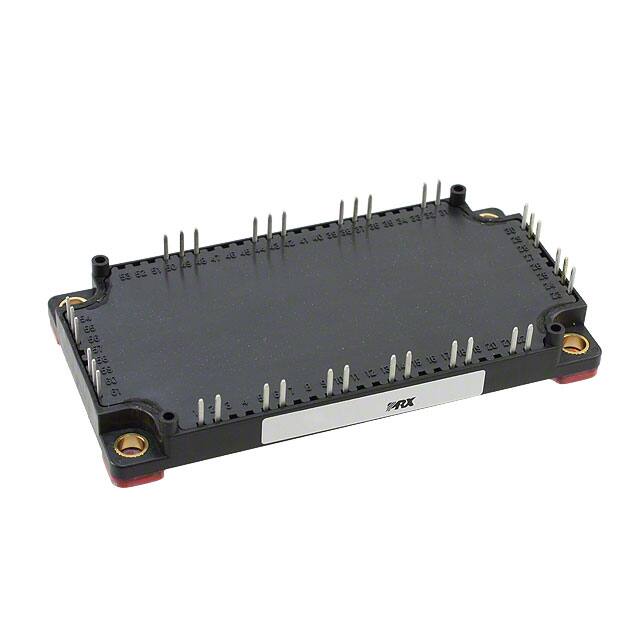

CM150TX-24SIGBT MOD 1200V 150A 1150W |
7,458 |
|
- |
IGBTMOD™ | Module | Bulk | Discontinued at Digi-Key | - | Three Phase Inverter | 1200 V | 150 A | 1150 W | 2.15V @ 15V, 150A | 1 mA | 15 nF @ 10 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
|
MG300Q2YS60AIGBT MOD 1200V 300A 2800W |
4,493 |
|
- |
IGBTMOD™ | Module | Bulk | Obsolete | - | Half Bridge | 1200 V | 300 A | 2800 W | 2.8V @ 15V, 300A | 1 mA | 21 nF @ 10 V | Standard | No | -20°C ~ 150°C (TJ) | Chassis Mount | Module |
|

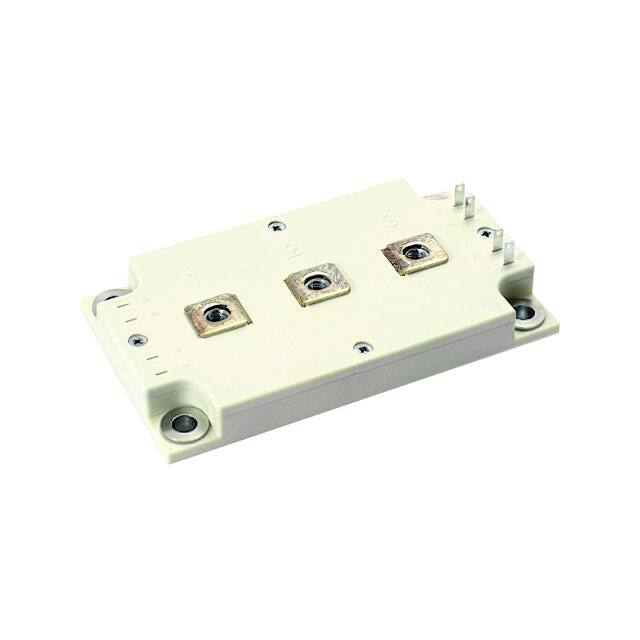

VS-GT400TD60SIGBT MOD 600V 758A INT-A-PAK |
6,091 |
|
- |
FRED Pt® | Module | Tube | Active | Trench Field Stop | Half Bridge | 600 V | 711 A | 1364 W | 1.4V @ 15V, 400A | 300 µA | - | Standard | No | -40°C ~ 175°C (TJ) | Chassis Mount | INT-A-PAK |
|
|
FP200R12N3T7B80BPSA1LOW POWER ECONO |
6,977 |
|
- |
TRENCHSTOP™ | Module | Tray | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 200 A | - | 1.55V @ 15V, 200A | 5 µA | 40.3 nF @ 25 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | AG-ECONO3B |
|
|
CM75TU-24HIGBT MOD 1200V 75A 600W |
6,614 |
|
- |
IGBTMOD™ | Module | Bulk | Obsolete | - | Three Phase Inverter | 1200 V | 75 A | 600 W | 3.7V @ 15V, 75A | 1 mA | 11 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
IGBT Modules Electronic Components
Explore IGBT Modules electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
