IGBT Modules
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | IGBT Type | Configuration | Voltage - Collector Emitter Breakdown (Max) | Current - Collector (Ic) (Max) | Power - Max | Vce(on) (Max) @ Vge, Ic | Current - Collector Cutoff (Max) | Input Capacitance (Cies) @ Vce | Input | NTC Thermistor | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CM400DU-12HIGBT MOD 600V 400A 1130W |
2,141 |
|
- |
IGBTMOD™ | Module | Bulk | Discontinued at Digi-Key | - | Half Bridge | 600 V | 400 A | 1130 W | 3V @ 15V, 400A | 1 mA | 35.2 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
|
APTGT150SK170GIGBT MODULE 1700V 250A 890W SP6 |
4,861 |
|
- |
- | SP6 | Bulk | Active | Trench Field Stop | Single | 1700 V | 250 A | 890 W | 2.4V @ 15V, 150A | 350 µA | 13.5 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | SP6 |
|
MG12450WB-BN2MMIGBT MODULE 1200V 600A 1950W WB |
7,882 |
|
- |
- | Module | Bulk | Obsolete | Trench Field Stop | Half Bridge | 1200 V | 600 A | 1950 W | 1.7V @ 15V, 450A (Typ) | 1 mA | 32 nF @ 25 V | Standard | Yes | -40°C ~ 125°C (TJ) | Chassis Mount | WB |
|
|
MIXG240W1200PZTEHIGBT MODULE - SIXPACK E3-PACK-PF |
6,829 |
|
- |
- | Module | Box | Active | - | Three Phase Inverter | 1200 V | 312 A | 938 W | 2V @ 15V, 200A | 150 µA | 10.6 nF @ 100 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | E3 |
|
|
APTGT100TDU60PGIGBT MODULE 600V 150A 340W SP6P |
8,500 |
|
- |
- | SP6 | Bulk | Active | Trench Field Stop | Triple, Dual - Common Source | 600 V | 150 A | 340 W | 1.9V @ 15V, 100A | 250 µA | 6.1 nF @ 25 V | Standard | No | -40°C ~ 175°C (TJ) | Chassis Mount | SP6-P |
|
CM300DU-24NFHIGBT MOD 1200V 300A 1130W |
4,012 |
|
- |
IGBTMOD™ | Module | Bulk | Discontinued at Digi-Key | - | Half Bridge | 1200 V | 300 A | 1130 W | 6.5V @ 15V, 300A | 1 mA | 47 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
|
APTGT450DA60GIGBT MODULE 600V 550A 1750W SP6 |
8,561 |
|
- |
- | SP6 | Bulk | Active | Trench Field Stop | Single | 600 V | 550 A | 1750 W | 1.8V @ 15V, 450A | 500 µA | 37 nF @ 25 V | Standard | No | -40°C ~ 175°C (TJ) | Chassis Mount | SP6 |
|
|
APTGT450SK60GIGBT MODULE 600V 550A 1750W SP6 |
4,770 |
|
- |
- | SP6 | Bulk | Active | Trench Field Stop | Single | 600 V | 550 A | 1750 W | 1.8V @ 15V, 450A | 500 µA | 37 nF @ 25 V | Standard | No | -40°C ~ 175°C (TJ) | Chassis Mount | SP6 |
|
|

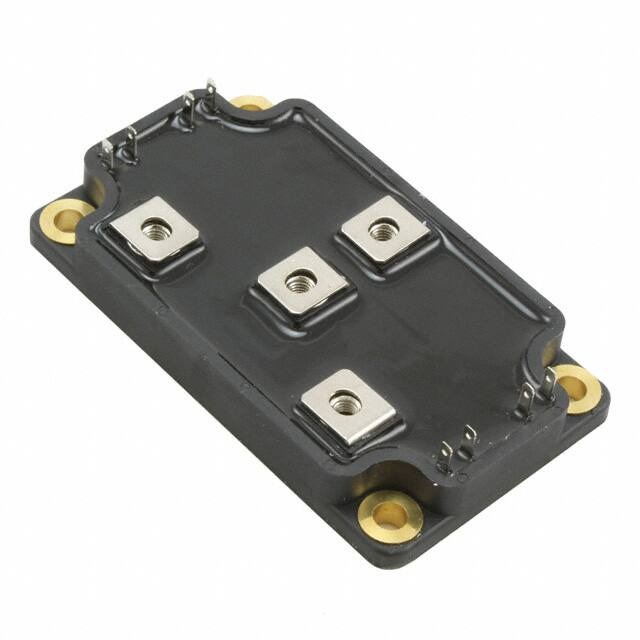

APTGLQ300SK120GIGBT MODULE 1200V 500A 1500W SP6 |
4,167 |
|
- |
- | Module | Bulk | Active | Trench Field Stop | Buck Chopper | 1200 V | 500 A | 1500 W | 2.42V @ 15V, 300A | 200 µA | 17.6 nF @ 25 V | Standard | No | -40°C ~ 175°C (TJ) | Chassis Mount | SP6 |
|
|
MIXG240W1200PZ-PCIGBT MOD MIXG240W1200PZTEH-PC |
4,524 |
|
- |
- | - | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
CM600E3U-12NFHIGBT MOD 600V 600A 1420W |
8,120 |
|
- |
IGBTMOD™ | Module | Bulk | Discontinued at Digi-Key | - | Single | 600 V | 600 A | 1420 W | 2.7V @ 15V, 600A | 1 mA | 166 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | - | Module |
|
|
FF450R12ME4EB11BPSA2MEDIUM POWER ECONO AG-ECONOD-411 |
9,028 |
|
- |
EconoDUAL™ 3 | Module | Tray | Obsolete | Trench Field Stop | Half Bridge Inverter | 1200 V | 450 A | - | 2.1V @ 15V, 450A | 3 mA | 28 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | AG-ECONOD-6 |
|
|
CM200TU-5FIGBT MOD 250V 200A 600W |
2,780 |
|
- |
IGBTMOD™ | Module | Bulk | Discontinued at Digi-Key | Trench | Three Phase Inverter | 250 V | 200 A | 600 W | 1.7V @ 10V, 200A | 1 mA | 66 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
CM600DX-24S1IGBT MOD 1200V 600A 3330W |
8,818 |
|
- |
- | Module | Tray | Discontinued at Digi-Key | - | Half Bridge | 1200 V | 600 A | 3330 W | 2.45V @ 15V, 600A | 1 mA | 50 nF @ 10 V | Standard | Yes | -40°C ~ 150°C (TJ) | - | Module |
|
|
MG200J6ES61IGBT MOD 600V 200A 1000W |
9,751 |
|
- |
IGBTMOD™ | Module | Bulk | Obsolete | - | Three Phase Inverter | 600 V | 200 A | 1000 W | 2.4V @ 15V, 200A | 1 mA | 40 nF @ 10 V | Standard | Yes | -20°C ~ 150°C (TJ) | Chassis Mount | Module |
|
|
APTGT150A120GIGBT MODULE 1200V 220A 690W SP6 |
4,301 |
|
- |
- | SP6 | Bulk | Active | Trench Field Stop | Half Bridge | 1200 V | 220 A | 690 W | 2.1V @ 15V, 150A | 350 µA | 10.7 nF @ 25 V | Standard | No | - | Chassis Mount | SP6 |
|

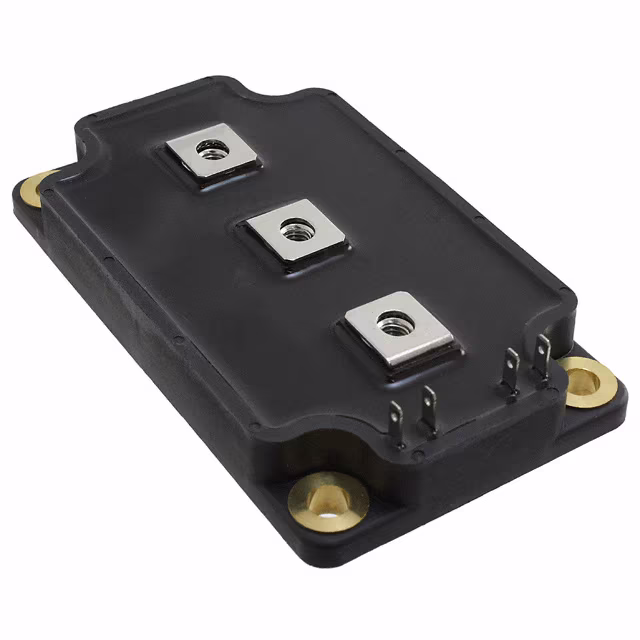

APTGT150DU120GIGBT MODULE 1200V 220A 690W SP6 |
6,252 |
|
- |
- | SP6 | Bulk | Active | Trench Field Stop | Dual, Common Source | 1200 V | 220 A | 690 W | 2.1V @ 15V, 150A | 350 µA | 10.7 nF @ 25 V | Standard | No | - | Chassis Mount | SP6 |
|
APTGT150TL60GIGBT MODULE 600V 200A 480W SP6 |
8,357 |
|
- |
- | SP6 | Bulk | Active | Trench Field Stop | Three Level Inverter | 600 V | 200 A | 480 W | 1.9V @ 15V, 150A | 250 µA | 9.2 nF @ 25 V | Standard | No | -40°C ~ 175°C (TJ) | Chassis Mount | SP6 |
|
|
FF600R17ME4B11BPSA1MEDIUM POWER ECONO AG-ECONOD-311 |
5,030 |
|
- |
EconoDUAL™ 3 | Module | Tray | Active | Trench Field Stop | 2 Independent | 1700 V | 950 A | - | 2.3V @ 15V, 600A | 1 mA | 48 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | AG-ECONOD |
|
|
MWI150-12T8TIGBT MODULE 1200V 215A 690W E3 |
6,081 |
|
- |
- | E3 | Box | Obsolete | Trench | Three Phase Inverter | 1200 V | 215 A | 690 W | 2.1V @ 15V, 150A | 6 mA | 10.77 nF @ 25 V | Standard | Yes | -40°C ~ 125°C (TJ) | Chassis Mount | E3 |
IGBT Modules Electronic Components
Explore IGBT Modules electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
