| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | IGBT Type | Configuration | Voltage - Collector Emitter Breakdown (Max) | Current - Collector (Ic) (Max) | Power - Max | Vce(on) (Max) @ Vge, Ic | Current - Collector Cutoff (Max) | Input Capacitance (Cies) @ Vce | Input | NTC Thermistor | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CM200DU-24NFHIGBT MOD 1200V 200A 830W |
5,715 |
|
- |
IGBTMOD™ | Module | Bulk | Discontinued at Digi-Key | - | Half Bridge | 1200 V | 200 A | 830 W | 6.5V @ 15V, 200A | 1 mA | 32 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
|
F3L600R10W3S7B11BPSA1LOW POWER EASY |
5,352 |
|
- |
- | - | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

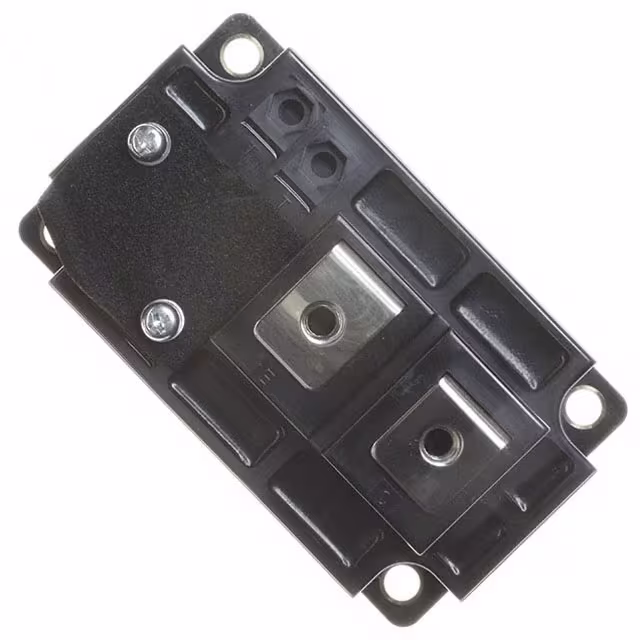

CM400HA-24AIGBT MOD 1200V 400A 2350W |
7,615 |
|
- |
IGBTMOD™ | Module | Bulk | Discontinued at Digi-Key | - | Single | 1200 V | 400 A | 2350 W | 3V @ 15V, 400A | 1 mA | 70 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|

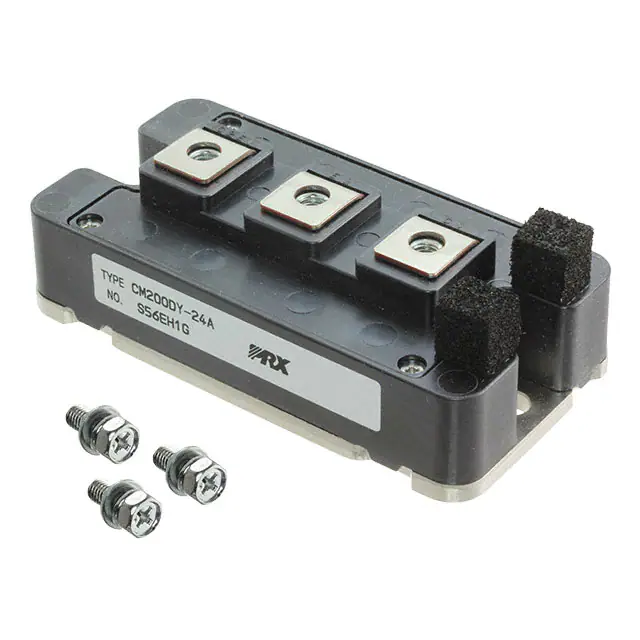

CM200DY-24AIGBT MOD 1200V 200A 1340W |
4,018 |
|
- |
IGBTMOD™ | Module | Bulk | Discontinued at Digi-Key | - | Half Bridge | 1200 V | 200 A | 1340 W | 3V @ 15V, 200A | 1 mA | 35 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
|
APTGT100DU120TGIGBT MODULE 1200V 140A 480W SP4 |
3,246 |
|
- |
- | SP4 | Bulk | Active | Trench Field Stop | Dual, Common Source | 1200 V | 140 A | 480 W | 2.1V @ 15V, 100A | 250 µA | 7.2 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | SP4 |
|
|
APTGT100A120TGIGBT MODULE 1200V 140A 480W SP4 |
2,175 |
|
- |
- | SP4 | Bulk | Active | Trench Field Stop | Half Bridge | 1200 V | 140 A | 480 W | 2.1V @ 15V, 100A | 250 µA | 7.2 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | SP4 |
.jpg)
|
MSCGL40X120T3AGPM-IGBT-TFS-SP3F |
7,138 |
|
- |
MSC | Module | Tube | Active | Trench | Full Bridge | 1200 V | 40 A | - | - | 40 A | - | Standard | Yes | - | Chassis Mount | SP3F |
|
|
APTGLQ80HR120CT3GIGBT MODULE 1200V 150A 500W SP3 |
3,165 |
|
- |
- | SP3 | Bulk | Active | Trench Field Stop | - | 1200 V | 150 A | 500 W | 2.4V @ 15V, 80A | 150 µA | 4.6 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Through Hole | SP3 |
|
|
CM300DU-12NFHIGBT MOD 600V 300A 780W |
8,411 |
|
- |
IGBTMOD™ | Module | Bulk | Discontinued at Digi-Key | - | Half Bridge | 600 V | 300 A | 780 W | 2.7V @ 15V, 300A | 1 mA | 83 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
|
IFS150B12N3E4PB50BPSA1IGBT MODULE LOW PWR ECONO |
6,561 |
|
- |
- | - | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
IFS150B12N3E4PB11BPSA1IGBT MOD 1200V 300A 750W |
5,574 |
|
- |
MIPAQ™ | Module | Tray | Active | Trench Field Stop | Full Bridge | 1200 V | 300 A | 750 W | 2.1V @ 15V, 150A | 1 mA | 9.3 nF @ 25 V | Standard | Yes | -40°C ~ 150°C | Chassis Mount | Module |
|
|
IFS200B12N3E4B37BPSA1LOW POWER ECONO AG-ECONO3B-411 |
6,186 |
|
- |
MIPAQ™ | Module | Tray | Active | Trench Field Stop | Full Bridge | 1200 V | 200 A | - | 2.1V @ 15V, 200A | 1 mA | 14 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | AG-ECONO3B |
|
|
APTGL90H120T3GIGBT MODULE 1200V 110A 385W SP3 |
4,210 |
|
- |
- | SP3 | Bulk | Active | Trench Field Stop | Full Bridge | 1200 V | 110 A | 385 W | 2.25V @ 15V, 75A | 250 µA | 4.4 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | SP3 |
|
|
VS-ETY020P120FIGBT MOD OUTPUT & SW EMIPAK 2B |
8,490 |
|
- |
- | - | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

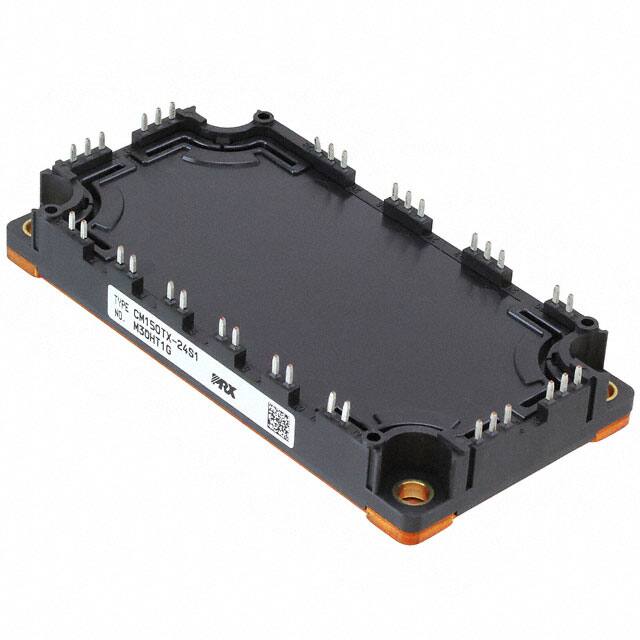

CM150TX-24S1IGBT MOD 1200V 150A 935W |
3,823 |
|
- |
- | Module | Tray | Discontinued at Digi-Key | - | Three Level Inverter | 1200 V | 150 A | 935 W | 2.25V @ 15V, 150A | 1 mA | 15 nF @ 10 V | Standard | Yes | -40°C ~ 150°C (TJ) | - | Module |
|
|
IFS150B17N3E4PB11BPSA1IGBT MOD 1700V 300A 20MW |
7,644 |
|
- |
MIPAQ™ | Module | Tray | Active | Trench Field Stop | Full Bridge | 1700 V | 300 A | - | 2.3V @ 15V, 150A | 1 mA | 13.5 nF @ 25 V | Standard | Yes | -40°C ~ 150°C | Chassis Mount | Module |
|
|
CM100MXA-24SIGBT MOD 1200V 100A 750W |
8,754 |
|
- |
- | Module | Bulk | Discontinued at Digi-Key | - | Three Phase Inverter with Brake | 1200 V | 100 A | 750 W | 2.25V @ 15V, 100A | 1 mA | 10 nF @ 10 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 150°C (TJ) | - | Module |
|
CM450DX-24S1IGBT MOD 1200V 450A 2775W |
2,836 |
|
- |
- | Module | Tray | Discontinued at Digi-Key | - | Half Bridge | 1200 V | 450 A | 2775 W | 2.25V @ 15V, 450A | 1 mA | 45 nF @ 10 V | Standard | Yes | -40°C ~ 150°C (TJ) | - | Module |
|
|
FS150R12KT4PBPSA2LOW POWER ECONO |
9,919 |
|
- |
- | Module | Tray | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 150 A | 750 W | 2.1V @ 15V, 150A | 1 mA | 9350 pF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | - |
|
|
MUBW75-12T8IGBT MODULE 1200V 110A 355W E3 |
7,089 |
|
- |
- | E3 | Box | Obsolete | Trench | Three Phase Inverter with Brake | 1200 V | 110 A | 355 W | 2.15V @ 15V, 75A | 4 mA | 5.35 nF @ 25 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 125°C (TJ) | Chassis Mount | E3 |
