Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B32674D6105K000CAP FILM 1UF 10% 630VDC RADIAL |
5,902 |
|
Datasheet |
Radial | 1 µF | ±10% | - | 630V | Polypropylene (PP), Metallized | 26.1 mOhms | -40°C ~ 105°C | Through Hole | 1.240" L x 0.433" W (31.50mm x 11.00mm) | 0.748" (19.00mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering | AEC-Q200 | Long Life |
|
MKT1813347635GCAP FILM 0.047UF 10% 630VDC AXL |
3,455 |
|
Datasheet |
Axial | 0.047 µF | ±10% | 220V | 630V | Polyester, Metallized | - | -55°C ~ 100°C | Through Hole | 0.295" Dia x 0.748" L (7.50mm x 19.00mm) | - | PC Pins | - | General Purpose | - | - |
|
715P10296JA3CAP FILM 1000PF 10% 600VDC RAD |
3,172 |
|
Datasheet |
Radial | 1000 pF | ±10% | 200V | 600V | Polypropylene (PP), Metallized | - | -55°C ~ 85°C | Through Hole | 0.350" Dia x 0.701" L (8.90mm x 17.80mm) | 0.642" (16.30mm) | PC Pins | 0.500" (12.70mm) | Audio; High Frequency, Switching; High Pulse, DV/DT; Snubber | - | - |
|

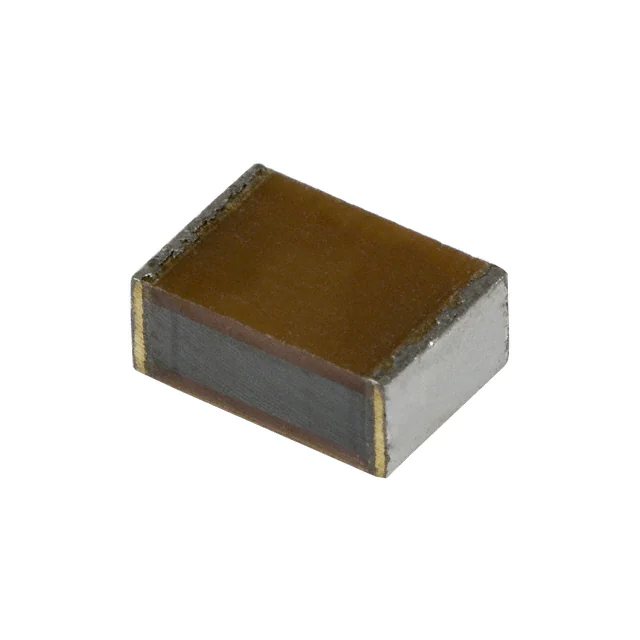

ECH-U1104GC9CAP FILM 0.1UF 2% 100VDC 2820 |
2,614 |
|
Datasheet |
2820 (7150 Metric) | 0.1 µF | ±2% | 40V | 100V | Polyphenylene Sulfide (PPS), Metallized - Stacked | - | -55°C ~ 105°C | Surface Mount | 0.280" L x 0.197" W (7.10mm x 5.00mm) | 0.130" (3.30mm) | Solder Pads | - | General Purpose | - | - |
|
|
MKS2C044701M00KO00CAP FILM 4.7UF 10% 63VDC RADIAL |
1,123 |
|
Datasheet |
Radial | 4.7 µF | ±10% | 40V | 63V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 125°C | Through Hole | 0.283" L x 0.335" W (7.20mm x 8.50mm) | 0.551" (14.00mm) | PC Pins | 0.197" (5.00mm) | Automotive | AEC-Q200 | - |
|
160103J630C-FCAP FILM 10000PF 5% 630VDC RAD |
2,043 |
|
Datasheet |
Radial | 10000 pF | ±5% | 220V | 630V | Polyester, Metallized | - | -55°C ~ 105°C | Through Hole | 0.512" L x 0.157" W (13.00mm x 4.00mm) | 0.374" (9.50mm) | PC Pins | 0.394" (10.00mm) | General Purpose | - | - |
|

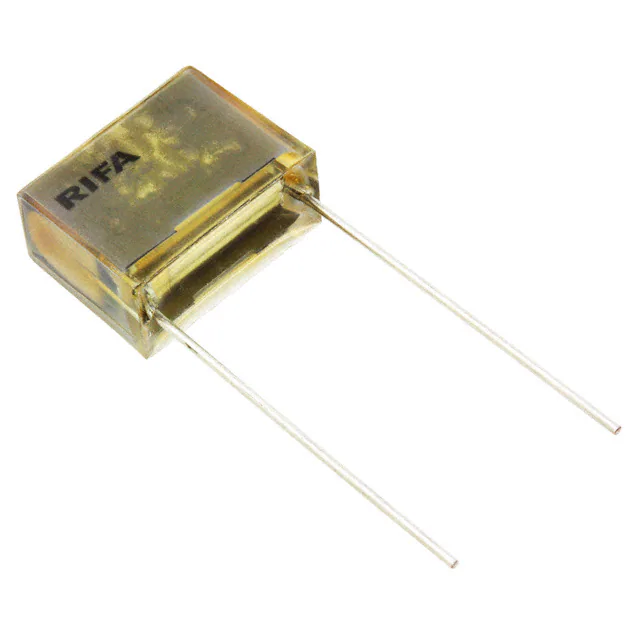

PME271MB6100KR30CAP FILM 0.1UF 10% 275VAC RADIAL |
951 |
|
Datasheet |
Radial | 0.1 µF | ±10% | 275V | - | Paper, Metallized | - | -40°C ~ 110°C | Through Hole | 0.728" L x 0.335" W (18.50mm x 8.50mm) | 0.563" (14.30mm) | PC Pins | 0.598" (15.20mm) | EMI, RFI Suppression | X2 | - |
|
|
B32674D1684K000CAP FILM 0.68UF 10% 750VDC RAD |
623 |
|
Datasheet |
Radial | 0.68 µF | ±10% | - | 750V | Polypropylene (PP), Metallized | 34.7 mOhms | -40°C ~ 105°C | Through Hole | 1.240" L x 0.433" W (31.50mm x 11.00mm) | 0.748" (19.00mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering | AEC-Q200 | Long Life |
|
B32673P6225K000CAP FILM 2.2UF 10% 630VDC RADIAL |
399 |
|
Datasheet |
Radial | 2.2 µF | ±10% | 200V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 1.043" L x 0.472" W (26.50mm x 12.00mm) | 0.866" (22.00mm) | PC Pins | 0.886" (22.50mm) | Power Factor Correction (PFC) | - | - |
|
|
SMDID03100QA00KP00SMD-PPS 0.1 F 100 VDC 5.7X5.1X3. |
1,842 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
CB047D0474JBCCAP FILM 0.47UF 5% 63VDC 2220 |
7,022 |
|
Datasheet |
2220 (5750 Metric) | 0.47 µF | ±5% | 40V | 63V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.228" L x 0.197" W (5.80mm x 5.00mm) | 0.157" (4.00mm) | Solder Pads | - | General Purpose | - | - |
|
DME6P22K-FCAP FILM 0.22UF 10% 630VDC RAD |
11,247 |
|
Datasheet |
Radial | 0.22 µF | ±10% | 250V | 630V | Polyester, Metallized | - | -55°C ~ 125°C | Through Hole | 0.728" L x 0.374" W (18.50mm x 9.50mm) | 0.728" (18.50mm) | PC Pins | 0.591" (15.00mm) | General Purpose | - | - |
|
BFC247086104CAP FILM 0.1UF 5% 100VDC RADIAL |
2,623 |
|
Datasheet |
Radial | 0.1 µF | ±5% | 63V | 100V | Polyester, Metallized | - | -55°C ~ 125°C | Through Hole | 0.283" L x 0.138" W (7.20mm x 3.50mm) | 0.315" (8.00mm) | PC Pins | 0.197" (5.00mm) | General Purpose | - | Long Life |
|
|
SMDTJ03220YA00KS00CAP FILM 0.22UF 10% 300VAC 6054 |
948 |
|
Datasheet |
6054 (153137 Metric) | 0.22 µF | ±10% | 300V | 630V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 125°C | Surface Mount | 0.602" L x 0.539" W (15.30mm x 13.70mm) | 0.287" (7.30mm) | Solder Pads | - | DC Link, DC Filtering | - | - |
|
|
104PPA102KJCAP FILM 0.1UF 10% 1KVDC AXIAL |
469 |
|
Datasheet |
Axial | 0.1 µF | ±10% | 525V | 1000V (1kV) | Polypropylene (PP), Metallized | 11 mOhms | -55°C ~ 85°C | Through Hole | 0.492" Dia x 1.339" L (12.50mm x 34.00mm) | - | PC Pins | - | DC Link, DC Filtering; High Frequency, Switching; Snubber | - | - |
|
B32654A0334J000CAP FILM 0.33UF 5% 1KVDC RADIAL |
2,392 |
|
Datasheet |
Radial | 0.33 µF | ±5% | 250V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 1.240" L x 0.433" W (31.50mm x 11.00mm) | 0.827" (21.00mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering; High Pulse, DV/DT | AEC-Q200 | - |
|
R60DN44705030JCAP FILM 4.7UF 5% 63VDC RADIAL |
533 |
|
Datasheet |
Radial | 4.7 µF | ±5% | 40V | 63V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 105°C | Through Hole | 1.043" L x 0.276" W (26.50mm x 7.00mm) | 0.634" (16.10mm) | PC Pins | 0.886" (22.50mm) | Automotive | AEC-Q200 | - |
|
PME271M610MR19T0CAP FILM 0.1UF 20% 630VDC RAD |
203 |
|
Datasheet |
Radial | 0.1 µF | ±20% | 275V | 630V | Paper, Metallized | - | -40°C ~ 110°C | Through Hole | 0.945" L x 0.299" W (24.00mm x 7.60mm) | 0.551" (14.00mm) | PC Pins | 0.799" (20.30mm) | EMI, RFI Suppression | X2 | - |
|
R76QN33305050JFILM, RADIAL, PULSE, DOUBLE META |
246 |
|
Datasheet |
Radial | 0.33 µF | ±5% | 600V | 1000V (1kV) | Polypropylene (PP), Metallized | 7 mOhms | -55°C ~ 110°C | Through Hole | 1.043" L x 0.512" W (26.50mm x 13.00mm) | 0.870" (22.10mm) | PC Pins | 0.886" (22.50mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
ECW-FE2W475P5CAP FILM 4.7UF 5% 450VDC RADIAL |
221 |
|
Datasheet |
Radial | 4.7 µF | ±5% | 84V | 450V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.220" L x 0.610" W (31.00mm x 15.50mm) | 1.024" (26.00mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | - | - |
