Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
225P15391WD3CAP FILM 0.015UF 10% 100VDC RAD |
142 |
|
Datasheet |
Radial | 0.015 µF | ±10% | 70V | 100V | Polyester | - | -55°C ~ 85°C | Through Hole | 0.700" L x 0.252" W (17.78mm x 6.40mm) | 0.350" (8.90mm) | PC Pins | 0.375" (9.52mm) | Audio; DC Link, DC Filtering | - | - |
|
P295BQ472M500ACAP FILM 4700PF 20% 500VAC RAD |
104 |
|
Datasheet |
Radial | 4700 pF | ±20% | 500V | - | Paper, Metallized | - | -40°C ~ 115°C | Through Hole | 0.709" L x 0.335" W (18.00mm x 8.50mm) | 0.630" (16.00mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | Y1 | - |
|
MKP4G041006B00KSSDCAP FILM 1UF 10% 400VDC RAD |
1,332 |
|
Datasheet |
Radial | 1 µF | ±10% | 220V | 400V | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 1.240" L x 0.433" W (31.50mm x 11.00mm) | 0.827" (21.00mm) | PC Pins | 1.083" (27.50mm) | High Frequency, Switching | - | - |
|
R76TN31004040JCAP FILM 0.1UF 5% 1.6KVDC RADIAL |
675 |
|
Datasheet |
Radial | 0.1 µF | ±5% | 650V | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 1.043" L x 0.433" W (26.50mm x 11.00mm) | 0.791" (20.10mm) | PC Pins | 0.886" (22.50mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
|
FKP1X014706B00JSSDCAP FILM 4700PF 5% 4KVDC RADIAL |
1,513 |
|
Datasheet |
Radial | 4700 pF | ±5% | 700V | 4000V (4kV) | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 1.240" L x 0.433" W (31.50mm x 11.00mm) | 0.827" (21.00mm) | PC Pins | 1.083" (27.50mm) | High Frequency, Switching; High Pulse, DV/DT | - | - |
|

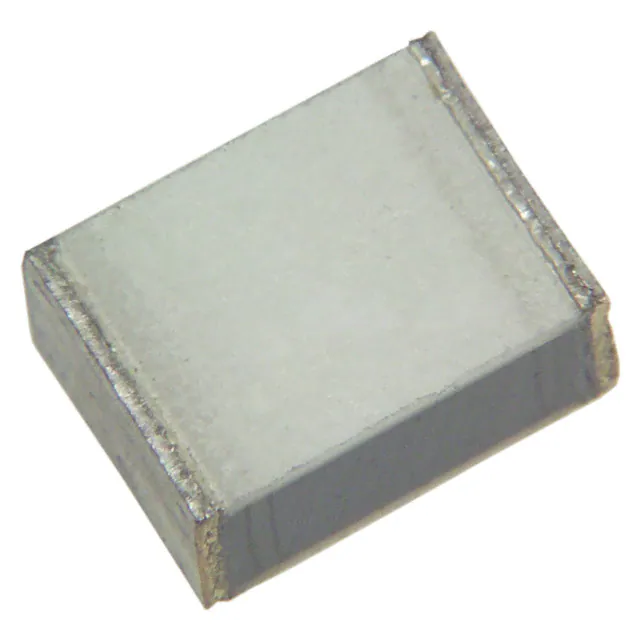

ECW-U1394KCVCAP FILM 0.39UF 10% 100VDC 3022 |
1,173 |
|
Datasheet |
3022 (7755 Metric) | 0.39 µF | ±10% | 40V | 100V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.303" L x 0.217" W (7.70mm x 5.50mm) | 0.142" (3.60mm) | Solder Pads | - | General Purpose | - | - |
|
LDEIE3100KA5N00CAP FILM 0.1UF 10% 250VDC 2824 |
6,981 |
|
Datasheet |
2824 (7260 Metric) | 0.1 µF | ±10% | 120V | 250V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.287" L x 0.240" W (7.30mm x 6.10mm) | 0.114" (2.90mm) | Solder Pads | - | Automotive | AEC-Q200 | High Temperature |
|
LDEQE2100KA5N00CAP FILM 10000PF 10% 1KVDC 2824 |
6,174 |
|
Datasheet |
2824 (7260 Metric) | 10000 pF | ±10% | 250V | 1000V (1kV) | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.287" L x 0.240" W (7.30mm x 6.10mm) | 0.134" (3.40mm) | Solder Pads | - | Automotive | AEC-Q200 | High Temperature |
|
MKS2B044701K00KSSDCAP FILM 4.7UF 10% 50VDC RADIAL |
2,007 |
|
Datasheet |
Radial | 4.7 µF | ±10% | 30V | 50V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 105°C | Through Hole | 0.283" L x 0.283" W (7.20mm x 7.20mm) | 0.512" (13.00mm) | PC Pins | 0.197" (5.00mm) | Automotive | AEC-Q200 | - |
|
MKS2B044701K00KSC9CAP FILM 4.7UF 10% 50VDC RADIAL |
489 |
|
Datasheet |
Radial | 4.7 µF | ±10% | 30V | 50V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 105°C | Through Hole | 0.283" L x 0.283" W (7.20mm x 7.20mm) | 0.512" (13.00mm) | PC Pins | 0.197" (5.00mm) | Automotive | AEC-Q200 | - |
|
B32023B3104K000CAP FILM 0.1UF 10% 1.5KVDC RAD |
427 |
|
Datasheet |
Radial | 0.1 µF | ±10% | 300V | 1500V (1.5kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.043" L x 0.413" W (26.50mm x 10.50mm) | 0.650" (16.50mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | Y2 | - |
|
B32523Q1475K000CAP FILM 4.7UF 10% 100VDC RADIAL |
3,001 |
|
Datasheet |
Radial | 4.7 µF | ±10% | 63V | 100V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 125°C | Through Hole | 1.043" L x 0.276" W (26.50mm x 7.00mm) | 0.630" (16.00mm) | PC Pins | 0.886" (22.50mm) | Automotive; EMI, RFI Suppression | - | - |
|
ECQ-E6155KFCAP FILM 1.5UF 10% 630VDC RADIAL |
2,095 |
|
Datasheet |
Radial | 1.5 µF | ±10% | - | 630V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 1.220" L x 0.602" W (31.00mm x 15.30mm) | 1.012" (25.70mm) | PC Pins | 1.083" (27.50mm) | General Purpose | - | - |
|
ECW-F4224HLCAP FILM 0.22UF 3% 400VDC RADIAL |
143 |
|
Datasheet |
Radial | 0.22 µF | ±3% | 141V | 400V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.610" L x 0.354" W (15.50mm x 9.00mm) | 0.594" (15.10mm) | PC Pins | 0.492" (12.50mm) | High Frequency, Switching | - | - |
|
16MU473KY11608CAP FILM 0.047UF 10% 16VDC 0603 |
13,713 |
|
Datasheet |
0603 (1608 Metric) | 0.047 µF | ±10% | - | 16V | Acrylic, Metallized | - | -55°C ~ 125°C | Surface Mount | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.031" (0.80mm) | Solder Pads | - | DC Link, DC Filtering | - | - |
|
105MPW160KCAP FILM 1UF 10% 160VDC AXIAL |
845 |
|
Datasheet |
Axial | 1 µF | ±10% | 90V | 160V | Polypropylene (PP), Metallized | 177 mOhms | -55°C ~ 105°C | Through Hole | 0.433" Dia x 1.142" L (11.00mm x 29.00mm) | - | PC Pins | - | DC Link, DC Filtering | - | Low ESR |
|
|
MKT1813368635GCAP FILM 0.068UF 10% 630VDC AXL |
2,979 |
|
Datasheet |
Axial | 0.068 µF | ±10% | 220V | 630V | Polyester, Metallized | - | -55°C ~ 100°C | Through Hole | 0.335" Dia x 0.748" L (8.50mm x 19.00mm) | - | PC Pins | - | General Purpose | - | - |
|
225MWR250KCAP FILM 2.2UF 10% 250VDC AXIAL |
6,967 |
|
Datasheet |
Axial | 2.2 µF | ±10% | 160V | 250V | Polyester, Metallized | 804 mOhms | -40°C ~ 105°C | Through Hole | 0.531" Dia x 1.339" L (13.50mm x 34.00mm) | - | PC Pins | - | General Purpose | - | Low ESR |
|
PHC1254100KGCAP FILM 1UF 10% 250VDC AXIAL |
1,441 |
|
Datasheet |
Axial | 1 µF | ±10% | 160V | 250V | Polypropylene (PP), Metallized | 7.6 mOhms | -40°C ~ 85°C | Through Hole | 0.354" Dia x 1.063" L (9.00mm x 27.00mm) | - | PC Pins | - | High Frequency, Switching | - | - |
|
|
PHC1603470KGCAP FILM 0.47UF 10% 600VDC AXIAL |
612 |
|
Datasheet |
Axial | 0.47 µF | ±10% | 330V | 600V | Polypropylene (PP), Metallized | 8.3 mOhms | -40°C ~ 85°C | Through Hole | 0.453" Dia x 1.063" L (11.50mm x 27.00mm) | - | PC Pins | - | High Frequency, Switching | - | - |
