Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LDEPD2100KA5N00CAP FILM 10000PF 10% 630VDC 2220 |
27,279 |
|
Datasheet |
2220 (5750 Metric) | 10000 pF | ±10% | 200V | 630V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.236" L x 0.197" W (6.00mm x 5.00mm) | 0.118" (3.00mm) | Solder Pads | - | Automotive | AEC-Q200 | High Temperature |
|
R71QR41004010KCAP FILM 1UF 10% 1KVDC RADIAL |
8,217 |
|
Datasheet |
Radial | 1 µF | ±10% | 275V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.260" L x 0.512" W (32.00mm x 13.00mm) | 0.870" (22.10mm) | PC Pins | 1.083" (27.50mm) | High Frequency, Switching; High Pulse, DV/DT; Power Factor Correction (PFC) | - | - |
|

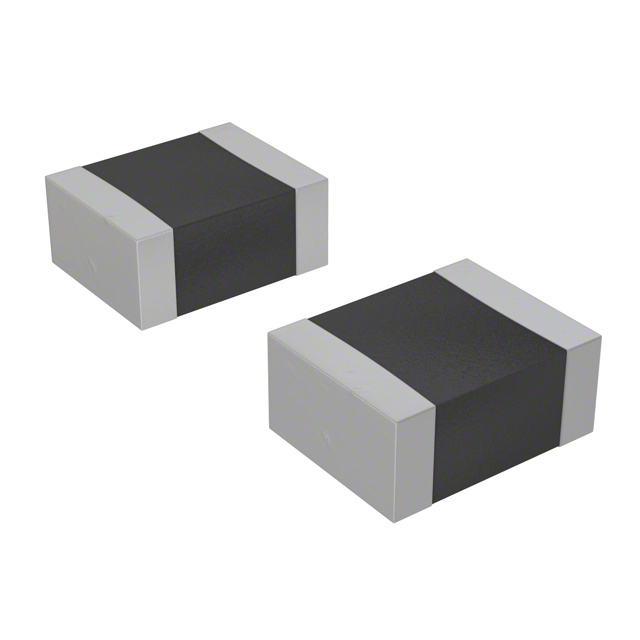

FCA1210C105M-G2CAP FILM 1UF 20% 16VDC 1210 |
17,943 |
|
Datasheet |
1210 (3225 Metric) | 1 µF | ±20% | 12V | 16V | Acrylic, Metallized | - | -40°C ~ 85°C | Surface Mount | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.063" (1.60mm) | Solder Pads | - | General Purpose | - | Low ESR |
|
ECQ-E2475KFCAP FILM 4.7UF 10% 250VDC RADIAL |
6,500 |
|
Datasheet |
Radial | 4.7 µF | ±10% | - | 250V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 1.024" L x 0.472" W (26.00mm x 12.00mm) | 0.886" (22.50mm) | PC Pins | 0.886" (22.50mm) | General Purpose | - | - |
|
R46KN415040P1MCAP FILM 1.5UF 20% 560VDC RADIAL |
3,880 |
|
Datasheet |
Radial | 1.5 µF | ±20% | 275V | 560V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.043" L x 0.394" W (26.50mm x 10.00mm) | 0.732" (18.60mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | X2 | - |
|
104MSR102KCAP FILM 0.1UF 10% 1KVDC RADIAL |
3,375 |
|
Datasheet |
Radial | 0.1 µF | ±10% | 250V | 1000V (1kV) | Polyester, Metallized | 17.684 Ohms | -55°C ~ 125°C | Through Hole | 1.063" L x 0.453" W (27.00mm x 11.50mm) | 0.650" (16.50mm) | PC Pins | 0.886" (22.50mm) | General Purpose | - | - |
|
ECW-U4104V17CAP FILM 0.1UF 5% 400VDC 3925 |
409,767 |
|
Datasheet |
3925 (9863 Metric) | 0.1 µF | ±5% | 157V | 400V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 85°C | Surface Mount | 0.386" L x 0.248" W (9.80mm x 6.30mm) | 0.173" (4.40mm) | Solder Pads | - | DC Link, DC Filtering | - | - |
.jpg)
|

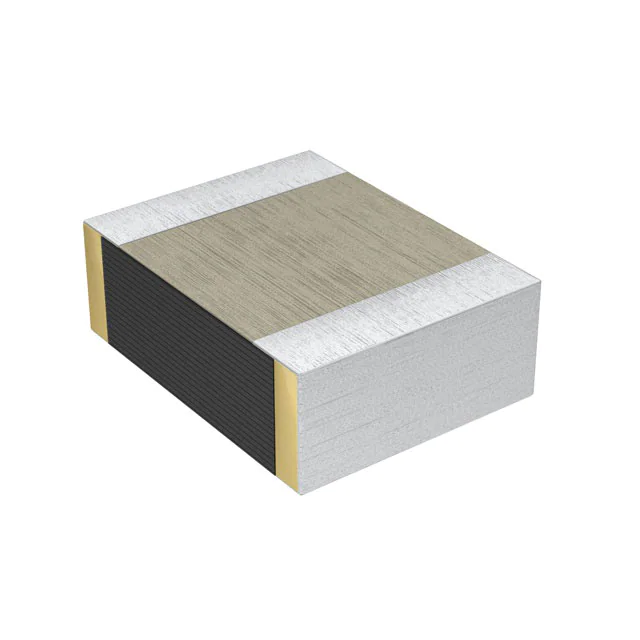

ECH-U1H154GX9CAP FILM 0.15UF 2% 50VDC 2416 |
11,531 |
|
Datasheet |
2416 (6041 Metric) | 0.15 µF | ±2% | 30V | 50V | Polyphenylene Sulfide (PPS), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.236" L x 0.161" W (6.00mm x 4.10mm) | 0.083" (2.10mm) | Solder Pads | - | General Purpose | - | - |
|

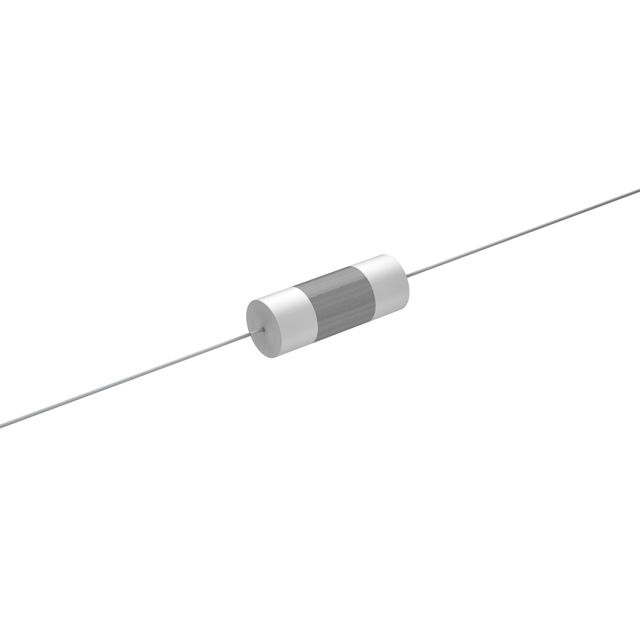

150105J250JECAP FILM 1UF 5% 250VDC AXIAL |
911 |
|
Datasheet |
Axial | 1 µF | ±5% | 160V | 250V | Polyester, Metallized | - | -55°C ~ 125°C | Through Hole | 0.413" Dia x 1.102" L (10.50mm x 28.00mm) | - | PC Pins | - | General Purpose | - | - |
|
B32529D5475M289CAP FILM 4.7UF 20% 50VDC RADIAL |
9,845 |
|
Datasheet |
Radial | 4.7 µF | ±20% | 32V | 50V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 125°C | Through Hole | 0.307" L x 0.307" W (7.80mm x 7.80mm) | 0.512" (13.00mm) | PC Pins | 0.197" (5.00mm) | Automotive; EMI, RFI Suppression | AEC-Q200 | - |
.jpg)
|
335MMR100KCAP FILM 3.3UF 10% 100VDC RADIAL |
13,856 |
|
Datasheet |
Radial | 3.3 µF | ±10% | 63V | 100V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.728" L x 0.335" W (18.50mm x 8.50mm) | 0.650" (16.50mm) | PC Pins | 0.591" (15.00mm) | General Purpose | - | - |
|
MKS2C043301K00KSSDCAP FILM 3.3UF 10% 63VDC RADIAL |
4,826 |
|
Datasheet |
Radial | 3.3 µF | ±10% | 40V | 63V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 125°C | Through Hole | 0.283" L x 0.283" W (7.20mm x 7.20mm) | 0.512" (13.00mm) | PC Pins | 0.197" (5.00mm) | Automotive | AEC-Q200 | - |
|

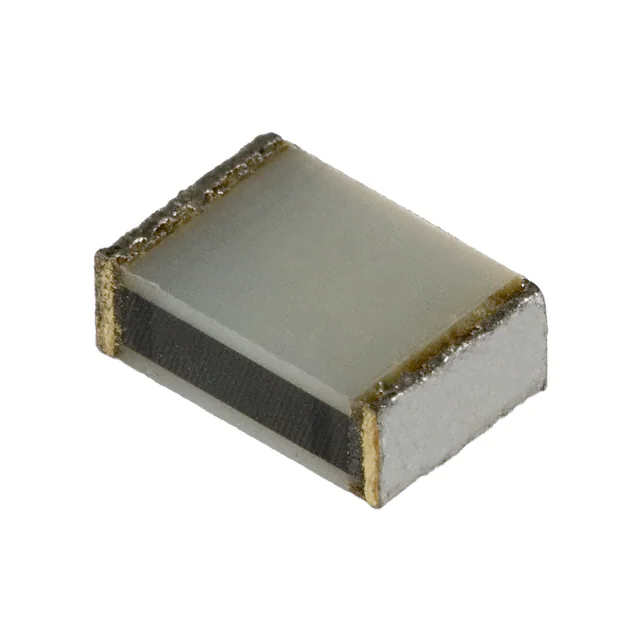

ECW-U1C474JC9CAP FILM 0.47UF 5% 16VDC 2416 |
5,514 |
|
Datasheet |
2416 (6041 Metric) | 0.47 µF | ±5% | 8V | 16V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 105°C | Surface Mount | 0.236" L x 0.161" W (6.00mm x 4.10mm) | 0.118" (3.00mm) | Solder Pads | - | General Purpose | - | - |
|
B32023A3104M000CAP FILM 0.1UF 20% 1.5KVDC RAD |
3,145 |
|
Datasheet |
Radial | 0.1 µF | ±20% | 300V | 1500V (1.5kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.043" L x 0.335" W (26.50mm x 8.50mm) | 0.650" (16.50mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | Y2 | - |
|
|
ECW-U2473V16CAP FILM 0.047UF 5% 250VDC 2416 |
10,283 |
|
Datasheet |
2416 (6041 Metric) | 0.047 µF | ±5% | 125V | 250V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 85°C | Surface Mount | 0.236" L x 0.161" W (6.00mm x 4.10mm) | 0.106" (2.70mm) | Solder Pads | - | High Frequency, Switching; High Pulse, DV/DT | - | - |
|
B32923C3225M000CAP FILM 2.2UF 20% 630VDC RADIAL |
9,818 |
|
Datasheet |
Radial | 2.2 µF | ±20% | 305V | 630V | Polypropylene (PP) | - | -40°C ~ 110°C | Through Hole | 1.043" L x 0.571" W (26.50mm x 14.50mm) | 1.161" (29.50mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | X2 | - |
|
35MU104KZ22012CAP FILM 0.1UF 10% 35VDC 0805 |
5,602 |
|
Datasheet |
0805 (2012 Metric) | 0.1 µF | ±10% | - | 35V | Acrylic, Metallized | - | -55°C ~ 125°C | Surface Mount | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.047" (1.20mm) | Solder Pads | - | DC Link, DC Filtering | - | - |
|
ECW-UC2J223JVCAP FILM 0.022UF 5% 630VDC 2825 |
5,242 |
|
Datasheet |
2825 (7163 Metric) | 0.022 µF | ±5% | 250V | 630V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.280" L x 0.248" W (7.10mm x 6.30mm) | 0.142" (3.60mm) | Solder Pads | - | General Purpose | - | - |
|

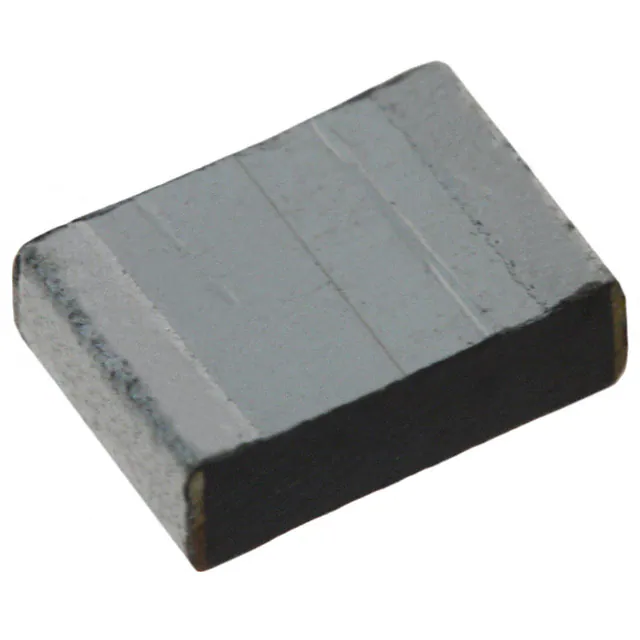

ECH-U1H224JX9CAP FILM 0.22UF 5% 50VDC 2416 |
12,632 |
|
Datasheet |
2416 (6041 Metric) | 0.22 µF | ±5% | 30V | 50V | Polyphenylene Sulfide (PPS), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.236" L x 0.161" W (6.00mm x 4.10mm) | 0.118" (3.00mm) | Solder Pads | - | General Purpose | - | - |
|
|
ECH-U1H224GX9CAP FILM 0.22UF 2% 50VDC 2416 |
6,014 |
|
Datasheet |
2416 (6041 Metric) | 0.22 µF | ±2% | 30V | 50V | Polyphenylene Sulfide (PPS), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.236" L x 0.161" W (6.00mm x 4.10mm) | 0.118" (3.00mm) | Solder Pads | - | General Purpose | - | - |
Film Capacitors Electronic Components
Explore Film Capacitors electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
