Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B32913A3474M000CAP FILM 0.47UF 20% 760VDC RAD |
8,892 |
|
Datasheet |
Radial | 0.47 µF | ±20% | 330V | 760V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.043" L x 0.413" W (26.50mm x 10.50mm) | 0.728" (18.50mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | X1 | - |
|

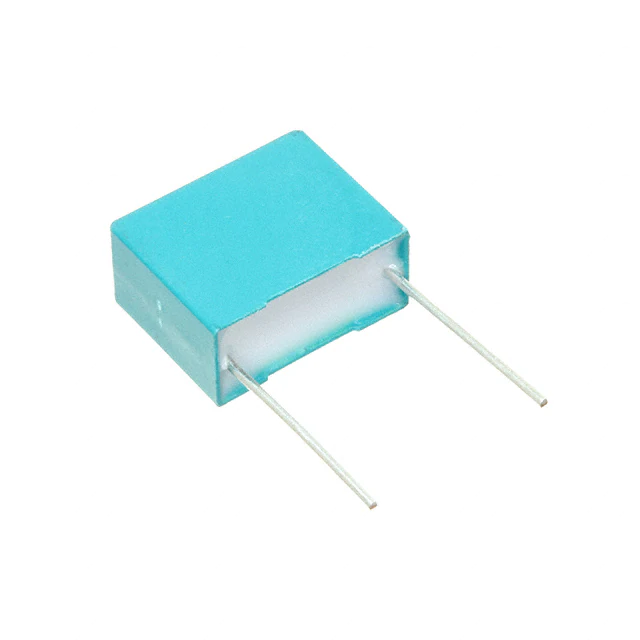

F861BZ105M310ACAP FILM 1UF 20% 630VDC RADIAL |
2,410 |
|
Datasheet |
Radial | 1 µF | ±20% | 310V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.472" W (18.00mm x 12.00mm) | 0.787" (20.00mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | X2 | - |
|
LDEID3100KA0N00CAP FILM 0.1UF 10% 250VDC 2220 |
11,277 |
|
Datasheet |
2220 (5750 Metric) | 0.1 µF | ±10% | 120V | 250V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.236" L x 0.197" W (6.00mm x 5.00mm) | 0.161" (4.10mm) | Solder Pads | - | Automotive | AEC-Q200 | High Temperature |
|
|
LDECD3470KA5N00CAP FILM 0.47UF 10% 50VDC 2220 |
10,387 |
|
Datasheet |
2220 (5750 Metric) | 0.47 µF | ±10% | 40V | 50V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.236" L x 0.197" W (6.00mm x 5.00mm) | 0.094" (2.40mm) | Solder Pads | - | Automotive | AEC-Q200 | High Temperature |
|
B32653A7104J000CAP FILM 0.1UF 5% 1.25KVDC RAD |
1,428 |
|
Datasheet |
Radial | 0.1 µF | ±5% | 500V | 1250V (1.25kV) | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 1.043" L x 0.433" W (26.50mm x 11.00mm) | 0.807" (20.50mm) | PC Pins | 0.886" (22.50mm) | DC Link, DC Filtering; High Pulse, DV/DT | AEC-Q200 | - |
|
ECQ-E1335KFCAP FILM 3.3UF 10% 100VDC RADIAL |
828 |
|
Datasheet |
Radial | 3.3 µF | ±10% | - | 100V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.728" L x 0.335" W (18.50mm x 8.50mm) | 0.689" (17.50mm) | PC Pins | 0.591" (15.00mm) | General Purpose | - | - |
|
ECW-F6333HLCAP FILM 0.033UF 3% 630VDC RAD |
6,690 |
|
Datasheet |
Radial | 0.033 µF | ±3% | 223V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.512" L x 0.280" W (13.00mm x 7.10mm) | 0.441" (11.20mm) | PC Pins | 0.394" (10.00mm) | High Frequency, Switching | - | - |
|
|
LDEPD2100JA5N00CAP FILM 10000PF 5% 630VDC 2220 |
5,475 |
|
Datasheet |
2220 (5750 Metric) | 10000 pF | ±5% | 200V | 630V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.236" L x 0.197" W (6.00mm x 5.00mm) | 0.118" (3.00mm) | Solder Pads | - | Automotive | AEC-Q200 | High Temperature |
|

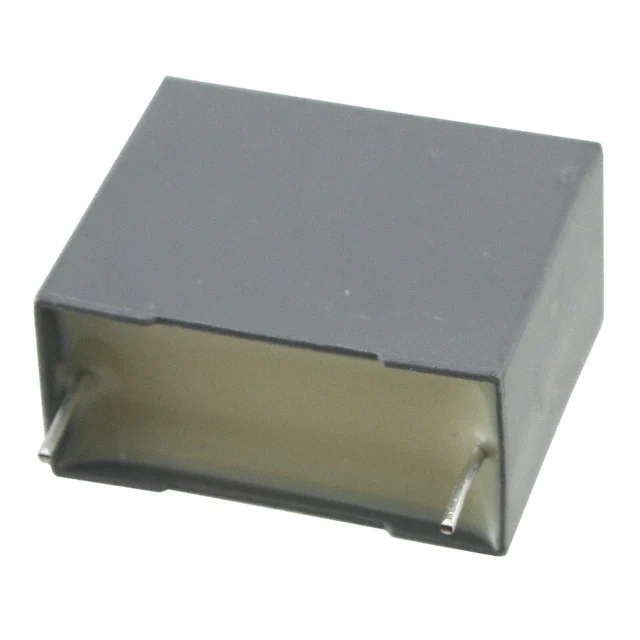

R46KN422000P0MCAP FILM 2.2UF 20% 560VDC RADIAL |
6,385 |
|
Datasheet |
Radial | 2.2 µF | ±20% | 275V | 560V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.043" L x 0.512" W (26.50mm x 13.00mm) | 0.870" (22.10mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | X2 | - |
|
|
LDEDD3680KA5N00CAP FILM 0.68UF 10% 63VDC 2220 |
20,391 |
|
Datasheet |
2220 (5750 Metric) | 0.68 µF | ±10% | 40V | 63V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.236" L x 0.197" W (6.00mm x 5.00mm) | 0.130" (3.30mm) | Solder Pads | - | Automotive | AEC-Q200 | High Temperature |
|
PME295RB4470MR30CAP FILM 4700PF 20% 1.5KVDC RAD |
3,654 |
|
Datasheet |
Radial | 4700 pF | ±20% | 480V | 1500V (1.5kV) | Paper, Metallized | - | -40°C ~ 115°C | Through Hole | 0.709" L x 0.335" W (18.00mm x 8.50mm) | 0.630" (16.00mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | Y1 | - |
|

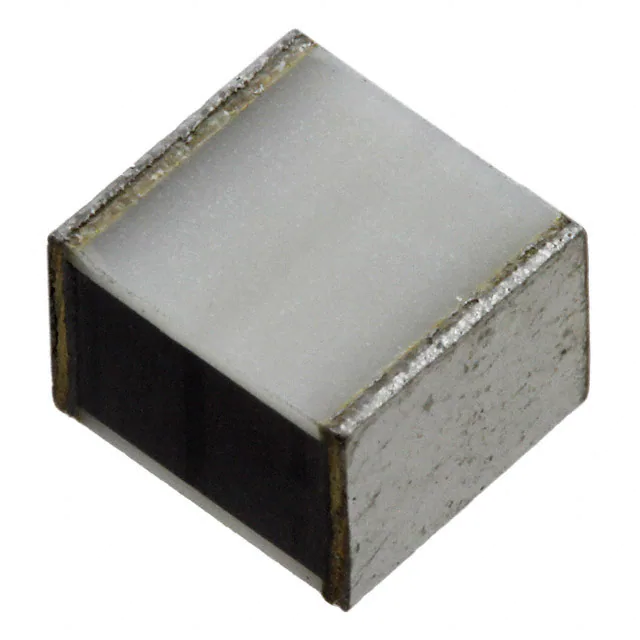

ECW-UC2J333JVCAP FILM 0.033UF 5% 630VDC 2825 |
1,166 |
|
Datasheet |
2825 (7163 Metric) | 0.033 µF | ±5% | 250V | 630V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.280" L x 0.248" W (7.10mm x 6.30mm) | 0.201" (5.10mm) | Solder Pads | - | General Purpose | - | - |
|
|
LDEED3470KA0N00CAP FILM 0.47UF 10% 100VDC 2220 |
5,878 |
|
Datasheet |
2220 (5750 Metric) | 0.47 µF | ±10% | 63V | 100V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.236" L x 0.197" W (6.00mm x 5.00mm) | 0.173" (4.40mm) | Solder Pads | - | Automotive | AEC-Q200 | High Temperature |
|

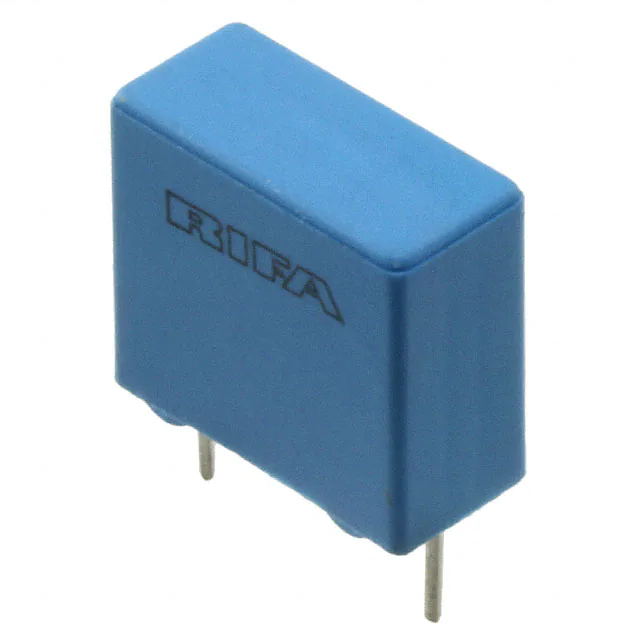

PHE426HB7100JR06CAP FILM 1UF 5% 250VDC RADIAL |
15,882 |
|
Datasheet |
Radial | 1 µF | ±5% | 160V | 250V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.709" L x 0.374" W (18.00mm x 9.50mm) | 0.689" (17.50mm) | PC Pins | 0.591" (15.00mm) | DC Link, DC Filtering; High Frequency, Switching; High Pulse, DV/DT | - | - |
|
BFC233810683CAP FILM 0.068UF 20% 1KVDC RAD |
285 |
|
Datasheet |
Radial | 0.068 µF | ±20% | 440V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.689" L x 0.335" W (17.50mm x 8.50mm) | 0.591" (15.00mm) | PC Pins | 0.591" (15.00mm) | General Purpose | - | - |
|
B32522C1475K000CAP FILM 4.7UF 10% 100VDC RADIAL |
1,463 |
|
Datasheet |
Radial | 4.7 µF | ±10% | 63V | 100V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 125°C | Through Hole | 0.709" L x 0.354" W (18.00mm x 9.00mm) | 0.689" (17.50mm) | PC Pins | 0.591" (15.00mm) | Automotive; EMI, RFI Suppression | AEC-Q200 | - |
|
|
LDEDD4100KA0N00CAP FILM 1UF 10% 63VDC 2220 |
5,651 |
|
Datasheet |
2220 (5750 Metric) | 1 µF | ±10% | 40V | 63V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.236" L x 0.197" W (6.00mm x 5.00mm) | 0.173" (4.40mm) | Solder Pads | - | Automotive | AEC-Q200 | High Temperature |
|

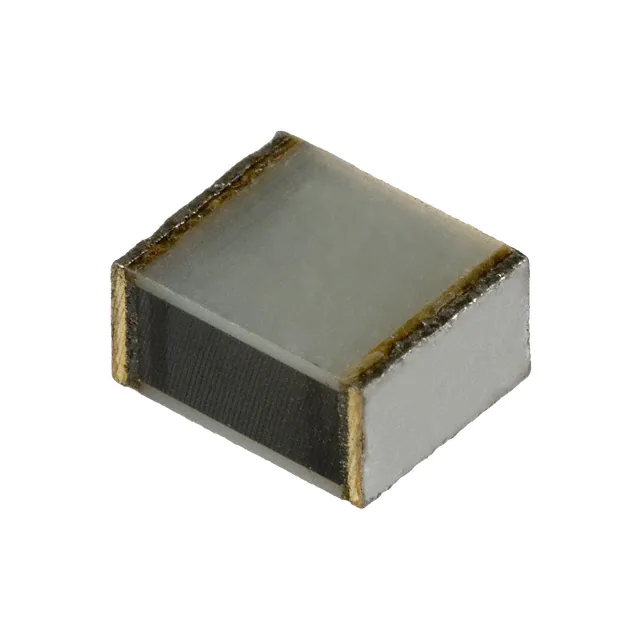

ECW-U2104V16CAP FILM 0.1UF 5% 250VDC 2420 |
1,793 |
|
Datasheet |
2420 (6050 Metric) | 0.1 µF | ±5% | 125V | 250V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 85°C | Surface Mount | 0.236" L x 0.197" W (6.00mm x 5.00mm) | 0.161" (4.10mm) | Solder Pads | - | High Frequency, Switching; High Pulse, DV/DT | - | - |
|
B32924D3335K000CAP FILM 3.3UF 10% 630VDC RADIAL |
5,346 |
|
Datasheet |
Radial | 3.3 µF | ±10% | 305V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.240" L x 0.630" W (31.50mm x 16.00mm) | 1.260" (32.00mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | X2 | - |
|

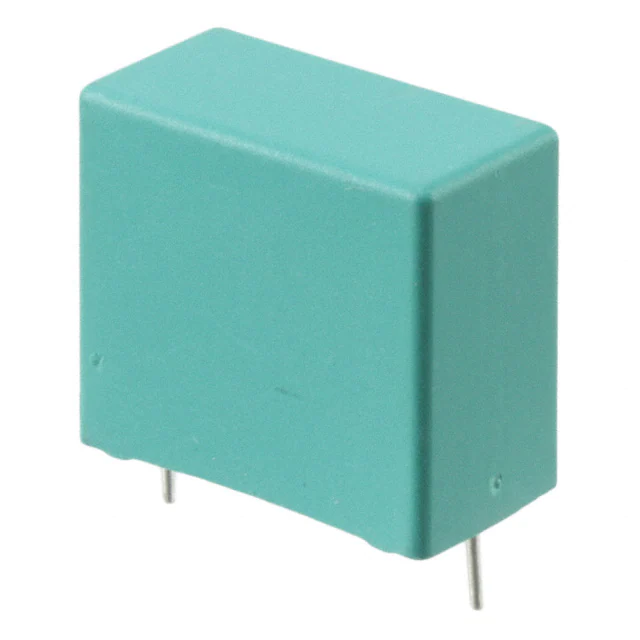

PHE850ED6220MD20R06L2CAP FILM 0.22UF 20% 1.25KVDC RAD |
166 |
|
Datasheet |
Radial | 0.22 µF | ±20% | 300V | 1250V (1.25kV) | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 1.024" L x 0.531" W (26.00mm x 13.50mm) | 0.906" (23.00mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | Y2 | - |
