Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

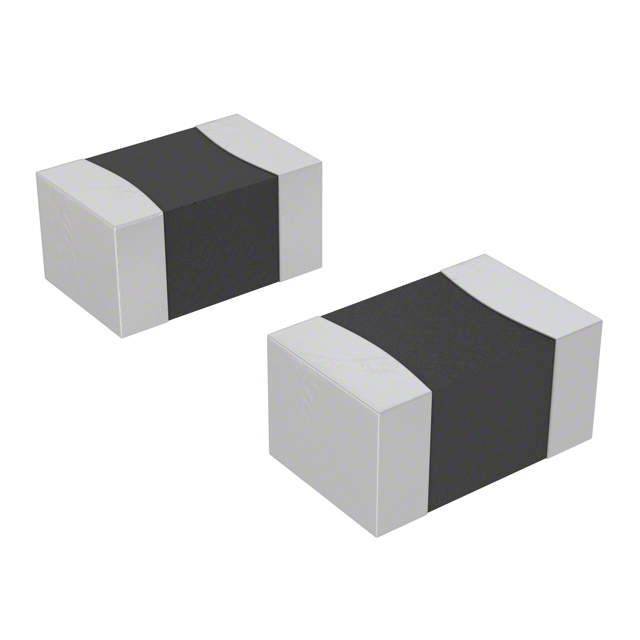

FCA0805C104M-J2CAP FILM 0.1UF 20% 16VDC 0805 |
6,411 |
|
Datasheet |
0805 (2012 Metric) | 0.1 µF | ±20% | 12V | 16V | Acrylic, Metallized | - | -40°C ~ 85°C | Surface Mount | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.047" (1.20mm) | Solder Pads | - | General Purpose | - | Low ESR |
|
R82CC4220Z370JCAP FILM 2.2UF 5% 50VDC RADIAL |
39,133 |
|
Datasheet |
Radial | 2.2 µF | ±5% | 30V | 50V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 105°C | Through Hole | 0.283" L x 0.236" W (7.20mm x 6.00mm) | 0.437" (11.10mm) | PC Pins | 0.197" (5.00mm) | Automotive | AEC-Q200 | - |
|
B32672L8223J000CAP FILM 0.022UF 5% 2KVDC RADIAL |
4,320 |
|
Datasheet |
Radial | 0.022 µF | ±5% | 700V | 2000V (2kV) | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 0.709" L x 0.354" W (18.00mm x 9.00mm) | 0.689" (17.50mm) | PC Pins | 0.591" (15.00mm) | High Frequency, Switching; High Pulse, DV/DT | - | - |
|
B81123C1472M000CAP FILM 4700PF 20% 500VAC RAD |
27,144 |
|
Datasheet |
Radial | 4700 pF | ±20% | 500V | - | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.354" W (18.00mm x 9.00mm) | 0.689" (17.50mm) | PC Pins | 0.591" (15.00mm) | Automotive; EMI, RFI Suppression | AEC-Q200, Y1 | 85C/85% Humidity |
|
MKP1U021005B00JSSDCAP FILM 10000PF 5% 2KVDC RAD |
7,244 |
|
Datasheet |
Radial | 10000 pF | ±5% | 700V | 2000V (2kV) | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 1.043" L x 0.236" W (26.50mm x 6.00mm) | 0.591" (15.00mm) | PC Pins | 0.886" (22.50mm) | High Pulse, DV/DT | - | - |
|
LDEEC3100KA5N00CAP FILM 0.1UF 10% 100VDC 1812 |
14,031 |
|
Datasheet |
1812 (4532 Metric) | 0.1 µF | ±10% | 63V | 100V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.185" L x 0.130" W (4.70mm x 3.30mm) | 0.094" (2.40mm) | Solder Pads | - | Automotive | AEC-Q200 | High Temperature |
|
|
LDEQD1100KA5N00CAP FILM 1000PF 10% 1KVDC 2220 |
5,997 |
|
Datasheet |
2220 (5750 Metric) | 1000 pF | ±10% | 250V | 1000V (1kV) | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.236" L x 0.197" W (6.00mm x 5.00mm) | 0.075" (1.90mm) | Solder Pads | - | Automotive | AEC-Q200 | High Temperature |
.jpg)
|

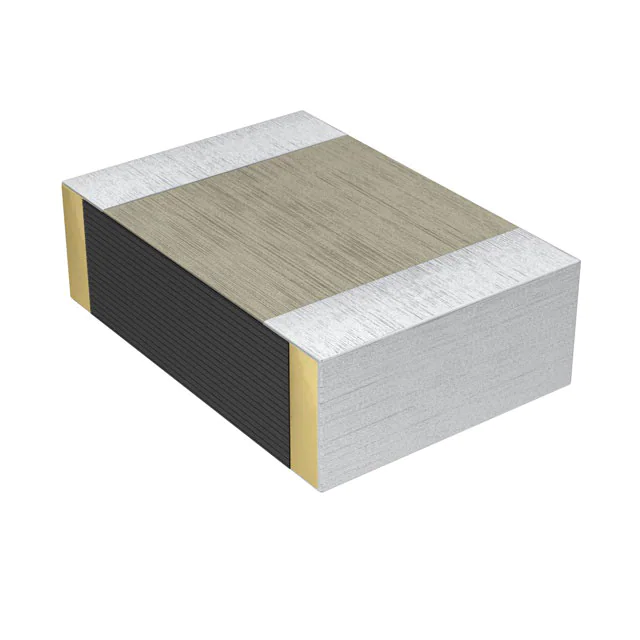

ECH-U1H473JX9CAP FILM 0.047UF 5% 50VDC 1913 |
8,861 |
|
Datasheet |
1913 (4833 Metric) | 0.047 µF | ±5% | 30V | 50V | Polyphenylene Sulfide (PPS), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.189" L x 0.130" W (4.80mm x 3.30mm) | 0.067" (1.70mm) | Solder Pads | - | General Purpose | - | - |
|

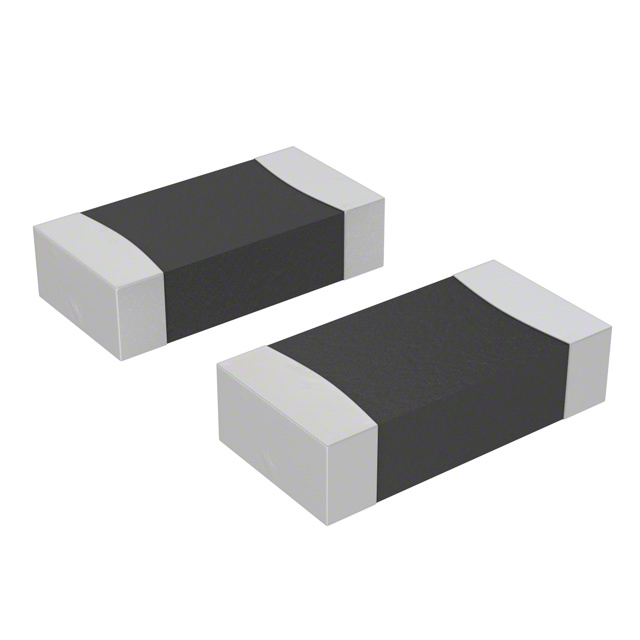

FCA1206C474M-H3CAP FILM 0.47UF 20% 16VDC 1206 |
1,707 |
|
Datasheet |
1206 (3216 Metric) | 0.47 µF | ±20% | 12V | 16V | Acrylic, Metallized | - | -40°C ~ 85°C | Surface Mount | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.063" (1.60mm) | Solder Pads | - | General Purpose | - | Low ESR |
|

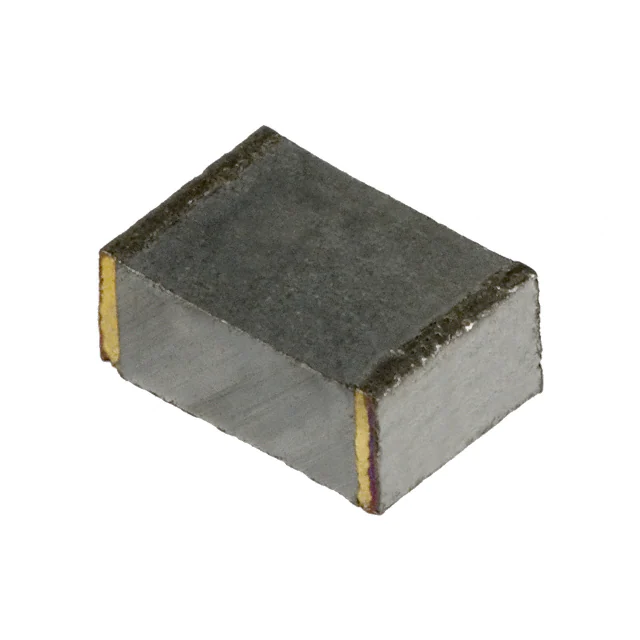

ECW-U2222JC9CAP FILM 2200PF 5% 250VDC 1913 |
665 |
|
Datasheet |
1913 (4833 Metric) | 2200 pF | ±5% | 125V | 250V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.189" L x 0.130" W (4.80mm x 3.30mm) | 0.067" (1.70mm) | Solder Pads | - | General Purpose | - | - |
|
R46KN347000N0MCAP FILM 0.47UF 20% 560VDC RAD |
29,926 |
|
Datasheet |
Radial | 0.47 µF | ±20% | 275V | 560V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.043" L x 0.276" W (26.50mm x 7.00mm) | 0.634" (16.10mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | X2 | - |
|
B32912B3224M000CAP FILM 0.22UF 20% 760VDC RAD |
19,399 |
|
Datasheet |
Radial | 0.22 µF | ±20% | 330V | 760V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.335" W (18.00mm x 8.50mm) | 0.571" (14.50mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | X1 | - |
|

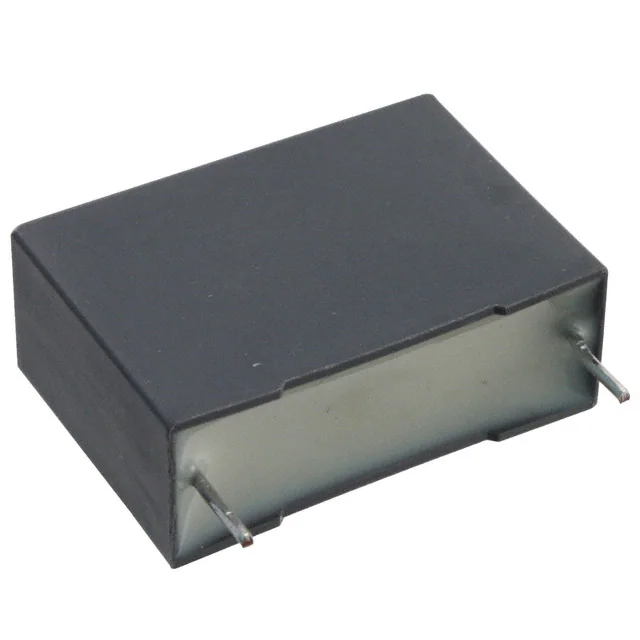

R463N410000N2MCAP FILM 1UF 20% 630VDC RADIAL |
9,533 |
|
Datasheet |
Radial | 1 µF | ±20% | 310V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.043" L x 0.394" W (26.50mm x 10.00mm) | 0.732" (18.60mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | X2 | - |
|
|
FCA1206A105M-H3CAP FILM 1UF 20% 10VDC 1206 |
488 |
|
Datasheet |
1206 (3216 Metric) | 1 µF | ±20% | 12V | 10V | Acrylic, Metallized | - | -40°C ~ 85°C | Surface Mount | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.055" (1.40mm) | Solder Pads | - | General Purpose | - | Low ESR |
|
LDECB3100KA0N00CAP FILM 0.1UF 10% 50VDC 1210 |
10,819 |
|
Datasheet |
1210 (3225 Metric) | 0.1 µF | ±10% | 40V | 50V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.130" L x 0.098" W (3.30mm x 2.50mm) | 0.083" (2.10mm) | Solder Pads | - | Automotive | AEC-Q200 | High Temperature |
 Series Straight 18x9.jpg)
|
ECW-F2W105JACAP FILM 1UF 5% 450VDC RADIAL |
59,701 |
|
Datasheet |
Radial | 1 µF | ±5% | 84V | 450V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.713" L x 0.366" W (18.10mm x 9.30mm) | 0.555" (14.10mm) | PC Pins | 0.591" (15.00mm) | High Frequency, Switching | - | - |
|

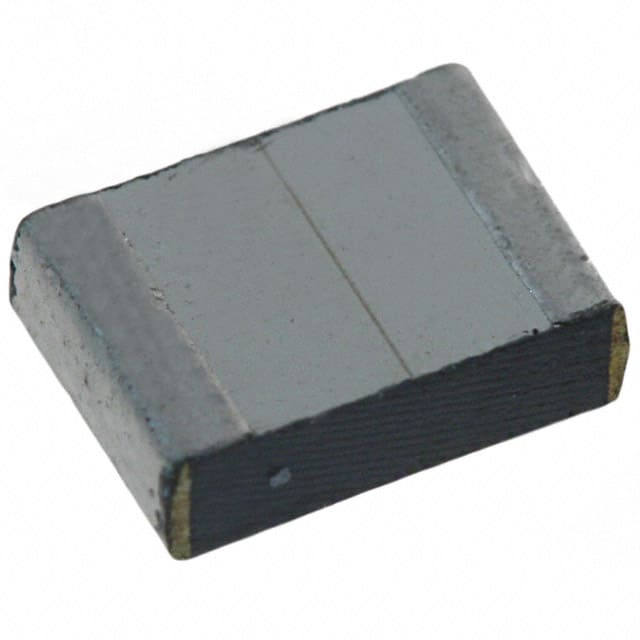

ECH-U1H104GX9CAP FILM 0.1UF 2% 50VDC 1913 |
18,239 |
|
Datasheet |
1913 (4833 Metric) | 0.1 µF | ±2% | 30V | 50V | Polyphenylene Sulfide (PPS), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.189" L x 0.130" W (4.80mm x 3.30mm) | 0.091" (2.30mm) | Solder Pads | - | General Purpose | - | - |
|
PME271Y510MR30CAP FILM 10000PF 20% 1KVDC RAD |
1,982 |
|
Datasheet |
Radial | 10000 pF | ±20% | 250V | 1000V (1kV) | Paper, Metallized | - | -40°C ~ 100°C | Through Hole | 0.728" L x 0.205" W (18.50mm x 5.20mm) | 0.413" (10.50mm) | PC Pins | 0.598" (15.20mm) | EMI, RFI Suppression | Y2 | - |
|
ECW-U4223V17CAP FILM 0.022UF 5% 400VDC 2416 |
4,099 |
|
Datasheet |
2416 (6041 Metric) | 0.022 µF | ±5% | 157V | 400V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 85°C | Surface Mount | 0.236" L x 0.161" W (6.00mm x 4.10mm) | 0.134" (3.40mm) | Solder Pads | - | DC Link, DC Filtering | - | - |
|
|
FKP1Y014706B00JSSDCAP FILM 4700PF 5% 6KVDC RAD |
4,078 |
|
Datasheet |
Radial | 4700 pF | ±5% | 700V | 6000V (6kV) | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 1.240" L x 0.433" W (31.50mm x 11.00mm) | 0.827" (21.00mm) | PC Pins | 1.083" (27.50mm) | High Frequency, Switching; High Pulse, DV/DT | - | - |
