Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PFR5221J100J11L4BULKCAP FILM 220PF 5% 100VDC RADIAL |
4,605 |
|
Datasheet |
Radial | 220 pF | ±5% | 63V | 100V | Polypropylene (PP) | - | -55°C ~ 100°C | Through Hole | 0.283" L x 0.177" W (7.20mm x 4.50mm) | 0.236" (6.00mm) | PC Pins | 0.197" (5.00mm) | High Frequency, Switching; High Pulse, DV/DT | - | - |
|
|
PFR5221J63J11L4BULKCAP FILM 220PF 5% 63VDC RADIAL |
2,284 |
|
Datasheet |
Radial | 220 pF | ±5% | 40V | 63V | Polypropylene (PP) | - | -55°C ~ 100°C | Through Hole | 0.283" L x 0.177" W (7.20mm x 4.50mm) | 0.236" (6.00mm) | PC Pins | 0.197" (5.00mm) | High Frequency, Switching; High Pulse, DV/DT | - | - |
|
B32912A3224M000CAP FILM 0.22UF 20% 760VDC RAD |
2,161 |
|
Datasheet |
Radial | 0.22 µF | ±20% | 330V | 760V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.354" W (18.00mm x 9.00mm) | 0.689" (17.50mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | X1 | - |
|
BFC236855104CAP FILM 0.1UF METALIZED POLY |
1,900 |
|
Datasheet |
Radial | 100000 pF | ±10% | 220V | 400V | Polyester, Metallized | - | -55°C ~ 105°C | Through Hole | 0.689" L x 0.209" W (17.50mm x 5.30mm) | 0.571" (14.50mm) | PC Pins | 0.591" (15.00mm) | General Purpose | - | - |
|
RSBCC4220Z310KCAP FILM 2.2UF 10% 50VDC RADIAL |
9,986 |
|
Datasheet |
Radial | 2.2 µF | ±10% | 30V | 50V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 125°C | Through Hole | 0.283" L x 0.236" W (7.20mm x 6.00mm) | 0.437" (11.10mm) | PC Pins | 0.197" (5.00mm) | General Purpose | - | High Temperature |
|
ECQ-E2225KBCAP FILM 2.2UF 10% 250VDC RADIAL |
4,368 |
|
Datasheet |
Radial | 2.2 µF | ±10% | - | 250V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.819" L x 0.331" W (20.80mm x 8.40mm) | 0.654" (16.60mm) | PC Pins | 0.689" (17.50mm) | General Purpose | - | - |
|
MKP1837310161GCAP FILM 10000PF 1% 160VDC RAD |
7,622 |
|
Datasheet |
Radial | 10000 pF | ±1% | 100V | 160V | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 0.295" L x 0.217" W (7.50mm x 5.50mm) | 0.276" (7.00mm) | PC Pins | 0.197" (5.00mm) | High Frequency, Switching | - | - |
|
ECW-U1C184JC9CAP FILM 0.18UF 5% 16VDC 1913 |
4,935 |
|
Datasheet |
1913 (4833 Metric) | 0.18 µF | ±5% | 8V | 16V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 105°C | Surface Mount | 0.189" L x 0.130" W (4.80mm x 3.30mm) | 0.087" (2.20mm) | Solder Pads | - | General Purpose | - | - |
|
|
ECW-U2223KC9CAP FILM 0.022UF 10% 250VDC 1913 |
4,640 |
|
Datasheet |
1913 (4833 Metric) | 0.022 µF | ±10% | 125V | 250V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.189" L x 0.130" W (4.80mm x 3.30mm) | 0.087" (2.20mm) | Solder Pads | - | General Purpose | - | - |
|
MMK5105K63J04L4BULKCAP FILM 1UF 10% 63VDC RADIAL |
2,899 |
|
Datasheet |
Radial | 1 µF | ±10% | 40V | 63V | Polyester, Metallized | - | -55°C ~ 100°C | Through Hole | 0.283" L x 0.197" W (7.20mm x 5.00mm) | 0.394" (10.00mm) | PC Pins | 0.197" (5.00mm) | General Purpose | - | - |
|
FCA1206C684M-H3CAP FILM 0.68UF 20% 16VDC 1206 |
1,265 |
|
Datasheet |
1206 (3216 Metric) | 0.68 µF | ±20% | 12V | 16V | Acrylic, Metallized | - | -40°C ~ 85°C | Surface Mount | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.063" (1.60mm) | Solder Pads | - | General Purpose | - | Low ESR |
|
ECQ-E2335JFCAP FILM 3.3UF 5% 250VDC RADIAL |
831 |
|
Datasheet |
Radial | 3.3 µF | ±5% | - | 250V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 1.024" L x 0.406" W (26.00mm x 10.30mm) | 0.768" (19.50mm) | PC Pins | 0.886" (22.50mm) | General Purpose | - | - |
|
168104J63A-FCAP FILM 0.1UF 5% 63VDC RADIAL |
791 |
|
Datasheet |
Radial | 0.1 µF | ±5% | 40V | 63V | Polyester, Metallized | - | -55°C ~ 125°C | Through Hole | 0.283" L x 0.098" W (7.20mm x 2.50mm) | 0.256" (6.50mm) | PC Pins | 0.197" (5.00mm) | General Purpose | - | - |
|
ECW-F6104JLCAP FILM 0.1UF 5% 630VDC RADIAL |
14,378 |
|
Datasheet |
Radial | 0.1 µF | ±5% | 223V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.709" L x 0.303" W (18.00mm x 7.70mm) | 0.535" (13.60mm) | PC Pins | 0.591" (15.00mm) | High Frequency, Switching | - | - |
|

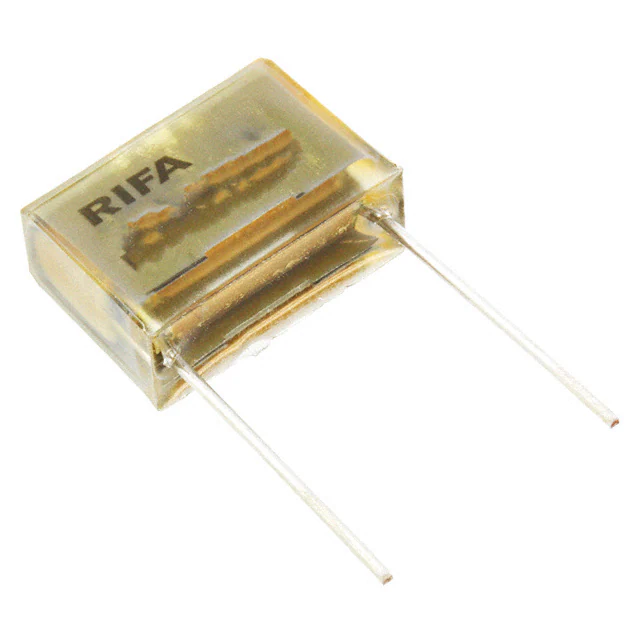

PME271Y522MR30CAP FILM 0.022UF 20% 1KVDC RAD |
8,772 |
|
Datasheet |
Radial | 0.022 µF | ±20% | 250V | 1000V (1kV) | Paper, Metallized | - | -40°C ~ 100°C | Through Hole | 0.728" L x 0.287" W (18.50mm x 7.30mm) | 0.512" (13.00mm) | PC Pins | 0.598" (15.20mm) | EMI, RFI Suppression | Y2 | - |
|
MKS0B041000F00MSSDCAP FILM 1UF 20% 50VDC RAD |
7,285 |
|
Datasheet |
Radial | 1 µF | ±20% | - | 50V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 100°C | Through Hole | 0.181" L x 0.217" W (4.60mm x 5.50mm) | 0.394" (10.00mm) | PC Pins | 0.098" (2.50mm) | General Purpose | - | - |
.jpg)
|
ECH-U1H124GX9CAP FILM 0.12UF 2% 50VDC 2416 |
5,780 |
|
Datasheet |
2416 (6041 Metric) | 0.12 µF | ±2% | 30V | 50V | Polyphenylene Sulfide (PPS), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.236" L x 0.161" W (6.00mm x 4.10mm) | 0.083" (2.10mm) | Solder Pads | - | General Purpose | - | - |
|
LDEDC3220JA5N00CAP FILM 0.22UF 5% 63VDC 1812 |
4,489 |
|
Datasheet |
1812 (4532 Metric) | 0.22 µF | ±5% | 40V | 63V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.185" L x 0.130" W (4.70mm x 3.30mm) | 0.094" (2.40mm) | Solder Pads | - | Automotive | AEC-Q200 | High Temperature |
|
PHE450PB5220JR06CAP FILM 0.022UF 5% 1KVDC RADIAL |
2,162 |
|
Datasheet |
Radial | 0.022 µF | ±5% | 600V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.709" L x 0.217" W (18.00mm x 5.50mm) | 0.413" (10.50mm) | PC Pins | 0.591" (15.00mm) | High Frequency, Switching | - | - |
|
B32933B3474K000CAP FILM 0.47UF 10% 305VAC RAD |
772 |
|
Datasheet |
Radial | 0.47 µF | ±10% | 305V | - | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 1.043" L x 0.413" W (26.50mm x 10.50mm) | 0.650" (16.50mm) | PC Pins | 0.886" (22.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X2 | 85C/85% Humidity |
