Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
50MU103KY11608CAP FILM 10000PF 10% 50VDC 0603 |
4,067 |
|
Datasheet |
0603 (1608 Metric) | 10000 pF | ±10% | - | 50V | Acrylic, Metallized | - | -55°C ~ 125°C | Surface Mount | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.031" (0.80mm) | Solder Pads | - | DC Link, DC Filtering | - | - |
|
ECW-U2103V16CAP FILM 10000PF 5% 250VDC 1913 |
3,117 |
|
Datasheet |
1913 (4833 Metric) | 10000 pF | ±5% | 125V | 250V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 85°C | Surface Mount | 0.189" L x 0.130" W (4.80mm x 3.30mm) | 0.067" (1.70mm) | Solder Pads | - | High Frequency, Switching; High Pulse, DV/DT | - | - |
|
105MKP275KECAP FILM 1UF 10% 310VAC RADIAL |
2,268 |
|
Datasheet |
Radial | 1 µF | ±10% | 310V | - | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.433" W (18.00mm x 11.00mm) | 0.740" (18.80mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | X2 | - |
|
ECH-U1H683GX9CAP FILM 0.068UF 2% 50VDC 1913 |
6,371 |
|
Datasheet |
1913 (4833 Metric) | 0.068 µF | ±2% | 30V | 50V | Polyphenylene Sulfide (PPS), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.189" L x 0.130" W (4.80mm x 3.30mm) | 0.067" (1.70mm) | Solder Pads | - | General Purpose | - | - |
|
B32653A7333K000CAP FILM 0.033UF 1.25KVDC RADIAL |
6,058 |
|
Datasheet |
Radial | 0.033 µF | ±10% | 500V | 1250V (1.25kV) | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 1.043" L x 0.236" W (26.50mm x 6.00mm) | 0.591" (15.00mm) | PC Pins | 0.886" (22.50mm) | DC Link, DC Filtering; High Pulse, DV/DT | - | - |
|
153MWR630KCAP FILM 0.015UF 630VDC AXIAL |
4,702 |
|
Datasheet |
Axial | 0.015 µF | ±10% | 220V | 630V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.256" Dia x 0.571" L (6.50mm x 14.50mm) | - | PC Pins | - | General Purpose | - | Low ESR |
|
PME271YA4220MR30CAP FILM 2200PF 20% 1KVDC RADIAL |
3,897 |
|
Datasheet |
Radial | 2200 pF | ±20% | 300V | 1000V (1kV) | Paper, Metallized | - | -40°C ~ 115°C | Through Hole | 0.531" L x 0.154" W (13.50mm x 3.90mm) | 0.295" (7.50mm) | PC Pins | 0.402" (10.20mm) | EMI, RFI Suppression | Y2 | - |
|
PFR5101J100J11L4BULKCAP FILM 100PF 5% 100VDC RADIAL |
2,469 |
|
Datasheet |
Radial | 100 pF | ±5% | 63V | 100V | Polypropylene (PP) | - | -55°C ~ 100°C | Through Hole | 0.283" L x 0.177" W (7.20mm x 4.50mm) | 0.236" (6.00mm) | PC Pins | 0.197" (5.00mm) | High Frequency, Switching; High Pulse, DV/DT | - | - |
|
|
473MWR630KCAP FILM 0.047UF 630VDC AXIAL |
1,161 |
|
Datasheet |
Axial | 0.047 µF | ±10% | 220V | 630V | Polyester, Metallized | 30.1 Ohms | -40°C ~ 105°C | Through Hole | 0.295" Dia x 0.748" L (7.50mm x 19.00mm) | - | PC Pins | - | General Purpose | - | Low ESR |
|
|
474MWR250KCAP FILM 0.47UF 10% 250VDC AXIAL |
1,142 |
|
Datasheet |
Axial | 0.47 µF | ±10% | 160V | 250V | Polyester, Metallized | 3.01 Ohms | -40°C ~ 105°C | Through Hole | 0.374" Dia x 0.748" L (9.50mm x 19.00mm) | - | PC Pins | - | General Purpose | - | Low ESR |
|

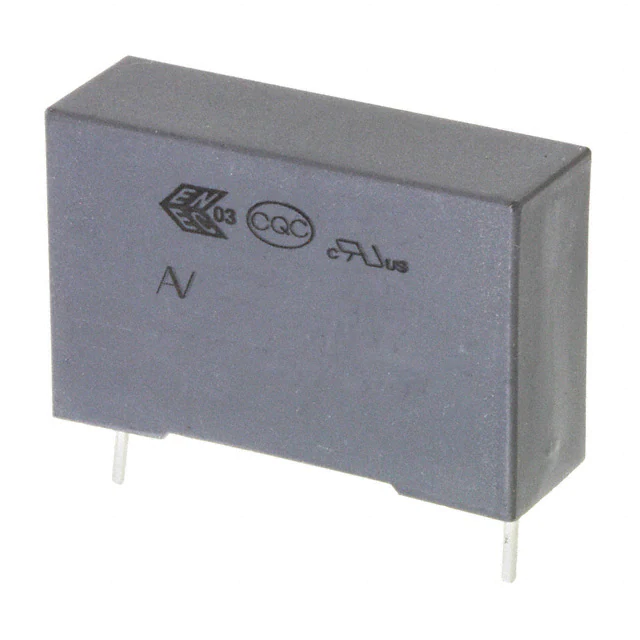

R46KN410000P1MCAP FILM 1UF 20% 560VDC RADIAL |
911 |
|
Datasheet |
Radial | 1 µF | ±20% | 275V | 560V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.043" L x 0.335" W (26.50mm x 8.50mm) | 0.673" (17.10mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | X2 | - |
|
ECW-F6243JLCAP FILM 0.024UF 5% 630VDC RAD |
707 |
|
Datasheet |
Radial | 0.024 µF | ±5% | 223V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.492" L x 0.252" W (12.50mm x 6.40mm) | 0.421" (10.70mm) | PC Pins | 0.394" (10.00mm) | High Frequency, Switching | - | - |
|
104MPW250KCAP FILM 0.1UF 10% 250VDC AXIAL |
416 |
|
Datasheet |
Axial | 0.1 µF | ±10% | 200V | 250V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.335" Dia x 0.571" L (8.50mm x 14.50mm) | - | PC Pins | - | DC Link, DC Filtering | - | Low ESR |
|
R463N410040N1MCAP FILM 1UF 20% 630VDC RAD |
259 |
|
Datasheet |
Radial | 1 µF | ±20% | 310V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.043" L x 0.433" W (26.50mm x 11.00mm) | 0.791" (20.10mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | X2 | - |
|
B32523Q3225K000CAP FILM 2.2UF 10% 250VDC RADIAL |
11,586 |
|
Datasheet |
Radial | 2.2 µF | ±10% | 160V | 250V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 125°C | Through Hole | 1.043" L x 0.413" W (26.50mm x 10.50mm) | 0.650" (16.50mm) | PC Pins | 0.886" (22.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200 | - |
|
|
ECH-U1H683JX9CAP FILM 0.068UF 5% 50VDC 1913 |
6,000 |
|
Datasheet |
1913 (4833 Metric) | 0.068 µF | ±5% | 30V | 50V | Polyphenylene Sulfide (PPS), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.189" L x 0.130" W (4.80mm x 3.30mm) | 0.067" (1.70mm) | Solder Pads | - | General Purpose | - | - |
|
|
224MPW250KCAP FILM 0.22UF 10% 250VDC AXIAL |
2,284 |
|
Datasheet |
Axial | 0.22 µF | ±10% | 200V | 250V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.374" Dia x 0.807" L (9.50mm x 20.50mm) | - | PC Pins | - | DC Link, DC Filtering | - | Low ESR |
|
PHE840MD6220MD13R06L2CAP FILM 0.22UF 20% 760VDC RAD |
2,017 |
|
Datasheet |
Radial | 0.22 µF | ±20% | 275V | 760V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.024" L x 0.256" W (26.00mm x 6.50mm) | 0.571" (14.50mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | X2 | - |
|
B32923P3105K000FILM CAP MKP X2 - 125C, 1UF 10% |
610 |
|
Datasheet |
Radial | 1 µF | ±10% | 305V | 630V | Polypropylene (PP) | - | -40°C ~ 110°C | Through Hole | 1.043" L x 0.433" W (26.50mm x 11.00mm) | 0.807" (20.50mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | X2 | - |
|
ECQ-E2335KFCAP FILM 3.3UF 10% 250VDC RADIAL |
20,059 |
|
Datasheet |
Radial | 3.3 µF | ±10% | - | 250V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 1.024" L x 0.406" W (26.00mm x 10.30mm) | 0.748" (19.00mm) | PC Pins | 0.886" (22.50mm) | General Purpose | - | - |
Film Capacitors Electronic Components
Explore Film Capacitors electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
