Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BFC233810104CAP FILM 0.1UF 20% 1KVDC RADIAL |
11,982 |
|
Datasheet |
Radial | 0.1 µF | ±20% | 440V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.689" L x 0.394" W (17.50mm x 10.00mm) | 0.650" (16.50mm) | PC Pins | 0.591" (15.00mm) | General Purpose | - | - |
|

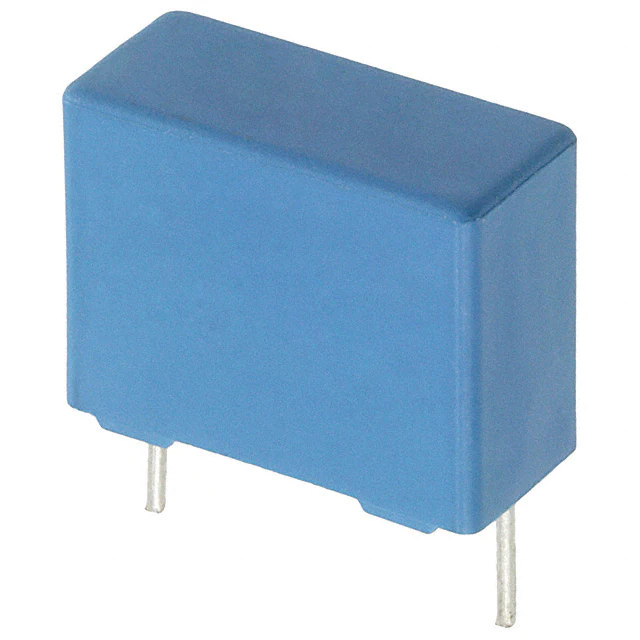

B32022A3333M000CAP FILM 0.033UF 20% 1.5KVDC RAD |
10,283 |
|
Datasheet |
Radial | 0.033 µF | ±20% | 300V | 1500V (1.5kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.315" W (18.00mm x 8.00mm) | 0.551" (14.00mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | Y2 | - |
|
LDEDC3100KA5N00CAP FILM 0.1UF 10% 63VDC 1812 |
9,899 |
|
Datasheet |
1812 (4532 Metric) | 0.1 µF | ±10% | 40V | 63V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.185" L x 0.130" W (4.70mm x 3.30mm) | 0.094" (2.40mm) | Solder Pads | - | Automotive | AEC-Q200 | High Temperature |
.jpg)
|
ECH-U1H473GX9CAP FILM 0.047UF 2% 50VDC 1913 |
5,339 |
|
Datasheet |
1913 (4833 Metric) | 0.047 µF | ±2% | 30V | 50V | Polyphenylene Sulfide (PPS), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.189" L x 0.130" W (4.80mm x 3.30mm) | 0.067" (1.70mm) | Solder Pads | - | General Purpose | - | - |
|
ECW-U2472KC9CAP FILM 4700PF 10% 250VDC 1913 |
3,611 |
|
Datasheet |
1913 (4833 Metric) | 4700 pF | ±10% | 125V | 250V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.189" L x 0.130" W (4.80mm x 3.30mm) | 0.063" (1.60mm) | Solder Pads | - | General Purpose | - | - |
|
B32683A1682K000CAP FILM 6800PF 10% 1.6KVDC RAD |
2,374 |
|
Datasheet |
Radial | 6800 pF | ±10% | 500V | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 1.043" L x 0.236" W (26.50mm x 6.00mm) | 0.591" (15.00mm) | PC Pins | 0.886" (22.50mm) | DC Link, DC Filtering; High Pulse, DV/DT; Snubber | - | - |
|
LDEEA1100JA0N00CAP FILM 1000PF 5% 100VDC 1206 |
963 |
|
Datasheet |
1206 (3216 Metric) | 1000 pF | ±5% | 63V | 100V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.130" L x 0.067" W (3.30mm x 1.70mm) | 0.043" (1.10mm) | Solder Pads | - | Automotive | AEC-Q200 | High Temperature |
|
B32022A3683M000CAP FILM 0.068UF 20% 1.5KVDC RAD |
8,480 |
|
Datasheet |
Radial | 0.068 µF | ±20% | 300V | 1500V (1.5kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.354" W (18.00mm x 9.00mm) | 0.689" (17.50mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | Y2 | - |
|
473MWR400KCAP FILM 0.047UF 400VDC AXIAL |
4,356 |
|
Datasheet |
Axial | 0.047 µF | ±10% | 200V | 400V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.276" Dia x 0.551" L (7.00mm x 14.00mm) | - | PC Pins | - | General Purpose | - | Low ESR |
|
MKS4C042204C00MSSDCAP FILM 2.2UF 20% 63VDC RADIAL |
3,980 |
|
Datasheet |
Radial | 2.2 µF | ±20% | 40V | 63V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 125°C | Through Hole | 0.709" L x 0.236" W (18.00mm x 6.00mm) | 0.492" (12.50mm) | PC Pins | 0.591" (15.00mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
|
168102J100A-FCAP FILM 1000PF 5% 100VDC RADIAL |
3,210 |
|
Datasheet |
Radial | 1000 pF | ±5% | 63V | 100V | Polyester, Metallized | - | -55°C ~ 125°C | Through Hole | 0.283" L x 0.098" W (7.20mm x 2.50mm) | 0.256" (6.50mm) | PC Pins | 0.197" (5.00mm) | General Purpose | - | - |
|
B32523Q6105K000CAP FILM 1UF 10% 400VDC RADIAL |
217 |
|
Datasheet |
Radial | 1 µF | ±10% | 200V | 400V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 125°C | Through Hole | 1.043" L x 0.413" W (26.50mm x 10.50mm) | 0.650" (16.50mm) | PC Pins | 0.886" (22.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200 | - |
|
MMK15105K100B04L4BULKCAP FILM 1UF 10% 100VDC RADIAL |
157 |
|
Datasheet |
Radial | 1 µF | ±10% | 63V | 100V | Polyester, Metallized | - | -55°C ~ 100°C | Through Hole | 0.709" L x 0.217" W (18.00mm x 5.50mm) | 0.413" (10.50mm) | PC Pins | 0.591" (15.00mm) | General Purpose | - | - |
|
|
LDEDC3220KA5N00CAP FILM 0.22UF 10% 63VDC 1812 |
10,841 |
|
Datasheet |
1812 (4532 Metric) | 0.22 µF | ±10% | 40V | 63V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.185" L x 0.130" W (4.70mm x 3.30mm) | 0.094" (2.40mm) | Solder Pads | - | Automotive | AEC-Q200 | High Temperature |
|
|
LDBCA1470GC5N0CAP FILM 4700PF 2% 50VDC 1206 |
2,917 |
|
Datasheet |
1206 (3216 Metric) | 4700 pF | ±2% | 40V | 50V | Polyphenylene Sulfide (PPS), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.130" L x 0.067" W (3.30mm x 1.70mm) | 0.043" (1.10mm) | Solder Pads | - | General Purpose | - | - |
|
ECW-FD2W225JBCAP FILM 2.2UF 5% 450VDC RADIAL |
539 |
|
Datasheet |
Radial | 2.2 µF | ±5% | - | 450V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.689" L x 0.437" W (17.50mm x 11.10mm) | 0.760" (19.30mm) | PC Pins | 0.295" (7.50mm) | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | - | - |
|
B32923C3155M000CAP FILM 1.5UF 20% 630VDC RADIAL |
53,607 |
|
Datasheet |
Radial | 1.5 µF | ±20% | 305V | 630V | Polypropylene (PP) | - | -40°C ~ 110°C | Through Hole | 1.043" L x 0.472" W (26.50mm x 12.00mm) | 0.866" (22.00mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | X2 | - |
|
B32653A7473J000CAP FILM 0.047UF 5% 1.25KVDC RAD |
11,680 |
|
Datasheet |
Radial | 0.047 µF | ±5% | 500V | 1250V (1.25kV) | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 1.043" L x 0.335" W (26.50mm x 8.50mm) | 0.650" (16.50mm) | PC Pins | 0.886" (22.50mm) | DC Link, DC Filtering; High Pulse, DV/DT | AEC-Q200 | - |
|
PHE850EB5470MB14R17CAP FILM 0.047UF 1.25KVDC RAD |
11,309 |
|
Datasheet |
Radial | 0.047 µF | ±20% | 300V | 1250V (1.25kV) | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 0.709" L x 0.374" W (18.00mm x 9.50mm) | 0.689" (17.50mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | Y2 | - |
|
|
ECW-U2222V16CAP FILM 2200PF 5% 250VDC 1913 |
7,475 |
|
Datasheet |
1913 (4833 Metric) | 2200 pF | ±5% | 125V | 250V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 85°C | Surface Mount | 0.189" L x 0.130" W (4.80mm x 3.30mm) | 0.067" (1.70mm) | Solder Pads | - | High Frequency, Switching; High Pulse, DV/DT | - | - |
