Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FCP1210C104J-G3CAP FILM 0.1UF 5% 16VDC 1210 |
4,155 |
|
Datasheet |
1210 (3225 Metric) | 0.1 µF | ±5% | - | 16V | Polyphenylene Sulfide (PPS) | - | -55°C ~ 125°C | Surface Mount | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.091" (2.30mm) | Solder Pads | - | High Frequency, Switching | - | - |
 Series.jpg)
|
ECW-FE2W225JCAP FILM 2.2UF 5% 450VDC RADIAL |
1,789 |
|
Datasheet |
Radial | 2.2 µF | ±5% | 84V | 450V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.689" L x 0.394" W (17.50mm x 10.00mm) | 0.630" (16.00mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | - | - |
|
CB027D0473JBACAP FILM 0.047UF 5% 63VDC 1210 |
12,453 |
|
Datasheet |
1210 (3225 Metric) | 0.047 µF | ±5% | 40V | 63V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.130" L x 0.098" W (3.30mm x 2.50mm) | 0.071" (1.80mm) | Solder Pads | - | General Purpose | - | - |
|
R463N410050N2MCAP FILM 1UF 20% 630VDC RADIAL |
6,233 |
|
Datasheet |
Radial | 1 µF | ±20% | 310V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.043" L x 0.394" W (26.50mm x 10.00mm) | 0.732" (18.60mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | X2 | - |
|
224MWR100KCAP FILM 0.22UF 10% 100VDC AXIAL |
4,813 |
|
Datasheet |
Axial | 0.22 µF | ±10% | 63V | 100V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.256" Dia x 0.551" L (6.50mm x 14.00mm) | - | PC Pins | - | General Purpose | - | Low ESR |
|
MKS4J031005B00MSSDCAP FILM 0.1UF 20% 630VDC RADIAL |
1,409 |
|
Datasheet |
Radial | 0.1 µF | ±20% | 400V | 630V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 125°C | Through Hole | 1.043" L x 0.236" W (26.50mm x 6.00mm) | 0.591" (15.00mm) | PC Pins | 0.886" (22.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
|
B32642B0563KCAP FILM 0.056UF 10% 1KVDC RAD |
1,211 |
|
Datasheet |
Radial | 0.056 µF | ±10% | 600V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 0.709" L x 0.335" W (18.00mm x 8.50mm) | 0.571" (14.50mm) | PC Pins | 0.591" (15.00mm) | High Frequency, Switching | - | - |
|
|
MKS4D041003F00JSSDCAP FILM 1UF 5% 100VDC RADIAL |
645 |
|
Datasheet |
Radial | 1 µF | ±5% | 63V | 100V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 125°C | Through Hole | 0.512" L x 0.197" W (13.00mm x 5.00mm) | 0.433" (11.00mm) | PC Pins | 0.394" (10.00mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
|
ECQ-E4824KFCAP FILM 0.82UF 10% 400VDC RAD |
588 |
|
Datasheet |
Radial | 0.82 µF | ±10% | - | 400V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 1.024" L x 0.311" W (26.00mm x 7.90mm) | 0.720" (18.30mm) | PC Pins | 0.886" (22.50mm) | General Purpose | - | - |
|
B32923C3105M189CAP FILM 1UF 20% 630VDC RADIAL |
37,538 |
|
Datasheet |
Radial | 1 µF | ±20% | 305V | 630V | Polypropylene (PP) | - | -40°C ~ 110°C | Through Hole | 1.043" L x 0.433" W (26.50mm x 11.00mm) | 0.807" (20.50mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | X2 | - |
|

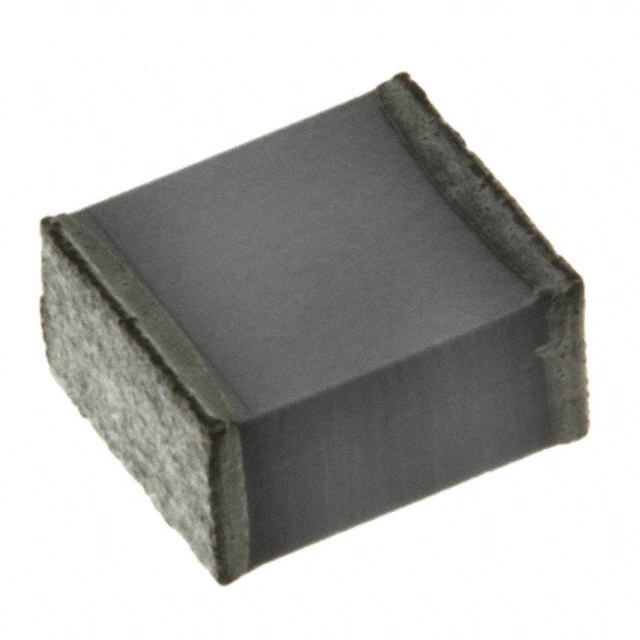

CB042D0474JBCCAP FILM 0.47UF 5% 63VDC 2220 |
10,061 |
|
Datasheet |
2220 (5750 Metric) | 0.47 µF | ±5% | 40V | 63V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.228" L x 0.197" W (5.80mm x 5.00mm) | 0.138" (3.50mm) | Solder Pads | - | General Purpose | - | - |
|
B81123C1332M189CAP FILM 3300PF 20% 500VAC RAD |
4,901 |
|
Datasheet |
Radial | 3300 pF | ±20% | 500V | - | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.335" W (18.00mm x 8.50mm) | 0.571" (14.50mm) | PC Pins | 0.591" (15.00mm) | Automotive; EMI, RFI Suppression | AEC-Q200, Y1 | 85C/85% Humidity |
|
|
B32923C3105K189CAP FILM 1UF 10% 630VDC RADIAL |
4,189 |
|
Datasheet |
Radial | 1 µF | ±10% | 305V | 630V | Polypropylene (PP) | - | -40°C ~ 110°C | Through Hole | 1.043" L x 0.433" W (26.50mm x 11.00mm) | 0.807" (20.50mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | X2 | - |
|
R474I310050A1KCAP FILM 0.1UF 10% 1KVDC RADIAL |
4,154 |
|
Datasheet |
Radial | 0.1 µF | ±10% | 440V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.433" W (18.00mm x 11.00mm) | 0.752" (19.10mm) | PC Pins | 0.591" (15.00mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X1 | - |
|
MKS2D041501M00KSSDCAP FILM 1.5UF 10% 100VDC RADIAL |
3,024 |
|
Datasheet |
Radial | 1.5 µF | ±10% | 63V | 100V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 125°C | Through Hole | 0.283" L x 0.335" W (7.20mm x 8.50mm) | 0.551" (14.00mm) | PC Pins | 0.197" (5.00mm) | Automotive | AEC-Q200 | - |
|
|
B32923C3105K289CAP FILM 1UF 10% 630VDC RADIAL |
1,699 |
|
Datasheet |
Radial | 1 µF | ±10% | 305V | 630V | Polypropylene (PP) | - | -40°C ~ 110°C | Through Hole | 1.043" L x 0.433" W (26.50mm x 11.00mm) | 0.807" (20.50mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | X2 | - |
|
|
BFC237540121CAP FILM 120PF 5% 2KVDC RADIAL |
1,420 |
|
Datasheet |
Radial | 120 pF | ±5% | 600V | 2000V (2kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.728" L x 0.217" W (18.50mm x 5.50mm) | 0.571" (14.50mm) | PC Pins | 0.394" (10.00mm) | High Pulse, DV/DT | - | - |
|
|
ECQ-E1475KFCAP FILM 4.7UF 10% 100VDC RADIAL |
924 |
|
Datasheet |
Radial | 4.7 µF | ±10% | - | 100V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 1.024" L x 0.295" W (26.00mm x 7.50mm) | 0.709" (18.00mm) | PC Pins | 0.886" (22.50mm) | General Purpose | - | - |
|
R46KN410000N1MCAP FILM 1UF 20% 560VDC RAD |
720 |
|
Datasheet |
Radial | 1 µF | ±20% | 275V | 560V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.043" L x 0.433" W (26.50mm x 11.00mm) | 0.791" (20.10mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | X2 | - |
|
105MPR400KCAP FILM 1UF 10% 400VDC RADIAL |
2,805 |
|
Datasheet |
Radial | 1 µF | ±10% | 220V | 400V | Polypropylene (PP), Metallized | 177 mOhms | -55°C ~ 105°C | Through Hole | 1.220" L x 0.591" W (31.00mm x 15.00mm) | 0.866" (22.00mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering | - | Low ESR |
