Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ECQ-E2225JFCAP FILM 2.2UF 5% 250VDC RADIAL |
2,626 |
|
Datasheet |
Radial | 2.2 µF | ±5% | - | 250V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 1.024" L x 0.335" W (26.00mm x 8.50mm) | 0.681" (17.30mm) | PC Pins | 0.886" (22.50mm) | General Purpose | - | - |
|
R76QN31505050JFILM, RADIAL, PULSE, DOUBLE META |
1,544 |
|
Datasheet |
Radial | 0.15 µF | ±5% | 600V | 1000V (1kV) | Polypropylene (PP), Metallized | 16 mOhms | -55°C ~ 110°C | Through Hole | 1.043" L x 0.394" W (26.50mm x 10.00mm) | 0.732" (18.60mm) | PC Pins | 0.886" (22.50mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
B32522C3105K189CAP FILM 1UF 10% 250VDC RADIAL |
42,654 |
|
Datasheet |
Radial | 1 µF | ±10% | 160V | 250V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 125°C | Through Hole | 0.709" L x 0.335" W (18.00mm x 8.50mm) | 0.571" (14.50mm) | PC Pins | 0.591" (15.00mm) | Automotive; EMI, RFI Suppression | AEC-Q200 | - |
|
B32529D1105J289CAP FILM 1UF 5% 100VDC RADIAL |
36,195 |
|
Datasheet |
Radial | 1 µF | ±5% | 63V | 100V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 125°C | Through Hole | 0.307" L x 0.307" W (7.80mm x 7.80mm) | 0.512" (13.00mm) | PC Pins | 0.197" (5.00mm) | Automotive; EMI, RFI Suppression | AEC-Q200 | - |
|
PME271Y447MR05CAP FILM 4700PF 20% 1KVDC RADIAL |
1,008 |
|
Datasheet |
Radial | 4700 pF | ±20% | 250V | 1000V (1kV) | Paper, Metallized | - | -40°C ~ 100°C | Through Hole | 0.531" L x 0.201" W (13.50mm x 5.10mm) | 0.413" (10.50mm) | PC Pins | 0.402" (10.20mm) | EMI, RFI Suppression | Y2 | - |
|

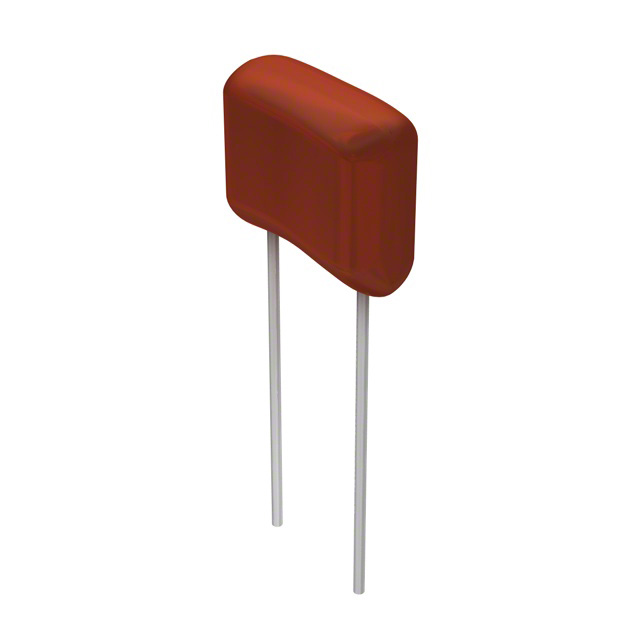

DPP6D22K-FCAP FILM 2200PF 10% 630VDC RAD |
506 |
|
Datasheet |
Radial | 2200 pF | ±10% | 250V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.591" L x 0.276" W (15.00mm x 7.00mm) | 0.610" (15.50mm) | PC Pins | 0.394" (10.00mm) | High Frequency, Switching | - | Low ESR |
|
B32922C3684K000CAP FILM 0.68UF 10% 630VDC RAD |
14,569 |
|
Datasheet |
Radial | 0.68 µF | ±10% | 305V | 630V | Polypropylene (PP) | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.433" W (18.00mm x 11.00mm) | 0.728" (18.50mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | X2 | - |
|
PHE448SB4100JR06CAP FILM 1000PF 5% 2KVDC RADIAL |
7,597 |
|
Datasheet |
Radial | 1000 pF | ±5% | 700V | 2000V (2kV) | Polypropylene (PP) | - | -55°C ~ 105°C | Through Hole | 0.709" L x 0.217" W (18.00mm x 5.50mm) | 0.413" (10.50mm) | PC Pins | 0.591" (15.00mm) | General Purpose | - | - |
|
CB027C0104JBACAP FILM 0.1UF 5% 25VDC 1210 |
5,398 |
|
Datasheet |
1210 (3225 Metric) | 0.1 µF | ±5% | 16V | 25V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.130" L x 0.098" W (3.30mm x 2.50mm) | 0.071" (1.80mm) | Solder Pads | - | General Purpose | - | - |
|
B32673P4225J000CAP FILM 2.2UF 5% 450VDC RADIAL |
4,049 |
|
Datasheet |
Radial | 2.2 µF | ±5% | 160V | 450V | Polypropylene (PP), Metallized | - | -55°C ~ 125°C | Through Hole | 1.043" L x 0.335" W (26.50mm x 8.50mm) | 0.650" (16.50mm) | PC Pins | 0.886" (22.50mm) | Automotive; Power Factor Correction (PFC) | AEC-Q200 | - |
|
PHE840MX6330MB11R17CAP FILM 0.33UF 20% 760VDC RAD |
3,644 |
|
Datasheet |
Radial | 0.33 µF | ±20% | 275V | 760V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.709" L x 0.335" W (18.00mm x 8.50mm) | 0.630" (16.00mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | X2 | - |
|
|
DPP6D1K-FCAP FILM 1000PF 10% 630VDC RAD |
775 |
|
Datasheet |
Radial | 1000 pF | ±10% | 250V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.591" L x 0.256" W (15.00mm x 6.50mm) | 0.610" (15.50mm) | PC Pins | 0.394" (10.00mm) | High Frequency, Switching | - | Low ESR |
|
MKY22W31005D00KSSDCAP FILM 0.1UF 10% 300VAC RAD |
108 |
|
Datasheet |
Radial | 0.1 µF | ±10% | 300V | - | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.043" L x 0.276" W (26.50mm x 7.00mm) | 0.650" (16.50mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | Y2 | - |
|
BFC233860103CAP FILM 10000PF 20% 1KVDC RAD |
6,816 |
|
Datasheet |
Radial | 10000 pF | ±20% | 300V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.689" L x 0.197" W (17.50mm x 5.00mm) | 0.433" (11.00mm) | PC Pins | 0.591" (15.00mm) | Automotive; EMI, RFI Suppression | AEC-Q200, Y2 | - |
|
|
FKP1X011005A00JSSDCAP FILM 1000PF 5% 4KVDC RADIAL |
1,840 |
|
Datasheet |
Radial | 1000 pF | ±5% | 700V | 4000V (4kV) | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 1.043" L x 0.197" W (26.50mm x 5.00mm) | 0.551" (14.00mm) | PC Pins | 0.886" (22.50mm) | High Frequency, Switching; High Pulse, DV/DT | - | - |
|
B32522N6105K000CAP FILM 1UF 10% 450VDC RADIAL |
1,020 |
|
Datasheet |
Radial | 1 µF | ±10% | 200V | 450V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 125°C | Through Hole | 0.709" L x 0.433" W (18.00mm x 11.00mm) | 0.728" (18.50mm) | PC Pins | 0.591" (15.00mm) | Automotive; EMI, RFI Suppression | - | - |
|

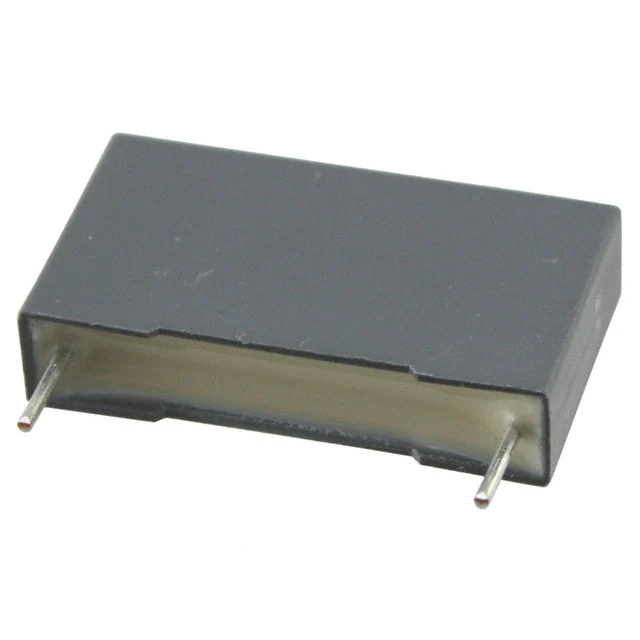

R60IN4100AA30KCAP FILM 1UF 10% 250VDC RADIAL |
917 |
|
Datasheet |
Radial | 1 µF | ±10% | 160V | 250V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 105°C | Through Hole | 1.043" L x 0.236" W (26.50mm x 6.00mm) | 0.594" (15.10mm) | PC Pins | 0.886" (22.50mm) | Automotive | AEC-Q200 | - |
|
ECW-FD2W335KCAP FILM 3.3UF 10% 450VDC RADIAL |
628 |
|
Datasheet |
Radial | 3.3 µF | ±10% | - | 450V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.996" L x 0.386" W (25.30mm x 9.80mm) | 0.575" (14.60mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | - | - |
|

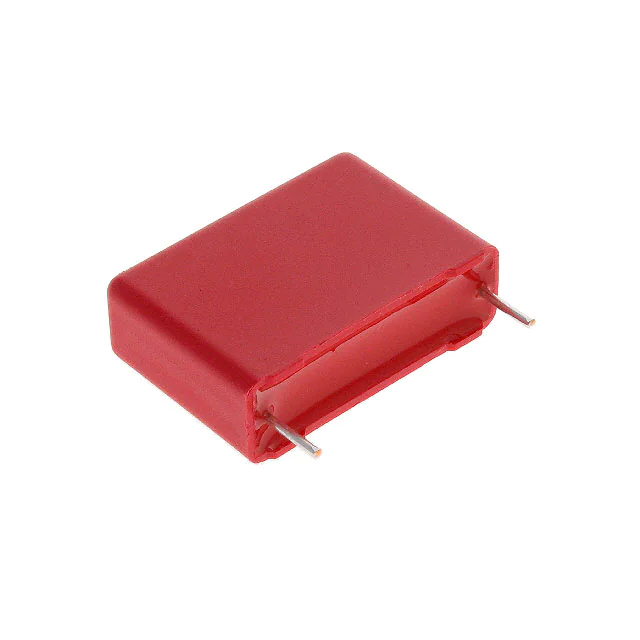

MKP1U023305F00KSSDCAP FILM 0.033UF 10% 2KVDC RAD |
480 |
|
Datasheet |
Radial | 0.033 µF | ±10% | 700V | 2000V (2kV) | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 1.043" L x 0.335" W (26.50mm x 8.50mm) | 0.728" (18.50mm) | PC Pins | 0.886" (22.50mm) | High Pulse, DV/DT | - | - |
|
R76TN2330SE40JCAP FILM 0.033UF 5% 1.6KVDC RAD |
195 |
|
Datasheet |
Radial | 0.033 µF | ±5% | 650V | 1600V (1.6kV) | Polypropylene (PP), Metallized | 19 mOhms | -55°C ~ 125°C | Through Hole | 1.043" L x 0.236" W (26.50mm x 6.00mm) | 0.594" (15.10mm) | PC Pins | 0.886" (22.50mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
Film Capacitors Electronic Components
Explore Film Capacitors electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
