Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PHE448SB3330JR06CAP FILM 330PF 5% 2KVDC RAD |
4,052 |
|
Datasheet |
Radial | 330 pF | ±5% | 700V | 2000V (2kV) | Polypropylene (PP) | - | -55°C ~ 105°C | Through Hole | 0.709" L x 0.217" W (18.00mm x 5.50mm) | 0.413" (10.50mm) | PC Pins | 0.591" (15.00mm) | General Purpose | - | - |
|
473MWR250KCAP FILM 0.047UF 250VDC AXIAL |
3,542 |
|
Datasheet |
Axial | 0.047 µF | ±10% | 160V | 250V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.217" Dia x 0.551" L (5.50mm x 14.00mm) | - | PC Pins | - | General Purpose | - | Low ESR |
|
B32672Z4105J000CAP FILM 1UF 5% 450VDC RADIAL |
1,687 |
|
Datasheet |
Radial | 1 µF | ±5% | 220V | 450V | Polypropylene (PP), Metallized | - | -55°C ~ 125°C | Through Hole | 0.709" L x 0.433" W (18.00mm x 11.00mm) | 0.728" (18.50mm) | PC Pins | 0.591" (15.00mm) | Power Factor Correction (PFC) | AEC-Q200 | - |
|
|
472MWR630KCAP FILM 4700PF 10% 630VDC AXIAL |
1,546 |
|
Datasheet |
Axial | 4700 pF | ±10% | 220V | 630V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.217" Dia x 0.453" L (5.50mm x 11.50mm) | - | PC Pins | - | General Purpose | - | Low ESR |
|
BFC237524471CAP FILM 470PF 5% 1KVDC RADIAL |
1,335 |
|
Datasheet |
Radial | 470 pF | ±5% | 400V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.571" L x 0.217" W (14.50mm x 5.50mm) | 0.532" (13.50mm) | PC Pins | 0.394" (10.00mm) | High Pulse, DV/DT | - | - |
|
R463R34700001MCAP FILM 0.47UF 20% 630VDC RAD |
1,132 |
|
Datasheet |
Radial | 0.47 µF | ±20% | 310V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.260" L x 0.354" W (32.00mm x 9.00mm) | 0.673" (17.10mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | X2 | - |
|
B32642B6823JCAP FILM 0.082UF 5% 630VDC RAD |
1,099 |
|
Datasheet |
Radial | 0.082 µF | ±5% | 400V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 0.709" L x 0.335" W (18.00mm x 8.50mm) | 0.571" (14.50mm) | PC Pins | 0.591" (15.00mm) | DC Link, DC Filtering; High Frequency, Switching | - | - |
|
ECW-FD2J105JCAP FILM 1UF 5% 630VDC RADIAL |
1,083 |
|
Datasheet |
Radial | 1 µF | ±5% | - | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.996" L x 0.331" W (25.30mm x 8.40mm) | 0.531" (13.50mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | - | - |
|
|
474MWR100KCAP FILM 0.47UF 10% 100VDC AXIAL |
602 |
|
Datasheet |
Axial | 0.47 µF | ±10% | 63V | 100V | Polyester, Metallized | 3.01 Ohms | -40°C ~ 105°C | Through Hole | 0.276" Dia x 0.610" L (7.00mm x 15.50mm) | - | PC Pins | - | General Purpose | - | Low ESR |
|
|
B32032A4563M000CAP FILM 0.056UF 20% 1KVDC RAD |
103 |
|
Datasheet |
Radial | 0.056 µF | ±20% | 350V | 1000V (1kV) | Polypropylene (PP) | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.354" W (18.00mm x 9.00mm) | 0.689" (17.50mm) | PC Pins | 0.591" (15.00mm) | Automotive; EMI, RFI Suppression | AEC-Q200, Y2 | 85C/85% Humidity |
|
B32522C0225J000CAP FILM 2.2UF 5% 63VDC RADIAL |
19,416 |
|
Datasheet |
Radial | 2.2 µF | ±5% | 40V | 63V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 125°C | Through Hole | 0.709" L x 0.197" W (18.00mm x 5.00mm) | 0.413" (10.50mm) | PC Pins | 0.591" (15.00mm) | Automotive; EMI, RFI Suppression | AEC-Q200 | - |
|

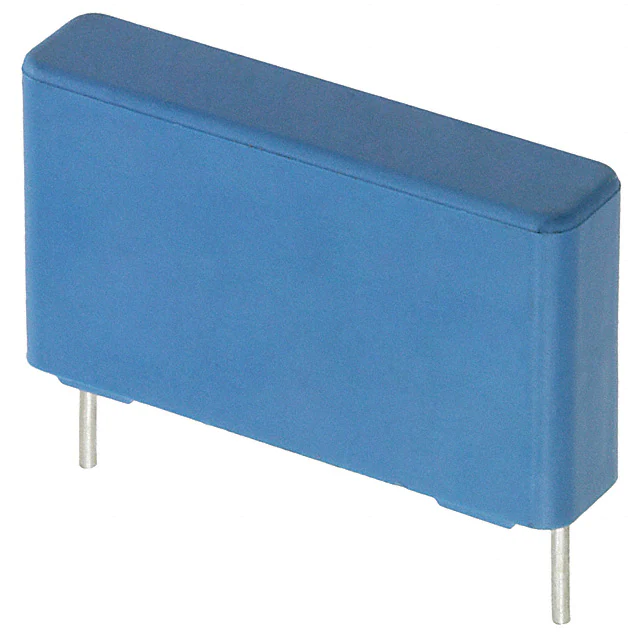

B32023A3473M000CAP FILM 0.047UF 20% 1.5KVDC RAD |
10,431 |
|
Datasheet |
Radial | 0.047 µF | ±20% | 300V | 1500V (1.5kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.043" L x 0.236" W (26.50mm x 6.00mm) | 0.591" (15.00mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | Y2 | - |
|
BFC233820104CAP FILM 0.1UF 20% 630VDC RADIAL |
8,901 |
|
Datasheet |
Radial | 0.1 µF | ±20% | 310V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 0.492" L x 0.236" W (12.50mm x 6.00mm) | 0.472" (12.00mm) | PC Pins | 0.394" (10.00mm) | EMI, RFI Suppression | X2 | - |
|
|
224MWR250KCAP FILM 0.22UF 10% 250VDC AXIAL |
5,319 |
|
Datasheet |
Axial | 0.22 µF | ±10% | 160V | 250V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.276" Dia x 0.748" L (7.00mm x 19.00mm) | - | PC Pins | - | General Purpose | - | Low ESR |
|
PHE450MB5470JR06CAP FILM 0.047UF 5% 630VDC RAD |
5,121 |
|
Datasheet |
Radial | 0.047 µF | ±5% | 400V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.709" L x 0.256" W (18.00mm x 6.50mm) | 0.492" (12.50mm) | PC Pins | 0.591" (15.00mm) | High Frequency, Switching | - | - |
|
|
103MWR630KCAP FILM 10000PF 630VDC AXIAL |
1,158 |
|
Datasheet |
Axial | 10000 pF | ±10% | 220V | 630V | Polyester, Metallized | 141.471 Ohms | -40°C ~ 105°C | Through Hole | 0.236" Dia x 0.551" L (6.00mm x 14.00mm) | - | PC Pins | - | General Purpose | - | Low ESR |
|
B32923P3225K000FILM CAP MKP X2 - 125C, 2.2UF 10 |
825 |
|
Datasheet |
Radial | 2.2 µF | ±10% | 305V | 630V | Polypropylene (PP) | - | -40°C ~ 110°C | Through Hole | 1.043" L x 0.571" W (26.50mm x 14.50mm) | 1.161" (29.50mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | X2 | - |
|
223MPW400KCAP FILM 0.022UF 400VDC AXIAL |
162 |
|
Datasheet |
Axial | 0.022 µF | ±10% | 220V | 400V | Polypropylene (PP), Metallized | 8.038 Ohms | -55°C ~ 105°C | Through Hole | 0.276" Dia x 0.571" L (7.00mm x 14.50mm) | - | PC Pins | - | DC Link, DC Filtering | - | Low ESR |
|
B32912B3154M000CAP FILM 0.15UF 20% 760VDC RAD |
7,274 |
|
Datasheet |
Radial | 0.15 µF | ±20% | 330V | 760V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.276" W (18.00mm x 7.00mm) | 0.492" (12.50mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | X1 | - |
|
PME271Y410MR19T0CAP FILM 1000PF 20% 1KVDC RADIAL |
4,324 |
|
Datasheet |
Radial | 1000 pF | ±20% | 250V | 1000V (1kV) | Paper, Metallized | - | -40°C ~ 100°C | Through Hole | 0.531" L x 0.154" W (13.50mm x 3.90mm) | 0.295" (7.50mm) | PC Pins | 0.402" (10.20mm) | EMI, RFI Suppression | Y2 | - |
