Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PHE450SB4100JR06CAP FILM 1000PF 5% 2KVDC RADIAL |
1,374 |
|
Datasheet |
Radial | 1000 pF | ±5% | 700V | 2000V (2kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.709" L x 0.217" W (18.00mm x 5.50mm) | 0.413" (10.50mm) | PC Pins | 0.591" (15.00mm) | High Frequency, Switching | - | - |
|
ECQ-E6224JFCAP FILM 0.22UF 5% 630VDC RADIAL |
144 |
|
Datasheet |
Radial | 0.22 µF | ±5% | - | 630V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.728" L x 0.354" W (18.50mm x 9.00mm) | 0.689" (17.50mm) | PC Pins | 0.591" (15.00mm) | General Purpose | - | - |
|
222MPW400KCAP FILM 2200PF 10% 400VDC AXIAL |
9,151 |
|
Datasheet |
Axial | 2200 pF | ±10% | 200V | 400V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.217" Dia x 0.453" L (5.50mm x 11.50mm) | - | PC Pins | - | DC Link, DC Filtering | - | Low ESR |
|
103MWR400KCAP FILM 10000PF 400VDC AXIAL |
4,402 |
|
Datasheet |
Axial | 10000 pF | ±10% | 200V | 400V | Polyester, Metallized | 141.471 Ohms | -40°C ~ 105°C | Through Hole | 0.197" Dia x 0.453" L (5.00mm x 11.50mm) | - | PC Pins | - | General Purpose | - | Low ESR |
|
ECH-U1H333JB5CAP FILM 0.033UF 5% 50VDC 1210 |
3,331 |
|
Datasheet |
1210 (3225 Metric) | 0.033 µF | ±5% | 30V | 50V | Polyphenylene Sulfide (PPS), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.087" (2.20mm) | Solder Pads | - | General Purpose | - | - |
|
LDECC3180JA5N00CAP FILM 0.18UF 5% 50VDC 1812 |
2,919 |
|
Datasheet |
1812 (4532 Metric) | 0.18 µF | ±5% | 40V | 50V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.185" L x 0.130" W (4.70mm x 3.30mm) | 0.087" (2.20mm) | Solder Pads | - | Automotive | AEC-Q200 | High Temperature |
|
PME271Y410MR30CAP FILM 1000PF 20% 1KVDC RADIAL |
2,728 |
|
Datasheet |
Radial | 1000 pF | ±20% | 250V | 1000V (1kV) | Paper, Metallized | - | -40°C ~ 100°C | Through Hole | 0.531" L x 0.154" W (13.50mm x 3.90mm) | 0.295" (7.50mm) | PC Pins | 0.402" (10.20mm) | EMI, RFI Suppression | Y2 | - |
|
R73UI0100SE03JCAP FILM 100PF 5% 2KVDC RADIAL |
2,330 |
|
Datasheet |
Radial | 100 pF | ±5% | 500V | 2000V (2kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.709" L x 0.197" W (18.00mm x 5.00mm) | 0.433" (11.00mm) | PC Pins | 0.591" (15.00mm) | Automotive; DC Link, DC Filtering; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
PHE450HK5180FR05CAP FILM 0.018UF 1% 250VDC RAD |
2,229 |
|
Datasheet |
Radial | 0.018 µF | ±1% | 180V | 250V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.394" L x 0.157" W (10.00mm x 4.00mm) | 0.315" (8.00mm) | PC Pins | 0.295" (7.50mm) | High Frequency, Switching | - | - |
|
474MMR630KCAP FILM 0.47UF 10% 630VDC RAD |
595 |
|
Datasheet |
Radial | 0.47 µF | ±10% | 220V | 630V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 1.024" L x 0.394" W (26.00mm x 10.00mm) | 0.748" (19.00mm) | PC Pins | 0.886" (22.50mm) | General Purpose | - | - |
|
ECQ-E1225JFCAP FILM 2.2UF 5% 100VDC RADIAL |
764 |
|
Datasheet |
Radial | 2.2 µF | ±5% | - | 100V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.728" L x 0.276" W (18.50mm x 7.00mm) | 0.630" (16.00mm) | PC Pins | 0.591" (15.00mm) | General Purpose | - | - |
|
ECW-FD2J105KCAP FILM 1UF 10% 630VDC RADIAL |
173 |
|
Datasheet |
Radial | 1 µF | ±10% | - | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.996" L x 0.331" W (25.30mm x 8.40mm) | 0.531" (13.50mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | - | - |
|
890324026027CSCAP FILM 1UF 10% 275VAC RADIAL |
160 |
|
Datasheet |
Radial | 1 µF | ±10% | 275V | - | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.024" L x 0.433" W (26.00mm x 11.00mm) | 0.807" (20.50mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | X2 | - |
|
ECW-FD2W225KCAP FILM 2.2UF 10% 450VDC RADIAL |
12,902 |
|
Datasheet |
Radial | 2.2 µF | ±10% | - | 450V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.689" L x 0.437" W (17.50mm x 11.10mm) | 0.563" (14.30mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | - | - |
|
B32653A2472J000CAP FILM 4700PF 5% 2KVDC RADIAL |
7,194 |
|
Datasheet |
Radial | 4700 pF | ±5% | 700V | 2000V (2kV) | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 1.043" L x 0.236" W (26.50mm x 6.00mm) | 0.591" (15.00mm) | PC Pins | 0.886" (22.50mm) | DC Link, DC Filtering; High Pulse, DV/DT | AEC-Q200 | - |
|
BFC236855223CAP FILM 0.022UF 10% 400VDC RAD |
4,771 |
|
Datasheet |
Radial | 0.022 µF | ±10% | 220V | 400V | Polyester, Metallized | - | -55°C ~ 105°C | Through Hole | 0.492" L x 0.165" W (12.50mm x 4.20mm) | 0.508" (12.90mm) | PC Pins | 0.394" (10.00mm) | General Purpose | - | Long Life |
|
MKP1G032204J00JSSDCAP FILM 0.22UF 5% 400VDC RAD |
4,333 |
|
Datasheet |
Radial | 0.22 µF | ±5% | 250V | 400V | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 0.709" L x 0.354" W (18.00mm x 9.00mm) | 0.630" (16.00mm) | PC Pins | 0.591" (15.00mm) | High Pulse, DV/DT | - | - |
|
ECW-F6474JLCAP FILM 0.47UF 5% 630VDC RADIAL |
2,581 |
|
Datasheet |
Radial | 0.47 µF | ±5% | 223V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.807" L x 0.531" W (20.50mm x 13.50mm) | 0.850" (21.60mm) | PC Pins | 0.689" (17.50mm) | High Frequency, Switching | - | - |
|

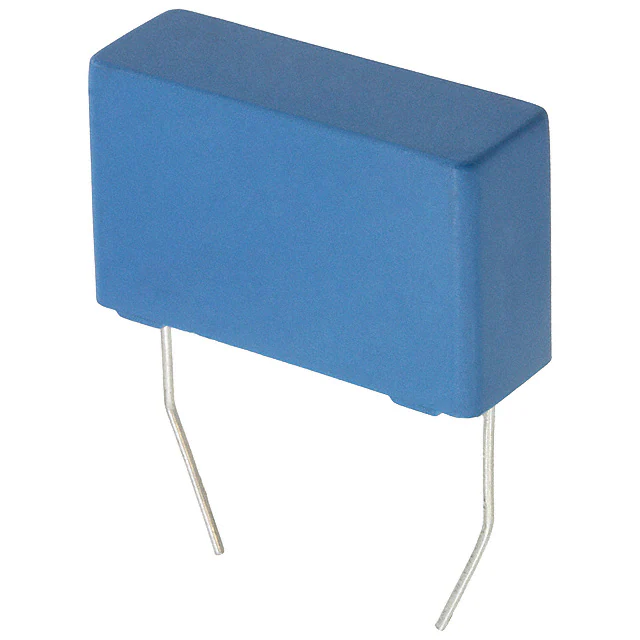

B32924C3684K000CAP FILM 0.68UF 10% 630VDC RAD |
928 |
|
Datasheet |
Radial | 0.68 µF | ±10% | 305V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.240" L x 0.433" W (31.50mm x 11.00mm) | 0.748" (19.00mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | X2 | - |
|
MMK5105K63J04L16.5TR18CAP FILM 1UF 10% 63VDC RADIAL |
659 |
|
Datasheet |
Radial | 1 µF | ±10% | 40V | 63V | Polyester, Metallized | - | -55°C ~ 100°C | Through Hole | 0.283" L x 0.197" W (7.20mm x 5.00mm) | 0.394" (10.00mm) | PC Pins | 0.197" (5.00mm) | General Purpose | - | - |
Film Capacitors Electronic Components
Explore Film Capacitors electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
