Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
R463I347050N0MCAP FILM 0.47UF 20% 630VDC RAD |
340,720 |
|
Datasheet |
Radial | 0.47 µF | ±20% | 310V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.394" W (18.00mm x 10.00mm) | 0.634" (16.10mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | X2 | - |
|
B32021A3222M189CAP FILM 2200PF 20% 1.5KVDC RAD |
55,022 |
|
Datasheet |
Radial | 2200 pF | ±20% | 300V | 1500V (1.5kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.512" L x 0.157" W (13.00mm x 4.00mm) | 0.354" (9.00mm) | PC Pins | 0.394" (10.00mm) | EMI, RFI Suppression | Y2 | - |
|
PHE850EB5100MB04R17CAP FILM 10000PF 1.25KVDC RAD |
36,291 |
|
Datasheet |
Radial | 10000 pF | ±20% | 300V | 1250V (1.25kV) | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 0.709" L x 0.217" W (18.00mm x 5.50mm) | 0.413" (10.50mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | Y2 | - |
|
ECP-U1C154MA5CAP FILM 0.15UF 20% 16VDC 1206 |
23,112 |
|
Datasheet |
1206 (3216 Metric) | 0.15 µF | ±20% | 12V | 16V | Acrylic, Metallized - Stacked | - | -40°C ~ 85°C | Surface Mount | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.039" (1.00mm) | Solder Pads | - | EMI, RFI Suppression | - | Low ESR |
|
|
ECP-U1C224MA5CAP FILM 0.22UF 20% 16VDC 1206 |
28,558 |
|
Datasheet |
1206 (3216 Metric) | 0.22 µF | ±20% | 12V | 16V | Acrylic, Metallized - Stacked | - | -40°C ~ 85°C | Surface Mount | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.039" (1.00mm) | Solder Pads | - | EMI, RFI Suppression | - | Low ESR |
|
R82EC4100AA70JCAP FILM 1UF 5% 100VDC RADIAL |
20,900 |
|
Datasheet |
Radial | 1 µF | ±5% | 63V | 100V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 105°C | Through Hole | 0.283" L x 0.236" W (7.20mm x 6.00mm) | 0.437" (11.10mm) | PC Pins | 0.197" (5.00mm) | Automotive | AEC-Q200 | - |
|
890334025045CAP FILM 0.68UF 10% 310VAC RAD |
3,734 |
|
Datasheet |
Radial | 0.68 µF | ±10% | 310V | - | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.709" L x 0.394" W (18.00mm x 10.00mm) | 0.650" (16.50mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | X2 | - |
.jpg)
|

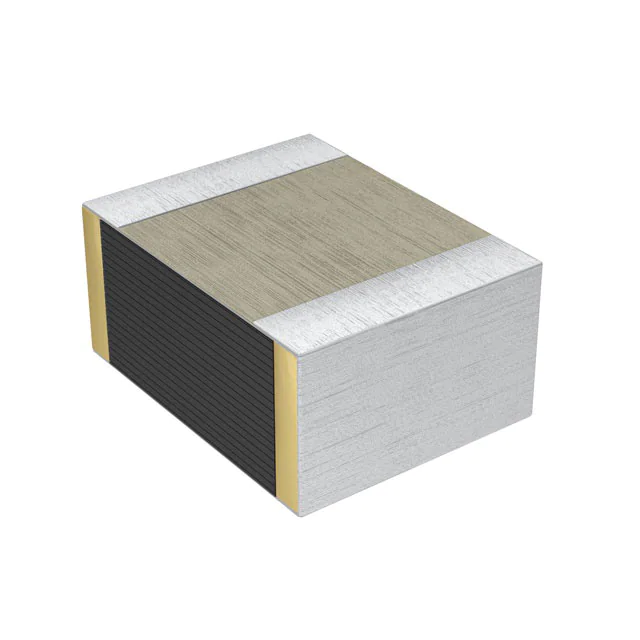

ECH-U1H223GX5CAP FILM 0.022UF 2% 50VDC 1210 |
17,266 |
|
Datasheet |
1210 (3225 Metric) | 0.022 µF | ±2% | 30V | 50V | Polyphenylene Sulfide (PPS), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.067" (1.70mm) | Solder Pads | - | General Purpose | - | - |
|

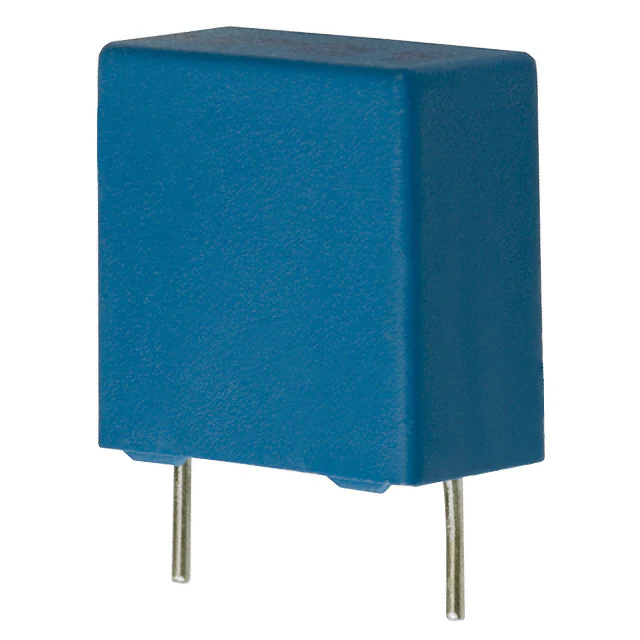

B81123C1102M000CAP FILM 1000PF 20% 500VAC RAD |
73,924 |
|
Datasheet |
Radial | 1000 pF | ±20% | 500V | - | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.197" W (18.00mm x 5.00mm) | 0.413" (10.50mm) | PC Pins | 0.591" (15.00mm) | Automotive; EMI, RFI Suppression | AEC-Q200, Y1 | 85C/85% Humidity |
|
ECH-U1C104GX5CAP FILM 0.1UF 2% 16VDC 1210 |
42,226 |
|
Datasheet |
1210 (3225 Metric) | 0.1 µF | ±2% | 11V | 16V | Polyphenylene Sulfide (PPS), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.091" (2.30mm) | Solder Pads | - | General Purpose | - | - |
|
|
R82EC4100DQ70JCAP FILM 1UF 5% 100VDC RADIAL |
306,194 |
|
Datasheet |
Radial | 1 µF | ±5% | 63V | 100V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 105°C | Through Hole | 0.283" L x 0.236" W (7.20mm x 6.00mm) | 0.437" (11.10mm) | PC Pins | 0.197" (5.00mm) | Automotive | AEC-Q200 | - |
|
|
B32021A3332M289CAP FILM 3300PF 20% 1.5KVDC RAD |
8,325 |
|
Datasheet |
Radial | 3300 pF | ±20% | 300V | 1500V (1.5kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.512" L x 0.157" W (13.00mm x 4.00mm) | 0.354" (9.00mm) | PC Pins | 0.394" (10.00mm) | EMI, RFI Suppression | Y2 | - |
|

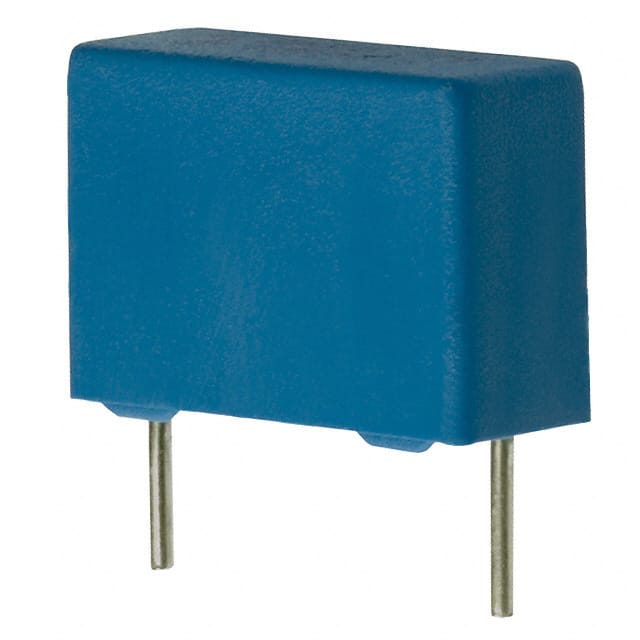

B32652A6104J000CAP FILM 0.1UF 5% 630VDC RADIAL |
22,596 |
|
Datasheet |
Radial | 0.1 µF | ±5% | 250V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 0.709" L x 0.276" W (18.00mm x 7.00mm) | 0.492" (12.50mm) | PC Pins | 0.591" (15.00mm) | Automotive; DC Link, DC Filtering; High Pulse, DV/DT; Snubber | AEC-Q200 | - |
|
B32021A3472M189CAP FILM 4700PF 20% 1.5KVDC RAD |
20,871 |
|
Datasheet |
Radial | 4700 pF | ±20% | 300V | 1500V (1.5kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.512" L x 0.197" W (13.00mm x 5.00mm) | 0.433" (11.00mm) | PC Pins | 0.394" (10.00mm) | EMI, RFI Suppression | Y2 | - |
|
B32672L8103J000CAP FILM 10000PF 5% 2KVDC RADIAL |
3,915 |
|
Datasheet |
Radial | 10000 pF | ±5% | 700V | 2000V (2kV) | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 0.709" L x 0.276" W (18.00mm x 7.00mm) | 0.492" (12.50mm) | PC Pins | 0.591" (15.00mm) | High Frequency, Switching; High Pulse, DV/DT | - | - |
|

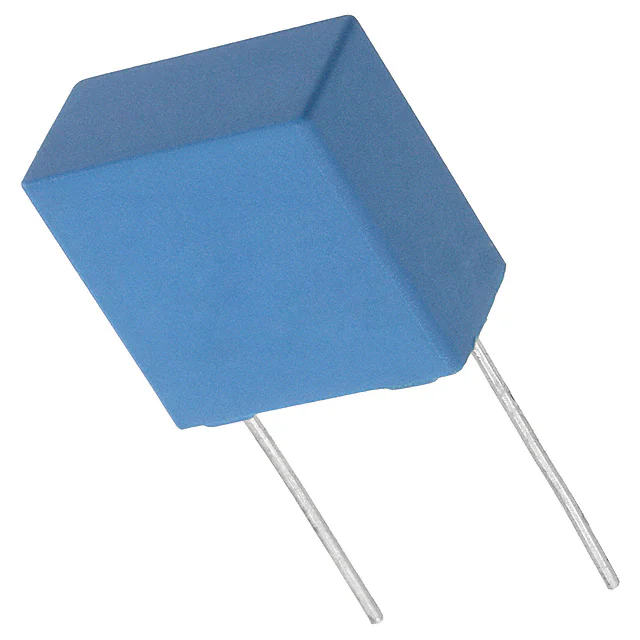

B32922C3474M000CAP FILM 0.47UF 20% 630VDC RAD |
2,808 |
|
Datasheet |
Radial | 0.47 µF | ±20% | 305V | 630V | Polypropylene (PP) | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.354" W (18.00mm x 9.00mm) | 0.689" (17.50mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | X2 | - |
|
B32923C3684M000CAP FILM 0.68UF 20% 630VDC RAD |
43,105 |
|
Datasheet |
Radial | 0.68 µF | ±20% | 305V | 630V | Polypropylene (PP) | - | -40°C ~ 110°C | Through Hole | 1.043" L x 0.413" W (26.50mm x 10.50mm) | 0.650" (16.50mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | X2 | - |
|
|
ECP-U1C334MA5CAP FILM 0.33UF 20% 16VDC 1206 |
41,805 |
|
Datasheet |
1206 (3216 Metric) | 0.33 µF | ±20% | 12V | 16V | Acrylic, Metallized - Stacked | - | -40°C ~ 85°C | Surface Mount | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.047" (1.20mm) | Solder Pads | - | EMI, RFI Suppression | - | Low ESR |
|
|
ECP-U1C474MA5CAP FILM 0.47UF 20% 16VDC 1206 |
38,187 |
|
Datasheet |
1206 (3216 Metric) | 0.47 µF | ±20% | 12V | 16V | Acrylic, Metallized - Stacked | - | -40°C ~ 85°C | Surface Mount | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.063" (1.60mm) | Solder Pads | - | EMI, RFI Suppression | - | Low ESR |
|
MKS0C031000C00MSSDMKS 02 0.1 F 63 VDC 3X7.5X4.6 PC |
12,733 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
Film Capacitors Electronic Components
Explore Film Capacitors electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
