Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
.jpg)
|

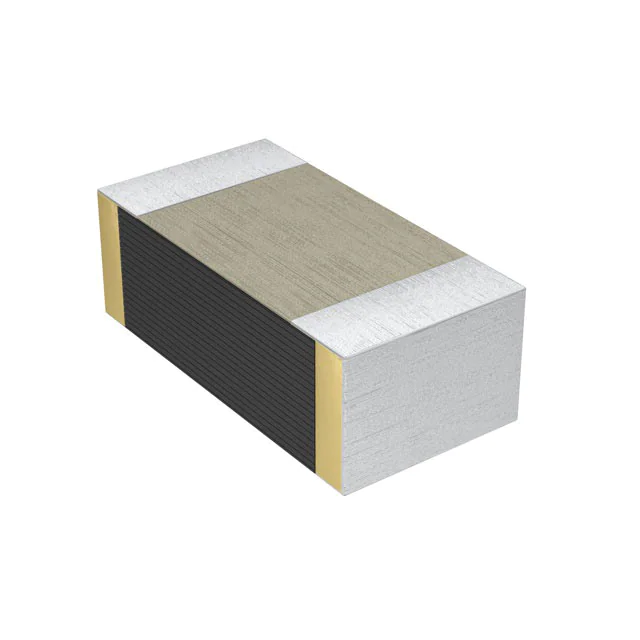

ECH-U1H103JX5CAP FILM 10000PF 5% 50VDC 1206 |
27,629 |
|
Datasheet |
1206 (3216 Metric) | 10000 pF | ±5% | 30V | 50V | Polyphenylene Sulfide (PPS), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.051" (1.30mm) | Solder Pads | - | General Purpose | - | - |
|
B32922C3104K289CAP FILM 0.1UF 10% 630VDC RADIAL |
21,075 |
|
Datasheet |
Radial | 0.1 µF | ±10% | 305V | 630V | Polypropylene (PP) | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.197" W (18.00mm x 5.00mm) | 0.413" (10.50mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | X2 | - |
|
|
ECH-U1H103GX5CAP FILM 10000PF 2% 50VDC 1206 |
16,476 |
|
Datasheet |
1206 (3216 Metric) | 10000 pF | ±2% | 30V | 50V | Polyphenylene Sulfide (PPS), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.051" (1.30mm) | Solder Pads | - | General Purpose | - | - |
|
B32921C3104M289CAP FILM 0.1UF 20% 630VDC RADIAL |
114,372 |
|
Datasheet |
Radial | 0.1 µF | ±20% | 305V | 630V | Polypropylene (PP) | - | -40°C ~ 110°C | Through Hole | 0.512" L x 0.236" W (13.00mm x 6.00mm) | 0.472" (12.00mm) | PC Pins | 0.394" (10.00mm) | EMI, RFI Suppression | X2 | - |
.jpg)
|
ECH-U1C103GX5CAP FILM 10000PF 2% 16VDC 0805 |
3,247 |
|
Datasheet |
0805 (2012 Metric) | 10000 pF | ±2% | 11V | 16V | Polyphenylene Sulfide (PPS), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.051" (1.30mm) | Solder Pads | - | General Purpose | - | - |
.jpg)
|

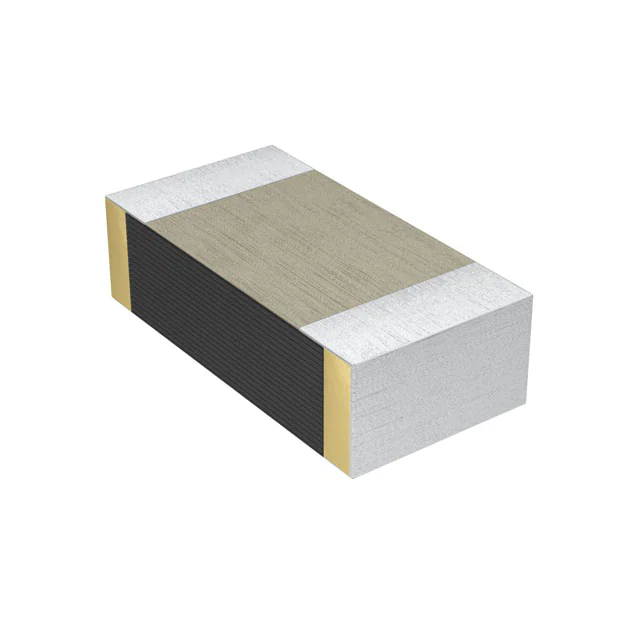

ECH-U1C223JX5CAP FILM 0.022UF 5% 16VDC 1206 |
8,151 |
|
Datasheet |
1206 (3216 Metric) | 0.022 µF | ±5% | 11V | 16V | Polyphenylene Sulfide (PPS), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.043" (1.10mm) | Solder Pads | - | General Purpose | - | - |
 Series.jpg)
|
ECW-FE2W105KCAP FILM 1UF 10% 450VDC RADIAL |
168,943 |
|
Datasheet |
Radial | 1 µF | ±10% | 84V | 450V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.689" L x 0.276" W (17.50mm x 7.00mm) | 0.512" (13.00mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | - | - |
|
R46KI368045P1MCAP FILM 0.68UF 20% 560VDC RAD |
17,029 |
|
Datasheet |
Radial | 0.68 µF | ±20% | 275V | 560V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.394" W (18.00mm x 10.00mm) | 0.634" (16.10mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | X2 | - |
|

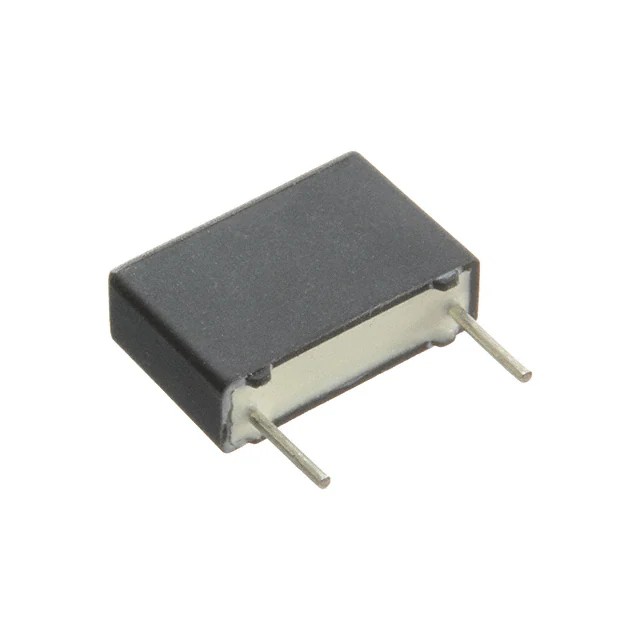

224MKP275KBCAP FILM 0.22UF 10% 310VAC RAD |
47,558 |
|
Datasheet |
Radial | 0.22 µF | ±10% | 310V | - | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.236" W (18.00mm x 6.00mm) | 0.465" (11.80mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | X2 | - |
|
|
ECH-U1C333GX5CAP FILM 0.033UF 2% 16VDC 1206 |
39,480 |
|
Datasheet |
1206 (3216 Metric) | 0.033 µF | ±2% | 11V | 16V | Polyphenylene Sulfide (PPS), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.051" (1.30mm) | Solder Pads | - | General Purpose | - | - |
|
|
ECH-U1C273GX5CAP FILM 0.027UF 2% 16VDC 1206 |
8,414 |
|
Datasheet |
1206 (3216 Metric) | 0.027 µF | ±2% | 11V | 16V | Polyphenylene Sulfide (PPS), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.051" (1.30mm) | Solder Pads | - | General Purpose | - | - |
|
B32529C0105K189CAP FILM 1UF 10% 63VDC RADIAL |
108,606 |
|
Datasheet |
Radial | 1 µF | ±10% | 40V | 63V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 125°C | Through Hole | 0.287" L x 0.177" W (7.30mm x 4.50mm) | 0.374" (9.50mm) | PC Pins | 0.197" (5.00mm) | Automotive; EMI, RFI Suppression | AEC-Q200 | - |
|
ECW-FD2W105JCAP FILM 1UF 5% 450VDC RADIAL |
106,726 |
|
Datasheet |
Radial | 1 µF | ±5% | - | 450V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.689" L x 0.307" W (17.50mm x 7.80mm) | 0.433" (11.00mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | - | - |
|
ECQ-E6104KFCAP FILM 0.1UF 10% 630VDC RADIAL |
84,749 |
|
Datasheet |
Radial | 0.1 µF | ±10% | - | 630V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.728" L x 0.248" W (18.50mm x 6.30mm) | 0.591" (15.00mm) | PC Pins | 0.591" (15.00mm) | General Purpose | - | - |
|
ECH-U1H223JX5CAP FILM 0.022UF 5% 50VDC 1210 |
8,015 |
|
Datasheet |
1210 (3225 Metric) | 0.022 µF | ±5% | 30V | 50V | Polyphenylene Sulfide (PPS), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.067" (1.70mm) | Solder Pads | - | General Purpose | - | - |
 J1.jpg)
|
ECP-U1C104MA5CAP FILM 0.1UF 20% 16VDC 0805 |
51,639 |
|
Datasheet |
0805 (2012 Metric) | 0.1 µF | ±20% | 12V | 16V | Acrylic, Metallized - Stacked | - | -40°C ~ 85°C | Surface Mount | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.047" (1.20mm) | Solder Pads | - | EMI, RFI Suppression | - | Low ESR |
-H-1.jpg)
|
ECW-U1102JX5CAP FILM 1000PF 5% 100VDC 1206 |
16,870 |
|
Datasheet |
1206 (3216 Metric) | 1000 pF | ±5% | 40V | 100V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 105°C | Surface Mount | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.051" (1.30mm) | Solder Pads | - | General Purpose | - | - |
|
ECH-U1C473GX5CAP FILM 0.047UF 2% 16VDC 1206 |
26,013 |
|
Datasheet |
1206 (3216 Metric) | 0.047 µF | ±2% | 11V | 16V | Polyphenylene Sulfide (PPS), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.067" (1.70mm) | Solder Pads | - | General Purpose | - | - |
|
ECQ-E2105KFCAP FILM 1UF 10% 250VDC RADIAL |
17,159 |
|
Datasheet |
Radial | 1 µF | ±10% | - | 250V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.728" L x 0.291" W (18.50mm x 7.40mm) | 0.630" (16.00mm) | PC Pins | 0.591" (15.00mm) | General Purpose | - | - |
.jpg)
|

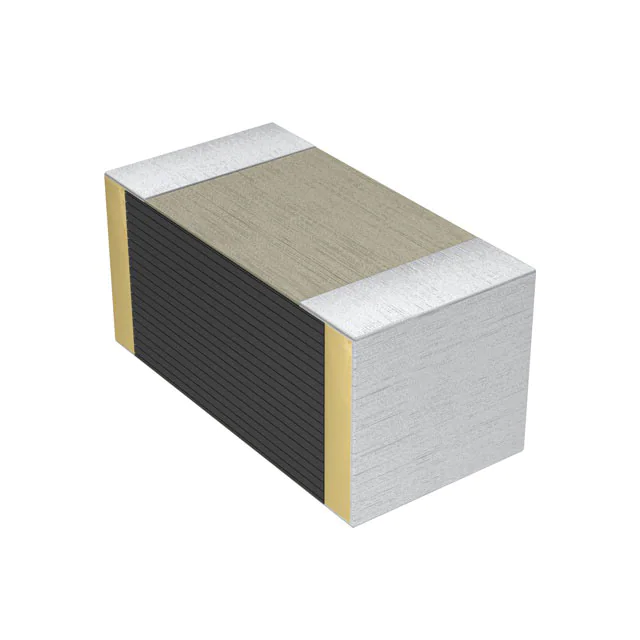

ECH-U1C473JX5CAP FILM 0.047UF 5% 16VDC 1206 |
5,808 |
|
Datasheet |
1206 (3216 Metric) | 0.047 µF | ±5% | 11V | 16V | Polyphenylene Sulfide (PPS), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.067" (1.70mm) | Solder Pads | - | General Purpose | - | - |
