Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
QXL2E474KTPTCAP FILM 0.47UF 10% 250VAC RAD |
114 |
|
Datasheet |
Radial | 0.47 µF | ±10% | 250V | - | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 1.004" L x 0.370" W (25.50mm x 9.40mm) | 0.776" (19.70mm) | PC Pins | 0.886" (22.50mm) | High Frequency, Switching | - | - |
|

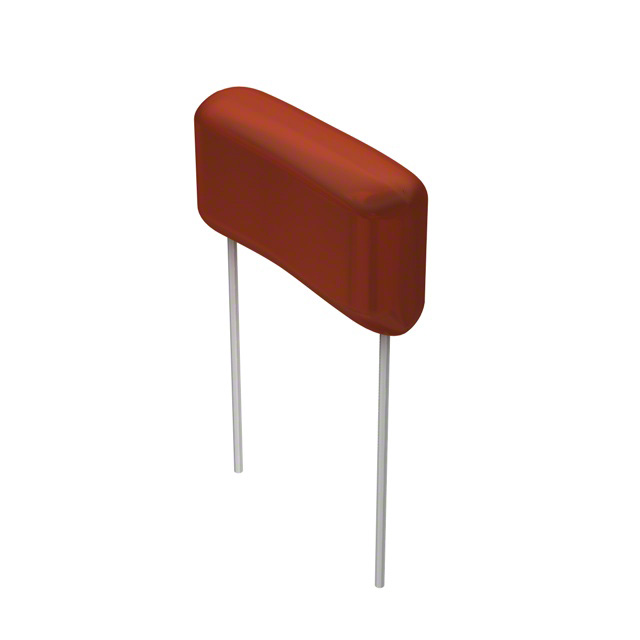

DPPM10D47K-FCAP FILM 4700PF 10% 1KVDC RADIAL |
1,312 |
|
Datasheet |
Radial | 4700 pF | ±10% | 450V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.984" L x 0.295" W (25.00mm x 7.50mm) | 0.591" (15.00mm) | PC Pins | 0.827" (21.00mm) | High Frequency, Switching; High Pulse, DV/DT; Snubber | - | - |
|
ECW-F6224HLCAP FILM 0.22UF 3% 630VDC RADIAL |
1,027 |
|
Datasheet |
Radial | 0.22 µF | ±3% | 223V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.709" L x 0.425" W (18.00mm x 10.80mm) | 0.669" (17.00mm) | PC Pins | 0.591" (15.00mm) | High Frequency, Switching | - | - |
|
|
ECW-F4394HLCAP FILM 0.39UF 3% 400VDC RADIAL |
704 |
|
Datasheet |
Radial | 0.39 µF | ±3% | 141V | 400V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.709" L x 0.406" W (18.00mm x 10.30mm) | 0.654" (16.60mm) | PC Pins | 0.591" (15.00mm) | High Frequency, Switching | - | - |
|
B32654A2223J000CAP FILM 0.022UF 5% 2KVDC RADIAL |
556 |
|
Datasheet |
Radial | 0.022 µF | ±5% | 700V | 2000V (2kV) | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 1.240" L x 0.433" W (31.50mm x 11.00mm) | 0.827" (21.00mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering; High Pulse, DV/DT | AEC-Q200 | - |
|
PHE450SD4560JR06L2CAP FILM 5600PF 5% 2KVDC RADIAL |
454 |
|
Datasheet |
Radial | 5600 pF | ±5% | 700V | 2000V (2kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.024" L x 0.256" W (26.00mm x 6.50mm) | 0.571" (14.50mm) | PC Pins | 0.886" (22.50mm) | High Frequency, Switching | - | - |
|
BFC247076224CAP FILM 0.22UF 5% 63VDC RADIAL |
375 |
|
Datasheet |
Radial | 0.22 µF | ±5% | 40V | 63V | Polyester, Metallized | - | -55°C ~ 125°C | Through Hole | 0.283" L x 0.138" W (7.20mm x 3.50mm) | 0.315" (8.00mm) | PC Pins | 0.197" (5.00mm) | General Purpose | - | Long Life |
|
C4AQIBU4270A1WJCAP FILM 2.7UF 5% 800VDC RADIAL |
358 |
|
Datasheet |
Radial | 2.7 µF | ±5% | - | 800V | Polypropylene (PP), Metallized | 18.3 mOhms | -40°C ~ 105°C | Through Hole | 1.240" L x 0.433" W (31.50mm x 11.00mm) | 0.795" (20.20mm) | PC Pins | 1.083" (27.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
|
ECQ-UBAF105KCAP FILM 1.0UF 10% 300VAC RADIAL |
310 |
|
Datasheet |
Radial | 1 µF | ±10% | 300V | - | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.024" L x 0.748" W (26.00mm x 19.00mm) | 1.043" (26.50mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | X1 | - |
|
C4AF7BU4130F1XKFILM CAP AC, 1.3 UF, 10%,350 VAC |
218 |
|
Datasheet |
Radial | 1.3 µF | ±10% | 350V | 700V | Polypropylene (PP), Metallized | 40.8 mOhms | -55°C ~ 105°C | Through Hole | 1.240" L x 0.512" W (31.50mm x 13.00mm) | 0.992" (25.20mm) | PC Pins | 1.083" (27.50mm) | Automotive | AEC-Q200 | - |
|
ECW-F4754JLCAP FILM 0.75UF 5% 400VDC RADIAL |
173 |
|
Datasheet |
Radial | 0.75 µF | ±5% | 141V | 400V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.807" L x 0.484" W (20.50mm x 12.30mm) | 0.811" (20.60mm) | PC Pins | 0.689" (17.50mm) | High Frequency, Switching | - | - |
|
MKP1839347164CAP FILM 0.047UF 5% 160VDC AXIAL |
2,076 |
|
Datasheet |
Axial | 0.047 µF | ±5% | 100V | 160V | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 0.217" Dia x 0.433" L (5.50mm x 11.00mm) | - | PC Pins | - | DC Link, DC Filtering; High Pulse, DV/DT | - | - |
|
R75IN42204040JCAP FILM 2.2UF 5% 250VDC RADIAL |
897 |
|
Datasheet |
Radial | 2.2 µF | ±5% | 160V | 250V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.043" L x 0.433" W (26.50mm x 11.00mm) | 0.791" (20.10mm) | PC Pins | 0.886" (22.50mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
|
C4AQUBU4100A1WJCAP FILM 1UF 5% 1.3KVDC RADIAL |
762 |
|
Datasheet |
Radial | 1 µF | ±5% | - | 1300V (1.3kV) | Polypropylene (PP), Metallized | 33.1 mOhms | -40°C ~ 105°C | Through Hole | 1.240" L x 0.433" W (31.50mm x 11.00mm) | 0.795" (20.20mm) | PC Pins | 1.083" (27.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
|
R463R422050M2KCAP FILM 2.2UF 10% 630VDC RADIAL |
311 |
|
Datasheet |
Radial | 2.2 µF | ±10% | 310V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.260" L x 0.512" W (32.00mm x 13.00mm) | 0.988" (25.10mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | X2 | - |
|
R46KR422000P0MCAP FILM 2.2UF 20% 560VDC RADIAL |
269 |
|
Datasheet |
Radial | 2.2 µF | ±20% | 275V | 560V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.260" L x 0.512" W (32.00mm x 13.00mm) | 0.870" (22.10mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | X2 | - |
|
BFC233920473CAP FILM 0.047UF 20% 630VDC RAD |
8,083 |
|
Datasheet |
Radial | 0.047 µF | ±20% | 310V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 0.394" L x 0.197" W (10.00mm x 5.00mm) | 0.413" (10.50mm) | PC Pins | 0.295" (7.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X2 | - |
|
R82CC4470AA30KCAP FILM 4.7UF 10% 50VDC RADIAL |
2,088 |
|
Datasheet |
Radial | 4.7 µF | ±10% | 30V | 50V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 105°C | Through Hole | 0.283" L x 0.283" W (7.20mm x 7.20mm) | 0.516" (13.10mm) | PC Pins | 0.197" (5.00mm) | Automotive | AEC-Q200 | - |
|

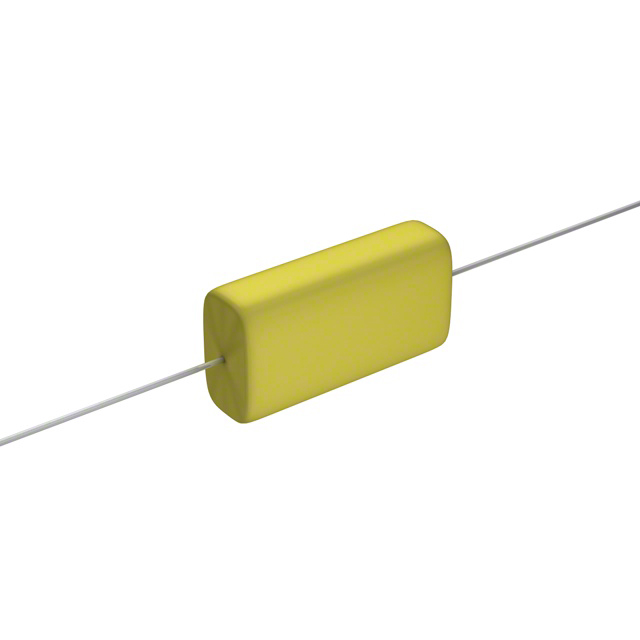

MMP4W1K-FCAP FILM 1UF 10% 400VDC AXIAL |
1,301 |
|
Datasheet |
Axial | 1 µF | ±10% | 200V | 400V | Polyester, Metallized | - | -55°C ~ 125°C | Through Hole | 0.728" W, 0.413" T x 1.378" L (18.50mm, 10.50mm x 35.00mm) | - | PC Pins | - | General Purpose | - | Long Life |
|
335MWR100KCAP FILM 3.3UF 10% 100VDC AXIAL |
803 |
|
Datasheet |
Axial | 3.3 µF | ±10% | 63V | 100V | Polyester, Metallized | 536 mOhms | -40°C ~ 105°C | Through Hole | 0.512" Dia x 1.142" L (13.00mm x 29.00mm) | - | PC Pins | - | General Purpose | - | Low ESR |
