Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SMDID03470TB00MQ00CAP FILM 0.47UF 20% 100VDC 2824 |
1,253 |
|
Datasheet |
2824 (7260 Metric) | 0.47 µF | ±20% | 63V | 100V | Polyphenylene Sulfide (PPS), Metallized | - | -55°C ~ 140°C | Surface Mount | 0.283" L x 0.240" W (7.20mm x 6.10mm) | 0.209" (5.30mm) | Solder Pads | - | General Purpose | - | - |
|
F339X141548MKP2T0CAP FILM 0.15UF 20% 1KVDC RADIAL |
887 |
|
Datasheet |
Radial | 0.15 µF | ±20% | 480V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 1.240" L x 0.354" W (31.50mm x 9.00mm) | 0.748" (19.00mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | X1 | - |
|
R413R322050T0KCAP FILM 0.22UF 10% 1.5KVDC RAD |
716 |
|
Datasheet |
Radial | 0.22 µF | ±10% | 300V | 1500V (1.5kV) | Polypropylene (PP), Metallized | - | -40°C ~ 125°C | Through Hole | 1.260" L x 0.512" W (32.00mm x 13.00mm) | 0.870" (22.10mm) | PC Pins | 1.083" (27.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X1, Y2 | - |
|
BFC237520473CAP FILM 0.047UF 5% 1KVDC RADIAL |
607 |
|
Datasheet |
Radial | 0.047 µF | ±5% | 400V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.181" L x 0.276" W (30.00mm x 7.00mm) | 0.787" (20.00mm) | PC Pins | 0.394" (10.00mm) | High Pulse, DV/DT | - | - |
|
R53BR38205000KCAP FILM 0.82UF 10% 800VDC RAD |
322 |
|
Datasheet |
Radial | 0.82 µF | ±10% | 350V | 800V | Polypropylene (PP), Metallized | - | -40°C ~ 125°C | Through Hole | 1.260" L x 0.433" W (32.00mm x 11.00mm) | 0.799" (20.30mm) | PC Pins | 1.083" (27.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X2 | - |
|
R60QR3470AA40KCAP FILM 0.47UF 10% 1KVDC RADIAL |
300 |
|
Datasheet |
Radial | 0.47 µF | ±10% | 250V | 1000V (1kV) | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 105°C | Through Hole | 1.260" L x 0.512" W (32.00mm x 13.00mm) | 0.870" (22.10mm) | PC Pins | 1.083" (27.50mm) | General Purpose | - | - |
|
QXK2J334KTPTZHCAP FILM 0.33UF 10% 630VDC RAD |
194 |
|
Datasheet |
Radial | 0.33 µF | ±10% | 250V | 630V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 1.024" L x 0.429" W (26.00mm x 10.90mm) | 0.819" (20.80mm) | PC Pins | 0.886" (22.50mm) | General Purpose | - | - |
|
B32674D8105K000CAP FILM 1UF 10% 875VDC RADIAL |
9,967 |
|
Datasheet |
Radial | 1 µF | ±10% | - | 875V | Polypropylene (PP), Metallized | 22.2 mOhms | -40°C ~ 105°C | Through Hole | 1.240" L x 0.531" W (31.50mm x 13.50mm) | 0.906" (23.00mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering | AEC-Q200 | Long Life |
|
|
B32674D6155K000CAP FILM 1.5UF 10% 630VDC RADIAL |
4,297 |
|
Datasheet |
Radial | 1.5 µF | ±10% | - | 630V | Polypropylene (PP), Metallized | 17.9 mOhms | -40°C ~ 105°C | Through Hole | 1.240" L x 0.492" W (31.50mm x 12.50mm) | 0.846" (21.50mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering | AEC-Q200 | Long Life |
|
B32926C3225M000CAP FILM 2.2UF 20% 630VDC RADIAL |
1,755 |
|
Datasheet |
Radial | 2.2 µF | ±20% | 305V | 630V | Polypropylene (PP) | - | -40°C ~ 110°C | Through Hole | 1.634" L x 0.551" W (41.50mm x 14.00mm) | 0.984" (25.00mm) | PC Pins | 1.476" (37.50mm) | EMI, RFI Suppression | X2 | - |
|

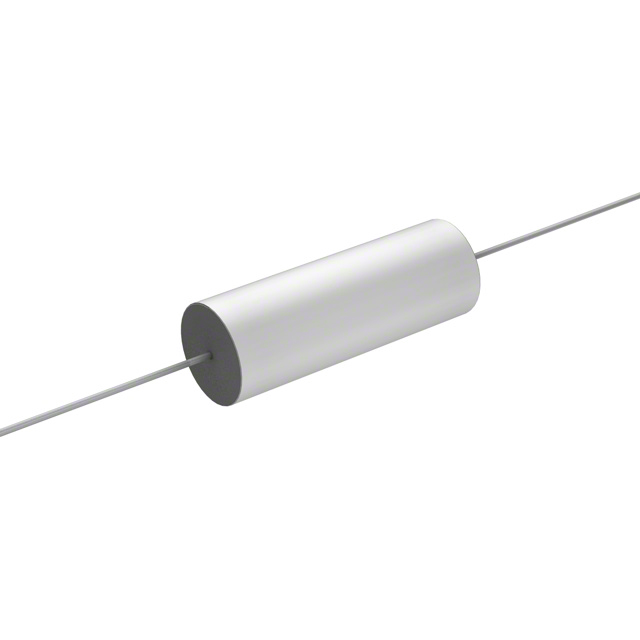

WMF1P22K-FCAP FILM 0.22UF 10% 100VDC AXIAL |
13 |
|
Datasheet |
Axial | 0.22 µF | ±10% | - | 100V | Polyester | - | -55°C ~ 125°C | Through Hole | 0.374" Dia x 1.063" L (9.50mm x 27.00mm) | - | PC Pins | - | General Purpose | - | - |
|
|
SMDIC03220TB00KQ00CAP FILM 0.22UF 10% 63VDC 2824 |
1,190 |
|
Datasheet |
2824 (7260 Metric) | 0.22 µF | ±10% | 40V | 63V | Polyphenylene Sulfide (PPS), Metallized | - | -55°C ~ 140°C | Surface Mount | 0.283" L x 0.240" W (7.20mm x 6.10mm) | 0.209" (5.30mm) | Solder Pads | - | General Purpose | - | - |
|
FKP1X021006F00KSSDCAP FILM 10000PF 10% 4KVDC RAD |
550 |
|
Datasheet |
Radial | 10000 pF | ±10% | 700V | 4000V (4kV) | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 1.240" L x 0.591" W (31.50mm x 15.00mm) | 1.024" (26.00mm) | PC Pins | 1.083" (27.50mm) | High Frequency, Switching; High Pulse, DV/DT | - | - |
|
R46KR422040M2MCAP FILM 2.2UF 20% 560VDC RADIAL |
247 |
|
Datasheet |
Radial | 2.2 µF | ±20% | 275V | 560V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.260" L x 0.512" W (32.00mm x 13.00mm) | 0.988" (25.10mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | X2 | - |
|
F161SP334K063VCAP FILM 0.33UF 10% 63VDC 2824 |
7,244 |
|
Datasheet |
2824 (7260 Metric) | 0.33 µF | ±10% | 40V | 63V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.287" L x 0.236" W (7.30mm x 6.00mm) | 0.146" (3.70mm) | Solder Pads | - | Automotive | AEC-Q200 | - |
|
ECH-U1823JC9CAP FILM 0.082UF 5% 100VDC 2820 |
1,501 |
|
Datasheet |
2820 (7150 Metric) | 0.082 µF | ±5% | 40V | 100V | Polyphenylene Sulfide (PPS), Metallized - Stacked | - | -55°C ~ 105°C | Surface Mount | 0.280" L x 0.197" W (7.10mm x 5.00mm) | 0.122" (3.10mm) | Solder Pads | - | General Purpose | - | - |
|
BFC233920684CAP FILM 0.68UF 20% 630VDC RAD |
795 |
|
Datasheet |
Radial | 0.68 µF | ±20% | 310V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 1.024" L x 0.335" W (26.00mm x 8.50mm) | 0.709" (18.00mm) | PC Pins | 0.886" (22.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X2 | - |
|
PME264NC5220MR30CAP FILM 0.022UF 20% 1.5KVDC RAD |
772 |
|
Datasheet |
Radial | 0.022 µF | ±20% | 660V | 1500V (1.5kV) | Paper, Metallized | - | -40°C ~ 85°C | Through Hole | 0.945" L x 0.354" W (24.00mm x 9.00mm) | 0.591" (15.00mm) | PC Pins | 0.799" (20.30mm) | EMI, RFI Suppression | X2 | - |
|
MKP1839310404CAP FILM 10000PF 5% 400VDC AXIAL |
193 |
|
Datasheet |
Axial | 10000 pF | ±5% | 220V | 400V | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 0.217" Dia x 0.433" L (5.50mm x 11.00mm) | - | PC Pins | - | DC Link, DC Filtering; High Pulse, DV/DT | - | - |
|
PHE450RD5220JR06L2CAP FILM 0.022UF 5% 1.6KVDC RAD |
174 |
|
Datasheet |
Radial | 0.022 µF | ±5% | 650V | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.024" L x 0.256" W (26.00mm x 6.50mm) | 0.571" (14.50mm) | PC Pins | 0.886" (22.50mm) | High Frequency, Switching | - | - |
