Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BFC237341155CAP FILM 1.5UF 10% 250VDC RADIAL |
239 |
|
Datasheet |
Radial | 1.5 µF | ±10% | 160V | 250V | Polyester, Metallized | - | -55°C ~ 105°C | Through Hole | 1.024" L x 0.335" W (26.00mm x 8.50mm) | 0.709" (18.00mm) | PC Pins | 0.886" (22.50mm) | General Purpose | - | Long Life |
|
ECW-FG80225JCAP FILM 2.2UF 800VDC RADIAL |
230 |
|
Datasheet |
Radial | 2.2 µF | ±5% | - | 800V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.240" L x 0.413" W (31.50mm x 10.50mm) | 0.846" (21.50mm) | PC Pins | 1.083" (27.50mm) | Automotive; High Frequency, Switching | AEC-Q200 | - |
|
F863FL225K310ALW0LCAP FILM 2.2UF 10% 630VDC RADIAL |
108 |
|
Datasheet |
Radial | 2.2 µF | ±10% | 310V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.260" L x 0.512" W (32.00mm x 13.00mm) | 0.988" (25.10mm) | PC Pins | 1.083" (27.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X2 | - |
|
|
BFC233820153CAP FILM 0.015UF 20% 630VDC RAD |
2,666 |
|
Datasheet |
Radial | 0.015 µF | ±20% | 310V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 0.394" L x 0.157" W (10.00mm x 4.00mm) | 0.354" (9.00mm) | PC Pins | 0.295" (7.50mm) | EMI, RFI Suppression | X2 | - |
|
C4AQLLU4560A11KCAP FILM 5.6UF 10% 500VDC RADIAL |
206 |
|
Datasheet |
Radial | 5.6 µF | ±10% | - | 500V | Polypropylene (PP), Metallized | 12.4 mOhms | -55°C ~ 105°C | Through Hole | 1.260" L x 0.827" W (32.00mm x 21.00mm) | 0.500" (12.70mm) | PC Pins | 1.083" (27.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
|
225P10294XD3CAP FILM 1000PF 10% 400VDC RAD |
148 |
|
Datasheet |
Radial | 1000 pF | ±10% | - | 400V | Polyester | - | -55°C ~ 85°C | Through Hole | 0.799" L x 0.252" W (20.30mm x 6.40mm) | 0.551" (14.00mm) | PC Pins | 0.374" (9.50mm) | Audio; DC Link, DC Filtering | - | - |
|
ECW-F6304HLCAP FILM 0.3UF 3% 630VDC RADIAL |
953 |
|
Datasheet |
Radial | 0.3 µF | ±3% | 223V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.807" L x 0.429" W (20.50mm x 10.90mm) | 0.736" (18.70mm) | PC Pins | 0.689" (17.50mm) | High Frequency, Switching | - | - |
|
ECW-F6244HLCAP FILM 0.24UF 3% 630VDC RADIAL |
559 |
|
Datasheet |
Radial | 0.24 µF | ±3% | 223V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.709" L x 0.441" W (18.00mm x 11.20mm) | 0.685" (17.40mm) | PC Pins | 0.591" (15.00mm) | High Frequency, Switching | - | - |
|
ECQ-E2W155KHCAP FILM 1.5UF 10% 450VDC RADIAL |
473 |
|
Datasheet |
Radial | 1.5 µF | ±10% | - | 450V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 1.012" L x 0.323" W (25.70mm x 8.20mm) | 0.677" (17.20mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | - | - |
|
158X103CAP FILM 10000PF 20% 275VAC RAD |
277 |
|
Datasheet |
Radial | 10000 pF | ±20% | 275V | - | Polyester, Metallized | - | -40°C ~ 100°C | Through Hole | 0.669" L x 0.197" W (17.00mm x 5.00mm) | 0.492" (12.50mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | X2 | - |
|
BFC233860682CAP FILM 6800PF 20% 1KVDC RADIAL |
28,997 |
|
Datasheet |
Radial | 6800 pF | ±20% | 300V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.689" L x 0.197" W (17.50mm x 5.00mm) | 0.433" (11.00mm) | PC Pins | 0.591" (15.00mm) | Automotive; EMI, RFI Suppression | AEC-Q200, Y2 | - |
|
|
BFC237011684CAP FILM 0.68UF 10% 63VDC RADIAL |
10,103 |
|
Datasheet |
Radial | 0.68 µF | ±10% | 40V | 63V | Polyester, Metallized | - | -55°C ~ 100°C | Through Hole | 0.283" L x 0.177" W (7.20mm x 4.50mm) | 0.354" (9.00mm) | PC Pins | 0.200" (5.08mm) | Automotive | AEC-Q200 | Long Life |
|
|
BFC233824223CAP FILM 0.022UF 20% 630VDC RAD |
2,193 |
|
Datasheet |
Radial | 0.022 µF | ±20% | 310V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 0.394" L x 0.157" W (10.00mm x 4.00mm) | 0.354" (9.00mm) | PC Pins | 0.295" (7.50mm) | EMI, RFI Suppression | X2 | - |
|
225P22492XD3CAP FILM 0.22UF 10% 200VDC RAD |
567 |
|
Datasheet |
Radial | 0.22 µF | ±10% | 140V | 200V | Polyester | - | -55°C ~ 85°C | Through Hole | 0.799" L x 0.480" W (20.30mm x 12.20mm) | 0.772" (19.60mm) | PC Pins | 0.375" (9.52mm) | Audio; DC Link, DC Filtering | - | - |
|

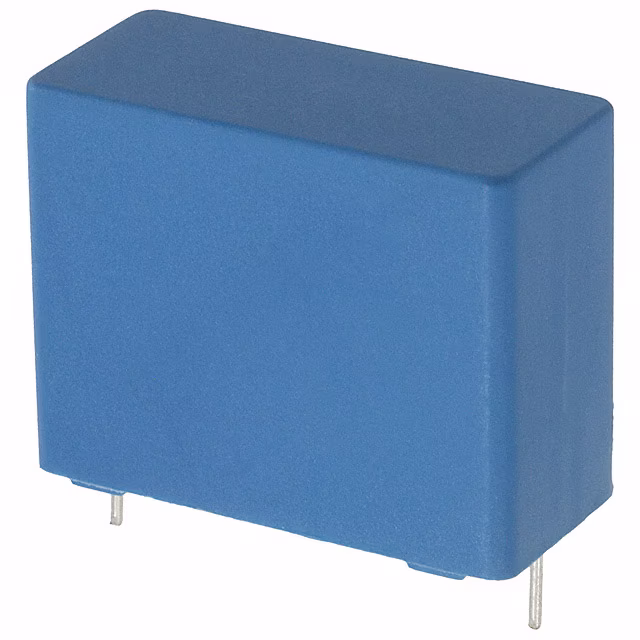

B32524Q8105K000CAP FILM 1UF 10% 630VDC RADIAL |
1,411 |
|
Datasheet |
Radial | 1 µF | ±10% | 220V | 630V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 125°C | Through Hole | 1.240" L x 0.551" W (31.50mm x 14.00mm) | 0.965" (24.50mm) | PC Pins | 1.083" (27.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200 | - |
|
|
ECW-F4474HLCAP FILM 0.47UF 3% 400VDC RADIAL |
563 |
|
Datasheet |
Radial | 0.47 µF | ±3% | 141V | 400V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.709" L x 0.441" W (18.00mm x 11.20mm) | 0.693" (17.60mm) | PC Pins | 0.591" (15.00mm) | High Frequency, Switching | - | - |
|
|
FKP1T023306D00KSSDCAP FILM 0.033UF 10% 1.6KVDC RAD |
1,092 |
|
Datasheet |
Radial | 0.033 µF | ±10% | 650V | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 1.240" L x 0.512" W (31.50mm x 13.00mm) | 0.945" (24.00mm) | PC Pins | 1.083" (27.50mm) | High Frequency, Switching; High Pulse, DV/DT | - | - |
|
|
C4AQIBU4400M1XJCAP FILM 4UF 5% 800VDC RADIAL |
682 |
|
Datasheet |
Radial | 4 µF | ±5% | - | 800V | Polypropylene (PP), Metallized | 12.9 mOhms | -55°C ~ 105°C | Through Hole | 1.240" L x 0.512" W (31.50mm x 13.00mm) | 0.992" (25.20mm) | PC Pins | 1.083" (27.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | Low ESL |
|
R71PN433050H6KFILM, RADIAL, PULSE, SINGLE META |
121 |
|
Datasheet |
Radial | 3.3 µF | ±10% | 220V | 630V | Polypropylene (PP), Metallized | 15 mOhms | -55°C ~ 125°C | Through Hole | 1.043" L x 0.512" W (26.50mm x 13.00mm) | 0.870" (22.10mm) | PC Pins | 0.886" (22.50mm) | High Frequency; High Pulse, DV/DT; Power Factor Correction (PFC) | AEC-Q200 | - |
|
35MU473MZ22012CAP FILM 0.047UF 20% 35VDC 0805 |
3,020 |
|
Datasheet |
0805 (2012 Metric) | 0.047 µF | ±20% | - | 35V | Acrylic, Metallized | - | -55°C ~ 125°C | Surface Mount | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.047" (1.20mm) | Solder Pads | - | DC Link, DC Filtering | - | - |
Film Capacitors Electronic Components
Explore Film Capacitors electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
