Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
C4AKOBU4270A3YJFILM, RADIAL, METALLIZED POLYPRO |
652 |
|
Datasheet |
Radial | 2.7 µF | ±5% | - | 900V | Polypropylene (PP), Metallized | 16 mOhms | -55°C ~ 135°C | Through Hole | 1.260" L x 0.551" W (32.00mm x 14.00mm) | 1.130" (28.70mm) | PC Pins | 1.083" (27.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | Long Life, Low ESL |
|
LDEDD4100MA0N00CAP FILM 1UF 20% 63VDC 2220 |
4,653 |
|
Datasheet |
2220 (5750 Metric) | 1 µF | ±20% | 40V | 63V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.236" L x 0.197" W (6.00mm x 5.00mm) | 0.173" (4.40mm) | Solder Pads | - | Automotive | AEC-Q200 | High Temperature |
|
B32714H5505K000MKP DC FILTERING - 500VDC, 5UF 1 |
4,122 |
|
Datasheet |
Radial | 5 µF | ±10% | - | 500V | Polypropylene (PP), Metallized | 10.8 mOhms | -55°C ~ 105°C | Through Hole | 1.240" L x 0.433" W (31.50mm x 11.00mm) | 0.827" (21.00mm) | PC Pins | 1.083" (27.50mm) | Automotive | AEC-Q200 | Long Life |
|
MMP4S68K-FCAP FILM 0.068UF 400VDC AXIAL |
3,006 |
|
Datasheet |
Axial | 0.068 µF | ±10% | 200V | 400V | Polyester, Metallized | - | -55°C ~ 125°C | Through Hole | 0.394" W, 0.256" T x 0.669" L (10.00mm, 6.50mm x 17.00mm) | - | PC Pins | - | General Purpose | - | Long Life |
|

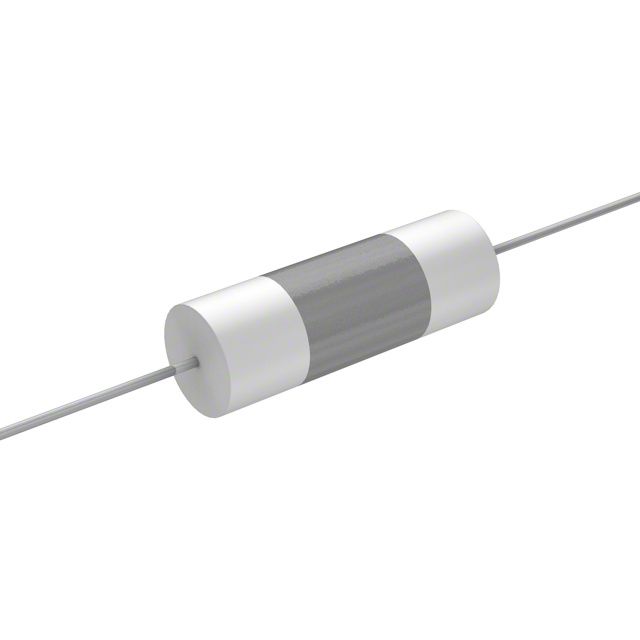

150474J100DCCAP FILM 0.47UF 5% 100VDC AXIAL |
1,829 |
|
Datasheet |
Axial | 0.47 µF | ±5% | 63V | 100V | Polyester, Metallized | - | -55°C ~ 125°C | Through Hole | 0.276" Dia x 0.807" L (7.00mm x 20.50mm) | - | PC Pins | - | General Purpose | - | - |
|

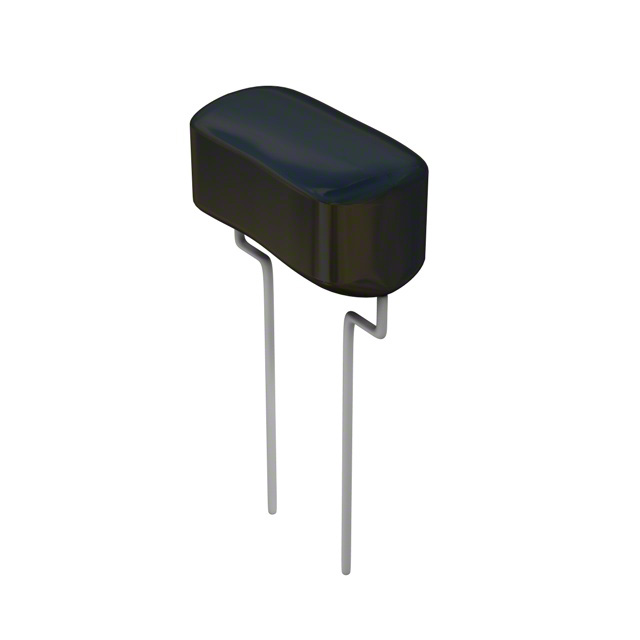

DPFF2S15J-FCAP FILM 0.015UF 5% 250VDC RAD |
1,775 |
|
Datasheet |
Radial | 0.015 µF | ±5% | 155V | 250V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.752" L x 0.370" W (19.10mm x 9.40mm) | 0.370" (9.40mm) | PC Pins | 0.374" (9.50mm) | High Pulse, DV/DT | - | - |
|
715P472916LA3CAP FILM 4700PF 10% 1.6KVDC RAD |
924 |
|
Datasheet |
Radial | 4700 pF | ±10% | 500V | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -55°C ~ 85°C | Through Hole | 0.461" Dia x 1.252" L (11.70mm x 31.80mm) | 0.752" (19.10mm) | PC Pins | 1.031" (26.20mm) | Audio; High Frequency, Switching; High Pulse, DV/DT; Snubber | - | - |
|
ECW-FG2J305JCAP FILM 3UF 5% 630VDC RADIAL |
205 |
|
Datasheet |
Radial | 3 µF | ±5% | 141V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.240" L x 0.531" W (31.50mm x 13.50mm) | 1.142" (29.00mm) | PC Pins | 1.083" (27.50mm) | Automotive; High Frequency, Switching | AEC-Q200 | High Temperature |
|
225P68291WD3CAP FILM 6800PF 10% 100VDC RAD |
159 |
|
Datasheet |
Radial | 6800 pF | ±10% | 70V | 100V | Polyester | - | -55°C ~ 85°C | Through Hole | 0.700" L x 0.252" W (17.78mm x 6.40mm) | 0.350" (8.90mm) | PC Pins | 0.375" (9.52mm) | Audio; DC Link, DC Filtering | - | - |
|
FKP1T021506B00JSSDCAP FILM 0.015UF 5% 1.6KVDC RAD |
3,172 |
|
Datasheet |
Radial | 0.015 µF | ±5% | 650V | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 1.240" L x 0.433" W (31.50mm x 11.00mm) | 0.827" (21.00mm) | PC Pins | 1.083" (27.50mm) | High Frequency, Switching; High Pulse, DV/DT | - | - |
|
PME295RB4470MR19T0CAP FILM 4700PF 20% 480VAC RAD |
2,649 |
|
Datasheet |
Radial | 4700 pF | ±20% | 480V | - | Paper, Metallized | - | -40°C ~ 115°C | Through Hole | 0.709" L x 0.335" W (18.00mm x 8.50mm) | 0.630" (16.00mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | Y1 | - |
|

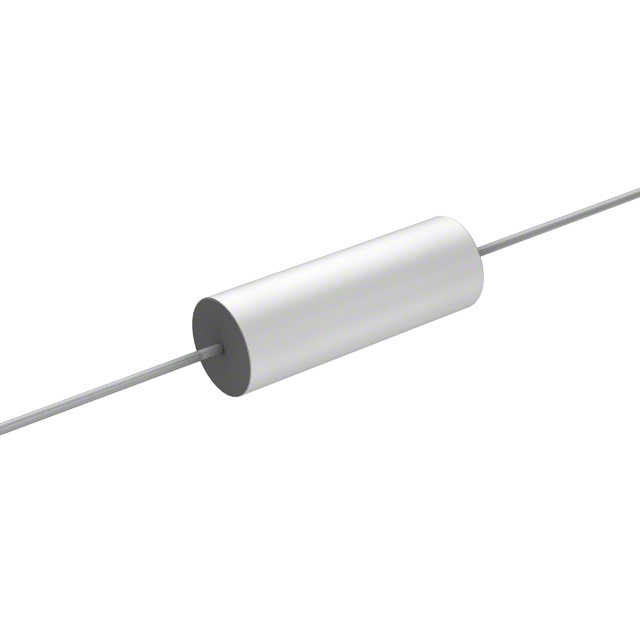

WMF1S33K-FCAP FILM 0.033UF 10% 100VDC AXIA |
2,624 |
|
Datasheet |
Axial | 0.033 µF | ±10% | - | 100V | Polyester | - | -55°C ~ 125°C | Through Hole | 0.256" Dia x 0.685" L (6.50mm x 17.40mm) | - | PC Pins | - | General Purpose | - | - |
|
BFC233810223CAP FILM 0.022UF 20% 1KVDC RAD |
1,739 |
|
Datasheet |
Radial | 0.022 µF | ±20% | 440V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.689" L x 0.197" W (17.50mm x 5.00mm) | 0.433" (11.00mm) | PC Pins | 0.591" (15.00mm) | General Purpose | - | - |
|
|
MMP6S15K-FCAP FILM 0.015UF 630VDC AXIAL |
553 |
|
Datasheet |
Axial | 0.015 µF | ±10% | 250V | 630V | Polyester, Metallized | - | -55°C ~ 125°C | Through Hole | 0.394" W, 0.236" T x 0.669" L (10.00mm, 6.00mm x 17.00mm) | - | PC Pins | - | General Purpose | - | Long Life |
|
B32774X8505K000CAP FILM 5UF 10% 800VDC RADIAL |
457 |
|
Datasheet |
Radial | 5 µF | ±10% | - | 800V | Polypropylene (PP), Metallized | 15.3 mOhms | -40°C ~ 105°C | Through Hole | 1.240" L x 0.551" W (31.50mm x 14.00mm) | 0.965" (24.50mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering | - | Long Life |
|
WMF2S47K-FCAP FILM 0.047UF 10% 250VDC AXIA |
240 |
|
Datasheet |
Axial | 0.047 µF | ±10% | - | 250V | Polyester | - | -55°C ~ 125°C | Through Hole | 0.295" Dia x 0.811" L (7.50mm x 20.60mm) | - | PC Pins | - | General Purpose | - | - |
|
565MMR100KCAP FILM 5.6UF 10% 100VDC RADIAL |
160 |
|
Datasheet |
Radial | 5.6 µF | ±10% | 63V | 100V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 1.024" L x 0.327" W (26.00mm x 8.30mm) | 0.728" (18.50mm) | PC Pins | 0.886" (22.50mm) | General Purpose | - | - |
|
DMT6D33K-FCAP FILM 3300PF 10% 630VDC RAD |
4,898 |
|
Datasheet |
Radial | 3300 pF | ±10% | 250V | 630V | Polyester, Metallized | - | -55°C ~ 125°C | Through Hole | 0.693" L x 0.252" W (17.60mm x 6.40mm) | 0.468" (11.89mm) | PC Pins | 0.543" (13.80mm) | General Purpose | - | - |
|
ECW-U2104JC9CAP FILM 0.1UF 5% 250VDC 2420 |
2,291 |
|
Datasheet |
2420 (6050 Metric) | 0.1 µF | ±5% | 125V | 250V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.236" L x 0.197" W (6.00mm x 5.00mm) | 0.157" (4.00mm) | Solder Pads | - | General Purpose | - | - |
|
150223J400BBCAP FILM 0.022UF 5% 400VDC AXIAL |
1,000 |
|
Datasheet |
Axial | 0.022 µF | ±5% | 200V | 400V | Polyester, Metallized | - | -55°C ~ 125°C | Through Hole | 0.236" Dia x 0.650" L (6.00mm x 16.50mm) | - | PC Pins | - | General Purpose | - | - |
