Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BFC236865104CAP FILM 0.1UF 10% 630VDC RADIAL |
2,967 |
|
Datasheet |
Radial | 0.1 µF | ±10% | 250V | 630V | Polyester, Metallized | - | -55°C ~ 105°C | Through Hole | 1.024" L x 0.276" W (26.00mm x 7.00mm) | 0.748" (19.00mm) | PC Pins | 0.886" (22.50mm) | General Purpose | - | Long Life |
|
R474R32205001KCAP FILM 0.22UF 10% 1KVDC RADIAL |
336 |
|
Datasheet |
Radial | 0.22 µF | ±10% | 440V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.260" L x 0.354" W (32.00mm x 9.00mm) | 0.673" (17.10mm) | PC Pins | 1.083" (27.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X2 | - |
|
25MU104MZ22012CAP FILM 0.1UF 20% 25VDC 0805 |
1,990 |
|
Datasheet |
0805 (2012 Metric) | 0.1 µF | ±20% | - | 25V | Acrylic, Metallized | - | -55°C ~ 125°C | Surface Mount | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.047" (1.20mm) | Solder Pads | - | DC Link, DC Filtering | - | - |
|
LDEED3470JA0N00CAP FILM 0.47UF 5% 100VDC 2220 |
1,976 |
|
Datasheet |
2220 (5750 Metric) | 0.47 µF | ±5% | 63V | 100V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.236" L x 0.197" W (6.00mm x 5.00mm) | 0.173" (4.40mm) | Solder Pads | - | Automotive | AEC-Q200 | High Temperature |
|
PME271YC5470MR30CAP FILM 0.047UF 20% 1KVDC RAD |
629 |
|
Datasheet |
Radial | 0.047 µF | ±20% | 300V | 1000V (1kV) | Paper, Metallized | - | -40°C ~ 115°C | Through Hole | 0.945" L x 0.354" W (24.00mm x 9.00mm) | 0.591" (15.00mm) | PC Pins | 0.799" (20.30mm) | EMI, RFI Suppression | Y2 | - |
|
C4AQNLU4250M12JCAP FILM 2.5UF 5% 1KVDC RADIAL |
211 |
|
Datasheet |
Radial | 2.5 µF | ±5% | - | 1000V (1kV) | Polypropylene (PP), Metallized | 16.1 mOhms | -55°C ~ 105°C | Through Hole | 1.260" L x 0.945" W (32.00mm x 24.00mm) | 0.598" (15.20mm) | PC Pins | 1.083" (27.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | Low ESL |
|
|
LDEID3100JA0N00CAP FILM 0.1UF 5% 250VDC 2220 |
4,408 |
|
Datasheet |
2220 (5750 Metric) | 0.1 µF | ±5% | 120V | 250V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.236" L x 0.197" W (6.00mm x 5.00mm) | 0.161" (4.10mm) | Solder Pads | - | Automotive | AEC-Q200 | High Temperature |
|
ECW-F4514HLCAP FILM 0.51UF 3% 400VDC RADIAL |
328 |
|
Datasheet |
Radial | 0.51 µF | ±3% | 141V | 400V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.807" L x 0.406" W (20.50mm x 10.30mm) | 0.720" (18.30mm) | PC Pins | 0.689" (17.50mm) | High Frequency, Switching | - | - |
|

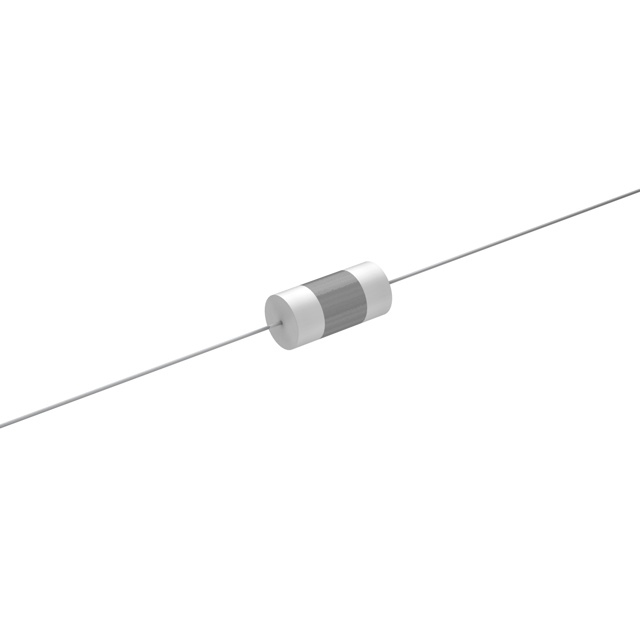

150105K100ICCAP FILM 1UF 10% 100VDC AXIAL |
271 |
|
Datasheet |
Axial | 1 µF | ±10% | 63V | 100V | Polyester, Metallized | - | -55°C ~ 125°C | Through Hole | 0.394" Dia x 0.807" L (10.00mm x 20.50mm) | - | PC Pins | - | General Purpose | - | - |
|
R46KR447000M1MCAP FILM 4.7UF 20% 560VDC RAD |
153 |
|
Datasheet |
Radial | 4.7 µF | ±20% | 275V | 560V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.260" L x 0.866" W (32.00mm x 22.00mm) | 1.461" (37.10mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | X2 | - |
|
MKP1U031006D00KSSDCAP FILM 0.1UF 10% 2KVDC RAD |
7,640 |
|
Datasheet |
Radial | 0.1 µF | ±10% | 700V | 2000V (2kV) | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 1.240" L x 0.512" W (31.50mm x 13.00mm) | 0.945" (24.00mm) | PC Pins | 1.083" (27.50mm) | High Pulse, DV/DT | - | - |
|
|
C4AQCBU4330A1WJCAP FILM 3.3UF 5% 650VDC RADIAL |
699 |
|
Datasheet |
Radial | 3.3 µF | ±5% | - | 650V | Polypropylene (PP), Metallized | 17 mOhms | -40°C ~ 105°C | Through Hole | 1.240" L x 0.433" W (31.50mm x 11.00mm) | 0.795" (20.20mm) | PC Pins | 1.083" (27.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
|
|
C4AQCLU4330A11JCAP FILM 3.3UF 5% 650VDC RADIAL |
687 |
|
Datasheet |
Radial | 3.3 µF | ±5% | - | 650V | Polypropylene (PP), Metallized | 16.8 mOhms | -55°C ~ 105°C | Through Hole | 1.260" L x 0.827" W (32.00mm x 21.00mm) | 0.500" (12.70mm) | PC Pins | 1.083" (27.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
|
B32524R6335K000CAP FILM 3.3UF 10% 400VDC RADIAL |
525 |
|
Datasheet |
Radial | 3.3 µF | ±10% | 200V | 400V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 125°C | Through Hole | 1.240" L x 0.551" W (31.50mm x 14.00mm) | 0.965" (24.50mm) | PC Pins | 1.083" (27.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200 | - |
|
C4AF1BU4250F1XKFILM CAP,AC,2.5 UF, 10%, 250 VAC |
203 |
|
Datasheet |
Radial | 2.5 µF | ±10% | 250V | 500V | Polypropylene (PP), Metallized | 25.2 mOhms | -55°C ~ 105°C | Through Hole | 1.240" L x 0.512" W (31.50mm x 13.00mm) | 0.992" (25.20mm) | PC Pins | 1.083" (27.50mm) | Automotive | AEC-Q200 | - |
|
105MMR630KCAP FILM 1UF 10% 630VDC RADIAL |
469 |
|
Datasheet |
Radial | 1 µF | ±10% | 220V | 630V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 1.220" L x 0.512" W (31.00mm x 13.00mm) | 0.866" (22.00mm) | PC Pins | 1.083" (27.50mm) | General Purpose | - | - |
|
R75RR318050H4JCAP FILM 0.18UF 5% 1.25KVDC RAD |
178 |
|
Datasheet |
Radial | 0.18 µF | ±5% | 600V | 1250V (1.25kV) | Polypropylene (PP), Metallized | 6.2 mOhms | -55°C ~ 125°C | Through Hole | 1.260" L x 0.433" W (32.00mm x 11.00mm) | 0.791" (20.10mm) | PC Pins | 1.083" (27.50mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
ECQ-E2565KFCAP FILM 5.6UF 10% 250VDC RADIAL |
3,228 |
|
Datasheet |
Radial | 5.6 µF | ±10% | - | 250V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 1.220" L x 0.465" W (31.00mm x 11.80mm) | 0.866" (22.00mm) | PC Pins | 1.083" (27.50mm) | General Purpose | - | - |
|
B32774X1205K000CAP FILM 2UF 10% 1.2KVDC RADIAL |
1,318 |
|
Datasheet |
Radial | 2 µF | ±10% | - | 1200V (1.2kV) | Polypropylene (PP), Metallized | 22 mOhms | -40°C ~ 105°C | Through Hole | 1.240" L x 0.591" W (31.50mm x 15.00mm) | 0.965" (24.50mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering | - | Long Life |
|
B32914A5334M000CAP FILM 0.33UF 20% 1KVDC RADIAL |
1,272 |
|
Datasheet |
Radial | 0.33 µF | ±20% | 530V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.240" L x 0.433" W (31.50mm x 11.00mm) | 0.748" (19.00mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | X1 | - |
Film Capacitors Electronic Components
Explore Film Capacitors electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
